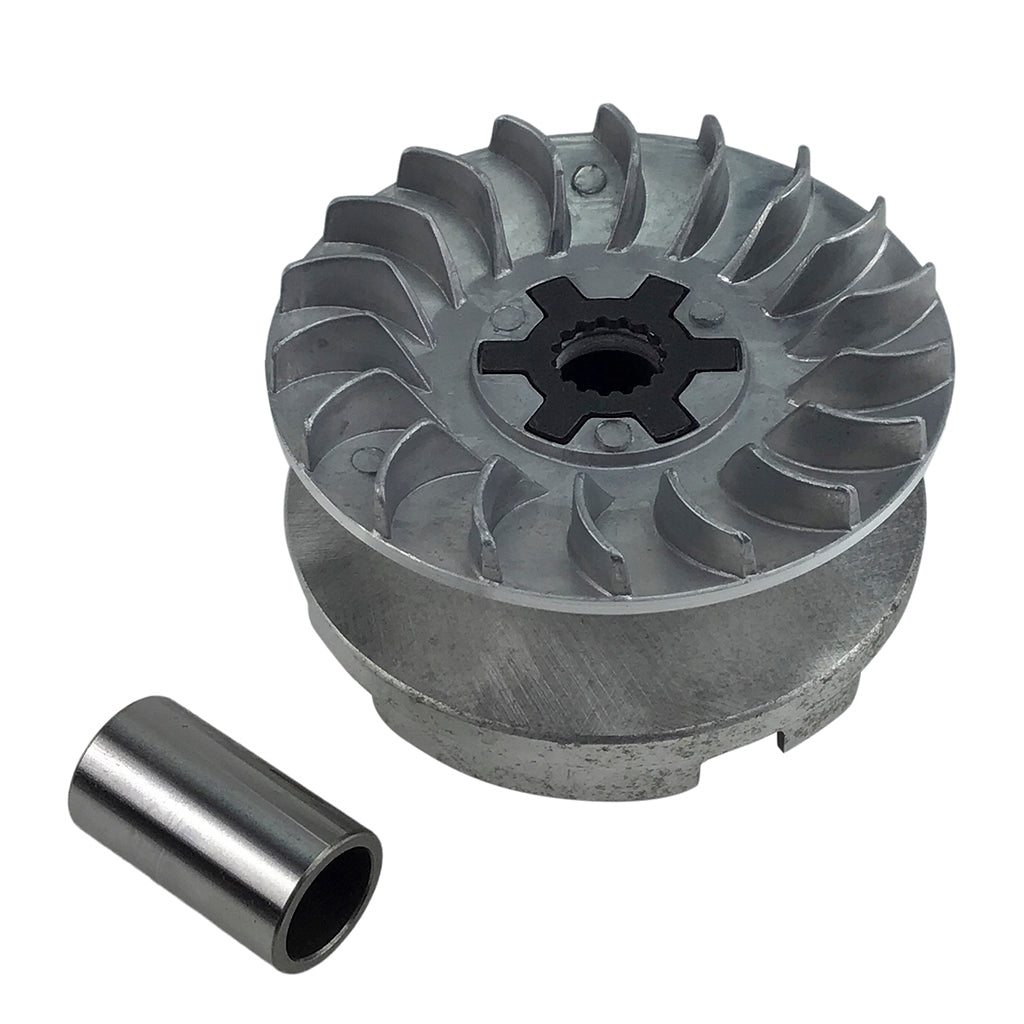

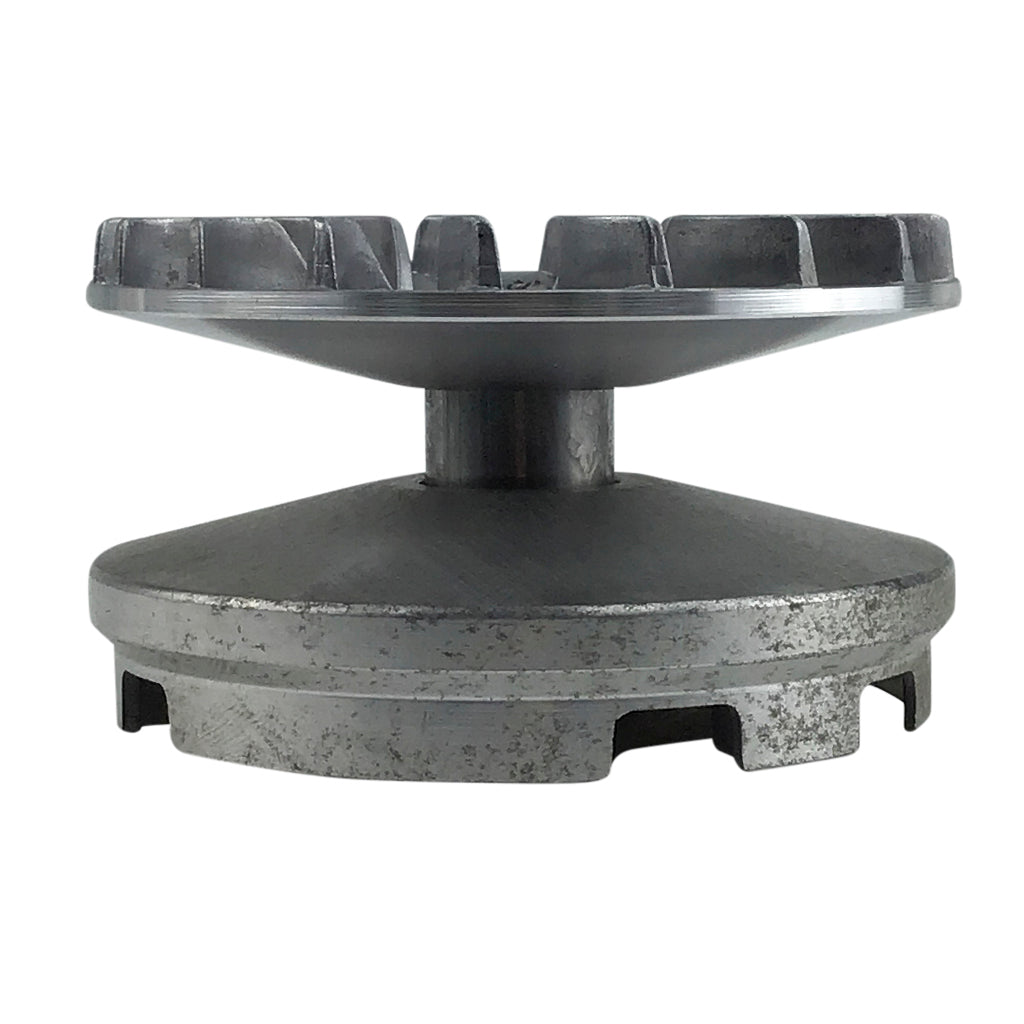

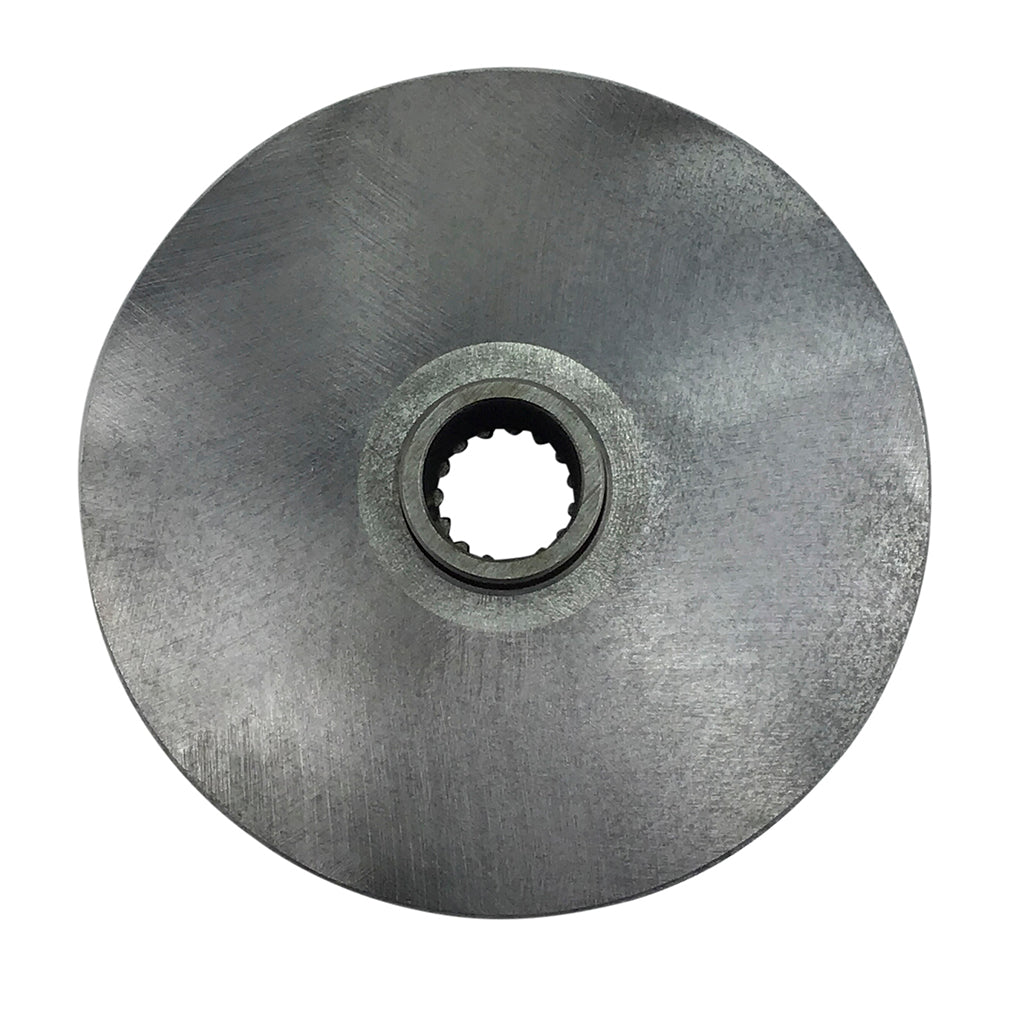

Variator Clutch Assembly for 2-Stroke 50cc 90cc Engines
Chinese complete variator assembly for the 2-stroke 50cc and 90cc engines used in several makes and models of scooters and atvs.
There are two different variators used on the 2-stroke motors. One has a 21mm bushing and 15 teeth in the drive face. The other has an 18mm bushing and 17 teeth. This is the 21mm, 15 tooth version. Please check yours before ordering.
- Front variator plate OD: 95mm [3.73"]
- Front variator plate center hole ID: 21mm [.83"]
- Variator back plate teeth: 15 tooth
- Variator bushing OD: 21mm [.83"]
- Variator bushing length: 38mm [1.49"]
- Roller width: 11.7mm [.46"]
- Roller OD: 15mm [.59"]
- Roller ID: 8.6mm [.34"]

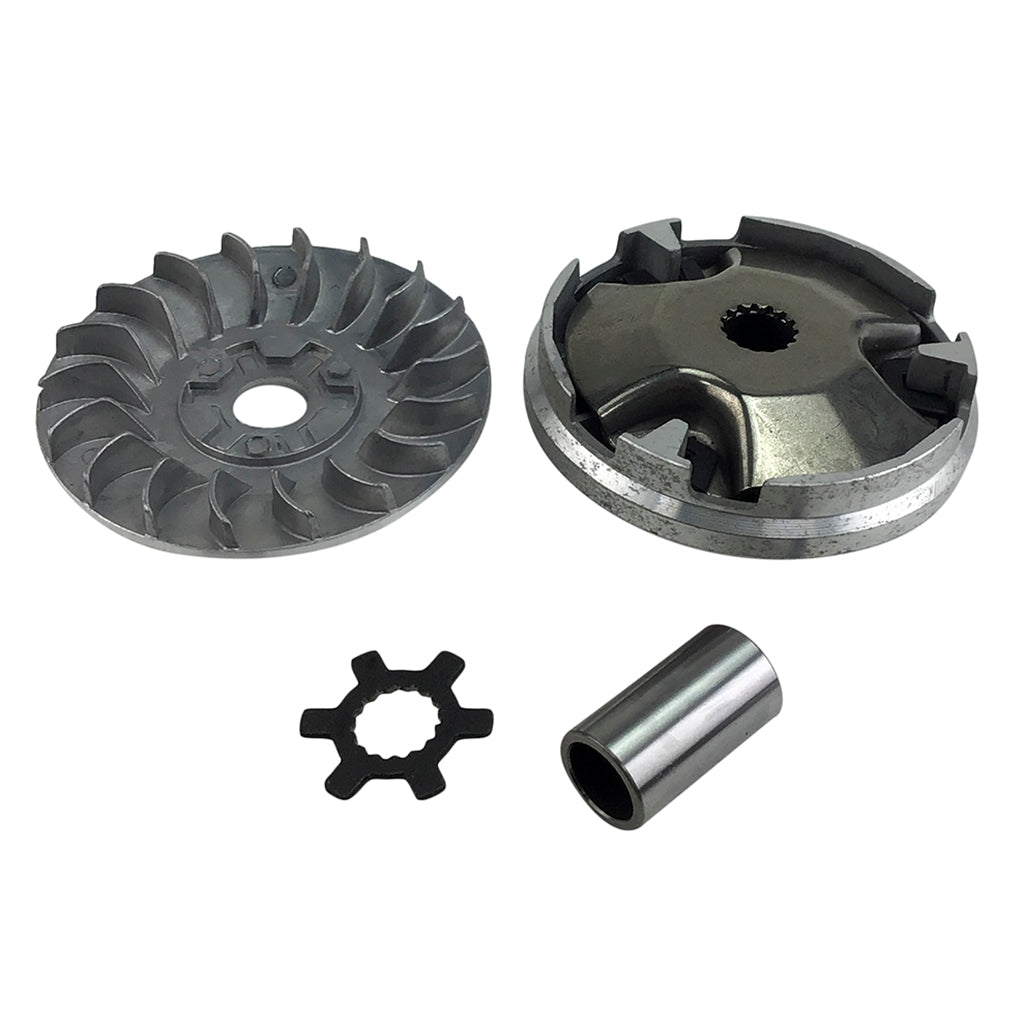

- Includes all pieces shown
Do you need your variator clutch fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
Excellent, clear description of part was helpful in choosing the correct part.
