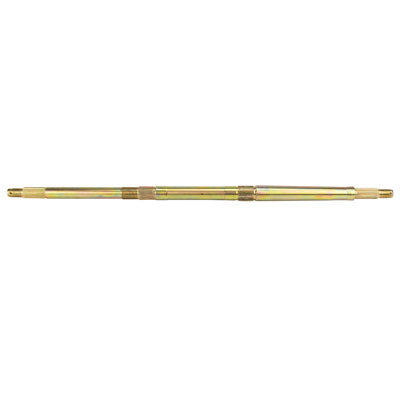

Tao Tao ATA125F, ATA250D, Rhino 250 and 250 Sport Utility Rear Axle
These axles are model specific. DO NOT ORDER if your make and model are not listed. There is a 50% restock fee plus shipping for returned axles.
*Axles are standard shipping only - We can only ship axles to the 48 Contiguous States
This axle is known to fit the Tao Tao ATA125F, ATA250D, Rhino 250 and 250 Sport Utility. Please use the measurements and pictures to help insure the correct fit.
- Overall length: 32"
- Ends are threaded 20mm x 1.5 and drilled for cotter key
- 23 splines on both ends
- Distance from end to center spline on one end: 11"
- Distance from end to center spline on other end: 11.5"
- Spline count sprocket carrier section: 32
- Spline count disc carrier section: 28
- Nuts are not included
- 20858B2430 101307
Known to fit the Tao Tao ATA125F, ATA125F1, ATA150B. ATA150D, ATA150G, ATA150E, Bull 150, Bull 200, ATA250D, Rhino 250 and 250 Sport Utility.
