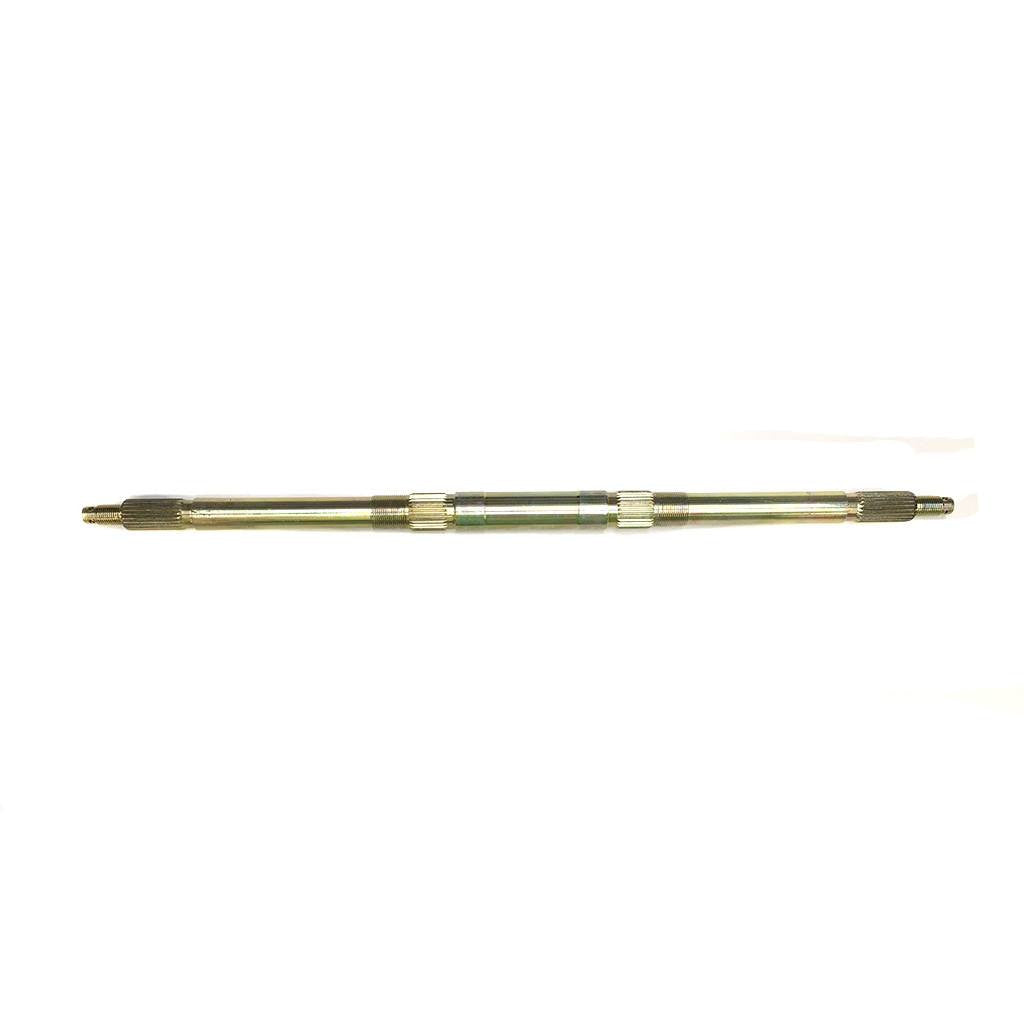

Tao Tao ATA-110-D/D1, ATA125-D Rear Axle
These axles are model specific. DO NOT ORDER if your make and model are not listed. There is a 50% restock fee plus shipping for returned axles.
*Axles are standard shipping only - We can only ship axles to the 48 Contiguous States
This axle is known to fit the Tao Tao ATA110D/D1 and early models of ATA125D. Please use the measurements and pictures to help insure the correct fit. Please double check length if ordering for the ATA125D.
- Overall length: 25 5/8"
- Length of threaded ends: 21mm [.825"]
- Length of spline area: 44.7mm [1.75"]
- Distance from edge to center spline on one end: 10 1/4"
- Distance from edge to center spline on other end: 10 3/4"
- Diameter of bearing carrier section: 30mm [1.18"]
- Spline count hub end: 23
- Spline count sprocket carrier section: 28
- Spline count on disc carrier section: 28
- Diameter of end for axle nut: 16mm
- Diameter of hub spline: 23.65mm [.93"]
Known to fit Tao Tao ATA-110D/D1, ATA-125-D.
