Part number: 1242-MH100-04

Rear Axle Sprocket or Brake Disc Rotor Hub - Coleman KT196 Go-Kart

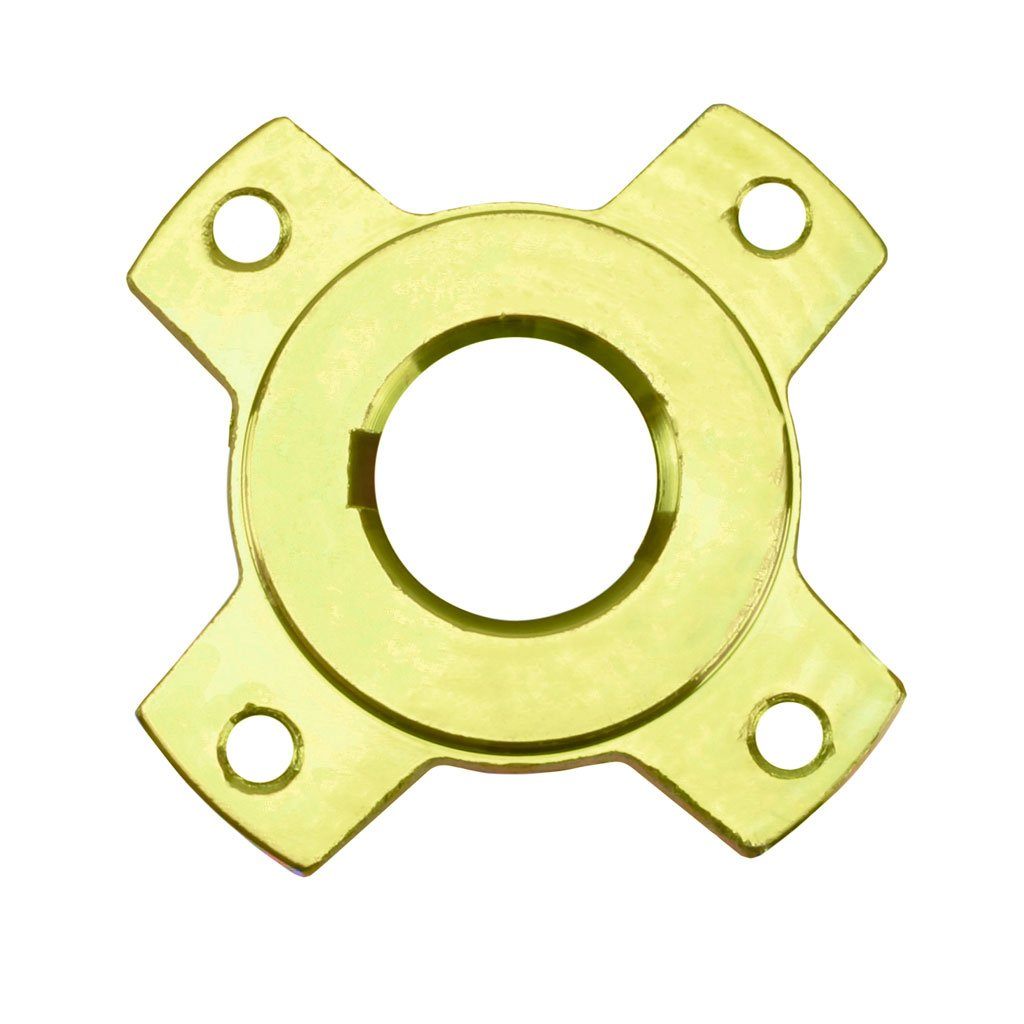

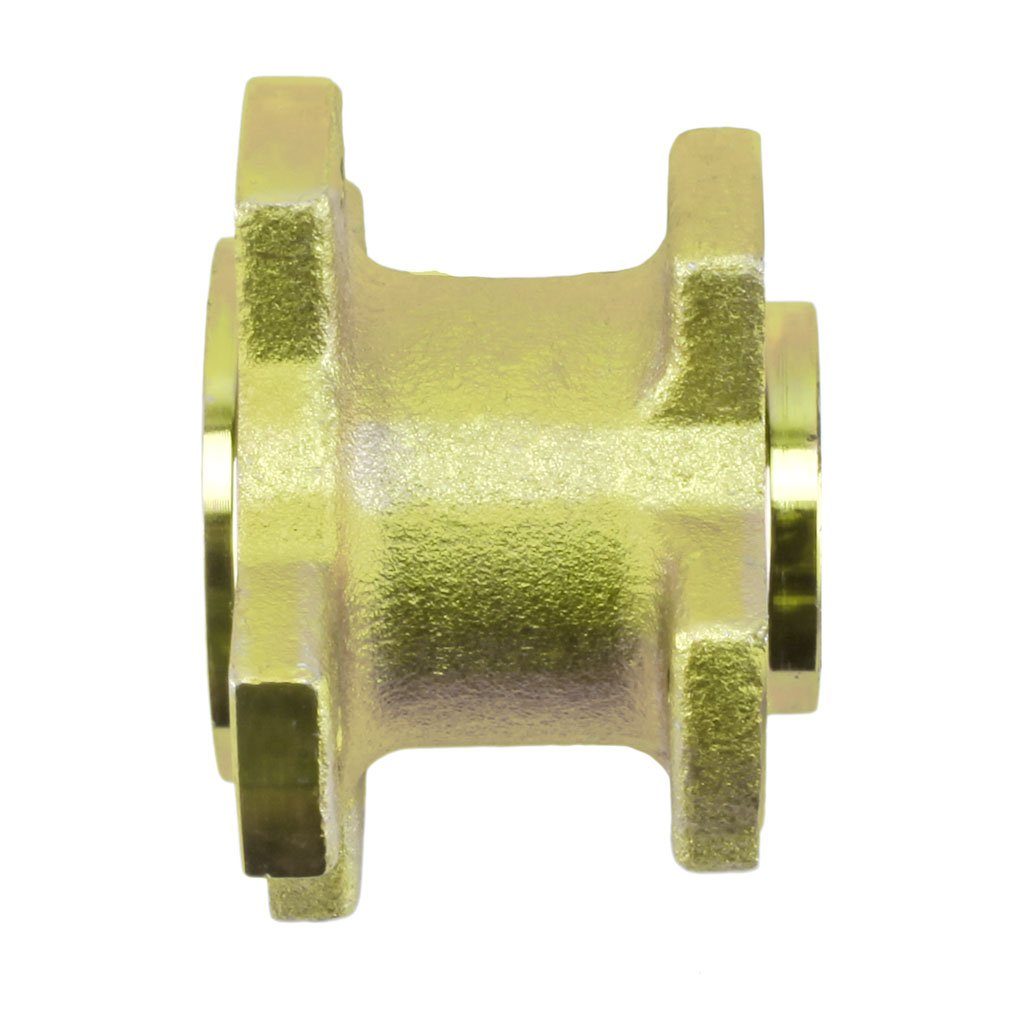

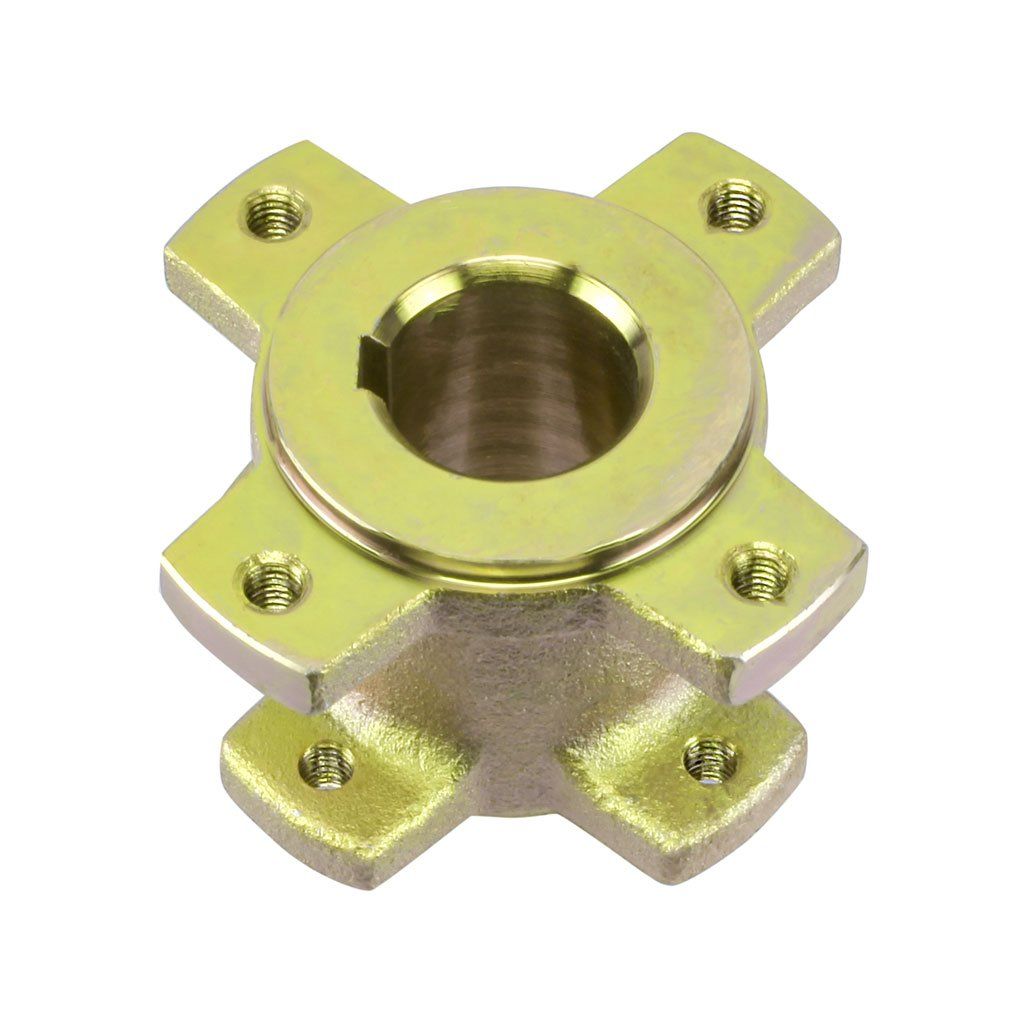

This sprocket mounting hub is used on the rear axle of the Coleman KT196 and the HiSun HS200GK go-karts. The rear sprocket and rear rotor mount to this hub. It may be used on other makes and models. Please use pictures and descriptions to determine fit.

Mounting hub details:

Hub with X pattern on both ends
Length of hub: 63mm (2.47 in)
8mm bolt holes are 80mm (3.15 in) center-to-center apart across the hub on the larger end
8mm bolt holes are 67mm (2.63 in) center-to-center apart across the hub on the smaller end
ID of hub: 30mm (1.17 in)
10mm threaded hole on side of hub
Uses an 8*75 flat key (not included)
P400001533020000
53302-400001-0000
46163-132-0000

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
