Part number:
5000-AX001-08
Rear Axle for Taotao 4FUN Go-Kart
These axles are model specific. DO NOT ORDER if your make and model are not listed. There is a 50% restock fee plus shipping for returned axles.
*Axles are standard shipping only - We can only ship axles to the 48 Contiguous States
This axle is known to fit the Tao Tao 4FUN 150 and 200 go-karts. Please use the measurements and pictures to help insure the correct fit.

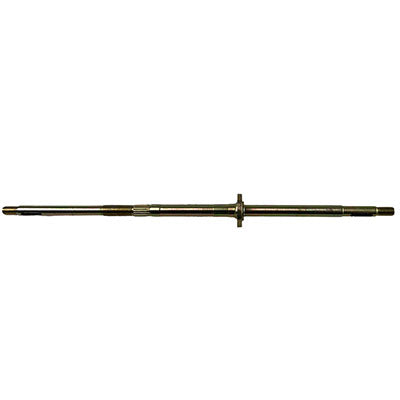

Axle description:
- Overall length: 113.6cm [44.75"]
- 20mm*1.5 threaded ends
- 23 splines on each end
- Diameter of splines at both ends: 23.78mm [.936"]
- Diameter in center of axle 33.03mm [1.30"]
- Flange closest to an end of the axle has (4) 8mm*1.25 threaded holes
- Flange closest to the middle of the axle has (6) 8.8mm holes
- Distance between flanges is approximately 12.56"
- Distance from end of axle to flange closest to the end is approximately 12"
- Distance from end of axle to flange in the middle is approximately 19.43"
- Ends of axle are drilled for cotter keys
- 101313
