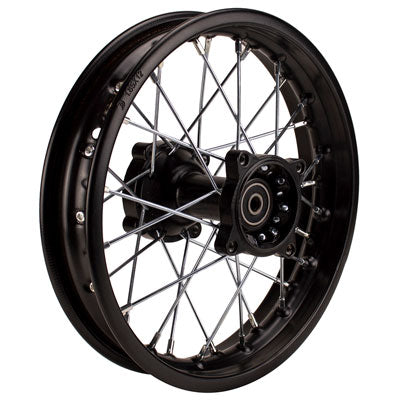

Chinese 12" x 1.85" Rear Dirt Bike Wheel Rim - Black with Silver Spokes
Chinese rear rim wheel for 110cc, 125cc dirt bikes. This size is used on several makes and models including Taotao dirt bikes. Please use detailed measurements and pictures to help you get the correct rim for your machine.
- Black with silver spokes
- Black hub
- 12" x 1.85"
- 32 spoke
- Hub ID: 12mm [.47"]
- Overall width of rim: 6.86cm [2.7"]
- Overall rim diameter: approx 33cm [13"]
- Center hole diameter: 12mm [.47"]
- Bolt hole spacing: 70mm [2.75"] center to center (rotor side)
- Bolt hole spacing diagonally: 100mm [3.93"]
- Bolt hole spacing: 65mm [2.55"] center to center (sprocket side)
- Bolt hole spacing diagonally: 92mm [3.62"]
- Bearings: 6301RS
- Width of rim thru the wheel: 132.35mm (see picture)
- Uses a 3.00 x 12 tire
- pit bikes
