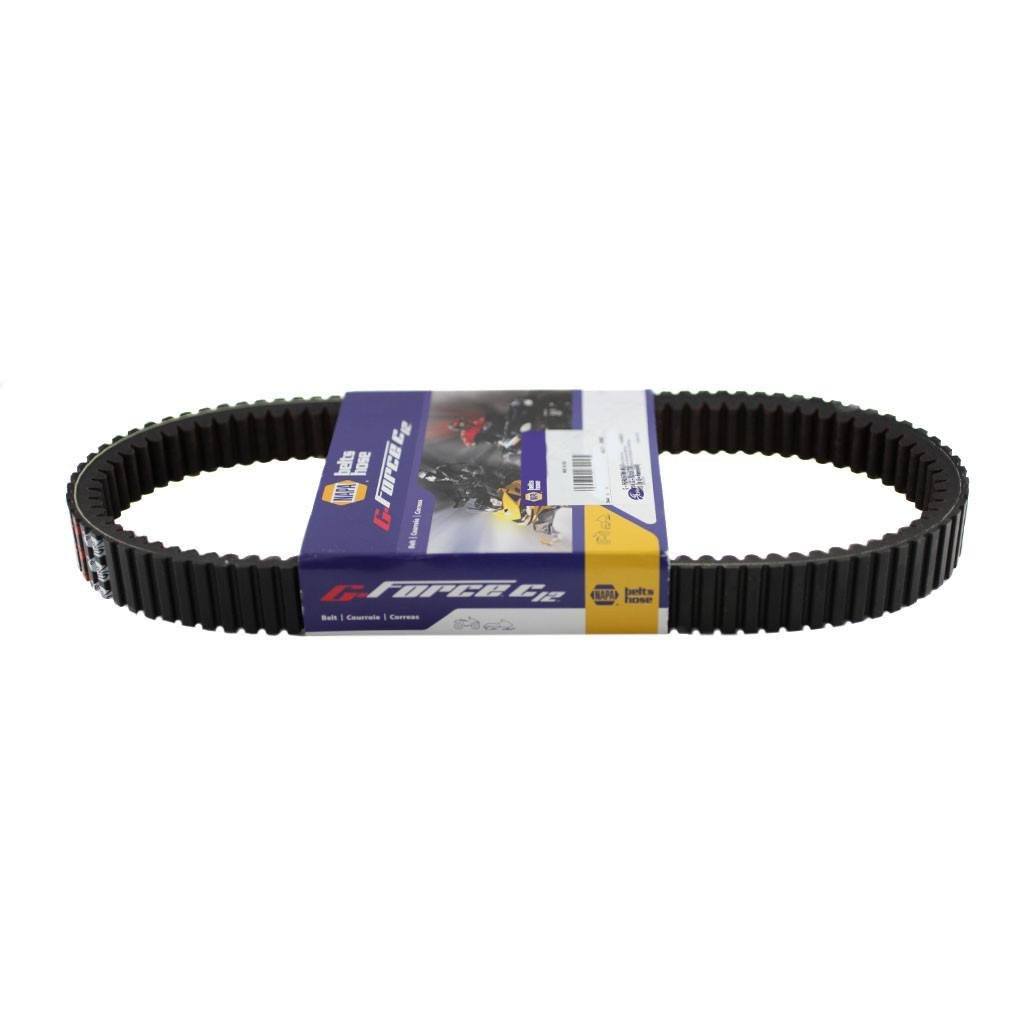

Gates CVT Drive Belt for Yamaha Snowmobiles
This CVT drive belt fits Yamaha snowmobiles.
Belt description:
- CVT [-Continuous Variable Transmission-]
- Napa G-Force - 40C4340 - Premium Version of 40G4340
- Yamaha Snowmobiles
- Replaces Carlisle - 1384416U3, 1384416U4, 1384432U3, 1384432U4, XS805
- Replaces Dayco - HPX5009, XTX5033
- Replaces Goodyear - 36GBSSV1132
- Replaces Napa / Gates 40C4340, 40G4340
- Replaces Yamaha - 8DN1764100, 8DN176410000, 8DN1764101, 8DN176410100, 8GK176411000, 8GS176410000
- Length: 1133mm [44.625"]
- Width: 35mm [1.375"]
- High Performance Neoprene with Carbon Tensile Cords for Optimal Power Transmission and Increased Side Load Resistance
Fits the following Yamaha models:
- 2006 - 2018 Apex 998cc
- 2006 - 2007 Attak 998cc
- 2008 - 2014 FX Nytro 1049cc
- 1999 - 2000 Mountain Max 600 598cc
- 2001 - 2002 Mountain Max 600 593cc
- 1998 - 2004 Mountain Max 700 698cc
- 2006 - 2007 Nytro 973cc
- 2007 - 2018 Phazer 499cc
- 2005 - 2007 RS Rage 973cc
- 2005 - 2018 RS Vector 973cc and 1049cc
- 2005 - 2018 RS Venture 973cc
- 2007 - 2009 RS Venture GT 973cc
- 2010 - 2015 RS Venture GT 1049cc
- 2018 RS Venture MP 499cc
- 2013 - 2018 RS Venture TF 1049cc
- 2007 - 2015 RS Viking 973cc
- 2004 - 2005 RX Warrior 998cc
- 2003 - 2005 RX-1 998cc
- 1998 - 1999 SRX 600 598cc
- 1998 - 2002 SRX 700 696cc
- 2000 - 2003 SX600R 598cc
- 2000 - 2001 SX700R 698cc
- 2004 - 2006 SXVenom 593cc
- 2002 - 2006 SXViper 696cc
- 1999 - 2006 Venture 600 593cc
- 1998 - 2004 Venture 700 698cc
- 2007 - 2014 Venture Lite 499cc
- 2013 - 2018 Venture MP 499cc
- 1999 - 2000 Venture XL 485cc
- 2017 - 2018 VK540
- 2006 - 2007 VK Professional 973cc
- 2016 - 2018 VK Professional II 1049cc
- 1999 - 2000 VMAX 500 494cc
- 1999 - 2003 VMAX 600 593cc
- 1998 - 2002 VMAX 700 698cc
The fastest way to ruin your new powersport drive belt is to simply install it. If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersport belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all.
Ensure the best performance and longest life from your G-Force belt. Follow these three steps when installing a new belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specs can affect performance – or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer’s specifications and clean the sheaves with a Scotch-Brite® pad. Remove old belt residue, glazing, oils and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles in 20 miles. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
