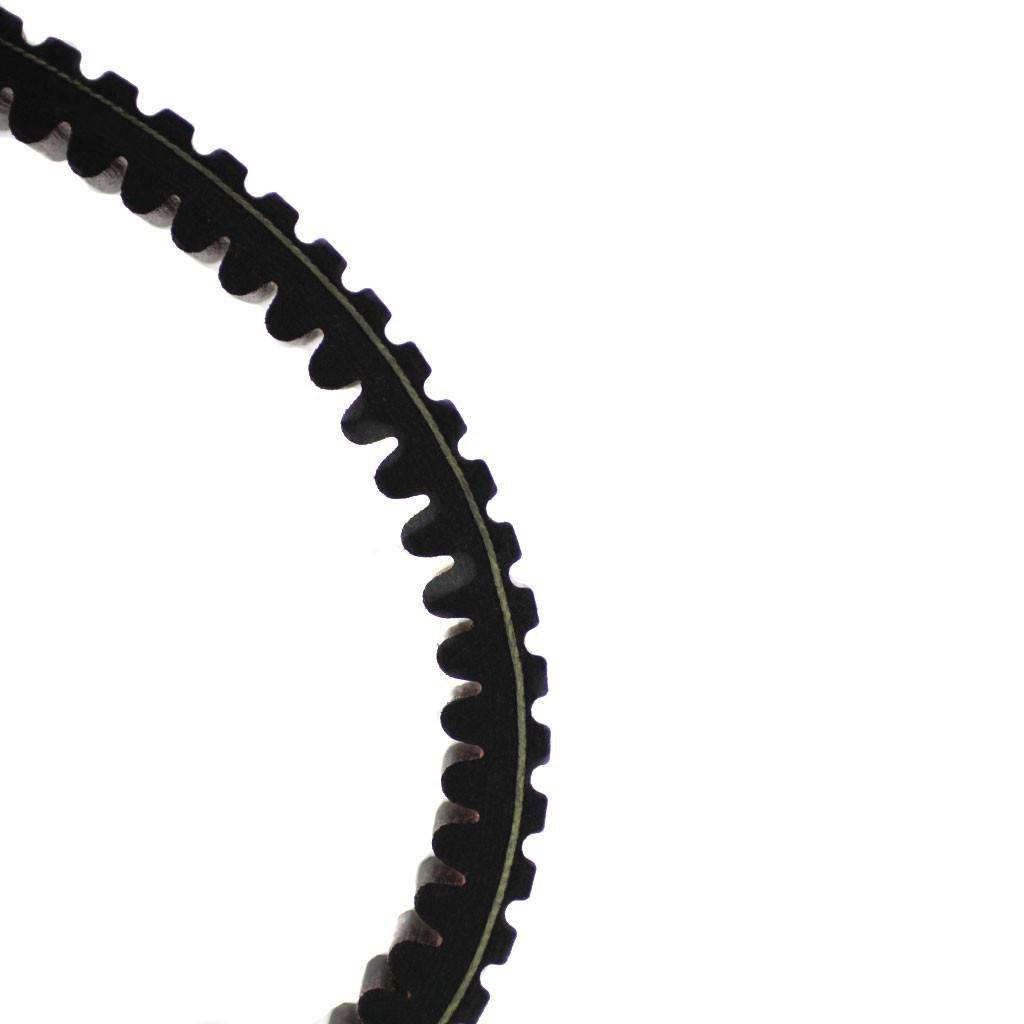

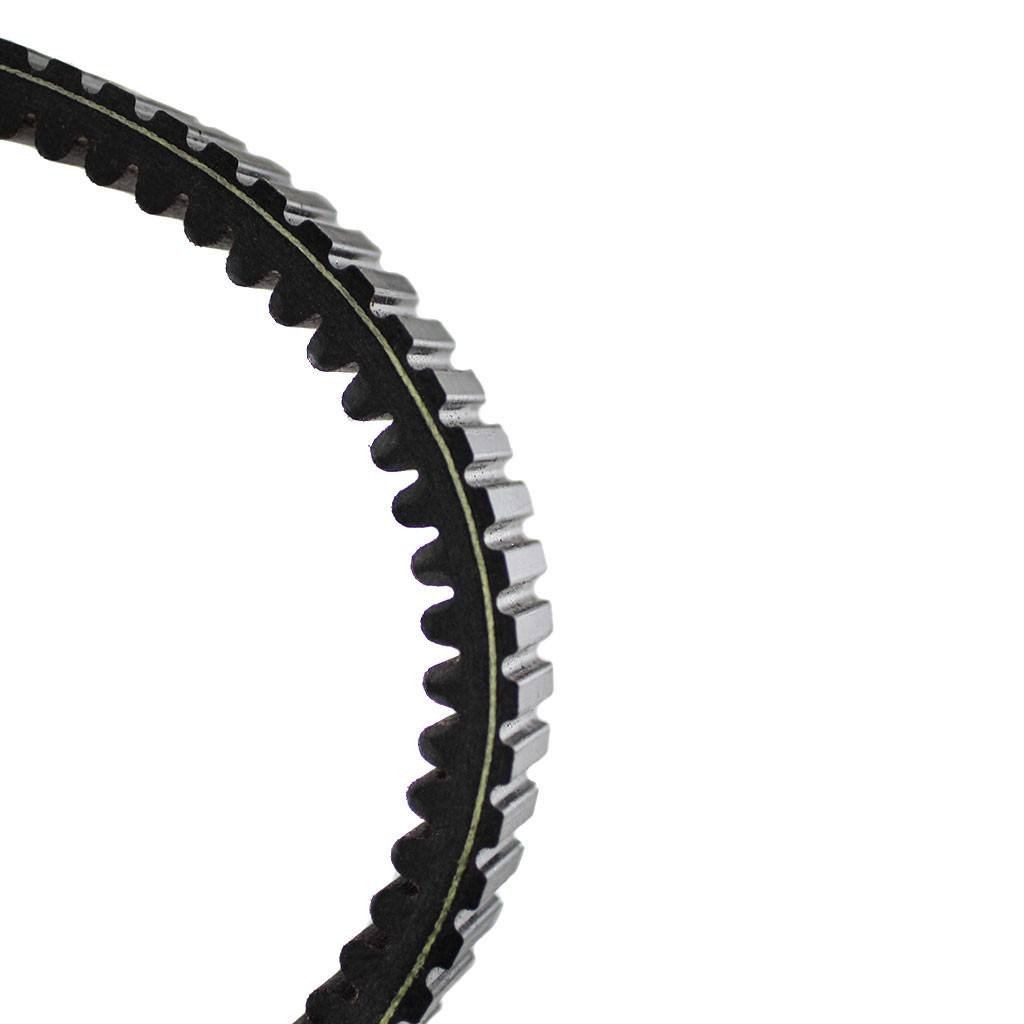

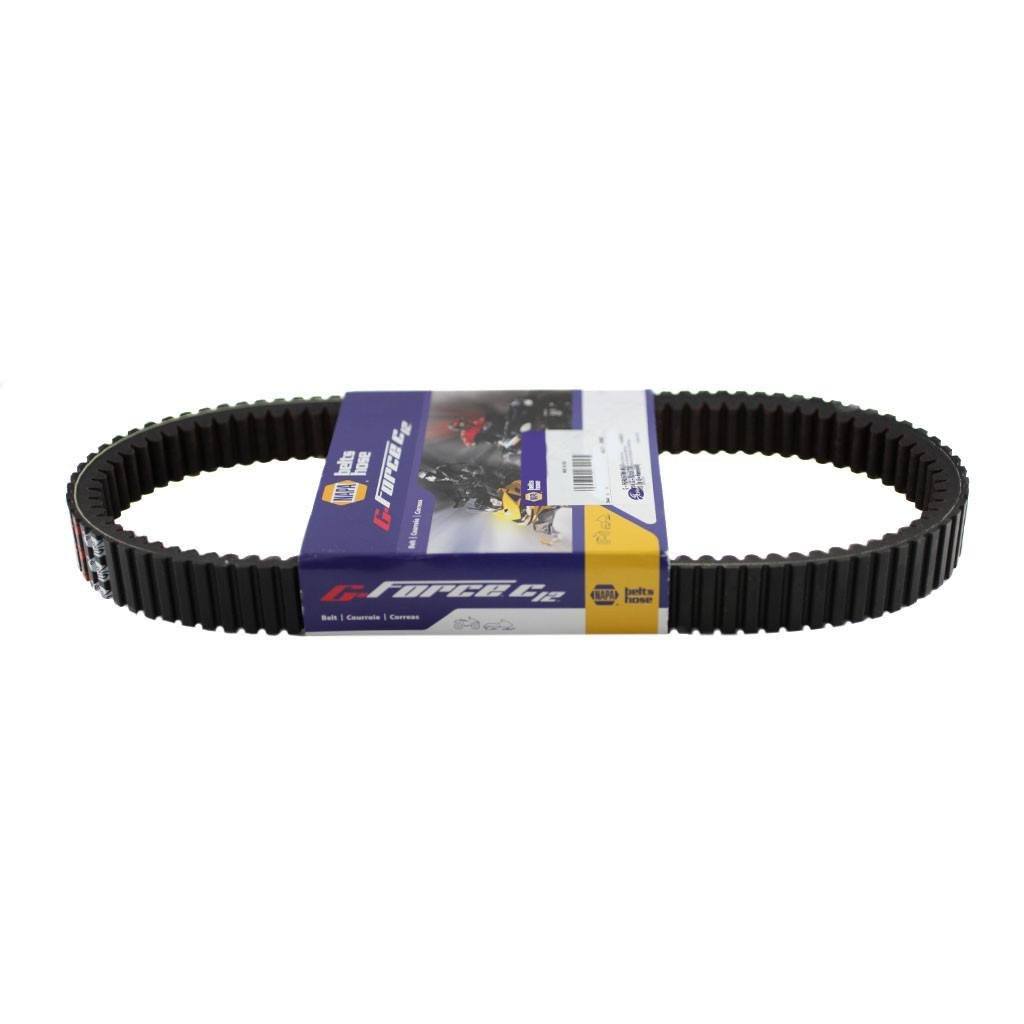

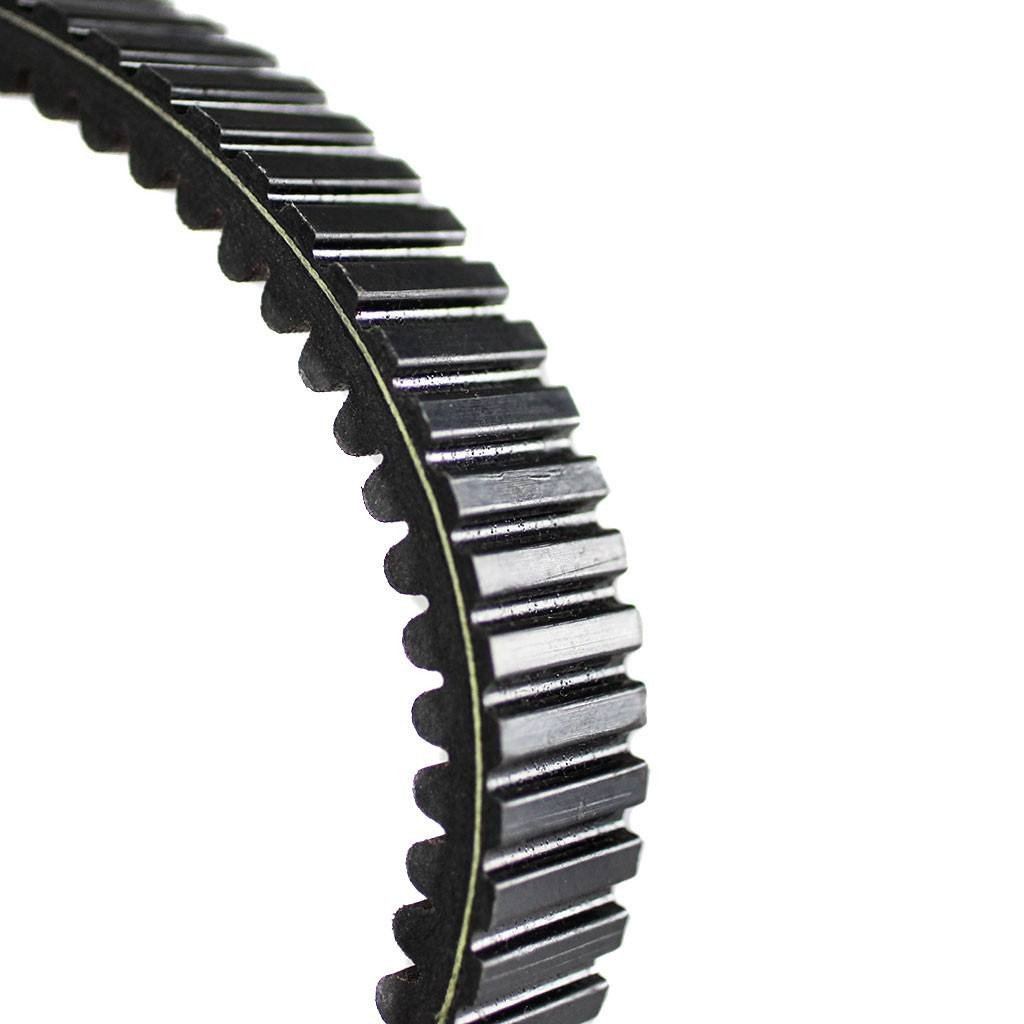

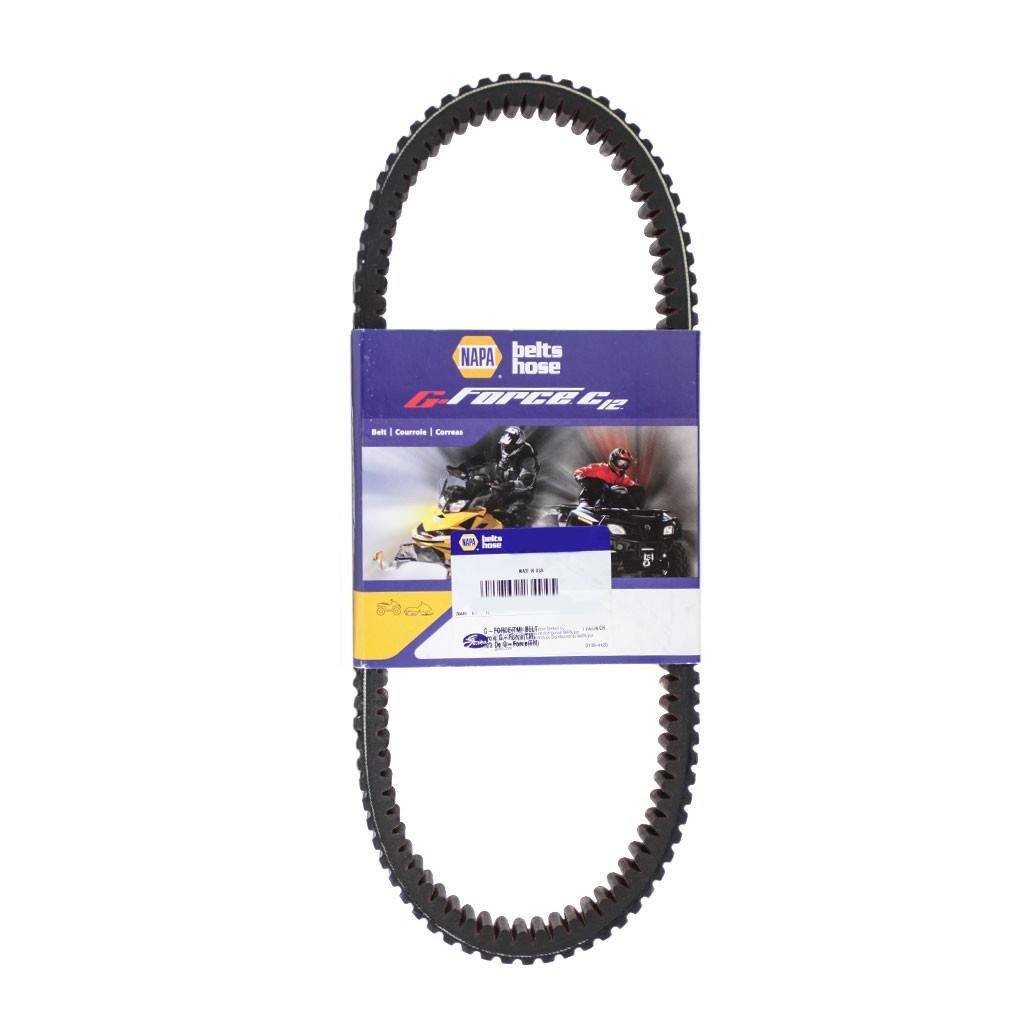

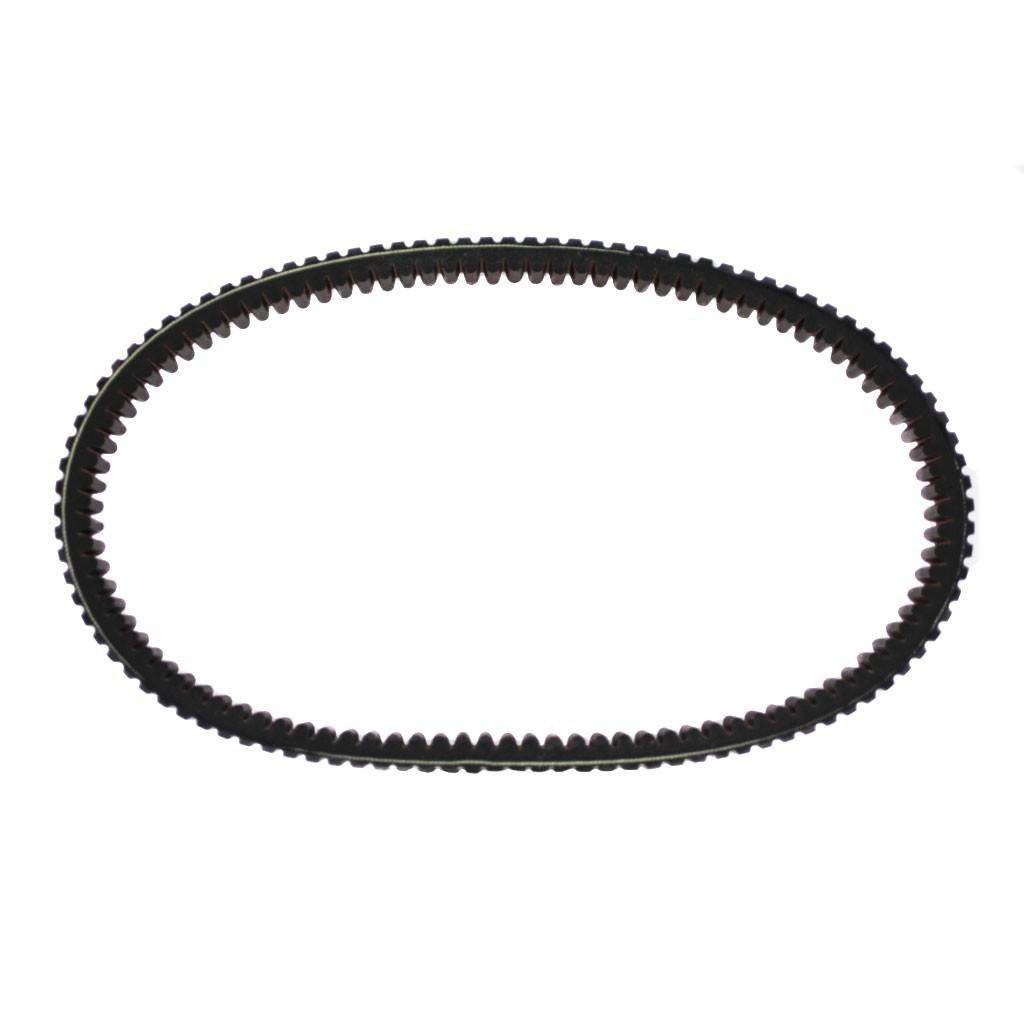

Gates Heavy Duty Drive Belt for Bombardier Ski-Doo Snowmobiles
Belt description:
- Napa G-Force - 44G5077 Standard Version of 44C5077
- New and Improved G-Force C12 Line
- Bombardier Ski-Doo Snowmobiles
- Replaces Carlyle - 1405157U3, 1405157U4
- Replaces Dayco - HPX5018
- Replaces Goodyear - 71239
- Replaces Ski-Doo - 415045000, 417300069
- Length: 1321mm (52.0 in)
- Width: 37mm (1.438 in)
- High Performance Neoprene with Carbon Tensile Cords for Optimal Power Transmission and Increased Side Load Resistance
Fits the following Ski-Doo snowmobile models:
- 1998 Formula III 600 599cc
- 1998 Formula III 600 LT 599cc
- 1998 Formula III 600 R 599cc
- 1998 Formula III 700 699cc
- 1998 Formula III 700 R 699cc
- 1998 Grand Touring 700 699cc
- 1998 Grand Touring SE 700 699cc
- 1998 Mach I 700 699cc
- 1998 Mach I R 699cc
- 1998 Mach Z 796cc
- 1998 Mach Z LT 796cc
- 1998 Mach Z LT R 796cc
- 1998 Mach Z LT SV 796cc
- 1998 Mach Z R 796cc
The fastest way to ruin your new powersport drive belt is to simply install it. If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersport belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all.
Ensure the best performance and longest life from your G-Force belt. Follow these three steps when installing a new belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specs can affect performance – or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer’s specifications and clean the sheaves with a Scotch-Brite® pad. Remove old belt residue, glazing, oils and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles in 20 miles. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
