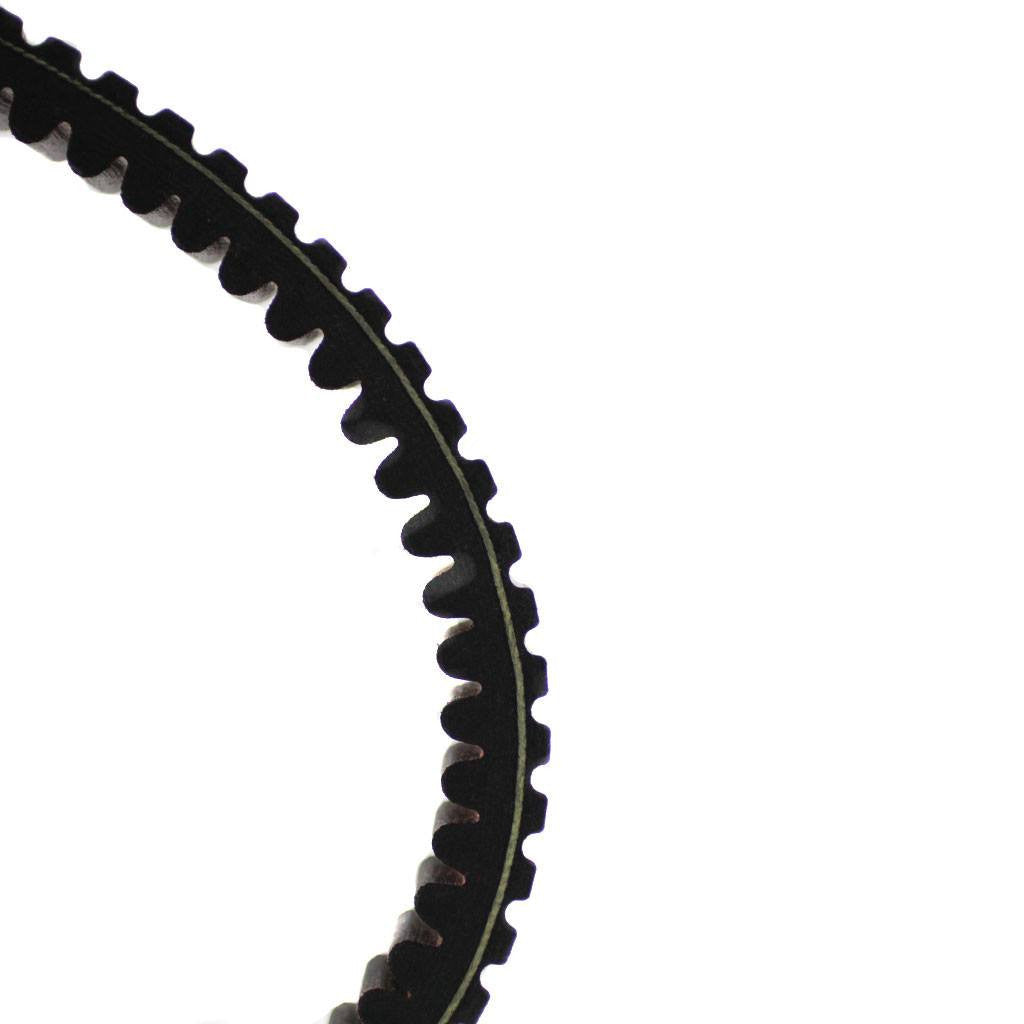

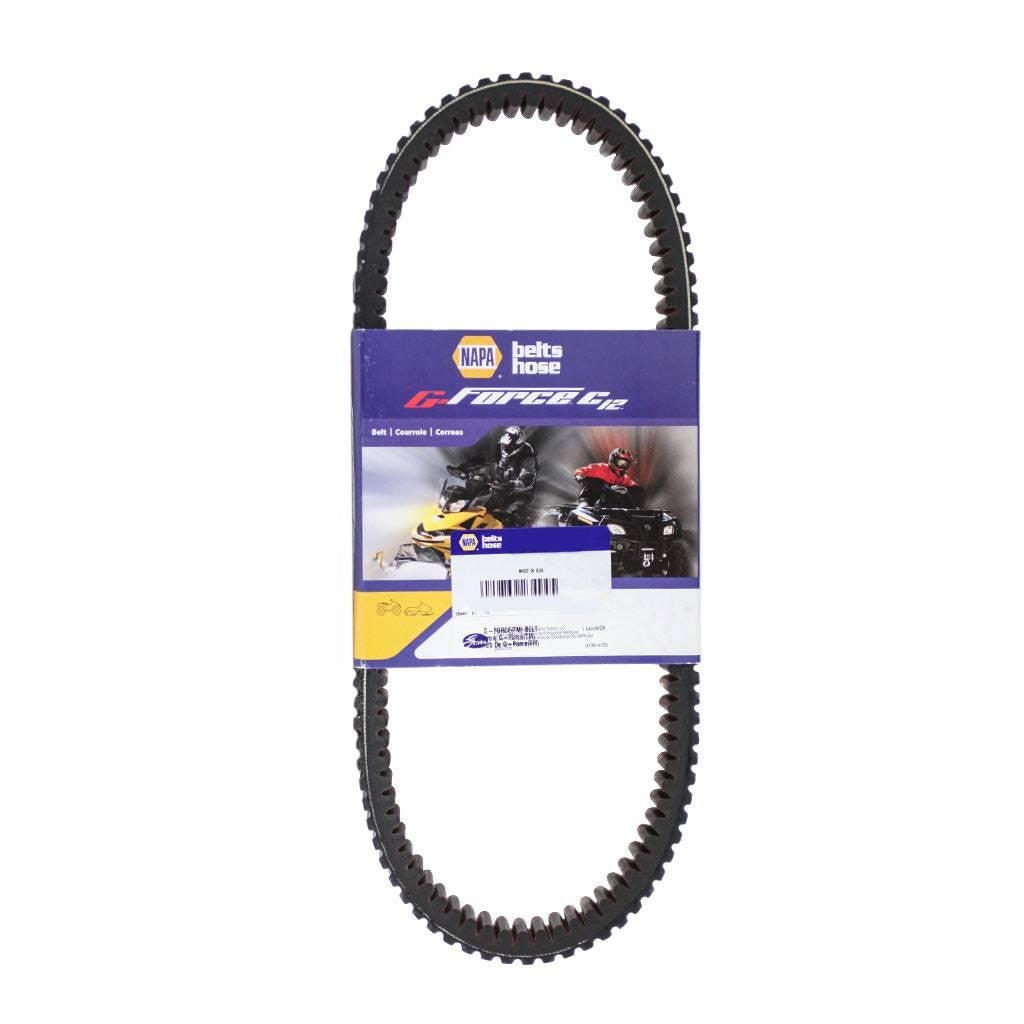

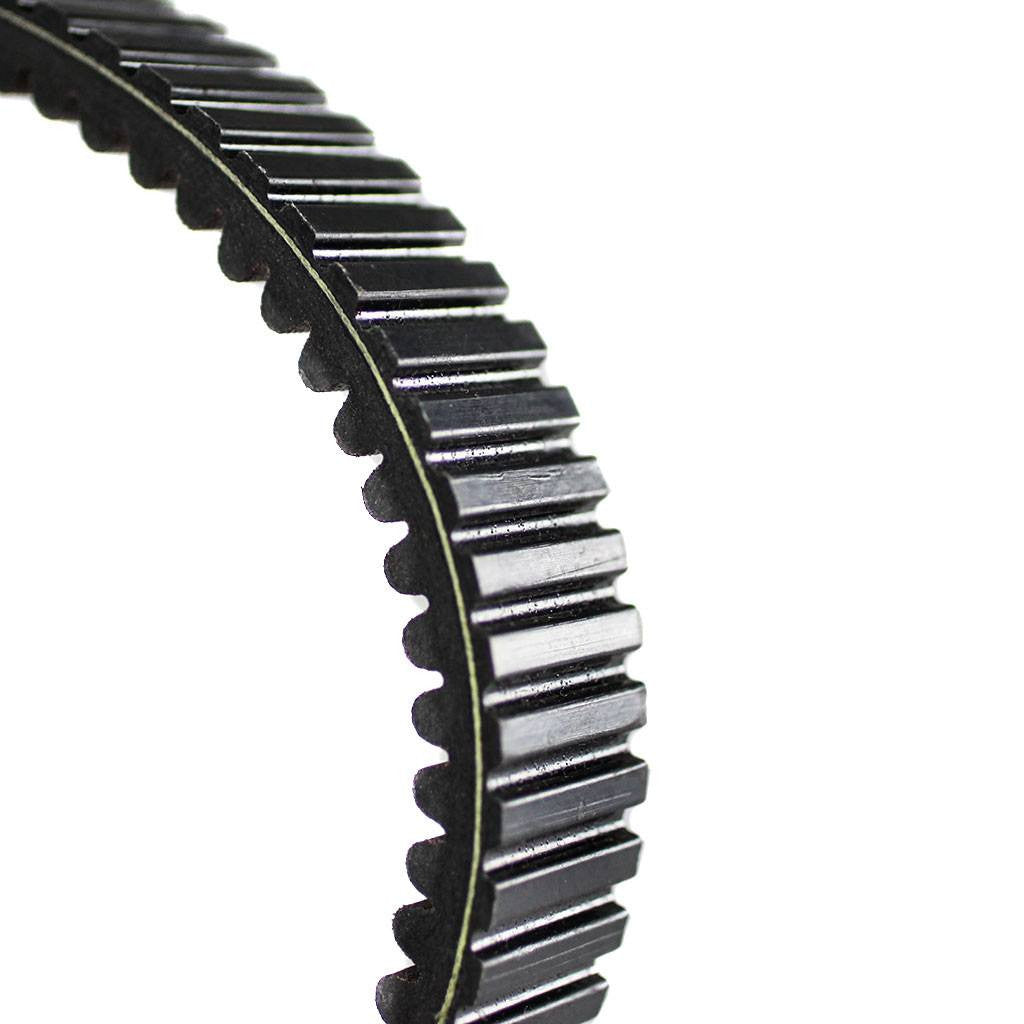

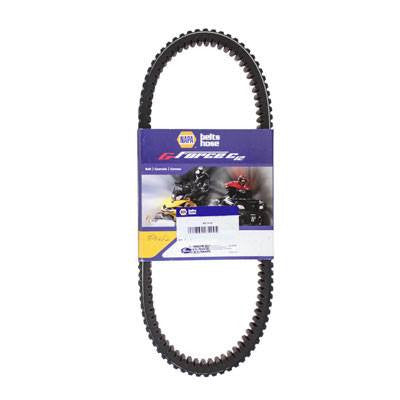

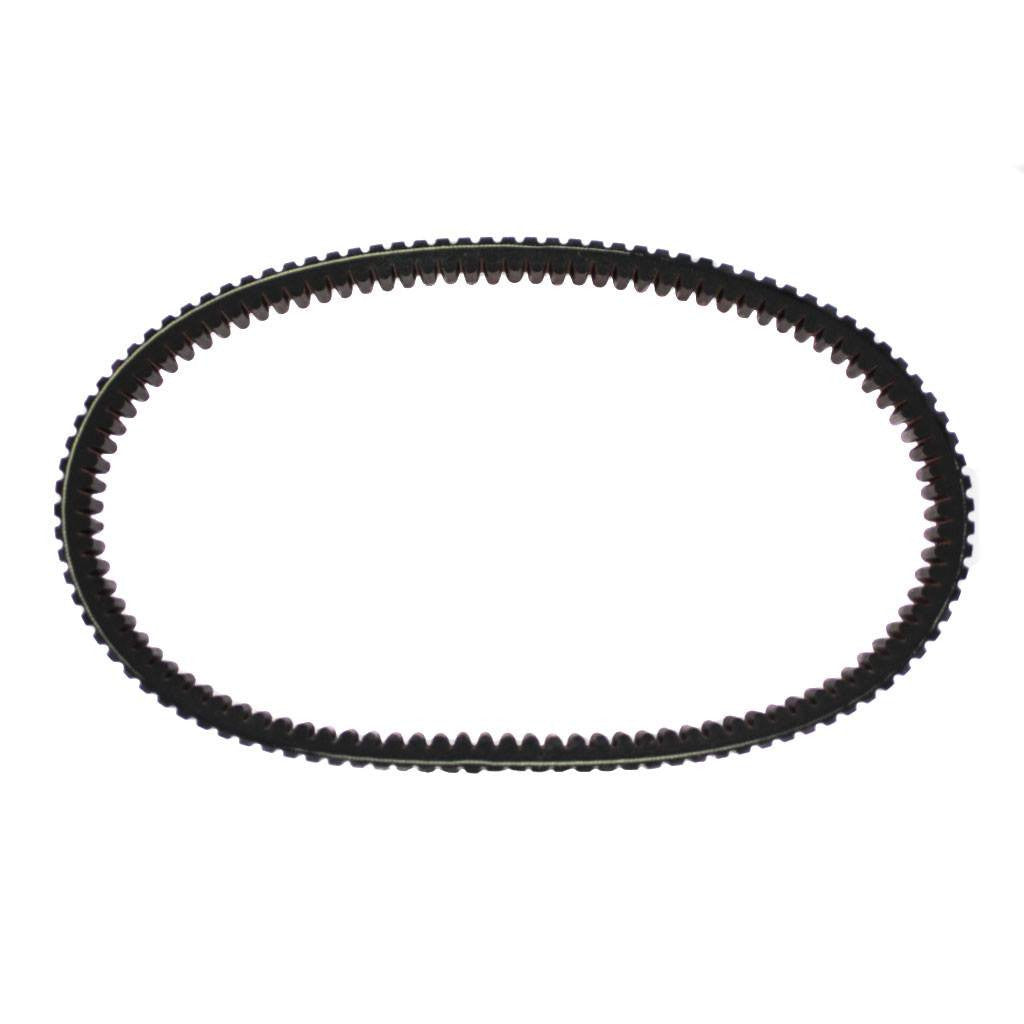

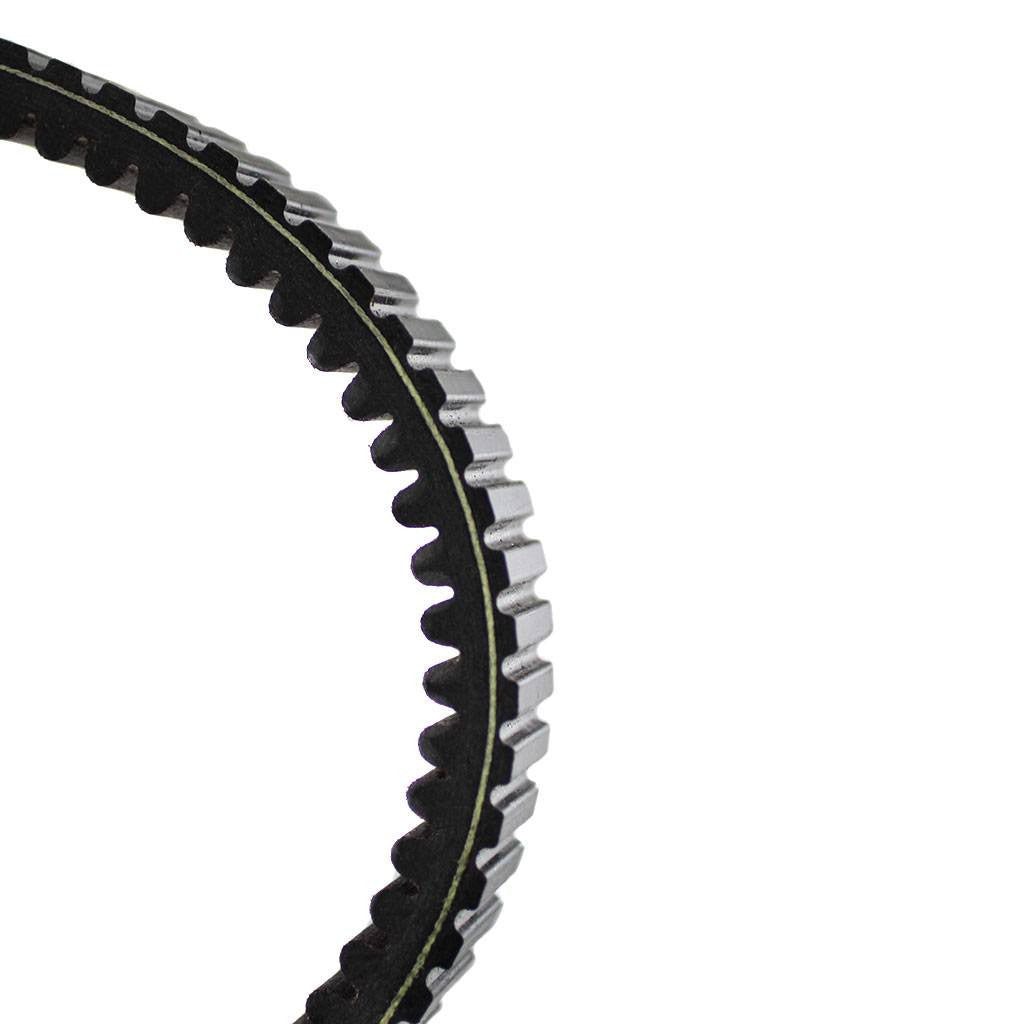

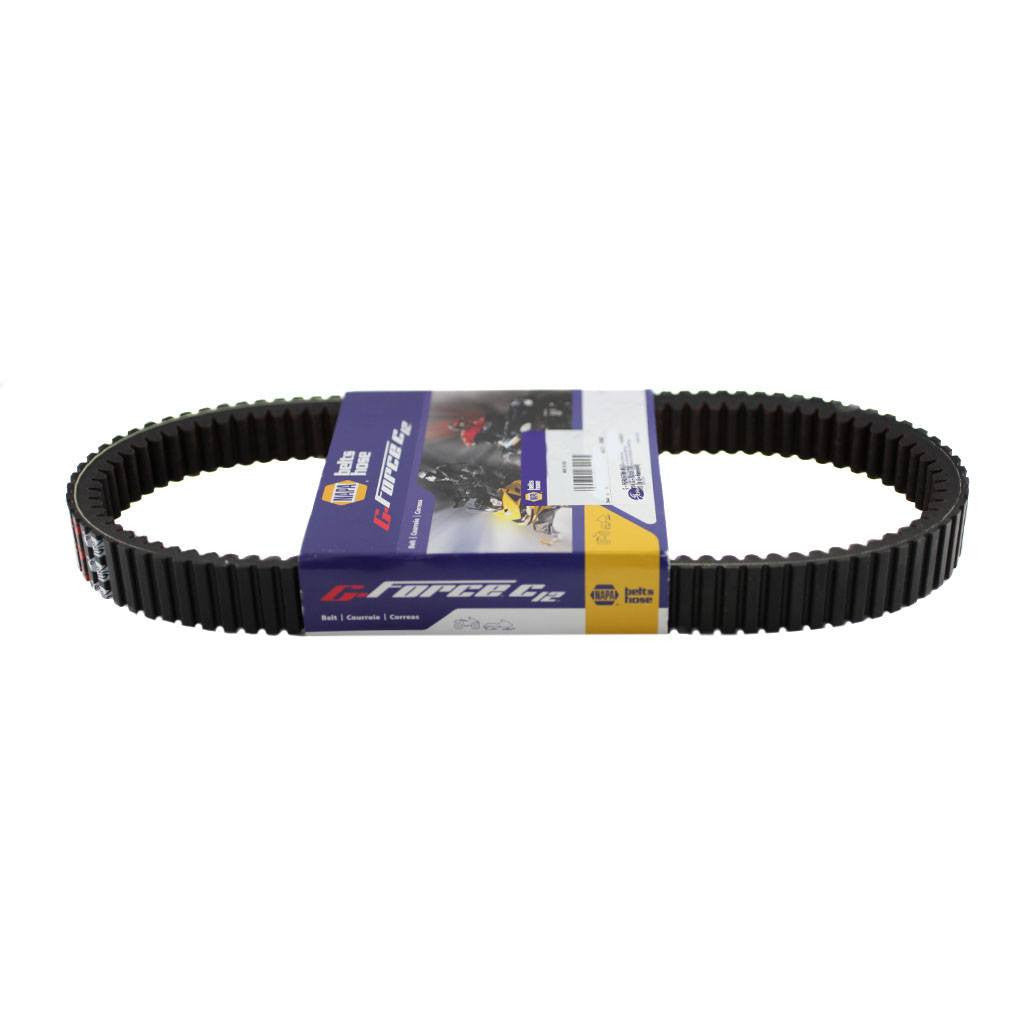

Gates CVT Drive Belt for many models of Kawasaki Mules
This CVT drive belt fits Kawasaki UTVs and Side-by-Sides.
- CVT [-Continuous Variable Transmission-]
- Napa G-Force - 24G4108 - Standard Version of 24C4108
- Kawasaki UTVs and Side by Sides
- Replaces Carlisle UA439, UA442
- Replaces Dayco HP2024, HP2026
- Replaces Napa / Gates 24G4108, 24C4108
- Replaces Kawasaki 590111053, 590111077
- Length: 1073mm [42.25"]
- Width: 32mm [1.25"]
- High Performance Neoprene with Carbon Tensile Cords for Optimal Power Transmission and Increased Side Load Resistance
Fits the following Kawasaki models:
- 2001 - 2008 Mule 3000
- 2001 - 2008 Mule 3010 4x4
- 2005 - 2008 Mule 3010 Trans 4x4
- 2001 - 2003 Mule 3020
- 2009 - 2018 Mule 4000
- 2009 - 2018 Mule 4010 4x4
- 2009 - 2017 Mule 4010 Trans 4x4
- 2010 - 2011 Mule 4010 Trans 4x4 Realtree
The fastest way to ruin your new powersport drive belt is to simply install it. If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersport belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all.
Ensure the best performance and longest life from your G-Force belt. Follow these three steps when installing a new belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specs can affect performance – or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer’s specifications and clean the sheaves with a Scotch-Brite® pad. Remove old belt residue, glazing, oils and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles in 20 miles. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
