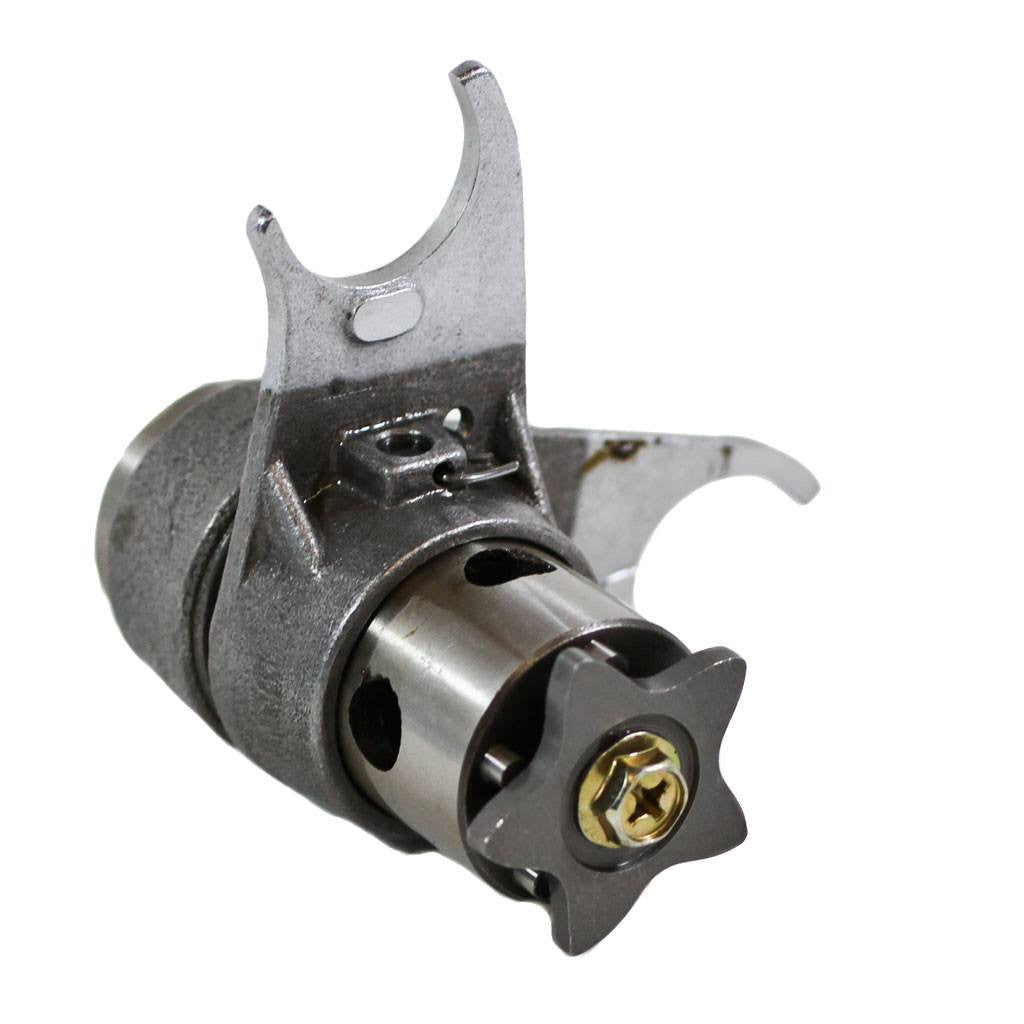

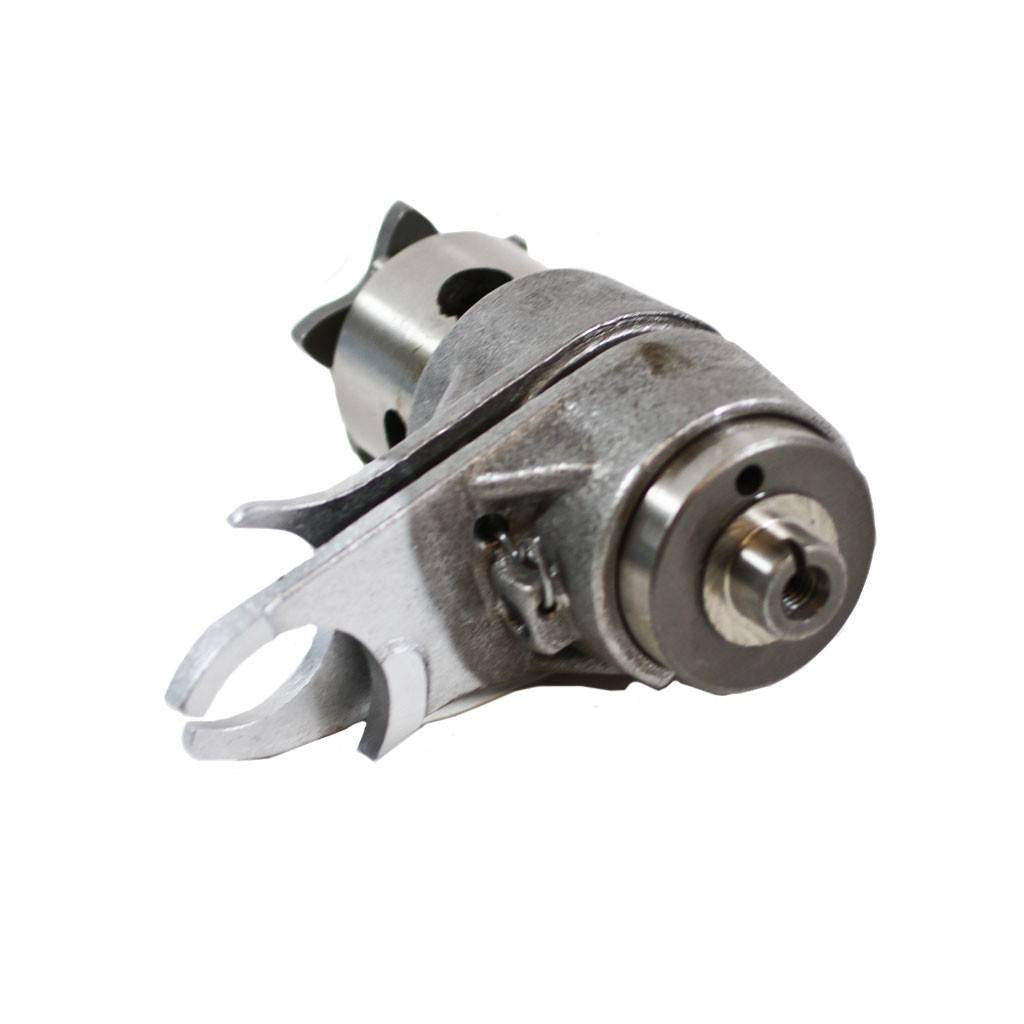

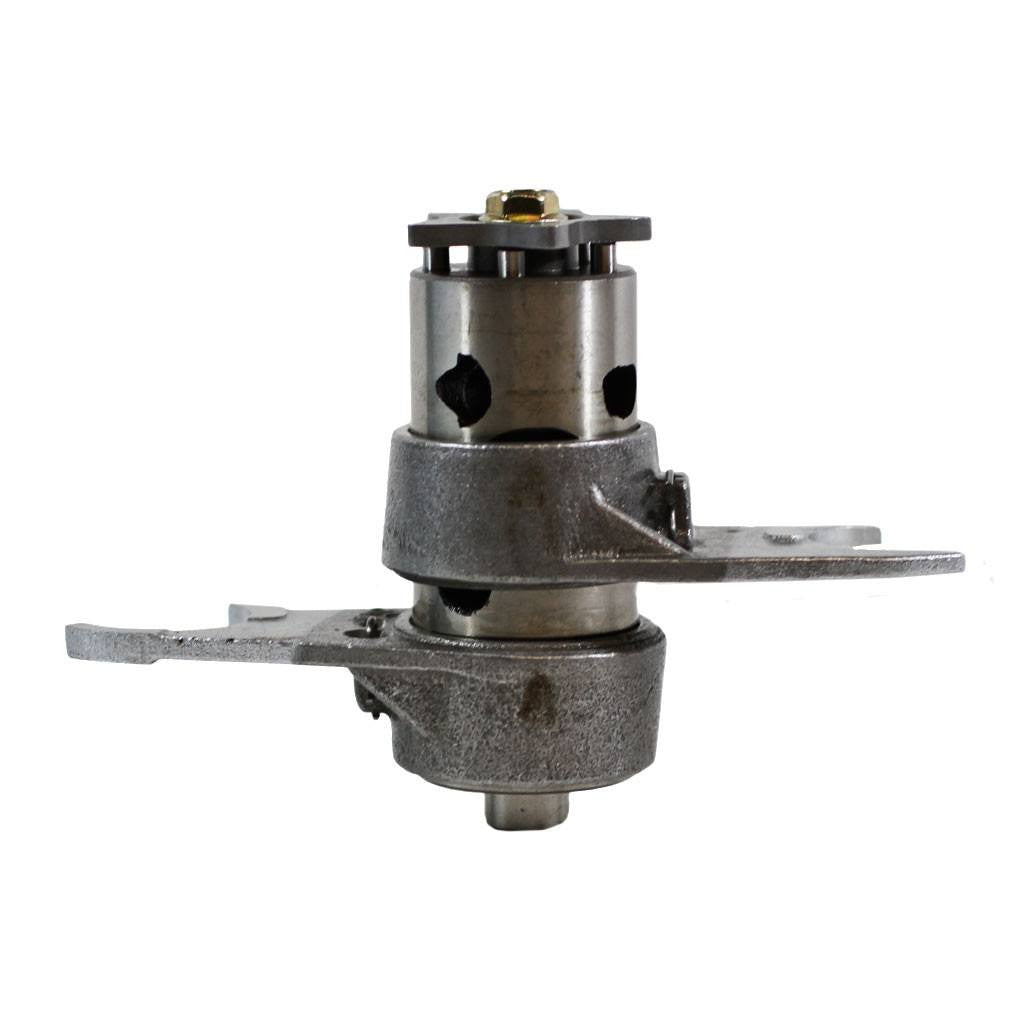

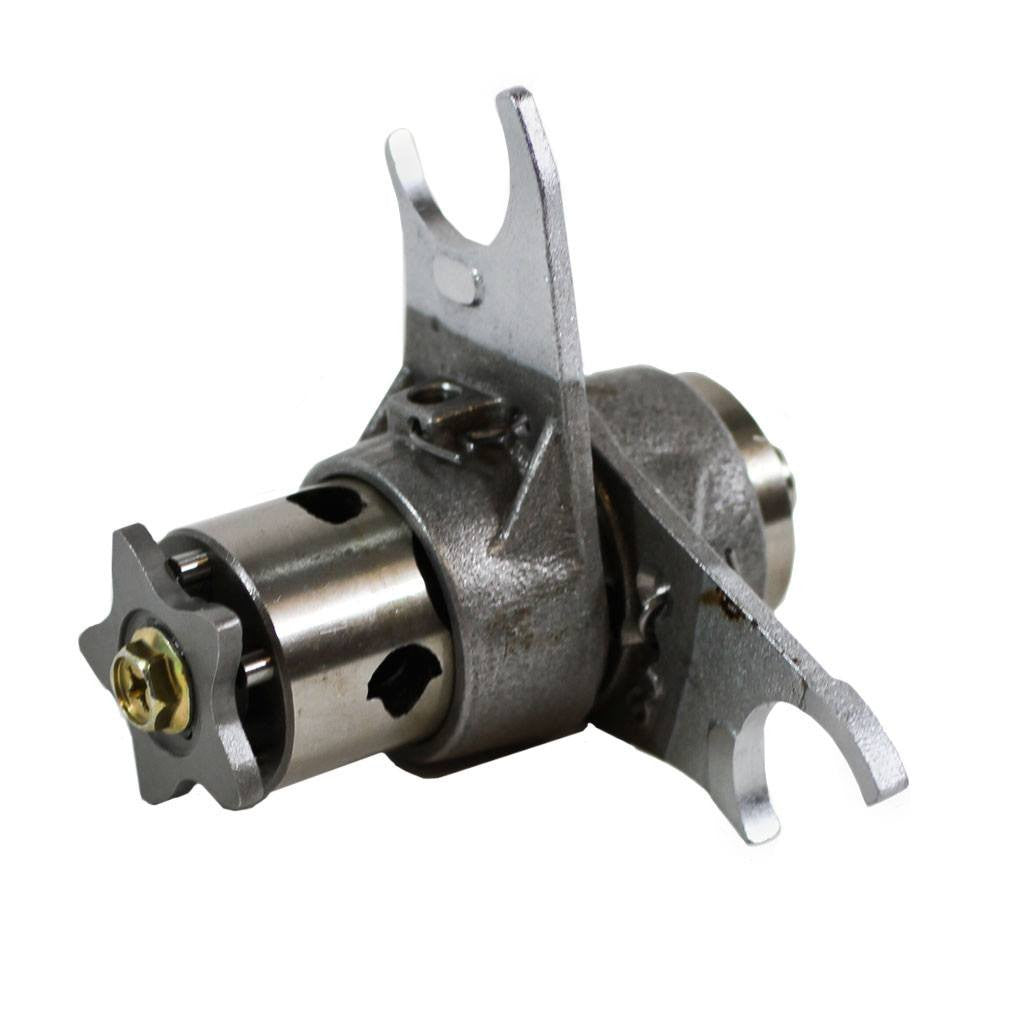

Motorcycle Engine Gear Shift Fork for LF110/125/140/150cc Engine.
- Overall Length: 96mm [3.78"] includes bolt head
- Diameter of drum: 34mm [1.34"]
- This shift fork is for 4 speed manuals transmissiions
- The prongs under star are 4.5mm tall
- Star width: 37.25mm
- Hole that goes thru drum has circle on one side and half circle on other side.
- Width of fork closest to star end: 21.45mm
- Width of fork farthest from star end: 21.35mm
- Fork farthest from star end has notch. Width of fork at notch: 11.6mm
- Length of notch: 20.35mm
- Thread end ID: 5.33mm
- Threaded end shaft OD: 13mm
Do you need your shift fork fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
