Part number:
213-FH930-17
Chinese Go-Kart ATV Wheel Hub - Version 17
Version 17

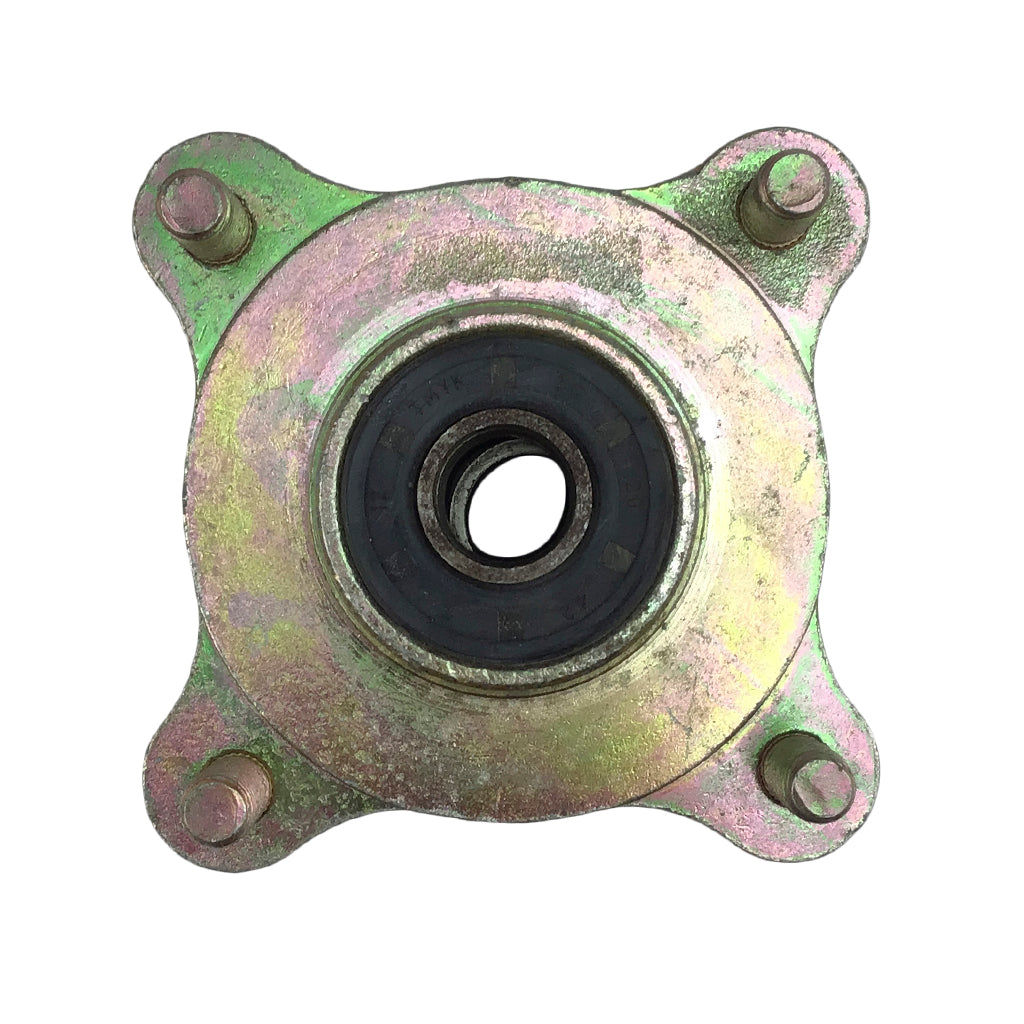

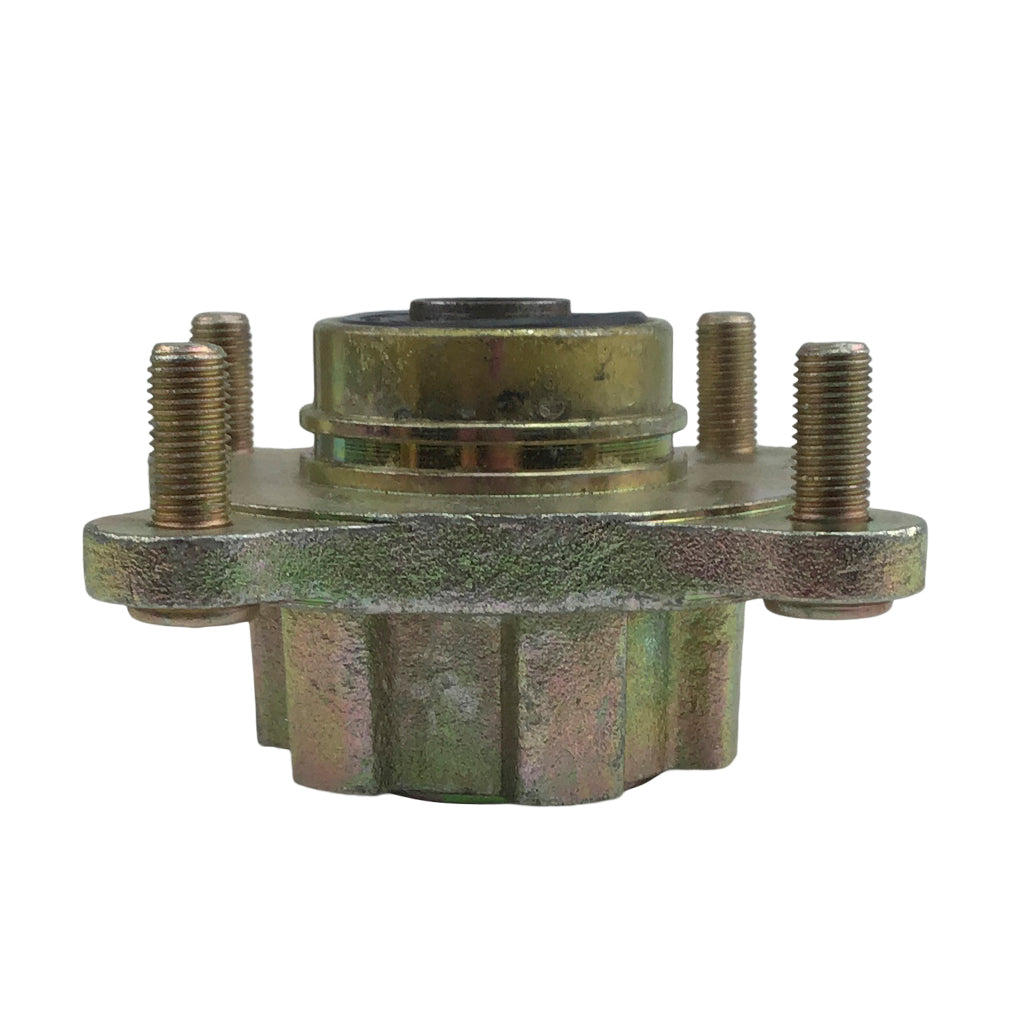

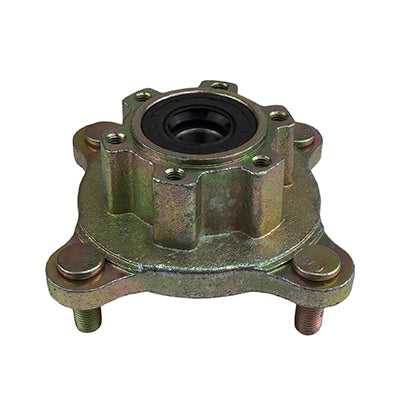

This wheel hub is used on several makes and models of Chinese atvs and go-karts. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.
Hub details:
- (4) 10mm studs
- Studs are 78mm [3.07"] apart center-to-center
- Studs are 110mm [4.33"] apart center-to-center across
- (6) 6mm*1.00 threaded bolt holes
- Threaded holes are 29mm [1.14"] center-to-center side-by-side
- Threaded holes are 57mm [2.25"] center-to-center across from each other
- Sleeve on stud side 17.8mm [.70"] inside diameter
- 22*40*7 seal on 6 bolt hole side
- 20*42*7 seal on stud side
-
Width: 62mm [2.45"] (hub only)
Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.
