Exhaust System / Muffler for Tao Tao DB17 Dirt Bike - Version 189

Tao Tao DB17 Dirt Bike Exhaust System

Version 189

This exhaust is known to fit the Tao Tao DB17 dirt bike / motorcycle.  Please verify the measurements before purchasing this exhaust.  May fit other makes and models.

Exhaust details:

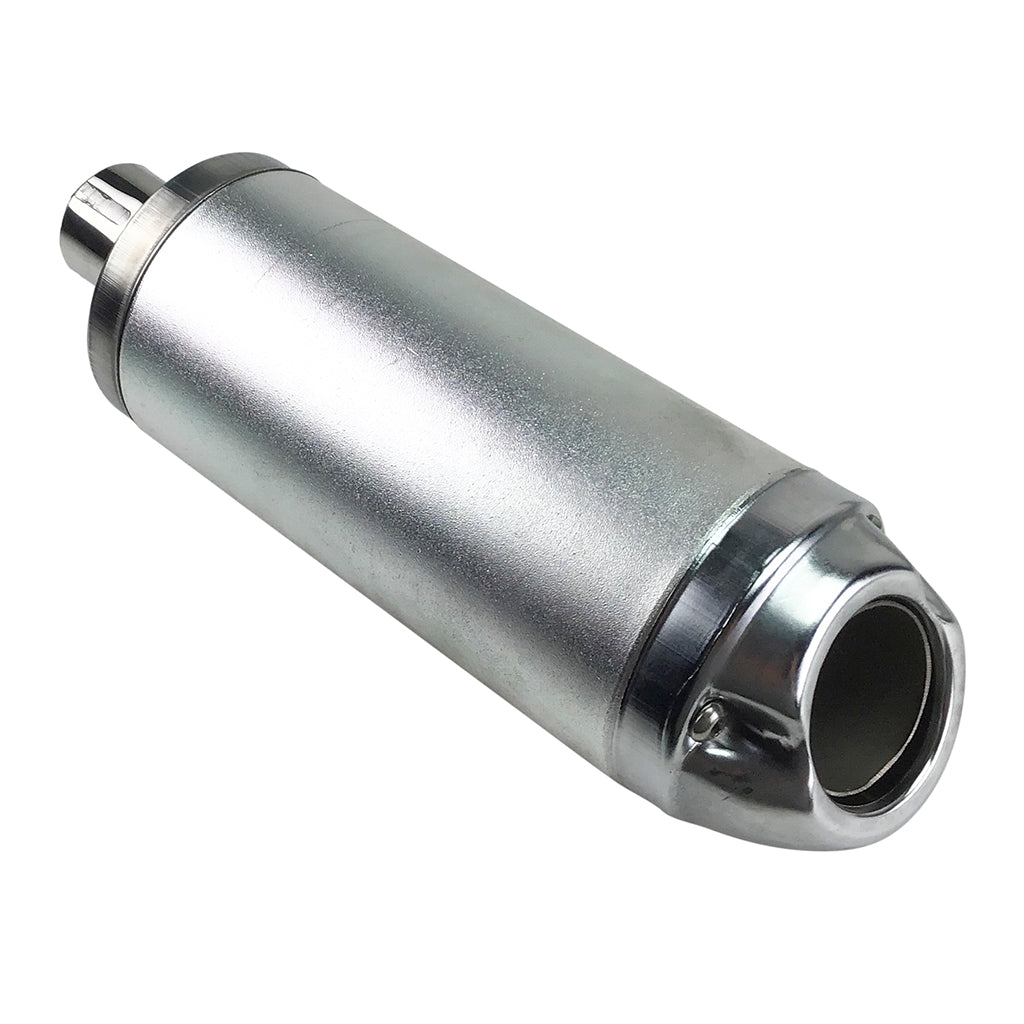

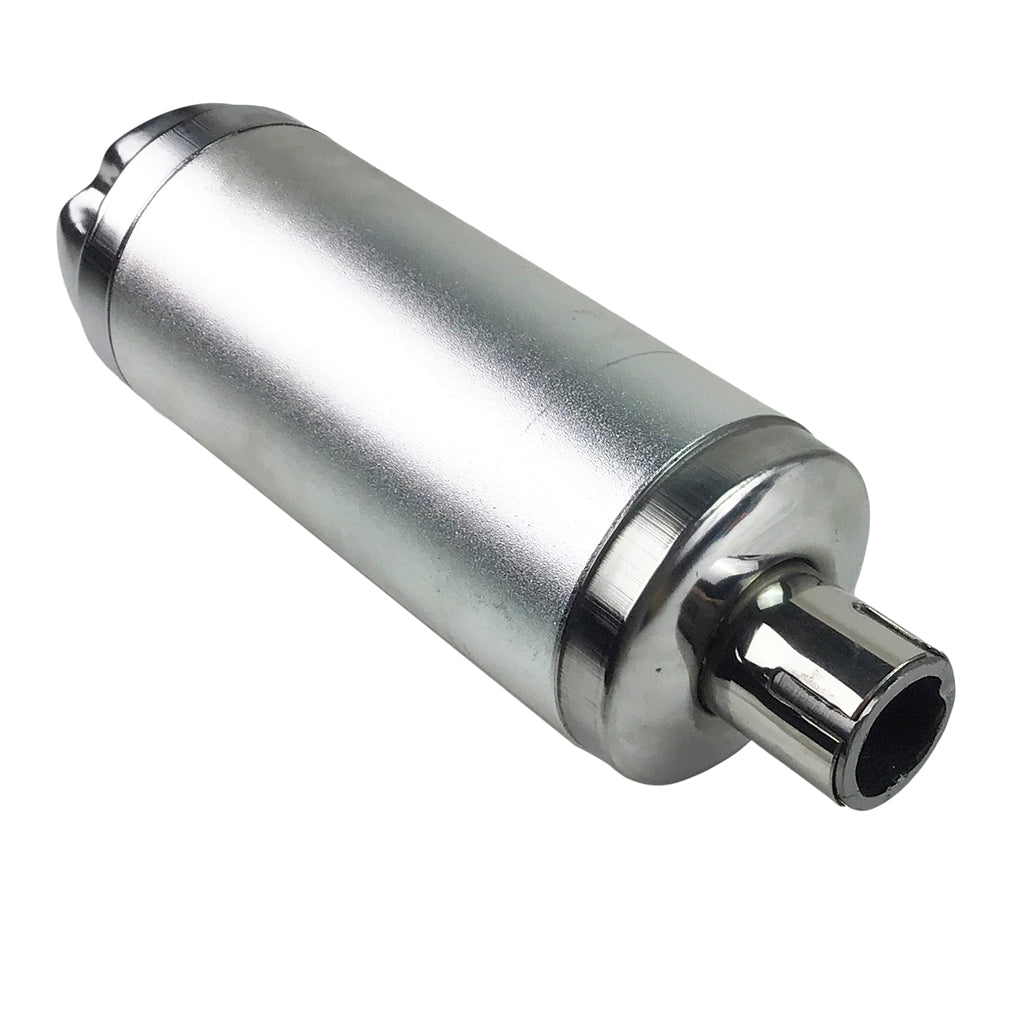

• Muffler length: 281mm [11"]
• Muffler diameter: 86mm [3.4"]
• Muffler has a screen spark arrester
• ID of muffler where pipe attaches: 28mm [1.1"]

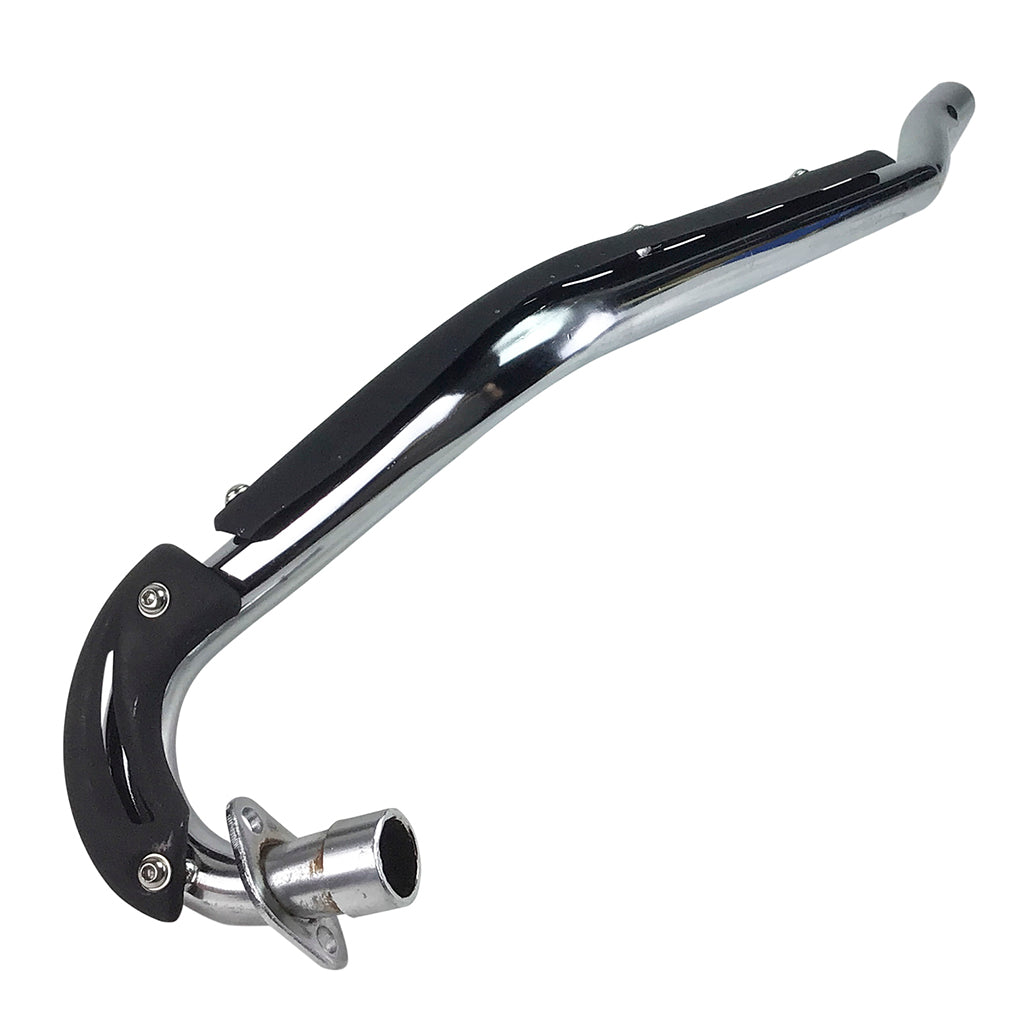

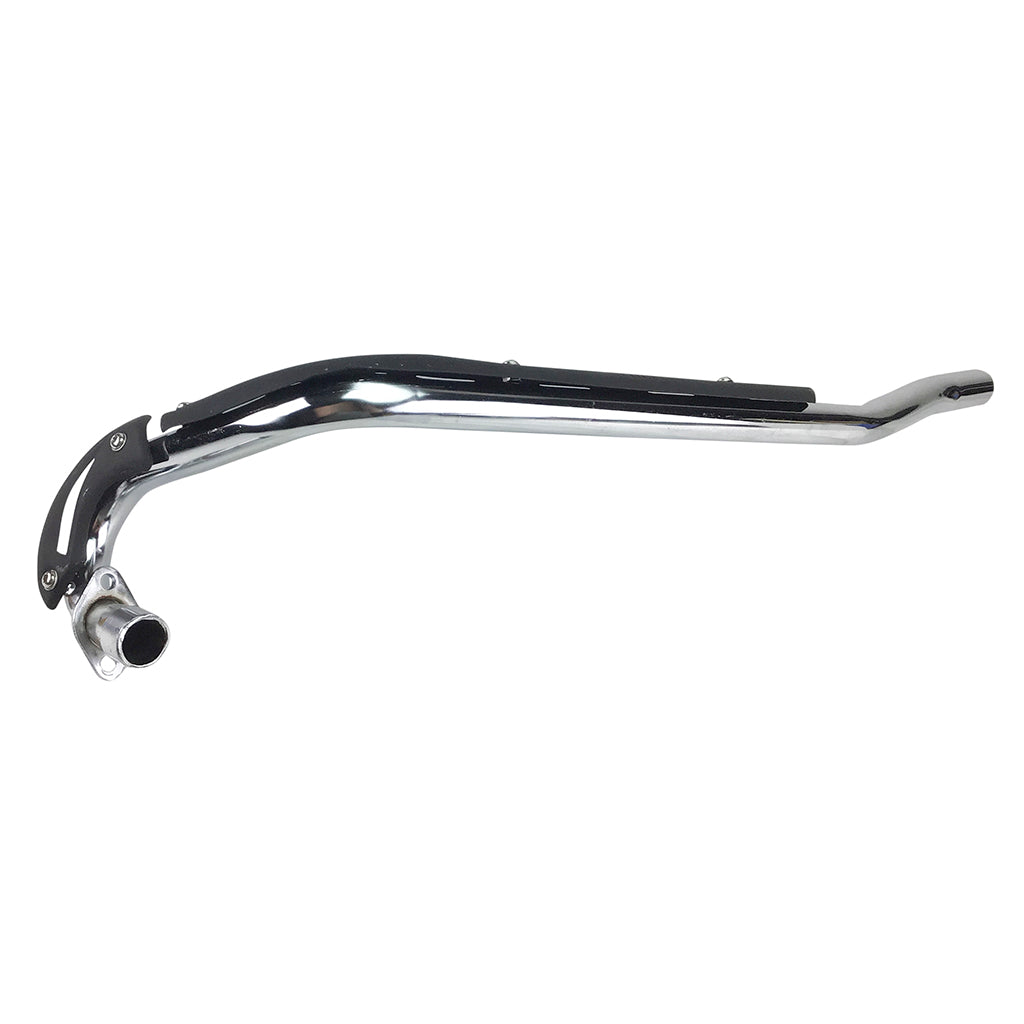

• Pipe is approximately 25" long the way the crow flies
• Pipe flange bolt holes are 46mm [1.8"] center-to-center apart
• Pipe OD at flange end: 32mm [1.27"]
• Pipe ID at flange end: 25mm [1"]
• Pipe OD at muffler end: 28.4mm [1.1"]
• Pipe ID at muffler end: 25mm [1"]
• Pipe has 2 scald guards

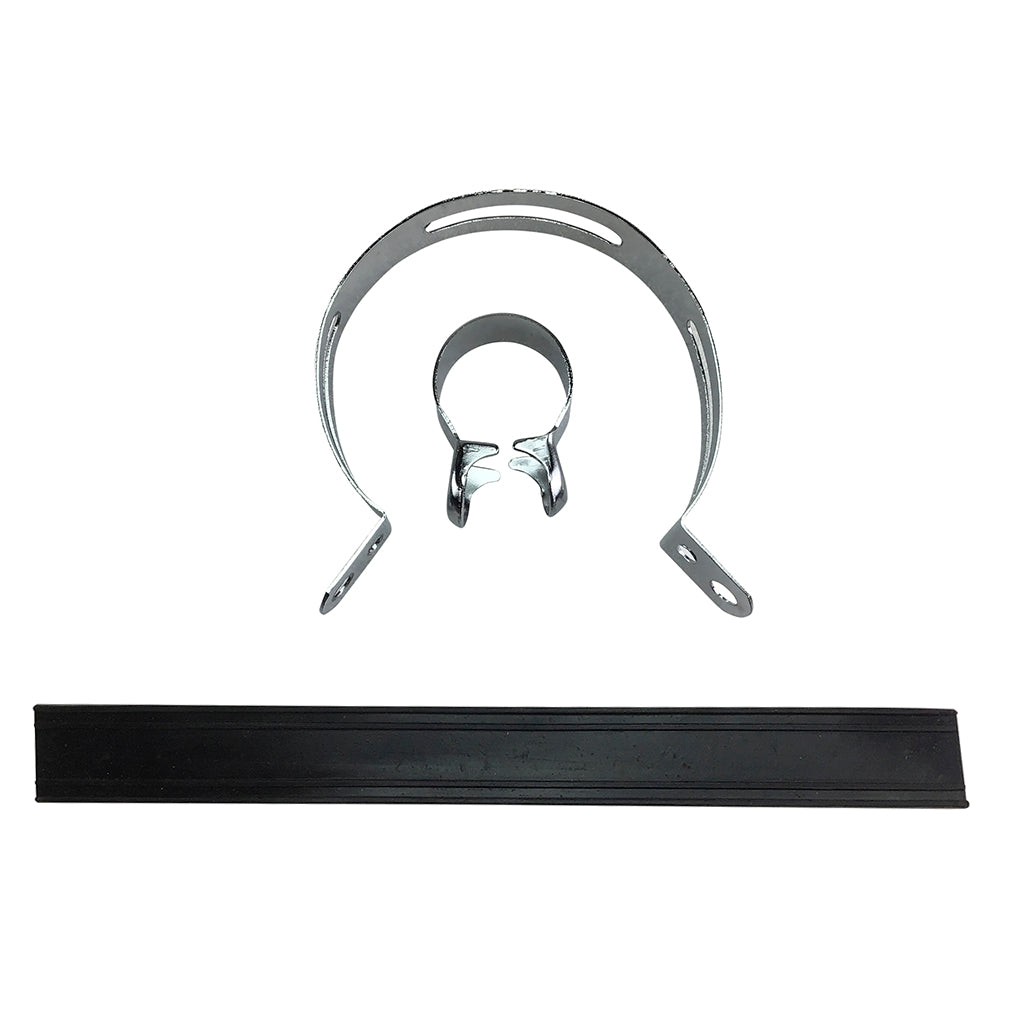

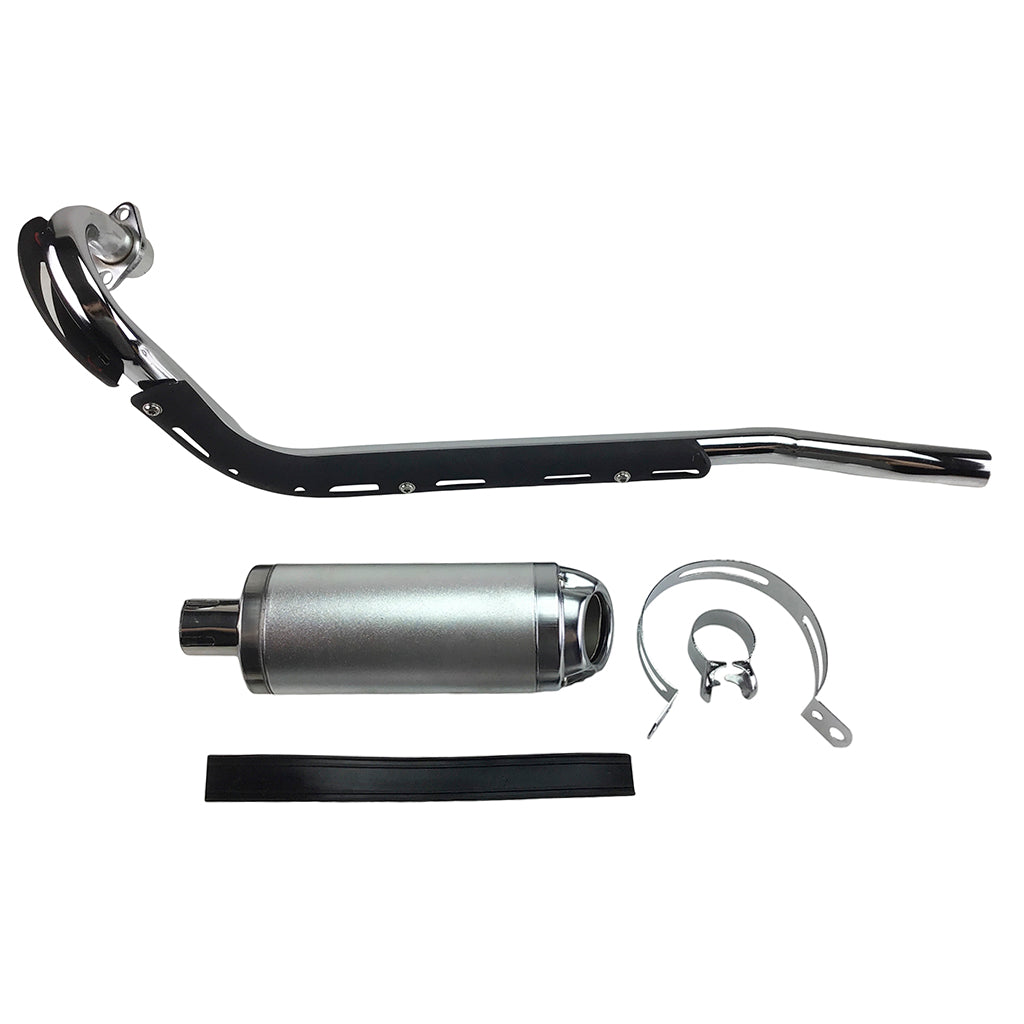

• Kit includes muffler, pipe, large clamp, small clamp and insulation
• Nuts, bolts and washers for clamps are NOT included
• 104189

Known to fit the Tao Tao DB17.

We don't get any exhaust assemblies that are cosmetically perfect.  They all have a few "dings" and "scratches" on them from their overseas journey.  If you need a perfect one, better to buy somewhere else.
