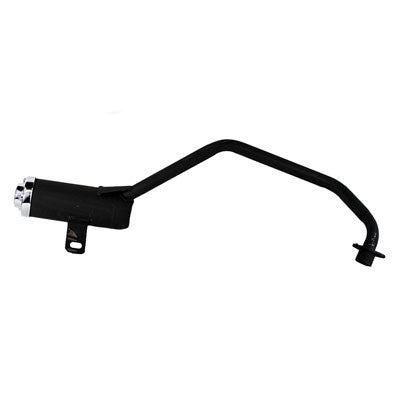

Taotao ATA110B ATV Exhaust System
This exhaust is known to fit the TaoTao ATA110B. Please verify the measurements before purchasing this exhaust. May fit other makes and models.
- Overall length: 28"
- Silencer length: 9"
- Silencer OD: 3"
- Pipe OD: 1"
- Pipe end OD: 1.25"
- Pipe ID: .75"
- Pipe end ID: 1"
- Mounting "eye" bracket for head: 1.85" center to center on mounting holes
- Pipe comes out at an angle on bottom of silencer
- 1st bend is 9" from silencer
- 2nd bend is 9" from 1st bend and goes towards center of ATV.
- 3rd bend is 3" from 2nd bend and curves upward to mount into cylinder head.
- 20638B438 101752
We don't get any exhaust assemblies that are cosmetically perfect. They all have a few "dings" and "scratches" on them from their overseas journey. If you need a perfect one, better to buy somewhere else.
Known to fit TaoTao ATA110B, ATA110B1, ATA110B3, Eagle 110B1, FA70, FA90, BY110, FA110, Boulder 110 and more.
Do you need your exhaust system fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
- copper ring
- muffler mount
- quad frame
- muffler bracket
- exhaust gasket
Affordable and sounds good
Fits mini Kazuma 90cc... almost.
I was surprised just how well this fit on my mini kazuma 90cc quad. The bends matched perfectly. The muffler bracket was only off by 2", so I made a plate to bolt to the quad frame and to the muffler mount. Order a thin exhaust gasket with it, not a copper ring (my mistake). Sounds much better than the stock exhaust as well.
