Chinese Steering Shaft for Tao Tao Pony 50 and Speedy 50 Scooters

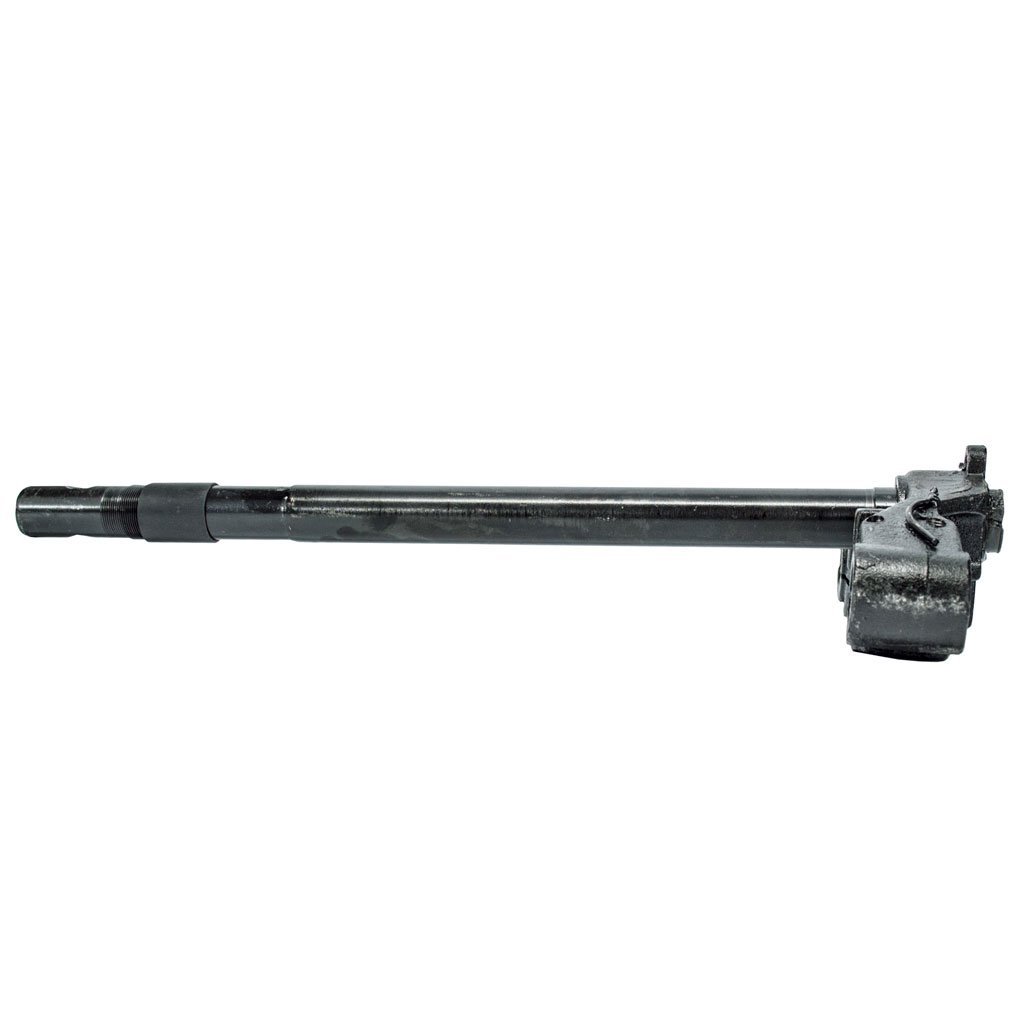

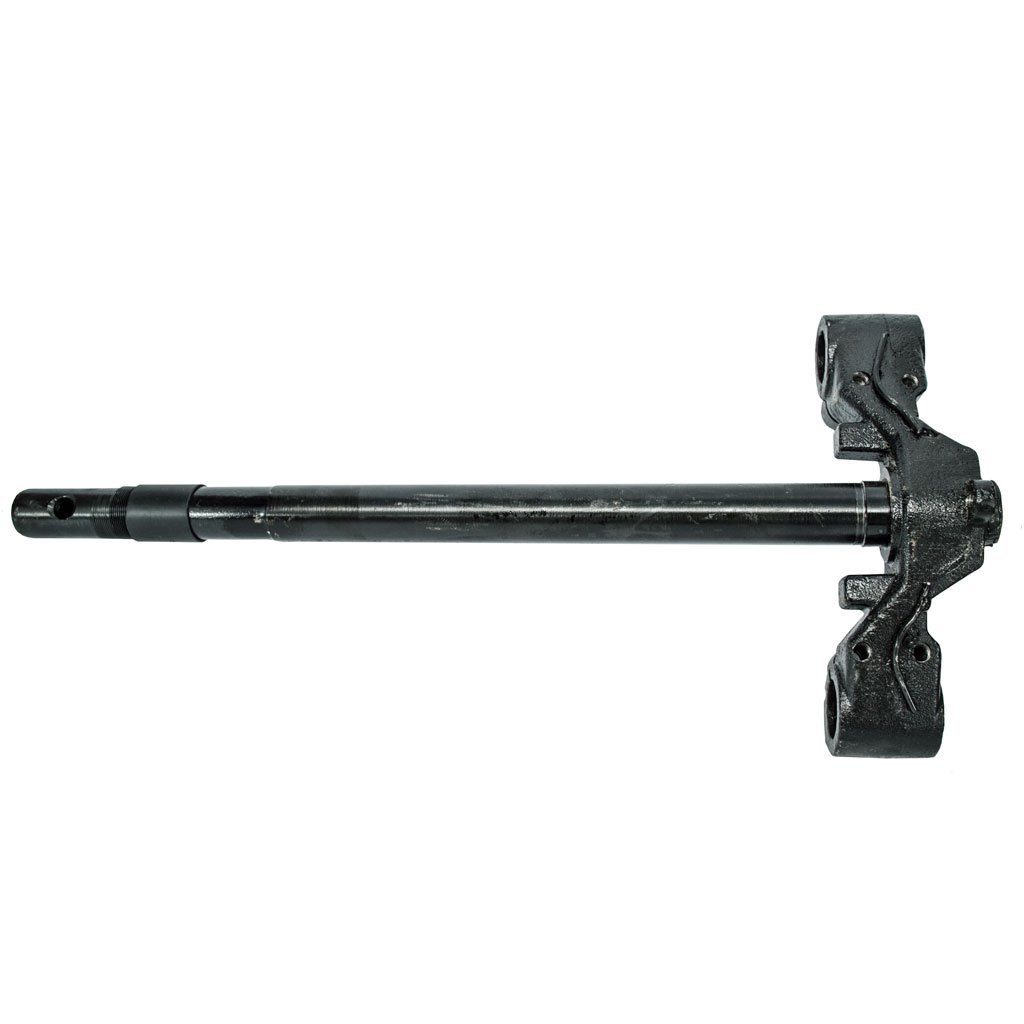

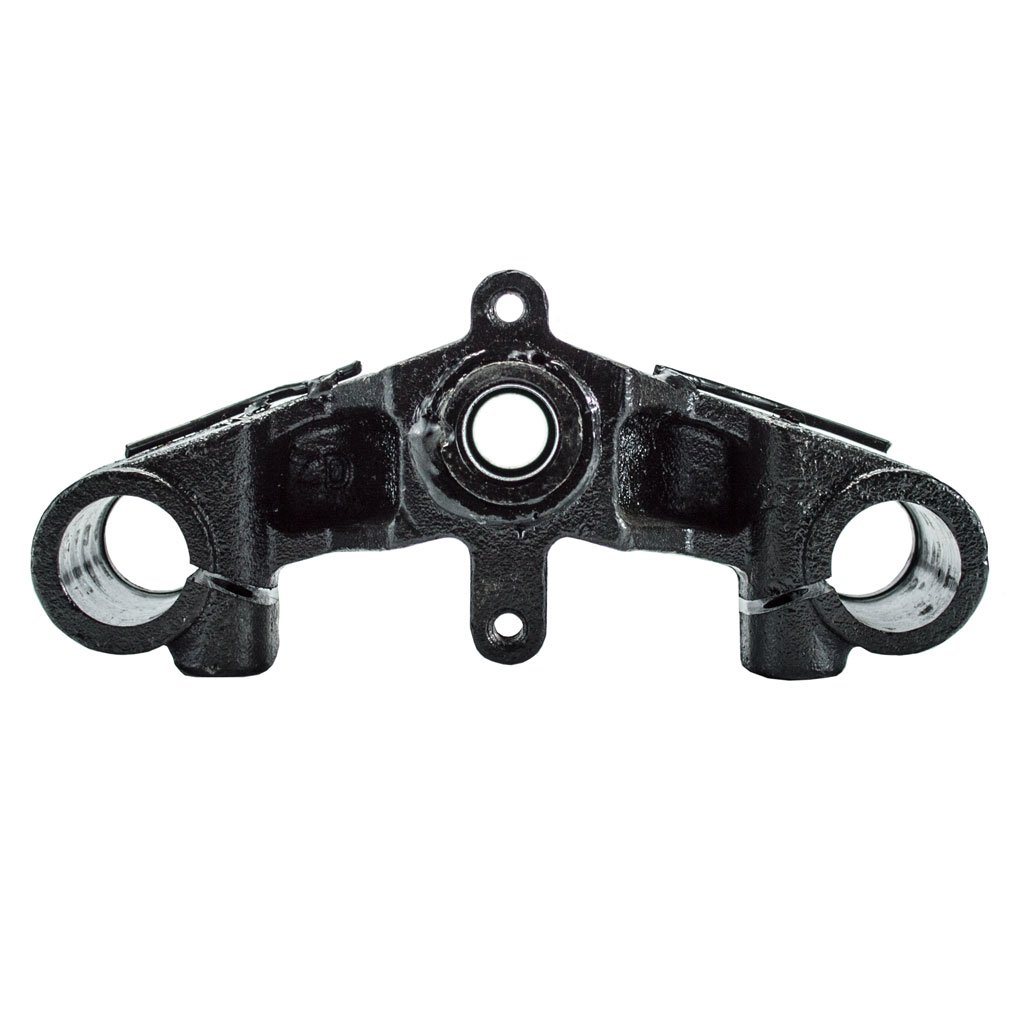

This is the steering shaft, or triple tree, for the Tao Tao Pony 50 and Speedy 50 Scooter. Please check description, measurements and pictures to make sure it's the one you need.
Triple tree specs:
- Overall length: 17"
- Shaft length: 15 3/8"
- "Tree" base width: 7 1/2"
- Outer hole ID: Approx. 26mm {1.02"] [adjustable]
- Shaft OD: 25mm [.98"]
- Shaft ID: 14mm [.55"]
- Distance "Tree" base holes: 15.5cm center to center
- Distance of hole from top: 30mm [1.18"]
- ID of hole at top: 10mm [.39"]
- Threaded area distance from top of shaft: 83mm [3.27"]
- 20913B2613 104168
Fits Tao Tao Motors ATM50A, ATM50A1, Pony 50 and Speedy 50 scooters.
Shipping details:
Do you need your steering shaft fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
