Chinese Steering Shaft for the 2015 and up Taotao ATA125D

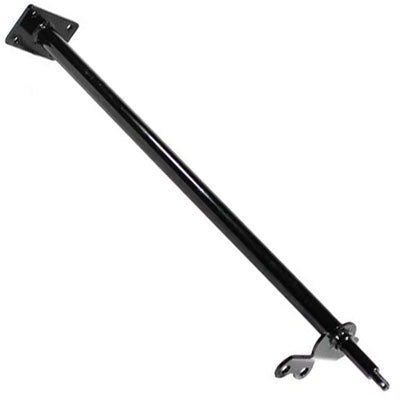

This is the steering shaft for the Taotao 2015 and up ATA125D ATV. Please check description, measurements and pictures to make sure it's the one you need.
- Overall length: 57cm [22.5"]
- Shaft diameter: 22.5mm [.88"]
- Top of shaft has a plate, approx 3.4"x 2" that has four threaded bolt holes.
- Bottom of shaft has an offset frog face shaped plate with two holes
- Holes in bottom plate are 34mm [1.33"] apart center-to-center]
- Bottom of shaft is threaded 10mmx1.50
- 13669A1697 109764
Fits 2015 and up Taotao ATA125D.
I have a 2016 TaoTao Tforce with the 110cc motor. The shaft that was on the ATV was the older style straight tie rod connector. I was worried that this newer style with angle bent connector would not work. This shaft worked great and I still have plenty of adjustments if ever needed after setting the front tires.
