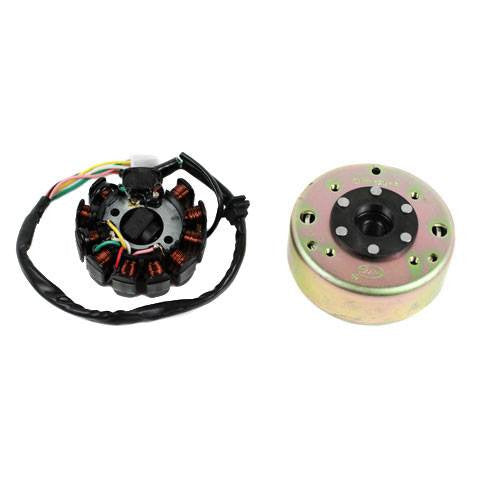

Chinese 11 Coil Stator Magneto with Matching Flywheel for GY6 125cc and 150cc Engines.
This Chinese stator magneto with flywheel is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. This stator fits GY6 125cc and 150cc models.
- 11 coil [1 wrapped]
- 7 wires - 4 wire plug - 2 pigtail [+1 trigger wire]
- 2 bolt mounting
- Pick up trigger wire - single wire
- Center hole measurement: 29mm [1.14"]
- Overall measurement: 89mm [3.51"]
- Bolt hole spacing: 41mm [1.61"]
- Bolt hole diameter: 6mm [.23"]
- Trigger wire mounting center-to-center: 33.6mm [1.32']
- Compatible with GY6 125cc and 150cc 4-strokes
- Outside diameter: 109.4mm [4.31"]
- Inside diameter: 15.5mm [.61"]
- 4 mounting holes center-to center adjacent holes: 53.4mm [2.10"]
