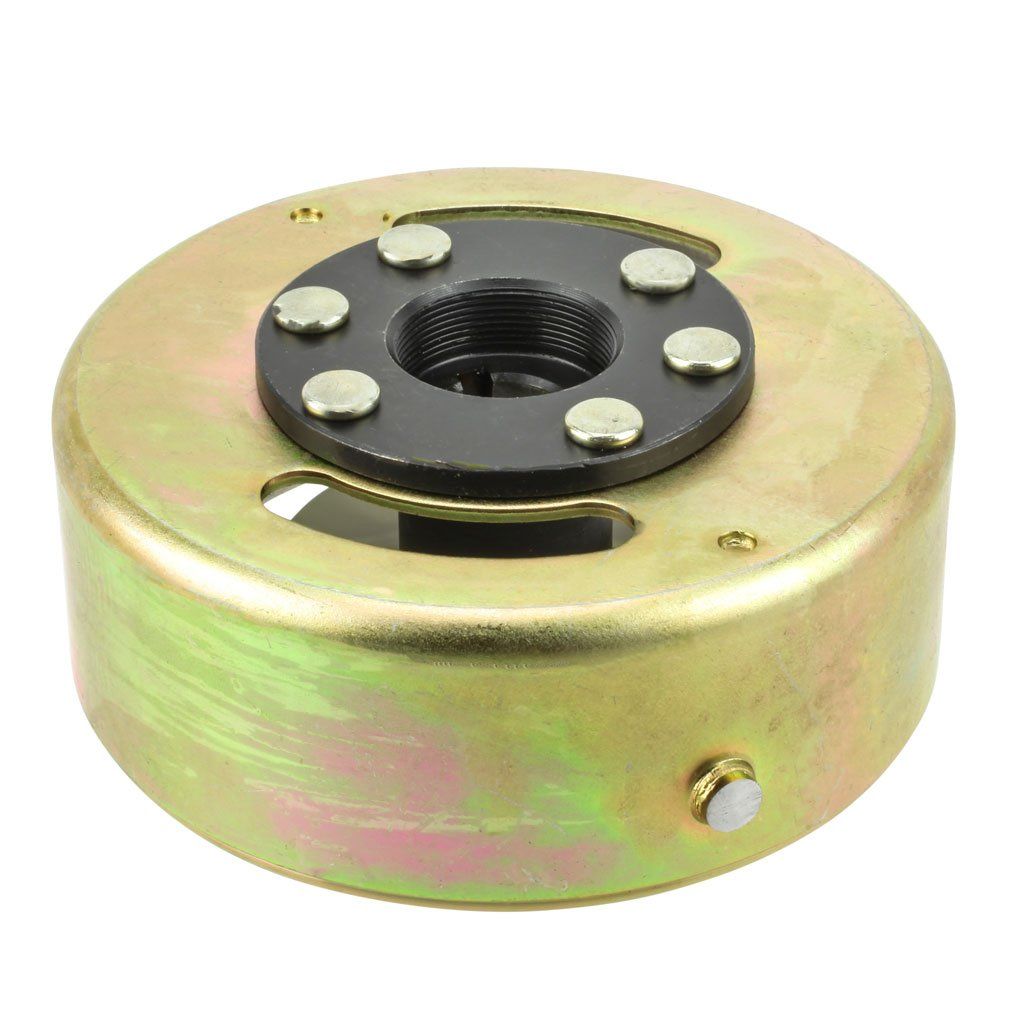

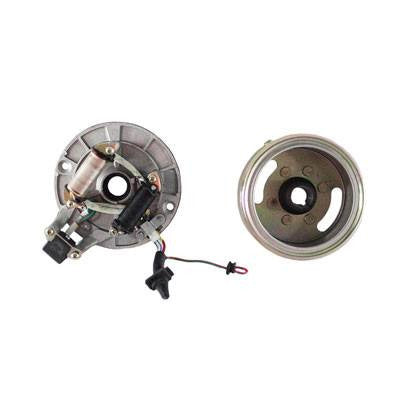

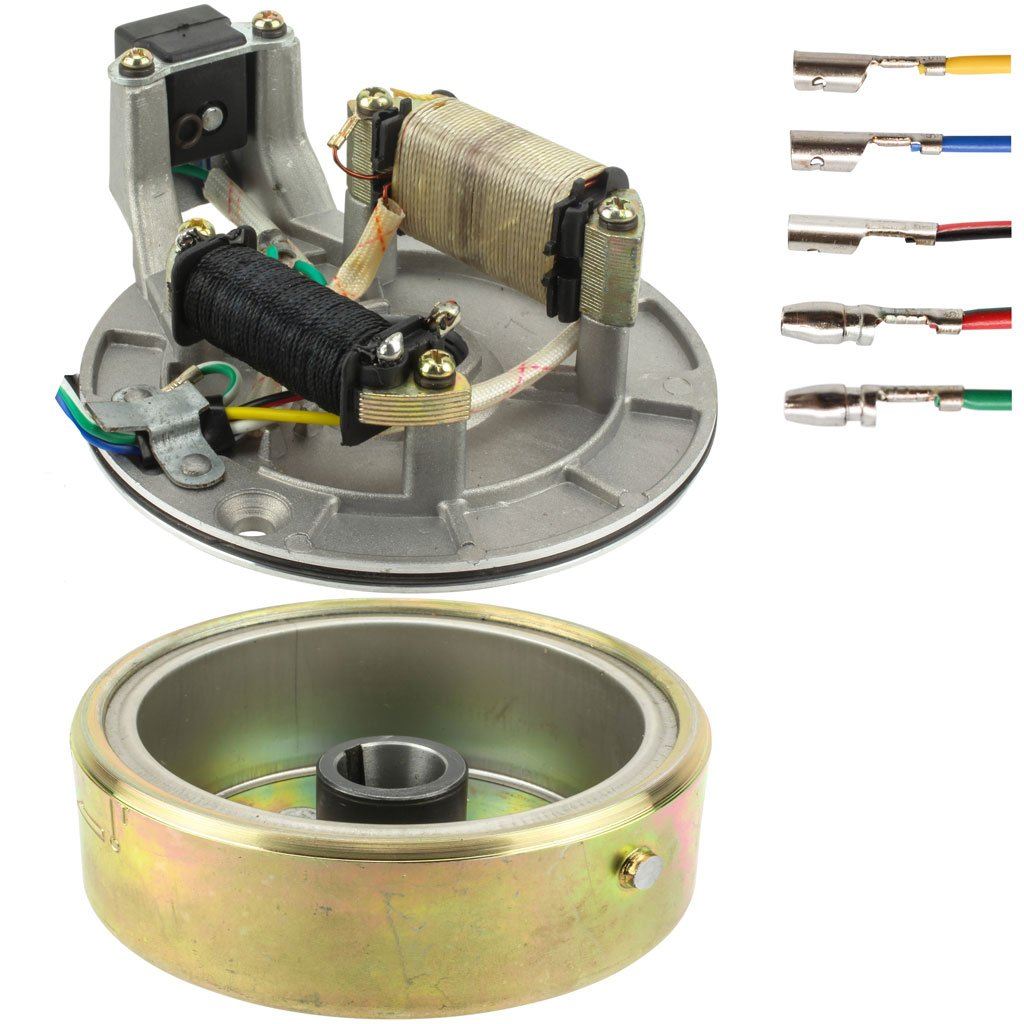

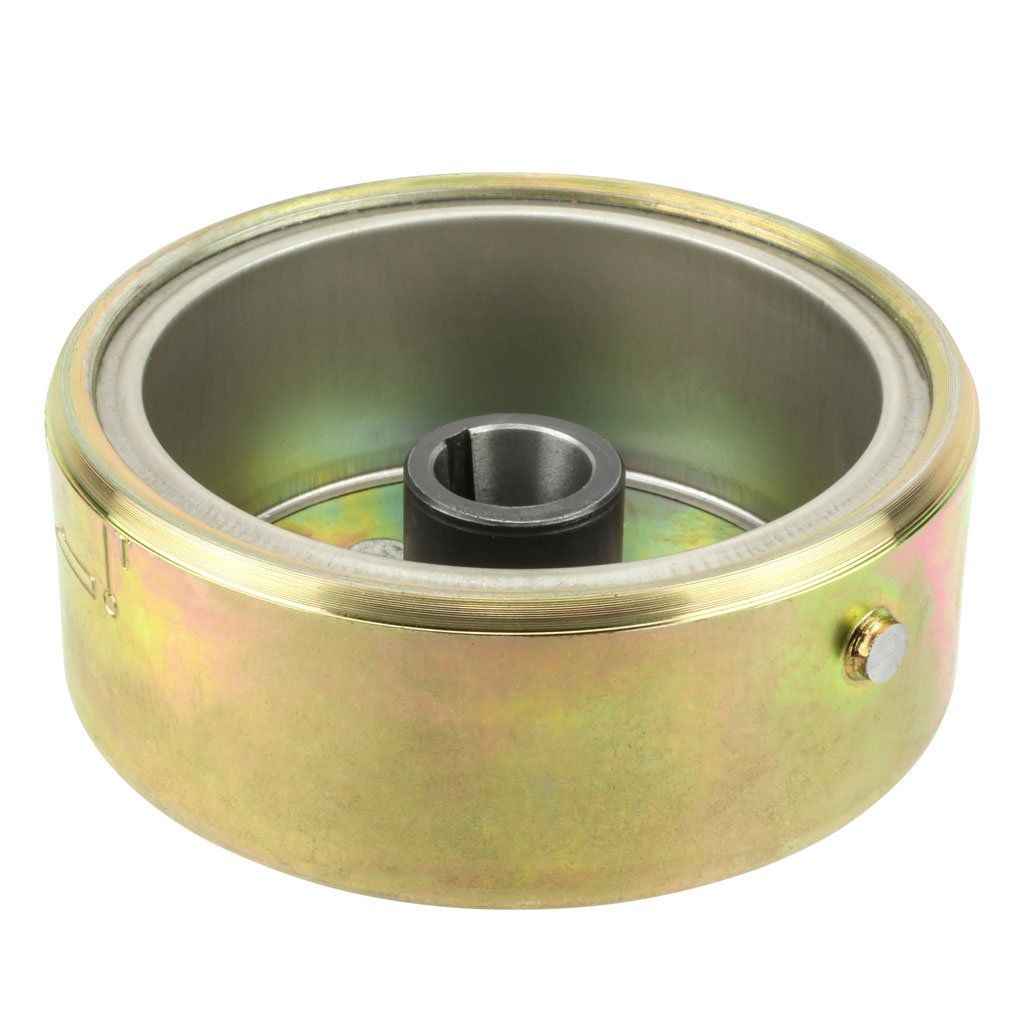

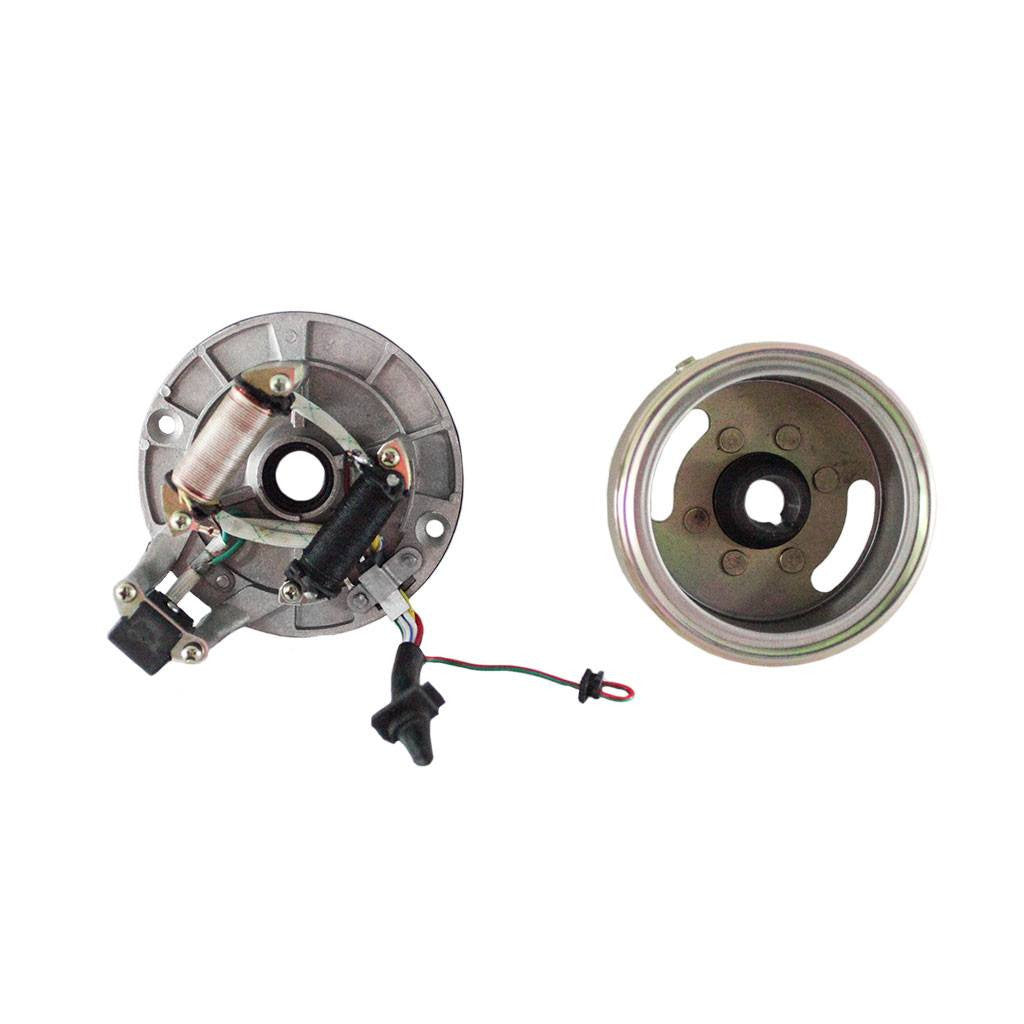

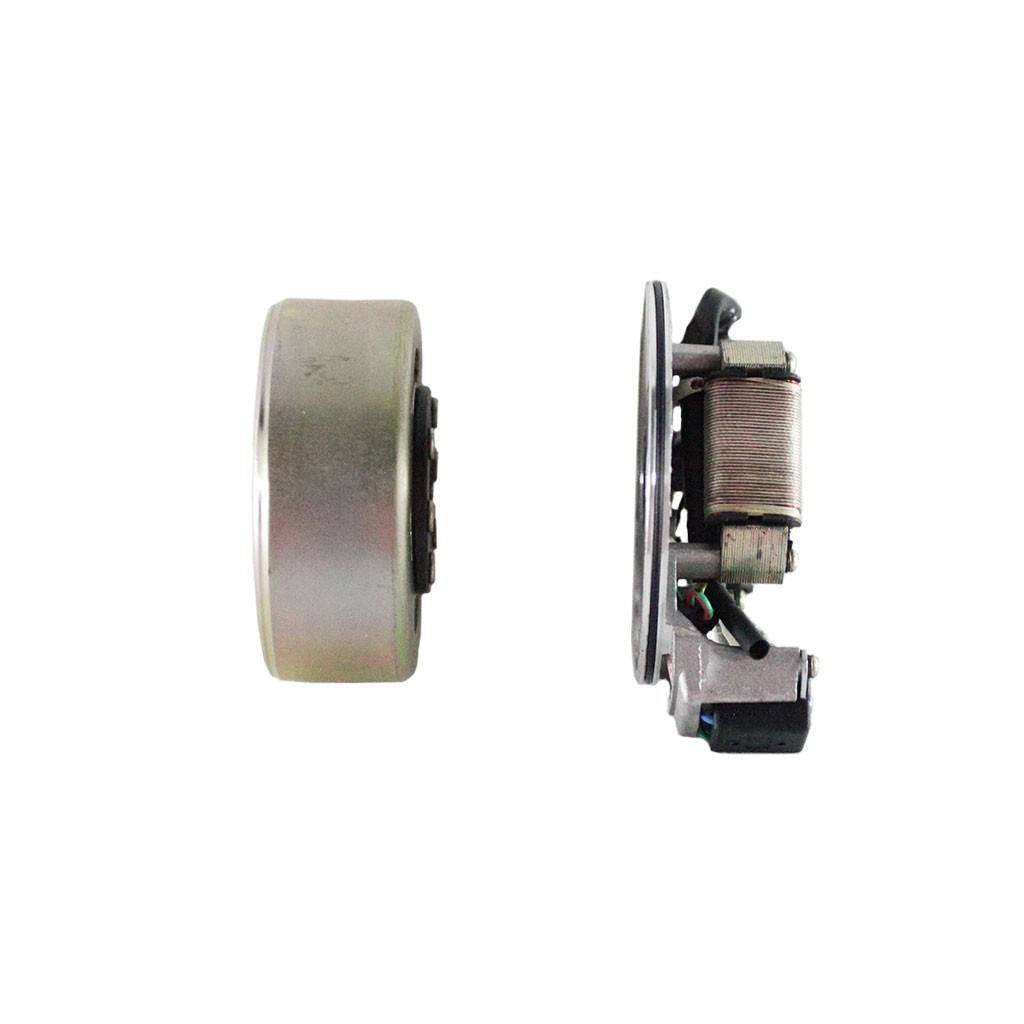

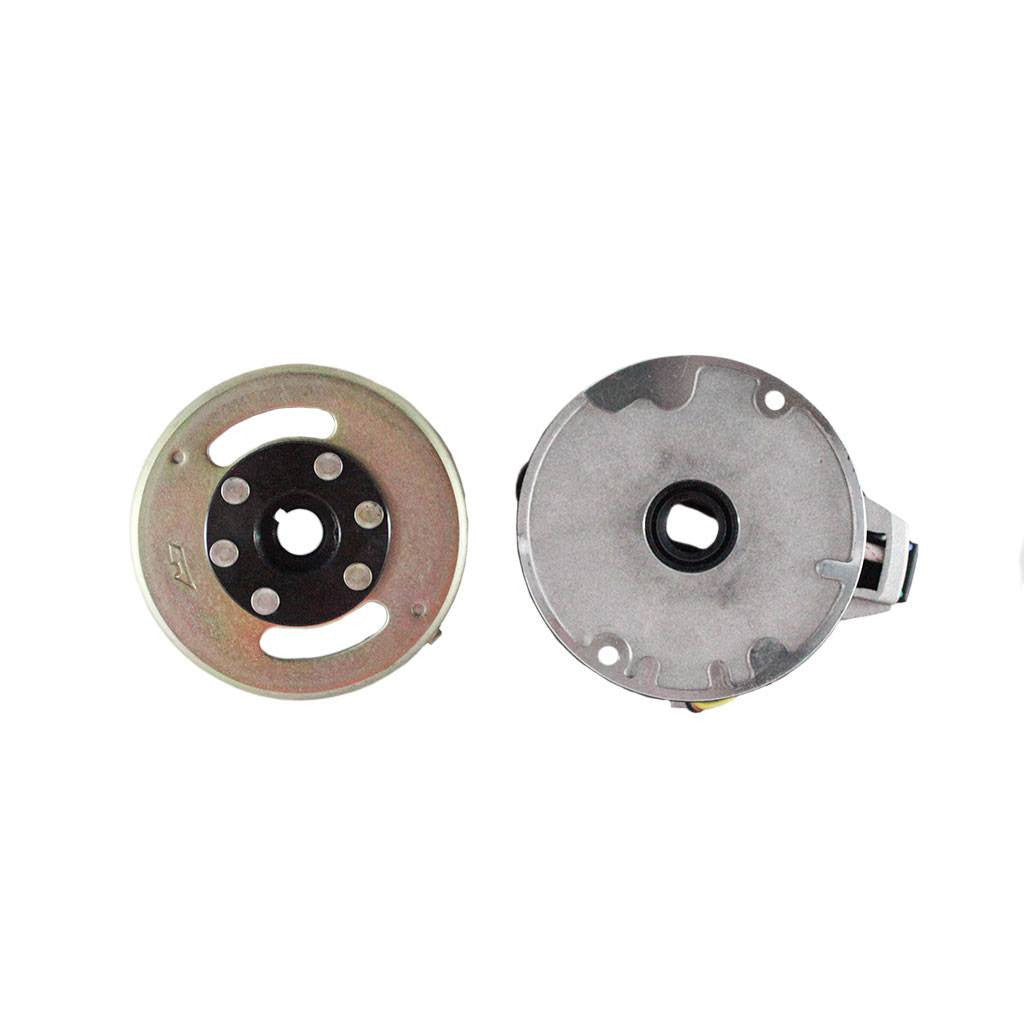

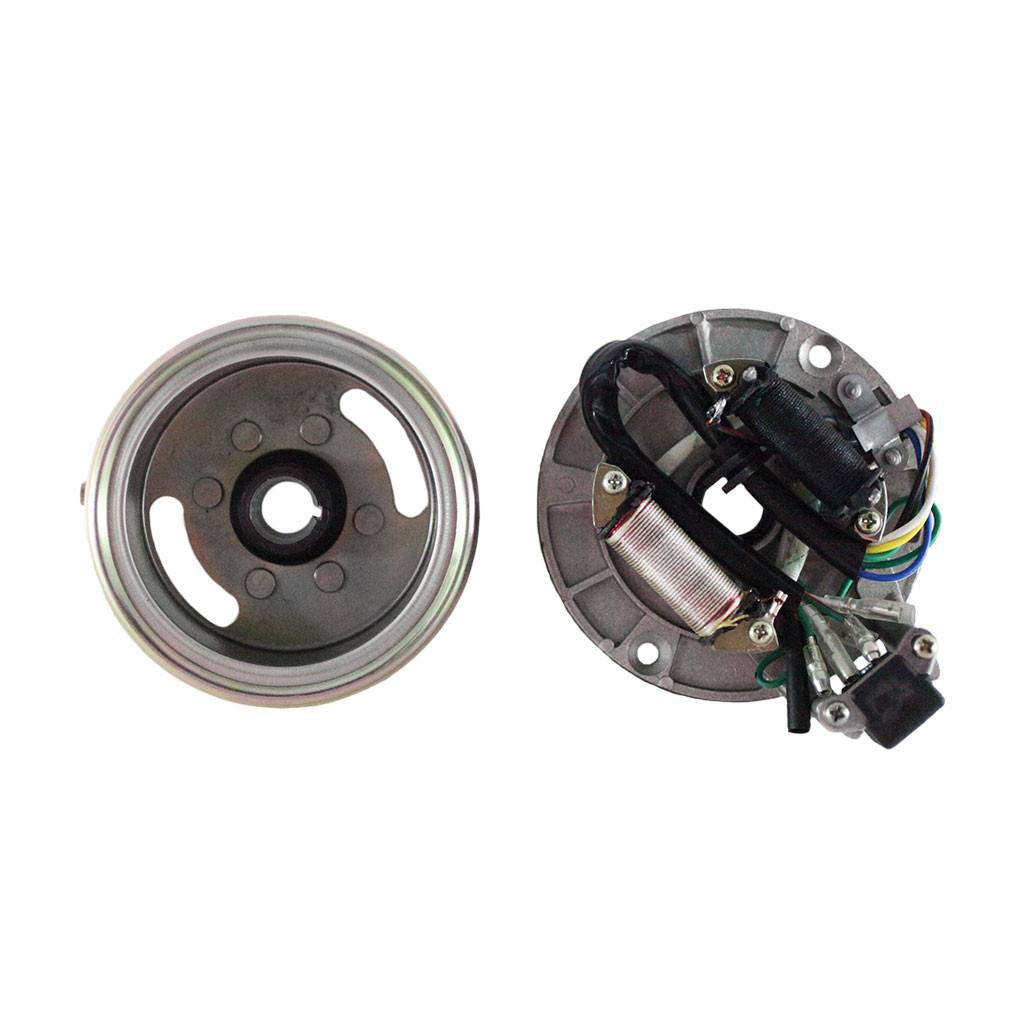

Chinese Stator Magneto / Flywheel Assy - 2 Coil - 50cc thru 125cc
This Chinese stator magneto / flywheel assembly is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes and Go Karts.
- 2 coil

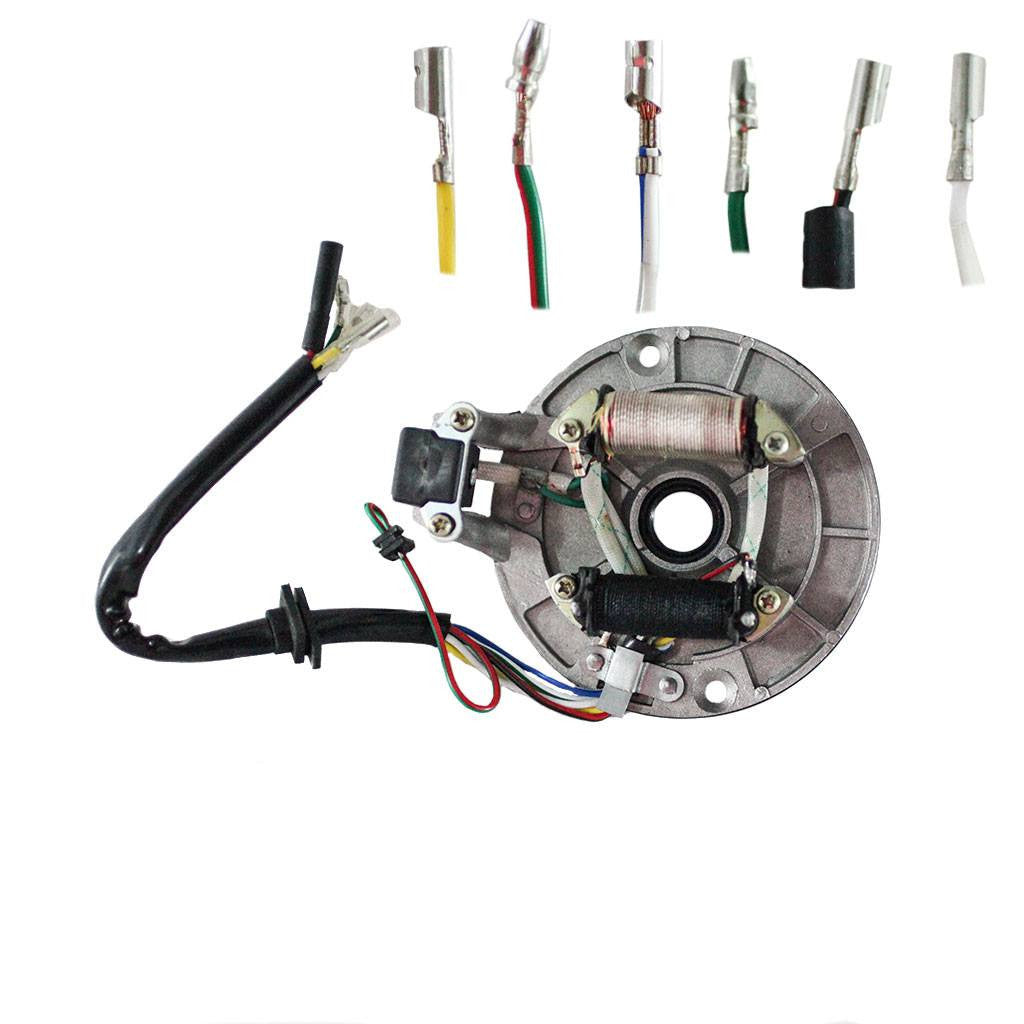

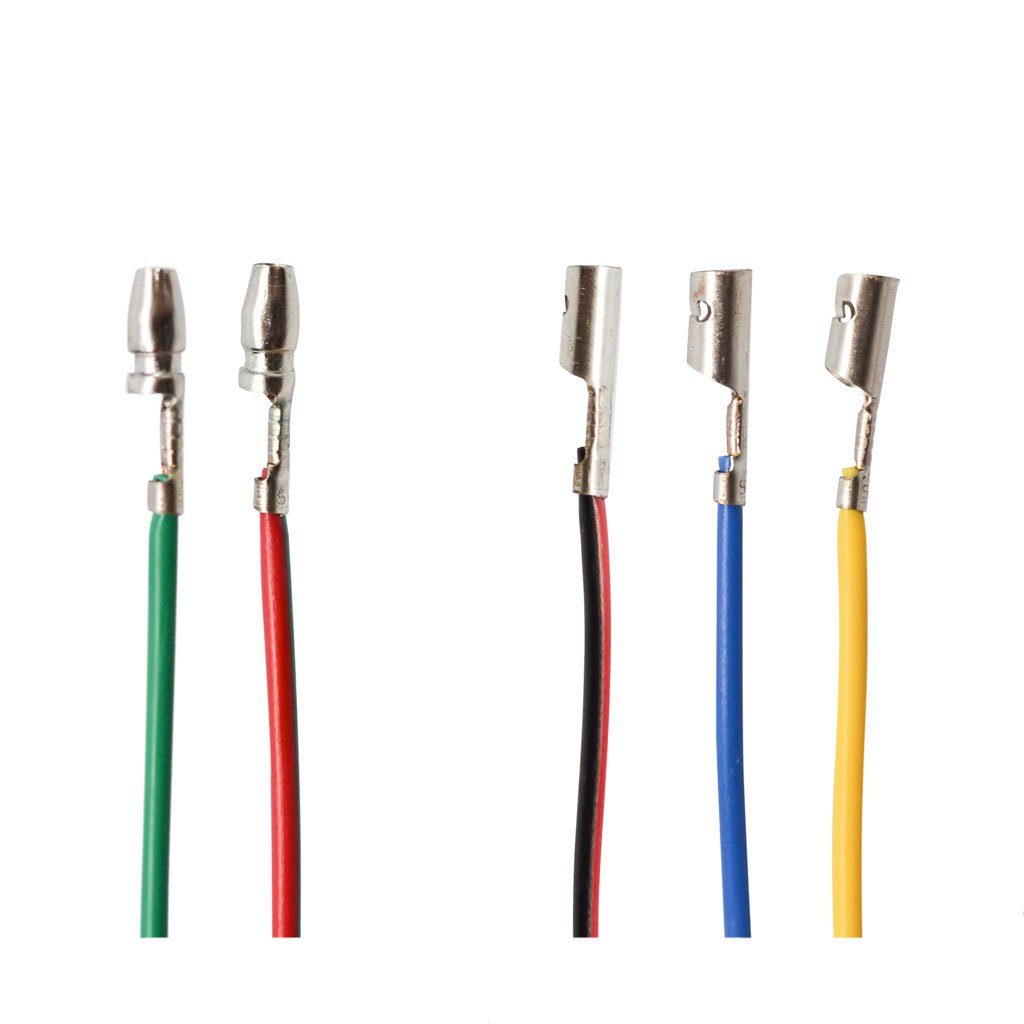

- 6 pigtail wires: 10" overall wire length

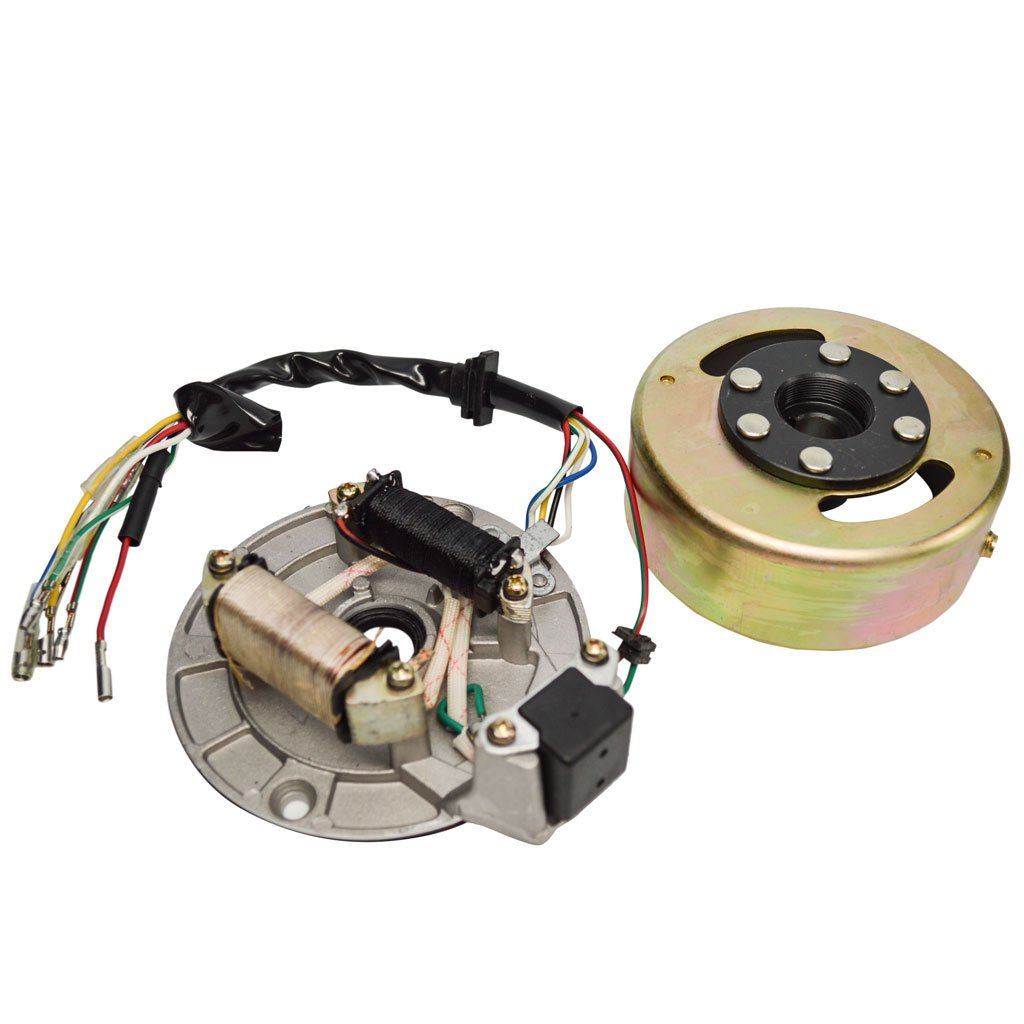

- 1 Short wire coming back out of harness... see pictures.
- 2 bolt mounting
- Pickup trigger
- Mounting measurement: center-to-center 10cm [3.98"]
- Compatible with 110cc 4 stroke
- Outside height of brass: 42mm [1.65"]
- Overall OD including "tab": 112.2mm [4.4"]
- Overall OD not including "tab": 109mm [4.32"]
- ID of magnetic area: 86.35mm [3.4"]
- OD of inside hole: 27.7mm [1.09"]
- ID of inside hole: 18.6mm [.73"]
- Cutout flywheel key notch.
- OD of starter clutch: 79.8mm [3.14"]
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
Electrical parts are not returnable. Please double check before ordering.
I bought this to replace the non-working stator on my Chinese built Flywing 100cc dirt bike after taking lots of measurements and determining that the wiring was a close match as well. It was a direct "fit" but not a direct "bolt on". It reqiured a few minor modifications such as re-drilling the two mounting holes (they were off about a half a hole each) and also grinding the mount for the pick-up coil as there wasn't enough clearance for the flywheel to rotate. There were also extra wires that were not needed but I was able to figure that out as well. Not a big deal and it made spark when I was done assembling it so it's a win in my book! Thanks VMC for having the parts to fix these Chinese mystery bikes!
Part was exactly what we needed.
Great very fast shipping a good product
I had trouble getting the float off of the carb. But other that that it was ok
