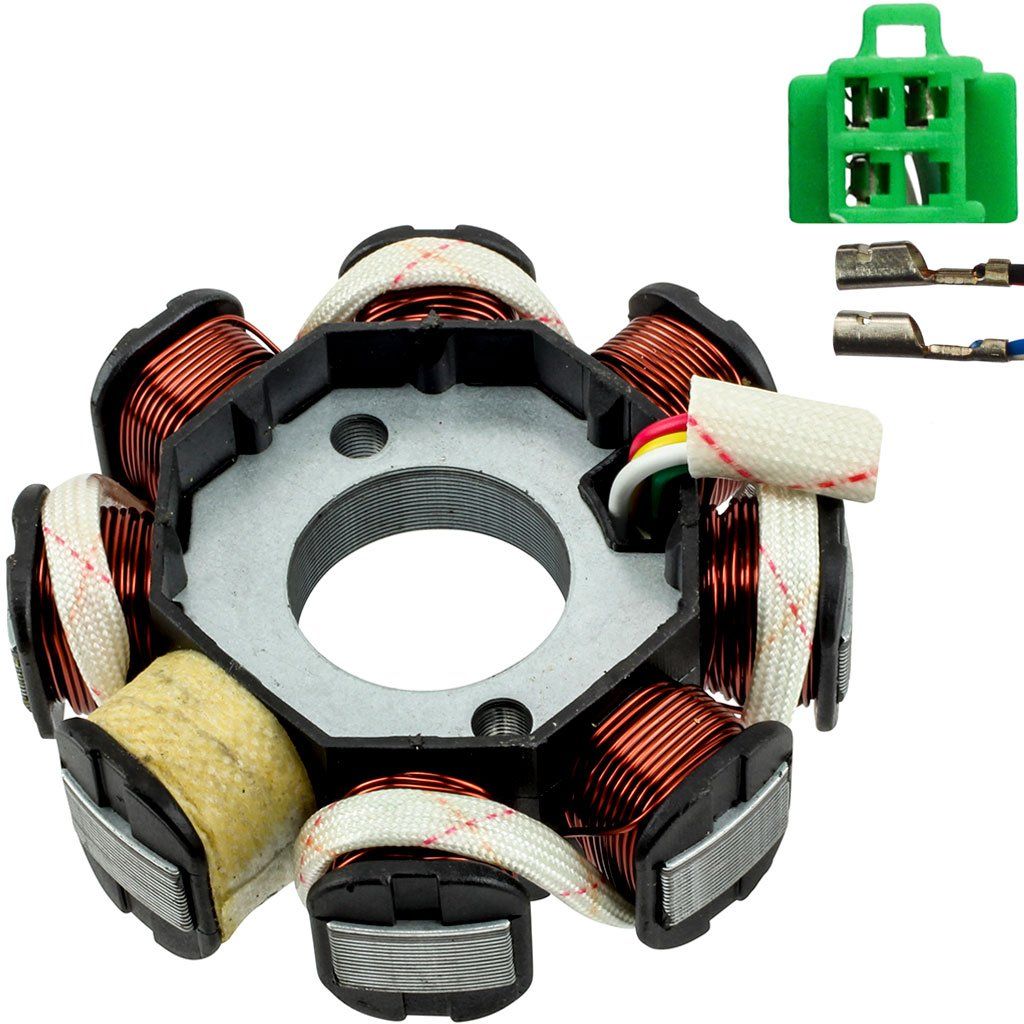

Chinese 8 Coil Stator Magneto for GY6 125cc 150cc Engines.
Version 16
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. This stator fits GY6 125cc, 150cc models.
Stator description:
- 8 coil
- AC

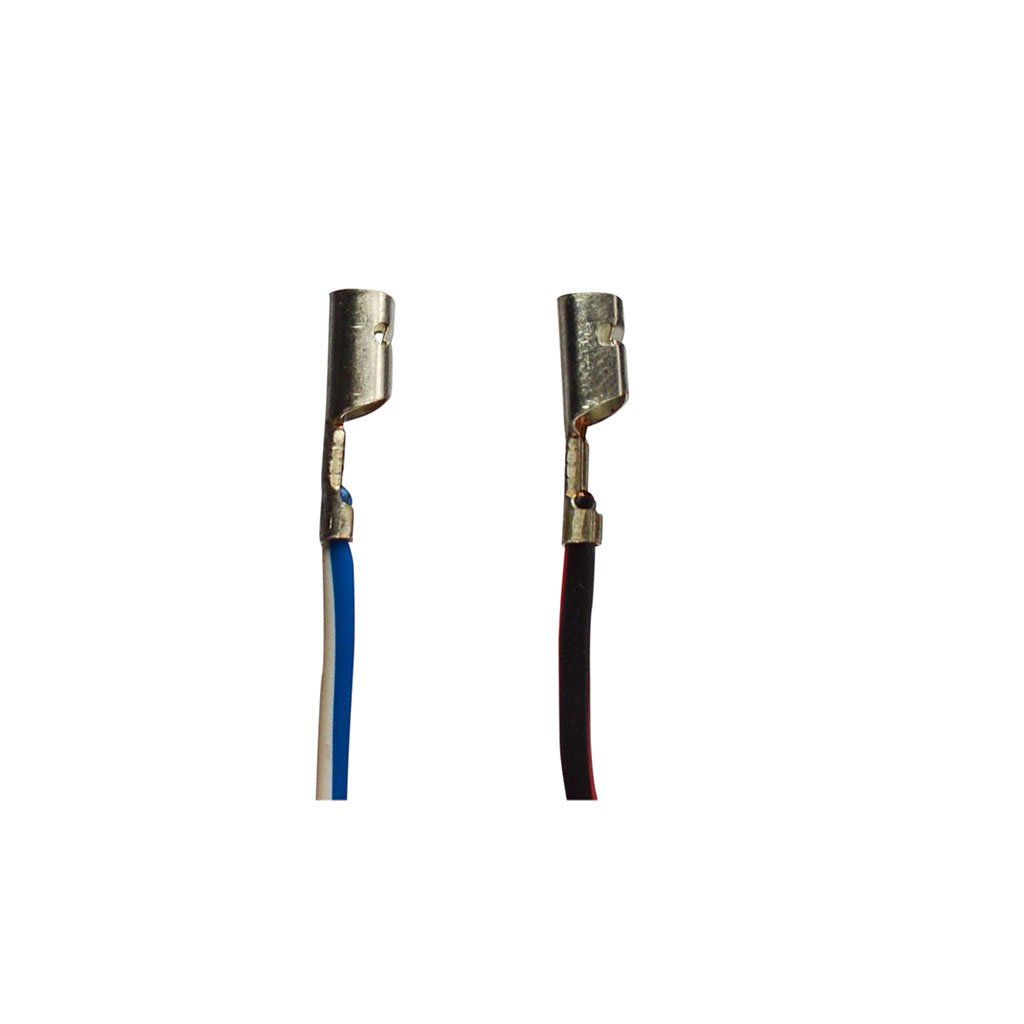

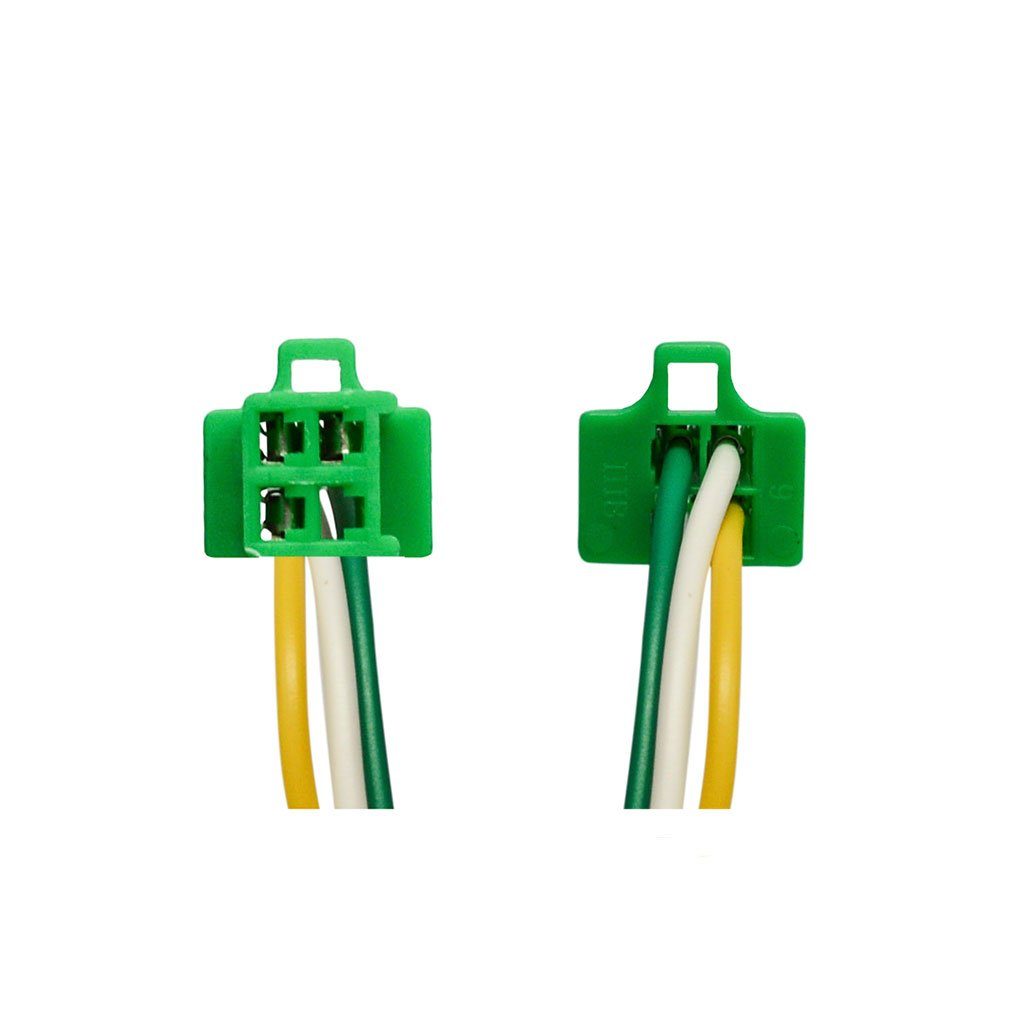

- 5 wires. 3 wires in a 4 position plug and 2 single leads.
- 2 bolt mounting

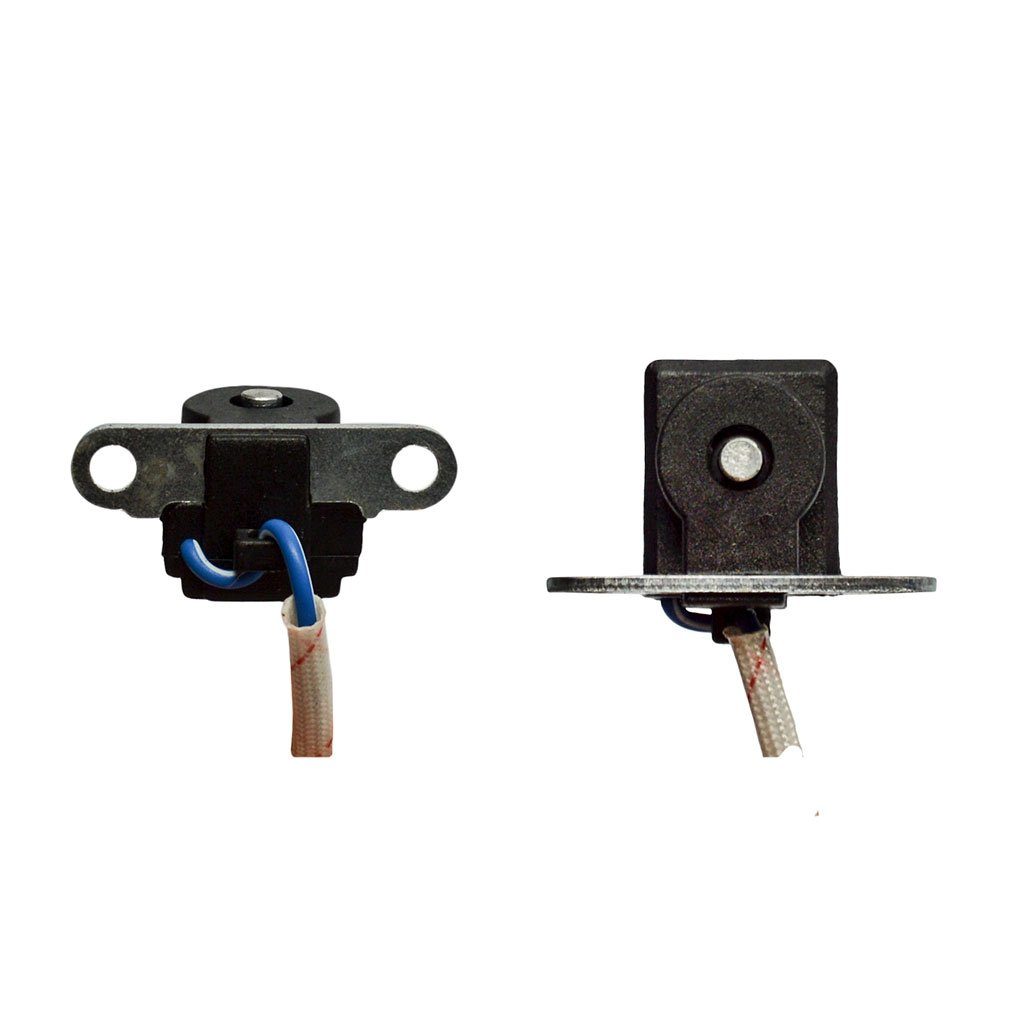

- Pick up trigger
- Center hole measurement: 29mm [1.14"]
- Overall measurement: 88mm [3.46"]
- Single coil height: 26.75mm [1.05"]
- Bolt hole spacing: 41mm [1.61"]
- Bolt hole diameter: 6mm [.23"]
- Compatible with GY6 125cc and 150cc 4 stroke
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- shipping
- price
- prices
- original
- picture
- stator
- stars
- right
- wiring diagram
- multimeter
United StatesI bought two stators for my Tao Bull 150, one for use and one for backup. I tested both with a multimeter and one was bad right from the factory. The working one functioned properly and VMC customer service promptly replaced the broken one after an email request and I had my replacement stator for my backup in 2 days! Great customer service!
The Stator arrive on time at a fair price and does work. Thanks Rob
Very low prices! Fast shipping.Correct parts! 5 stars from this customer!
Got somebody on phone without wait to answer my questions; product shipped very, very promptly. Ordered 2 magnetos. One burned up immediately upon installation. The other one is functioning fine (so far). Good thing they were inexpensive and good thing I got two!
I steel have problem getting it to run. I think I need to rewire it. battery is bad so as fare as your parts are concerned Every thing is ok. When I find a wiring diagram I will get it going.
