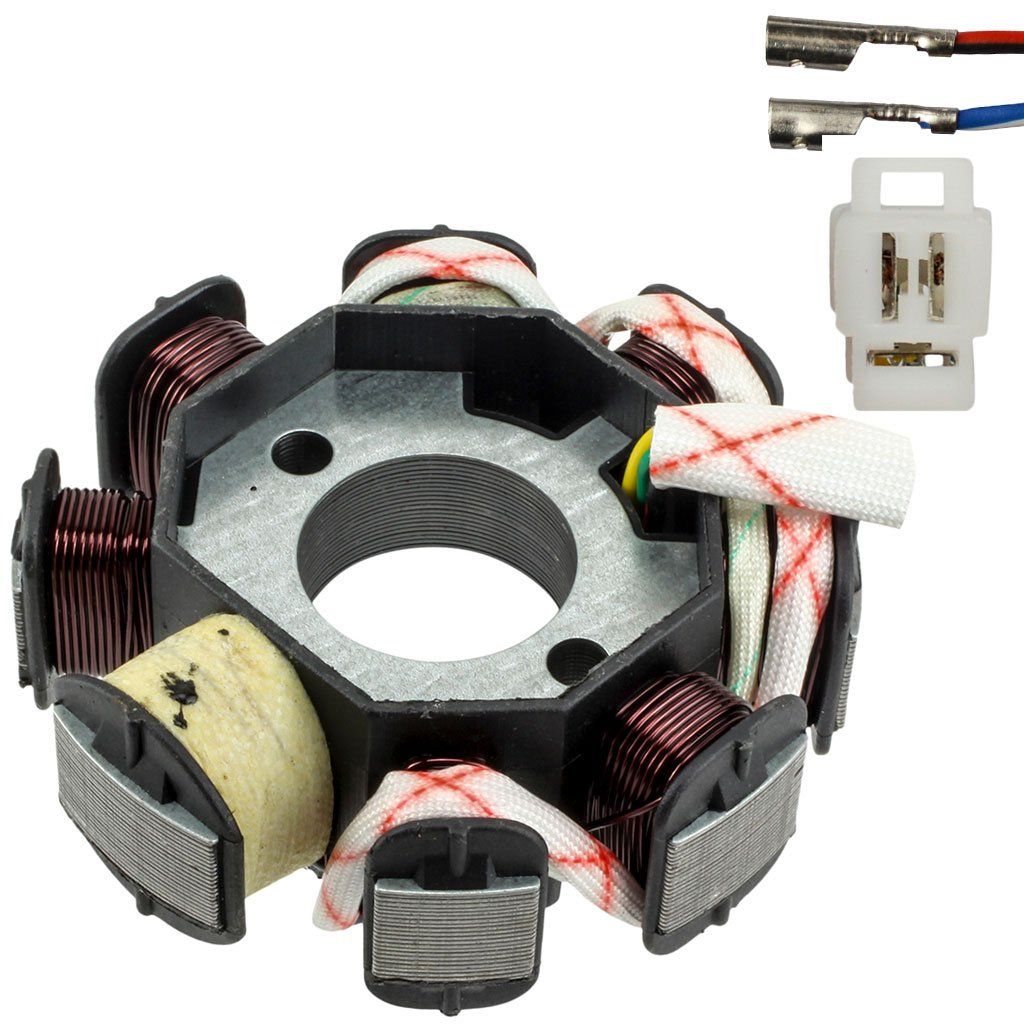

Stator Magneto - 8 Coil - GY6 150cc - Version 13

Chinese 8 Coil Stator Magneto for GY6 150cc engines.

Version 13

This Chinese stator magneto is the replacement part for many 4-stroke Chinese  ATVs, Dirt Bikes, Go Karts and Scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits GY6 150cc models.

Stator description:

• 8 coil - 1 wrapped
• 5 wires

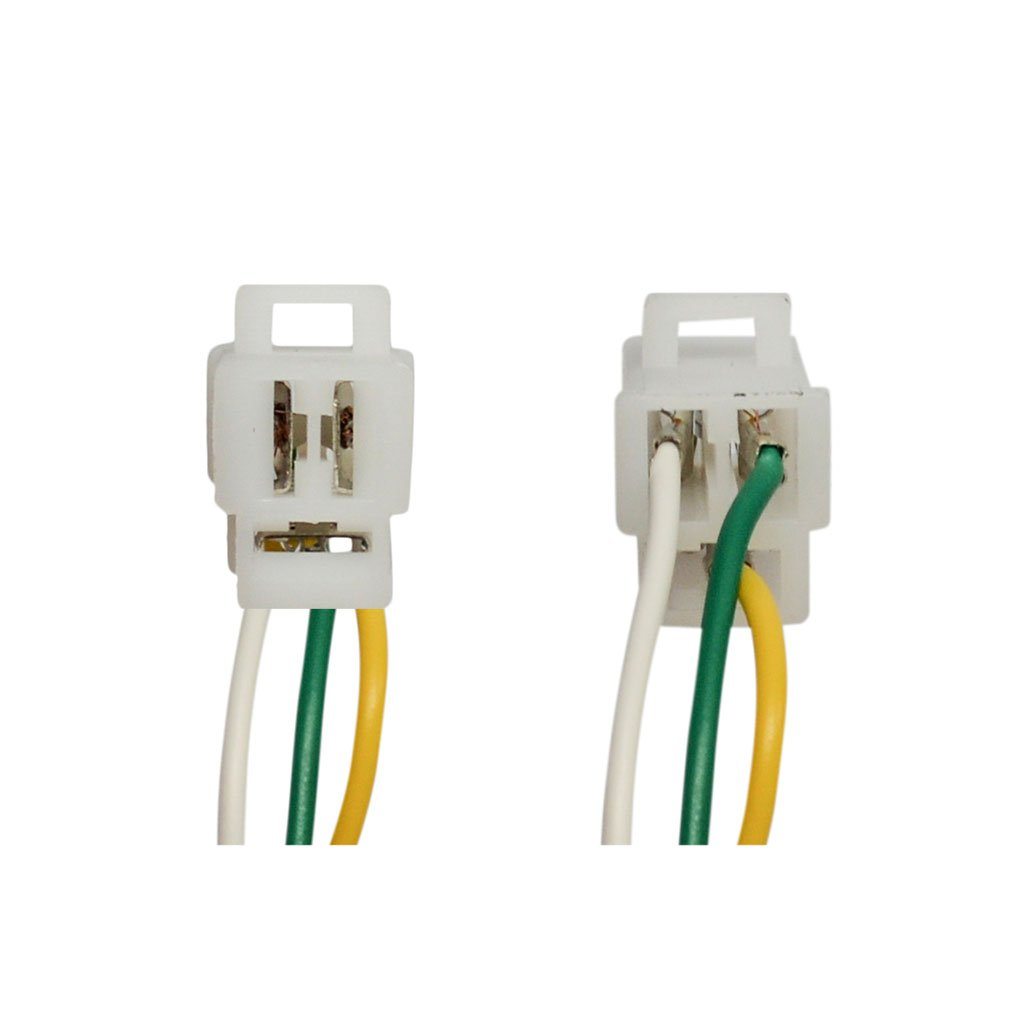

• 3 wires to 3 pin plug: 40cm [15.75"] overall wire length
• 1 pigtail wire for pickup trigger: 40cm [15.75"] overall wire length

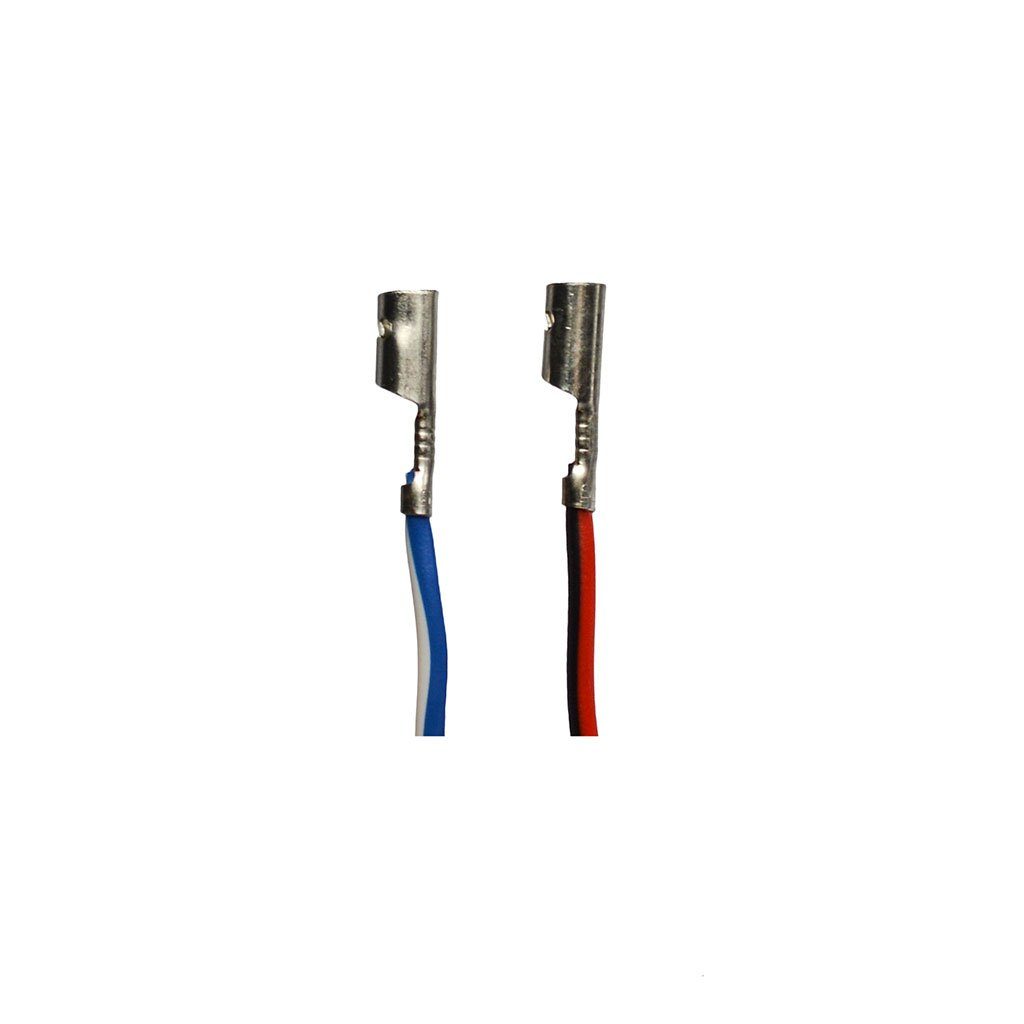

• 1 single red wire pigtail going to wrapped coil
• 2 bolt mounting

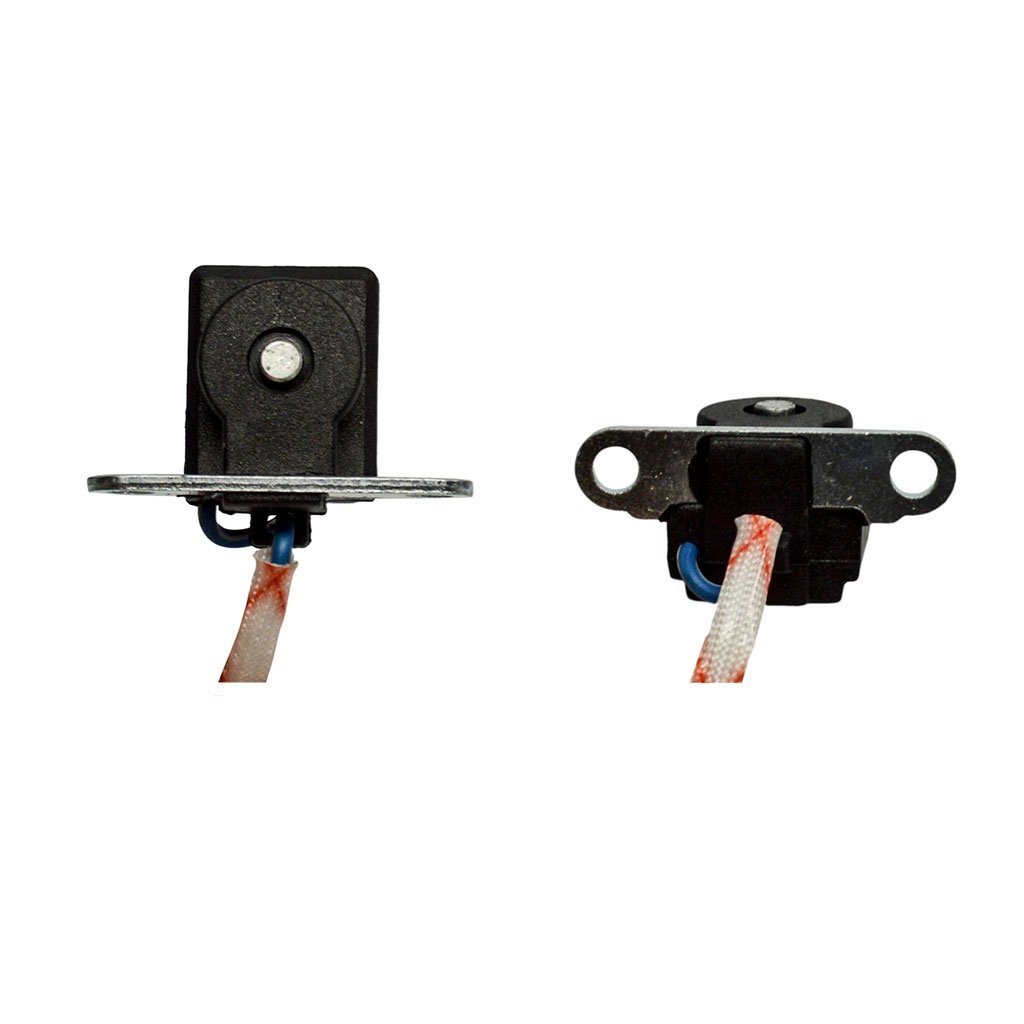

• Pick up trigger
• Center hole measurement: 29mm [1.14"]
• Overall measurement:  88mm [3.46"]
• Single coil height: 30mm [1.18"]
• Wrapped coil height: 32mm [1.25"]
• Mounting measurement: center-to-center 41mm [1.61"]
• Compatible with GY6 150cc 4 stroke

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!

Electrical parts are not returnable.  Please double check before ordering.
