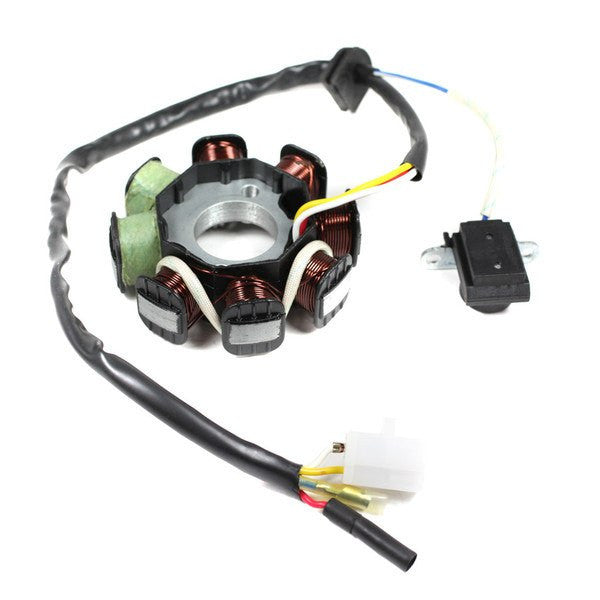

Chinese 8 Coil Stator Magneto for GY6 50cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese scooters. This stator fits GY6 50cc models.

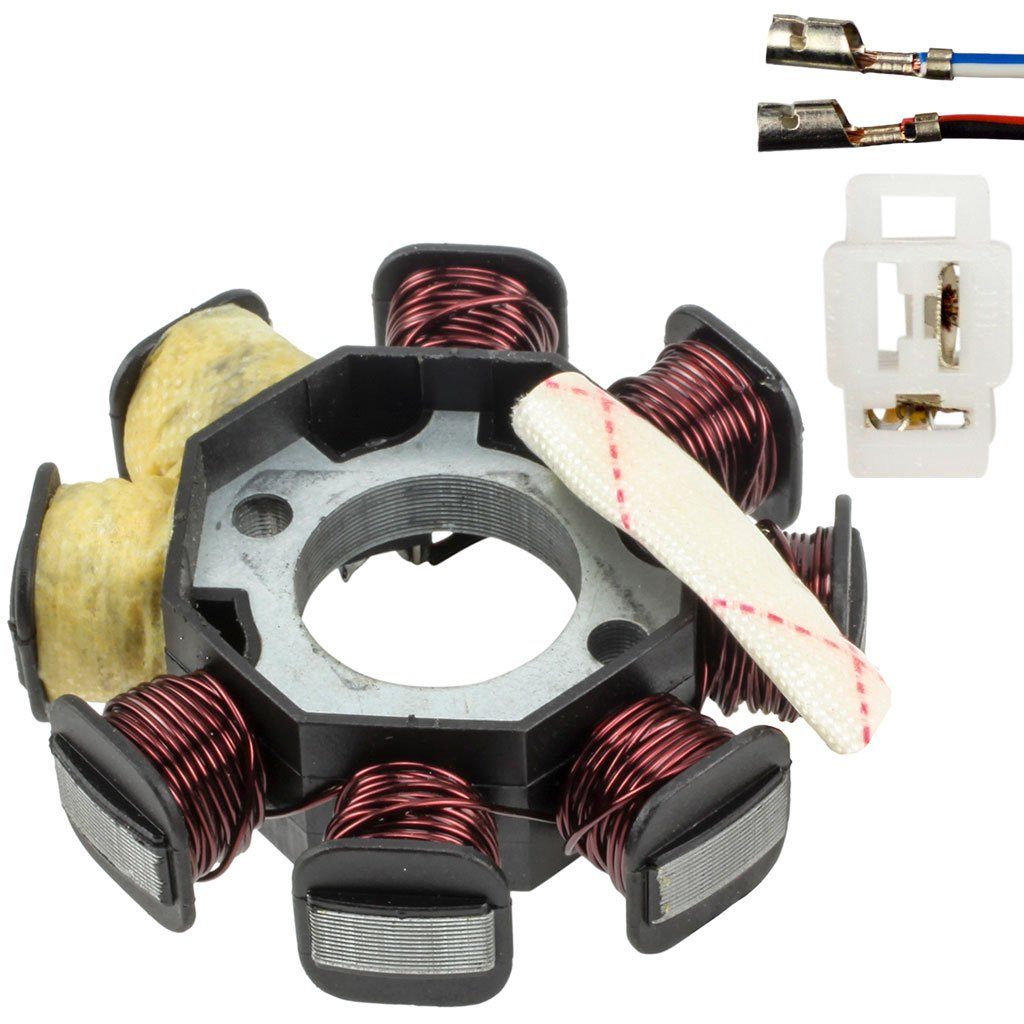

- 8 coil [2 wrapped]

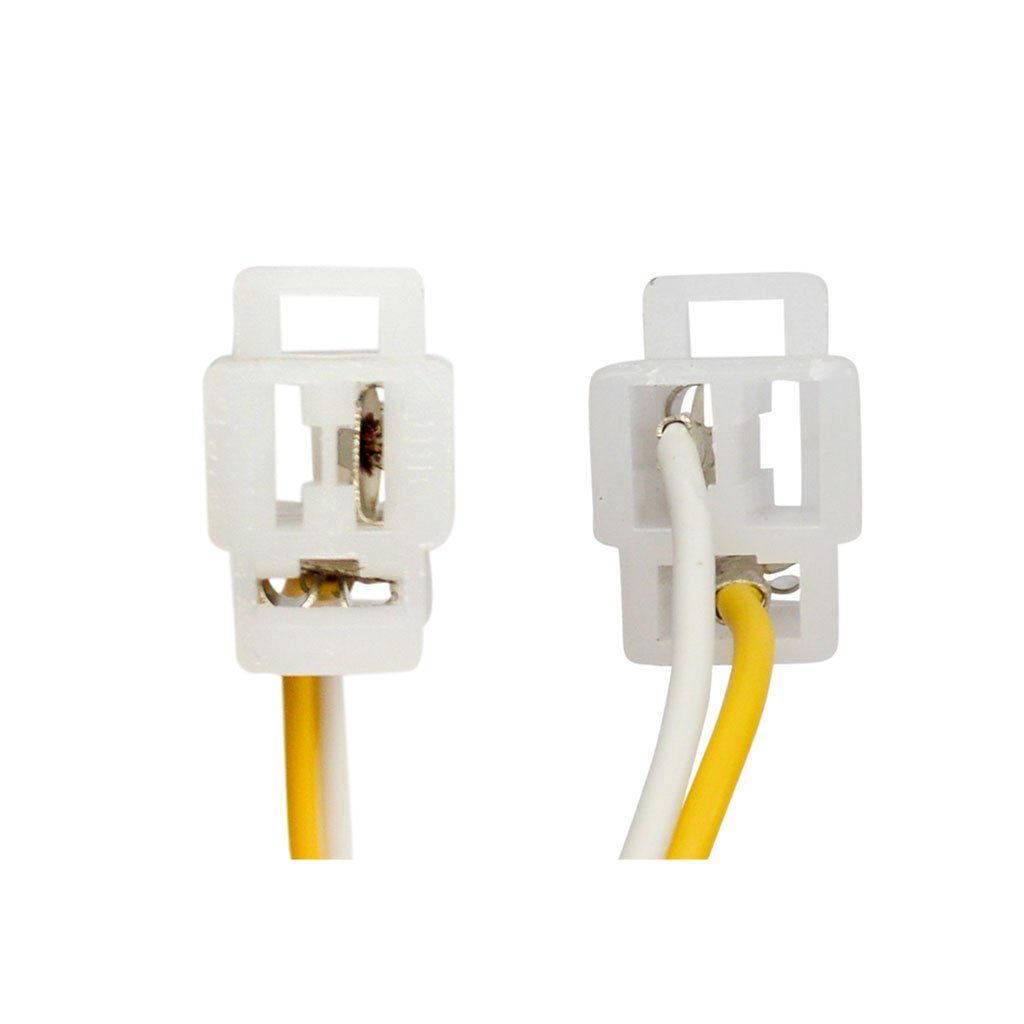

- 4 wires - 2 in a 3-hole plug - 2 pigtail: 45cm [17.75"] overall wire length
- 2 bolt mounting

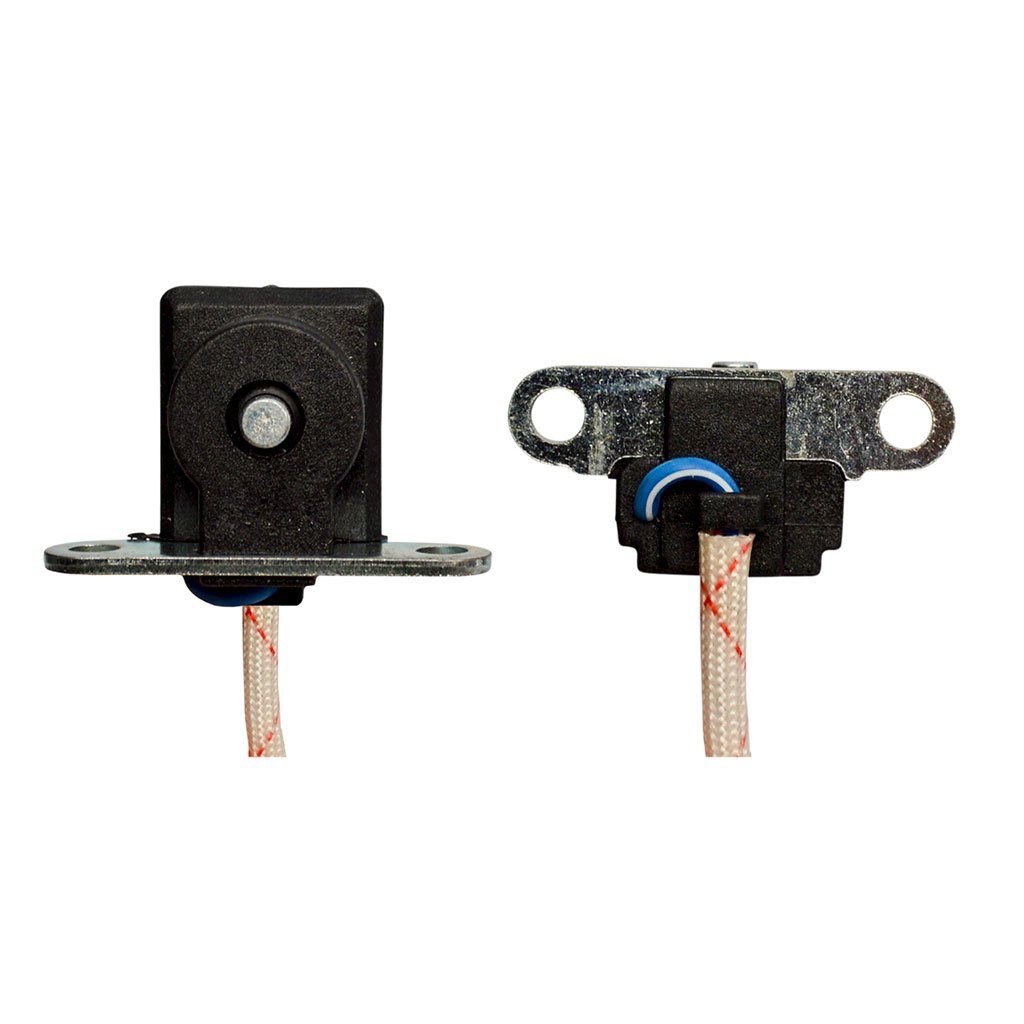

- Pick up trigger - single wire
- Center hole measurement: 29mm [1.14"]
- Overall measurement: 88.6mm [3.49"]
- Single coil height: 26.35mm [1.04"]

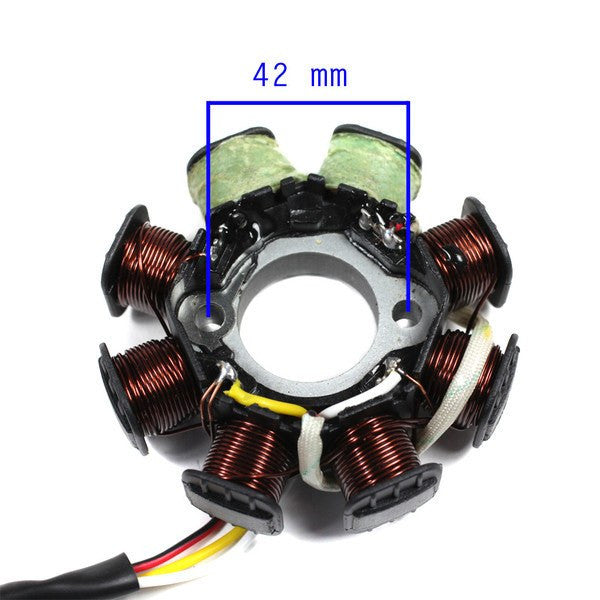

- Mounting measurement: center-to-center across 41.95mm [1.65"]
- Compatible with GY6 50cc 4-stroke
- replacement parts
The stator mounting holes are
The stator mounting holes are placed differently then old stator and position of the coils (two taped ones) are in different positions. Do not know if this makes any difference and I still do not have any voltage generated by the new stator
8 coil stator
Be careful when ordering replacement parts. The stator I picked out looking to be the best fit, didn’t fit inside the original flywheel. Possibly should have ordered a matching flywheel at the same time. And no return on electrical parts.
