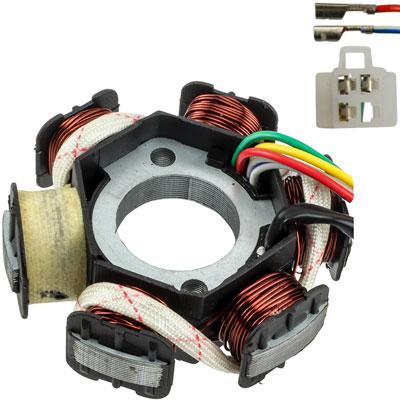

Chinese 6 Coil Stator Magneto for GY6 125cc 150cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. This stator fits GY6 125cc, 150cc models.
- 6 coil
- 5 wires - 4 pin plug with 3 wires (green, white & yellow)
- 2 individual leads
- 21" overall wire length
- 2 bolt mounting
- Pick up trigger
- Center hole measurement: 29mm [1.14"]
- Overall measurement: 83mm [2.26"]
- Single coil height: 25.8mm [1.01"]
- Bolt hole spacing: 41mm [1.61"]
- Bolt hole diameter: 6mm [.23"]
- Compatible with GY6 125cc and 150cc 4-stroke
Highly recommend this seller bought several more items from them since this
Stator works perfect, very easy install, wires and pin plug fits excact.
I use the item I purchase install it and the motor came alive, it runs good now, it doesn’t cough and die anymore
