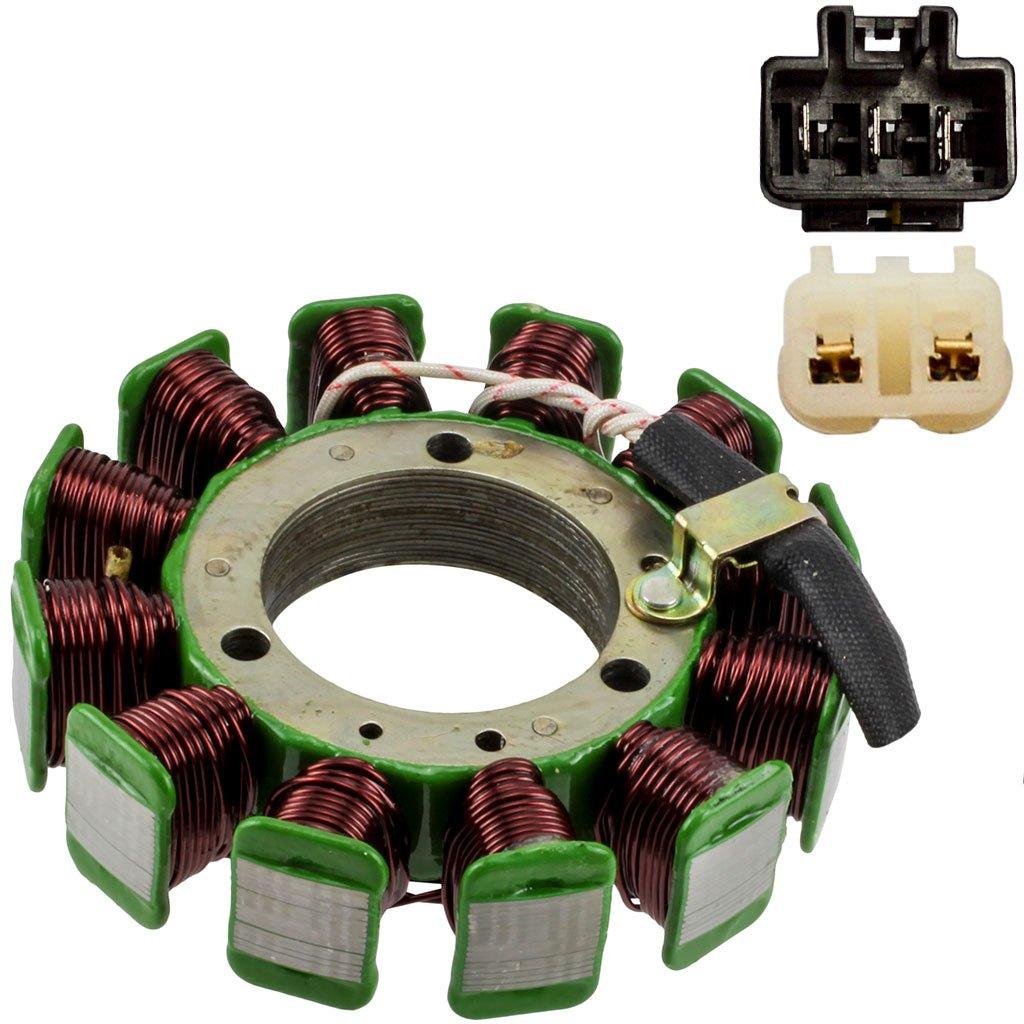

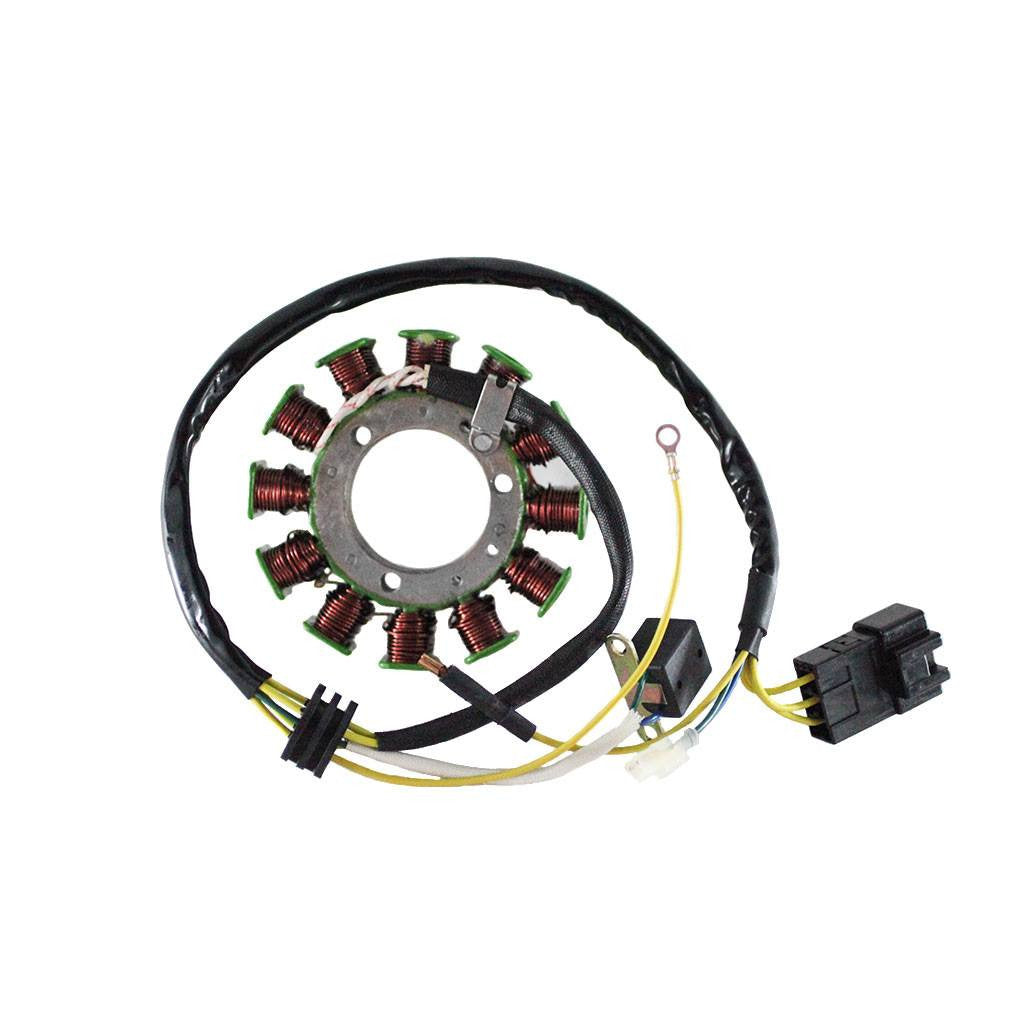

Chinese 12 Coil Stator Magneto for 500cc Engines.
This Chinese stator magneto is the replacement part for the 500cc Kazuma Jaguar models. It may fit other makes and models also.
- 12 coil

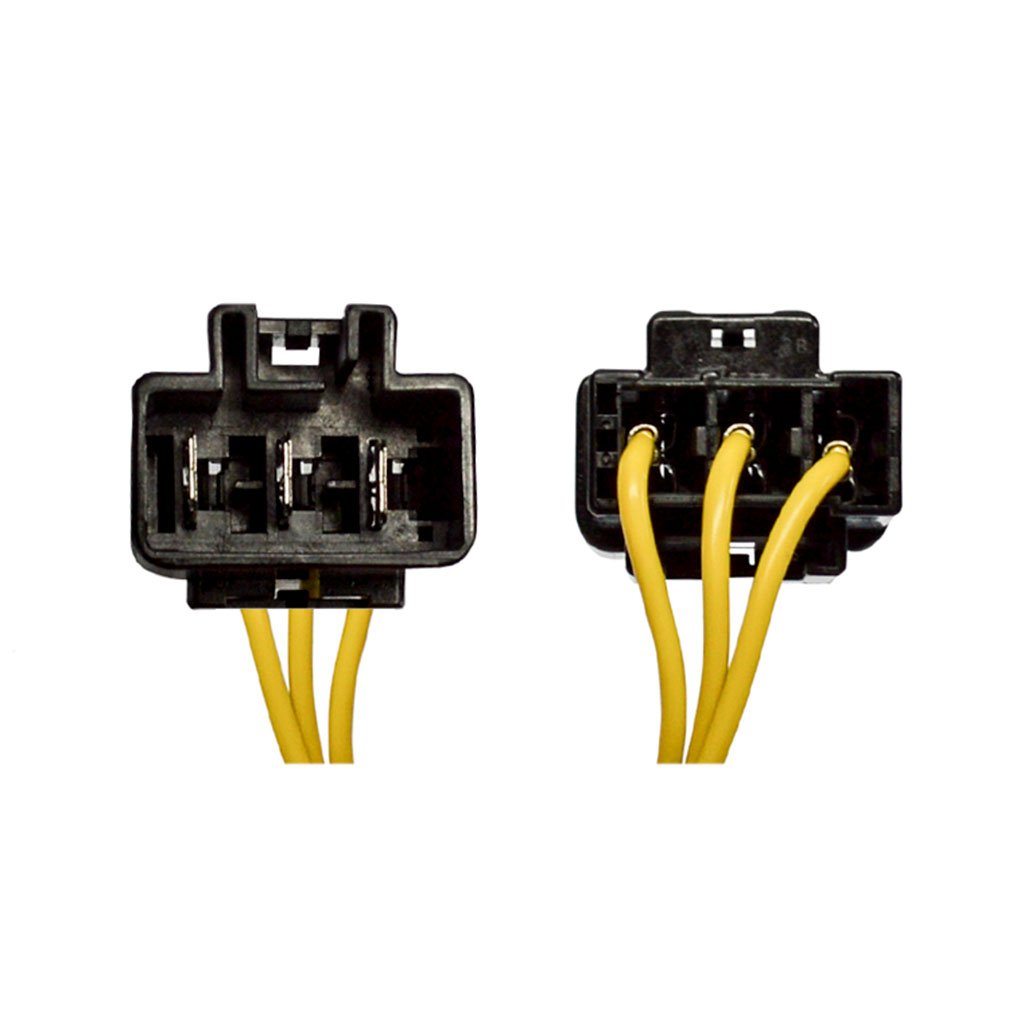

- (1) 3-wire, 3-spade connector

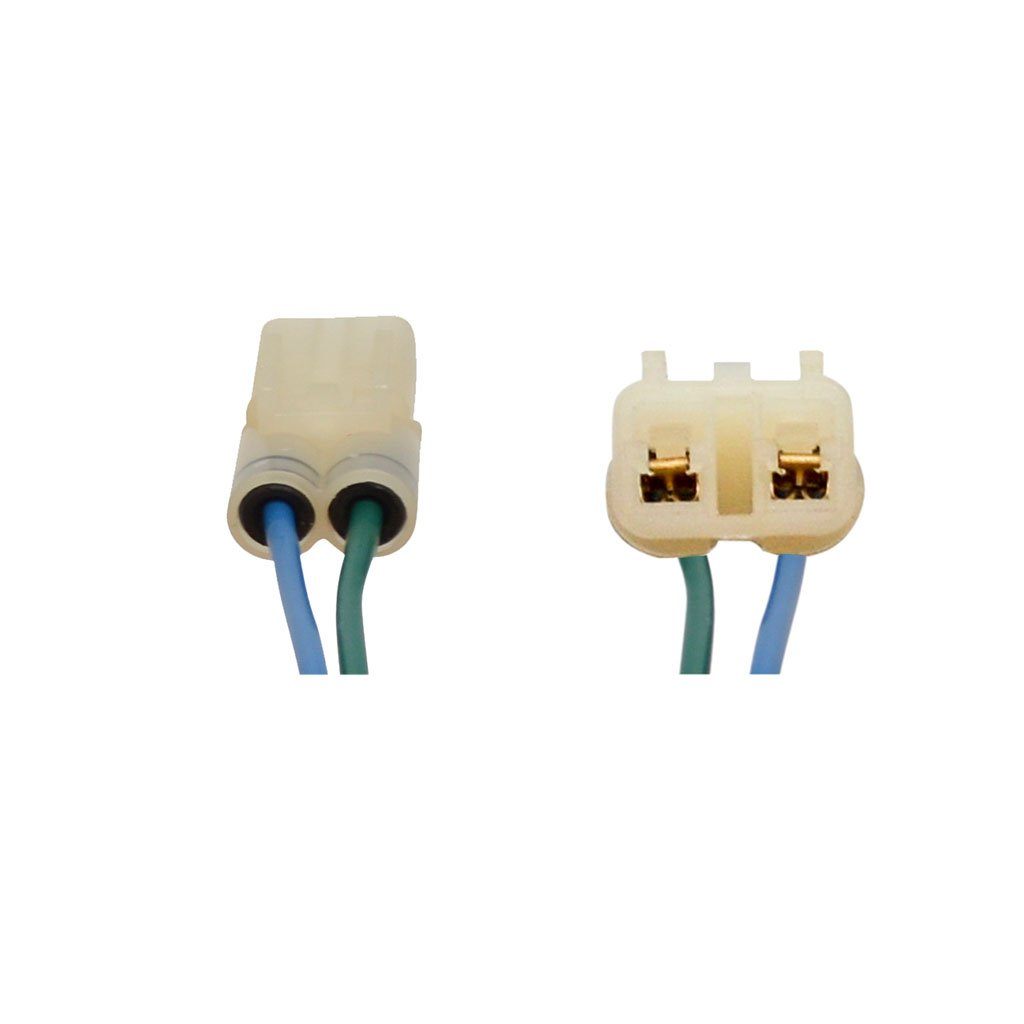

- (1) 2-wire female connector

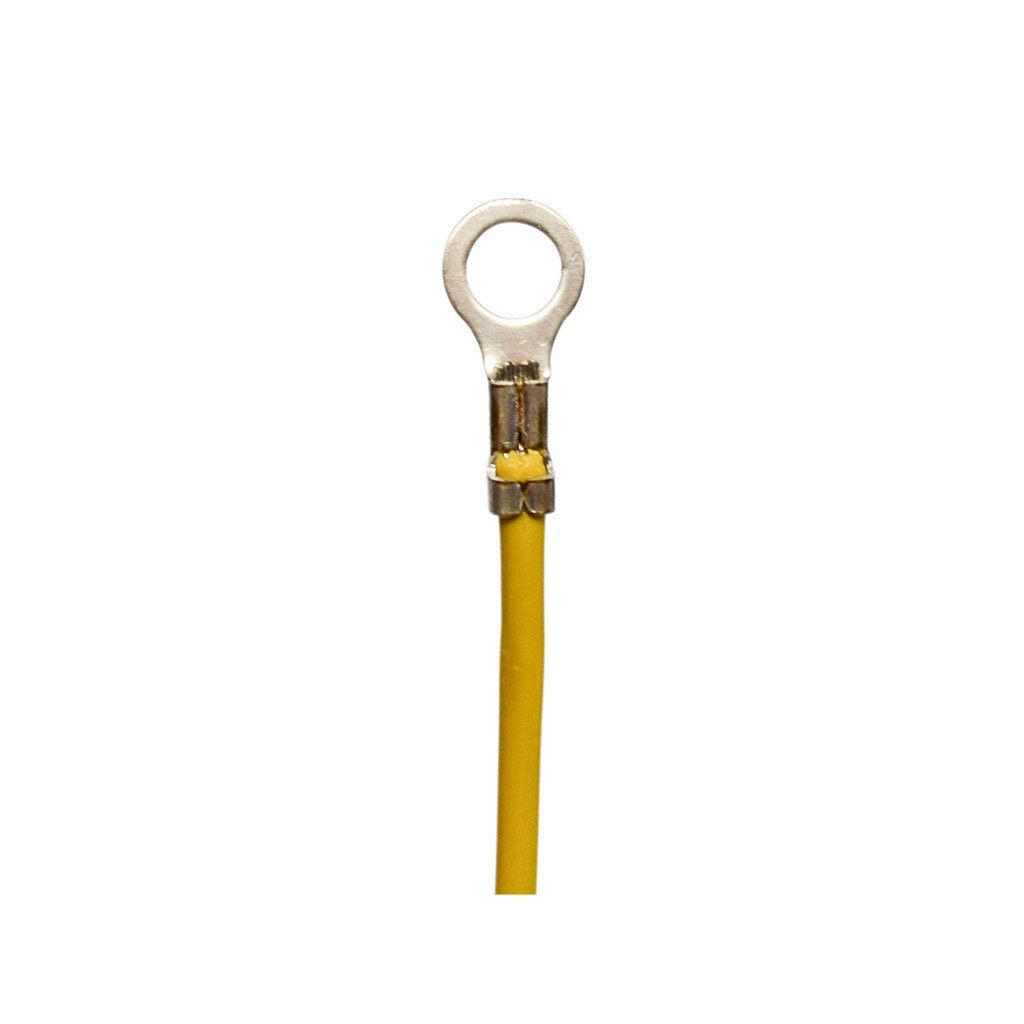

- (2) single leads... one half way up the wiring harness, one at the end

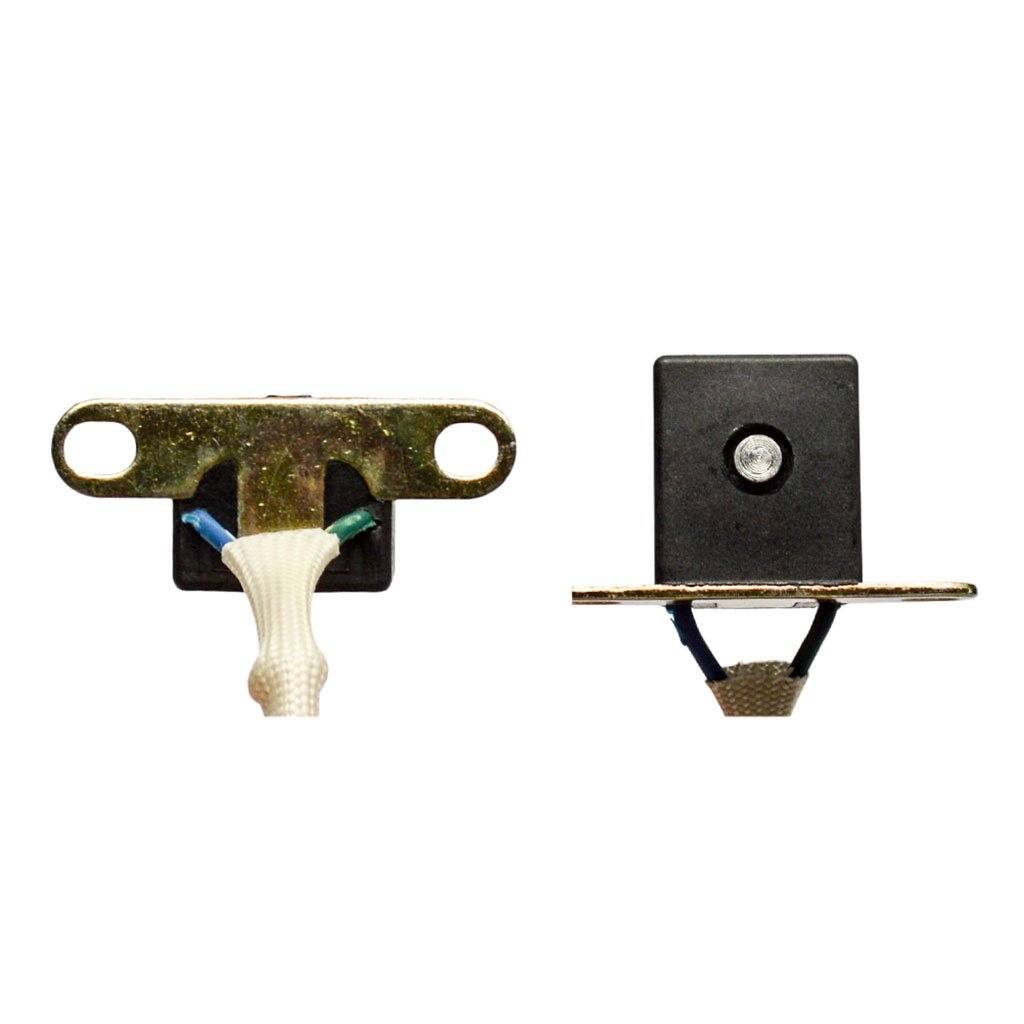

- 2-wire pick-up trigger
- Wiring harness is aprox. 24" long
- 3 bolt mounting
- Center hole measurement: 48mm [1.88"]
- Overall width: 115mm [4.54"]
- Single coil height: 29.5mm [1.16"]
- Compatible with 4 stroke 500cc motors
