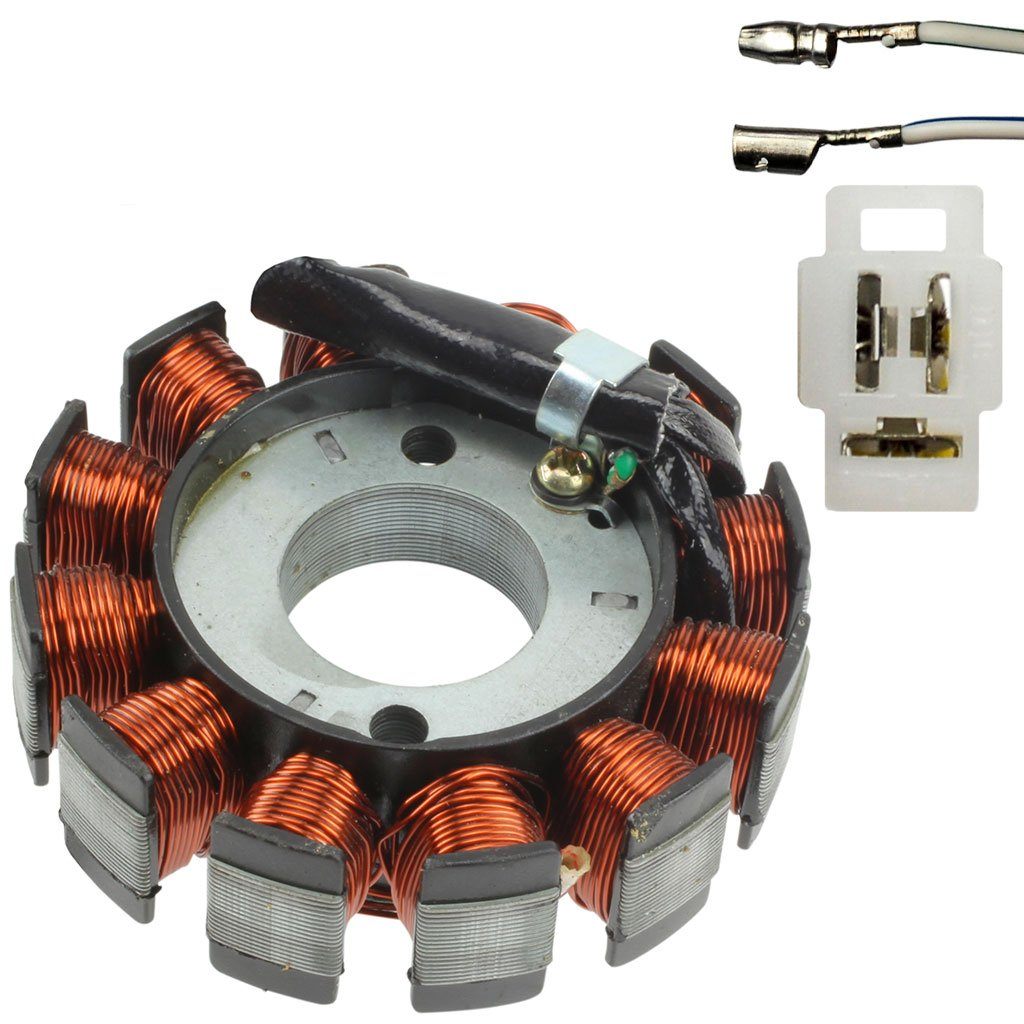

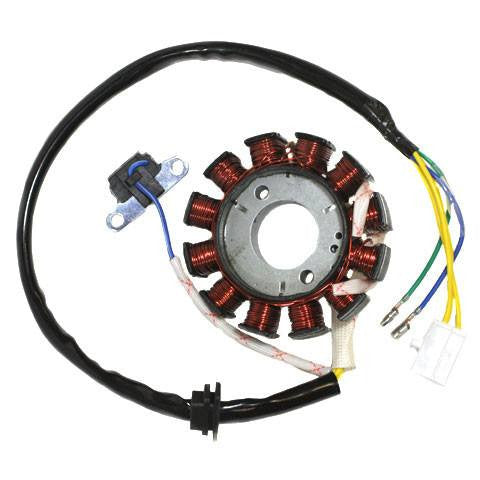

Chinese 12 Coil Stator Magneto for GY6 125cc-150cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits GY6 125cc - 150cc models.
- 12 coil

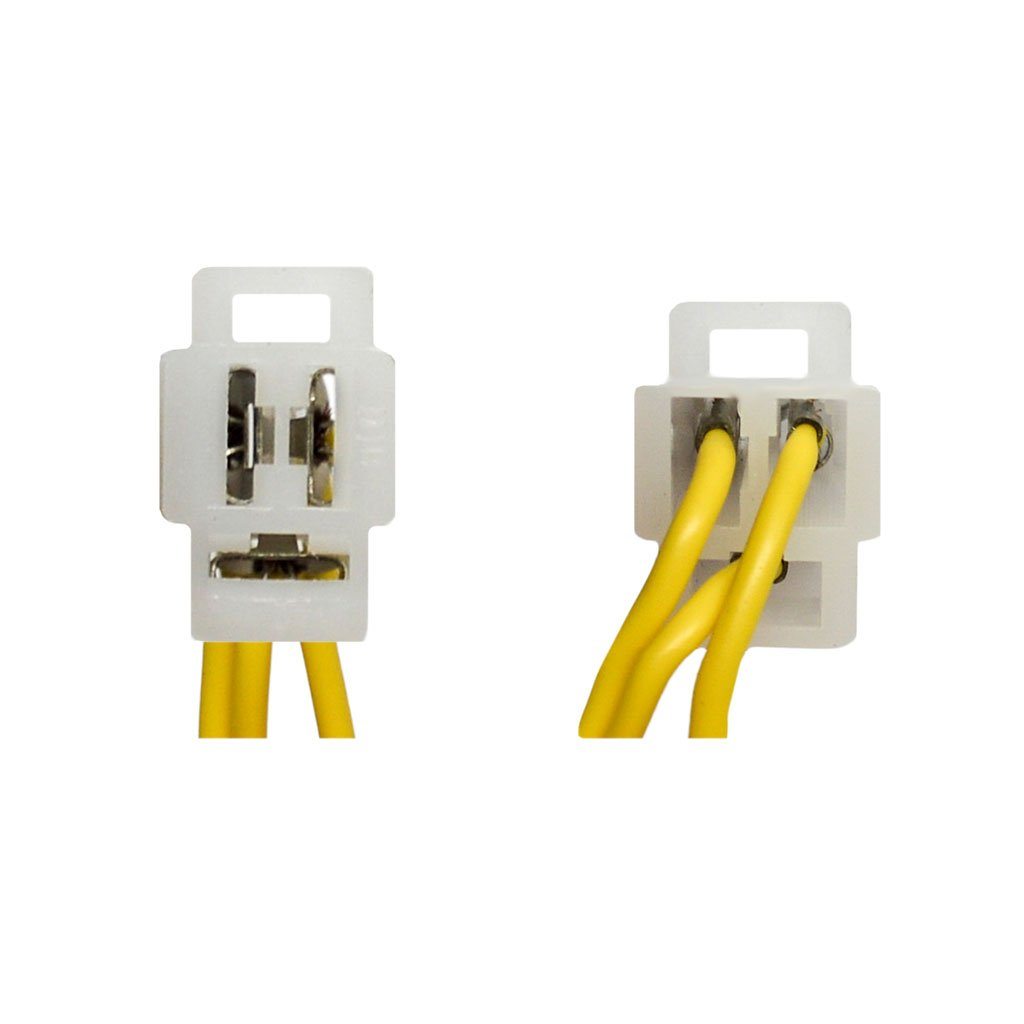

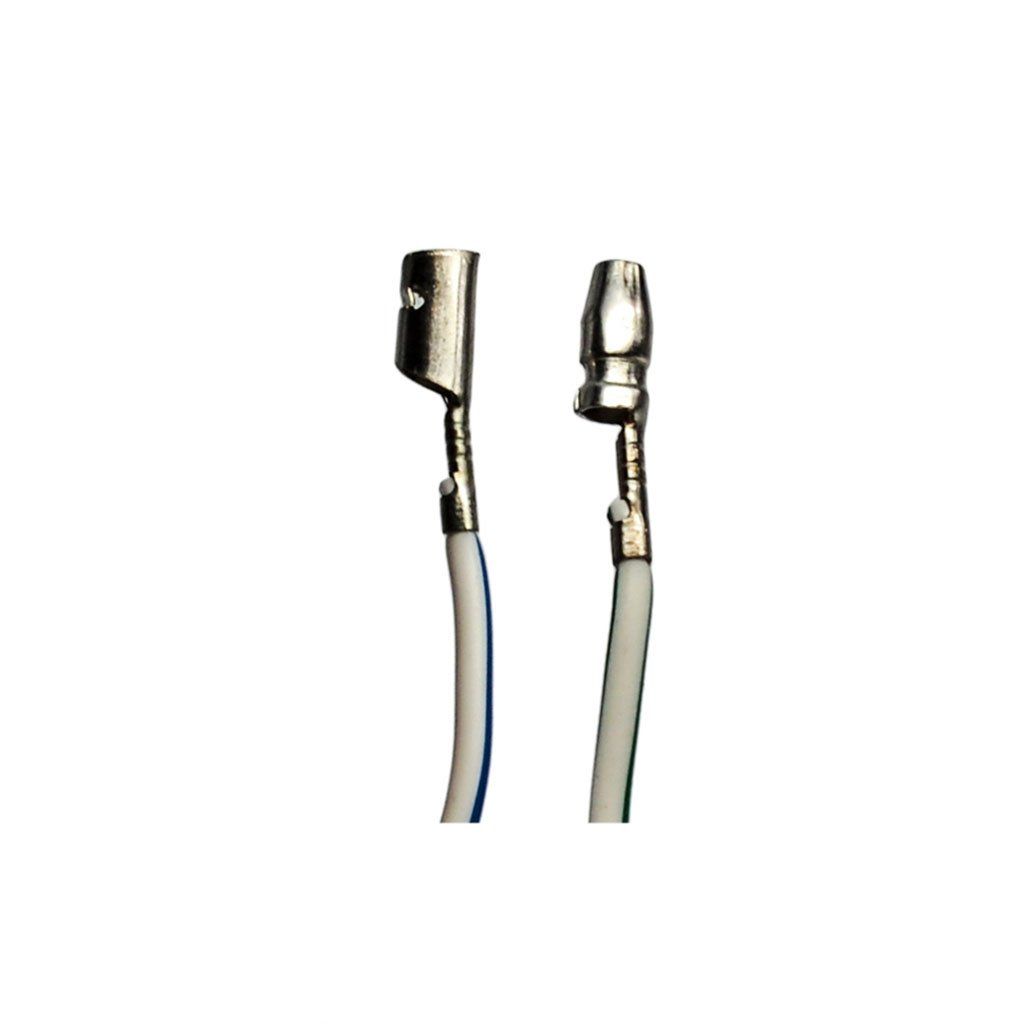

- 5 wires - 3 wire plug - 2 pigtail [+1 trigger wire]
- Wiring harness is aprox. 19" long
- 2 bolt mounting

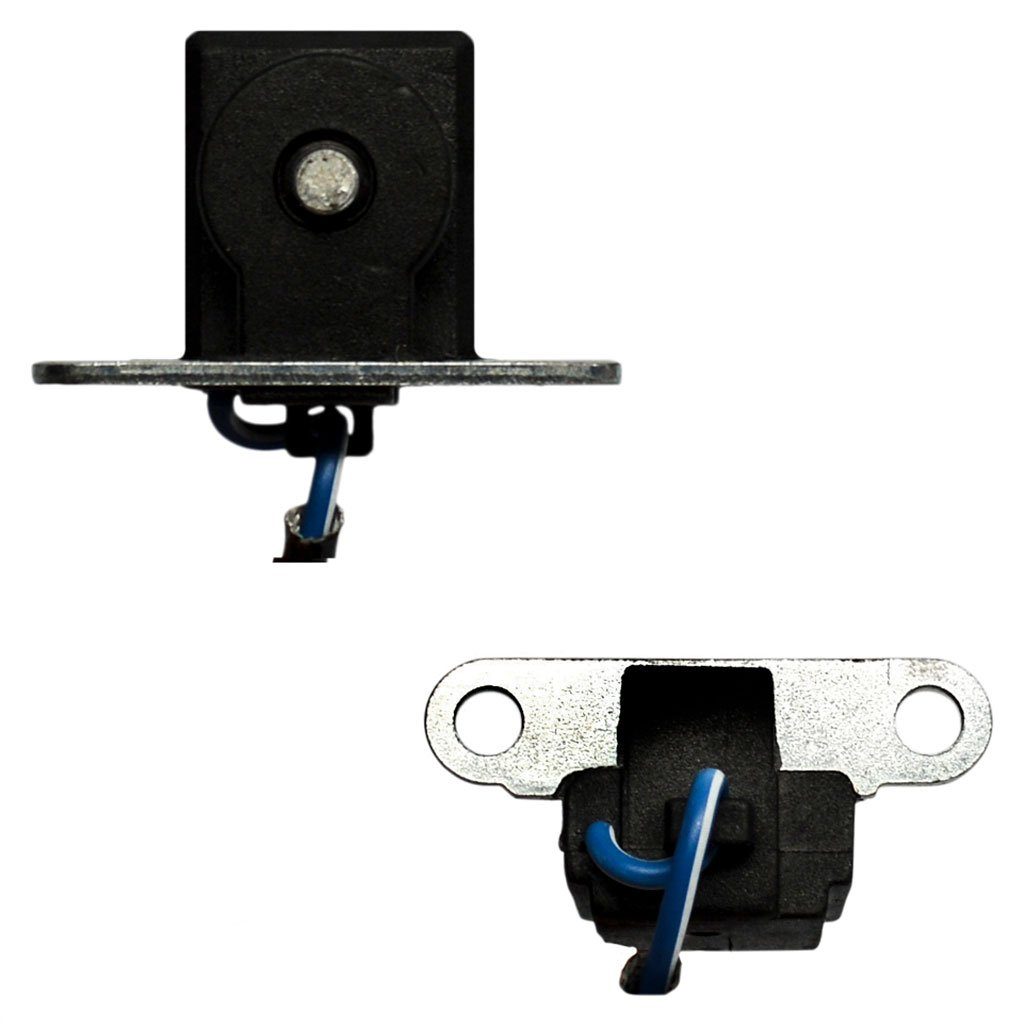

- Pick up trigger wire - single wire
- Center hole measurement: 29mm [1.14"]
- Overall width: 88mm [3.47"]
- Single coil height: 26.5mm [1.04"]
- Bolt hole spacing: 41mm [1.61"]
- Bolt hole diameter: 6mm [.23"]
- Compatible with 4 stroke GY6 125cc - 150cc 152QMI and 157QMJ motors
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
Perfect and it came fast
I received the stator, put it on, and the scooter fired right up.
No fault of the seller cuz it seems everyone is selling the same parts. These 12 Pole Staters have good power output when used with the correct regulator/ rectifier and flywheel but they do not come with any potting to secure the coil winding wires to prevent vibration damage. All of the little wires are just Loosely wrapped and hanging there with nothing to glue them down so after running for a while vibracion will cause them to rub together and short out
I'm satisfied and I will do business with VMC again.
didn't work.first time ever.wasn't even wired correctly.ground was in wrong spot.
