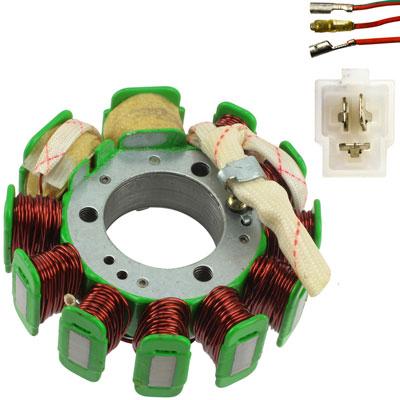

Chinese 11 coil stator magneto for CH 125cc engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. This stator fits CH 125cc models.
- 11 coil [2 wrapped]
- 4 wires - 3 wire plug - 1 pigtail [+1 trigger wire]
- 3 bolt mounting
- Pick up trigger wire - single wire
- Center hole measurement: 35.65mm [1.36"]
- Overall measurement: 93mm [3.67"]
- Single coil height: wrapped coil - 29.65mm [1.17"] unwrapped coil - 27.57mm [1.085"]
- Mounting measurement: center-to-center diagonally 38.2mm [1.5"]
- Compatible with CH 125cc 4-stroke
