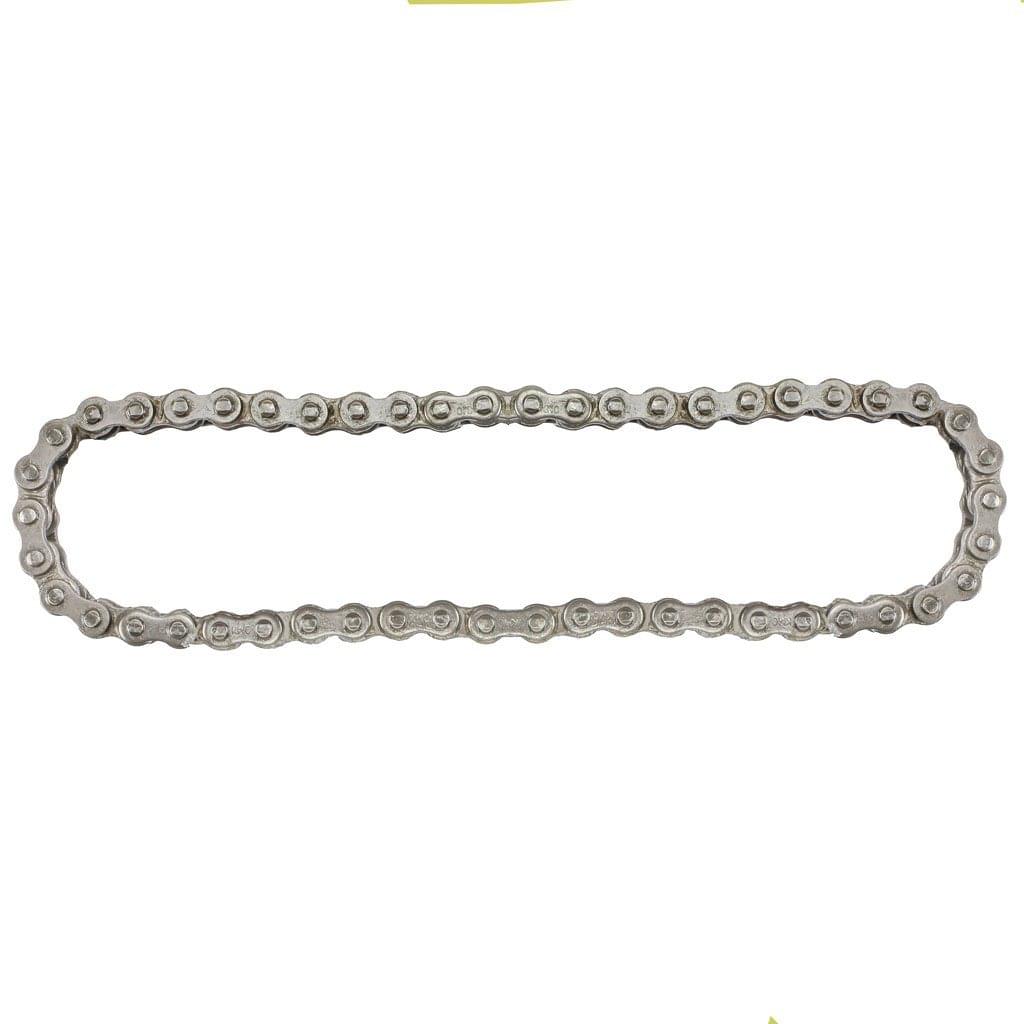

Standard Drive Chain #35
This chain is the jackshaft chain on the Coleman CK100, SK100 and the HiSun HS100GK go-karts. It is also the drive chain for the Tao Tao GK80. It may be used on other makes and models. Please read description carefully before ordering.
Chain details:
- Total length: 10.25 inches approximately
- 50 links - 25 inner and 25 outer
- Inner width roller: 4.76mm (3/16 in)
- Chain pitch (distance from pin to pin): 9.52mm (3/8 in)
- Roller diameter: 4.76mm (0.187 in) (3/16 in)
- Pin diameter: 3.175mm (0.125 in) (1/8 in)
- Includes master link
- 25310-401001-0000
- P401001253100000
- FS-10027 101648
IMPORTANT NOTE: Measure your old chain to make sure correct chain is ordered.
Some of the front drive sprockets will have numbers on them which identify exactly what chain number is used. #35 chain sprockets are 0.168 in. thick.
#35 chain is commonly used on mopeds and scooters, mini bikes and go-karts.
