Chinese Rear Wheel Hub - 125cc-300cc ATVs and Go-Karts with 8" and 10" Tires

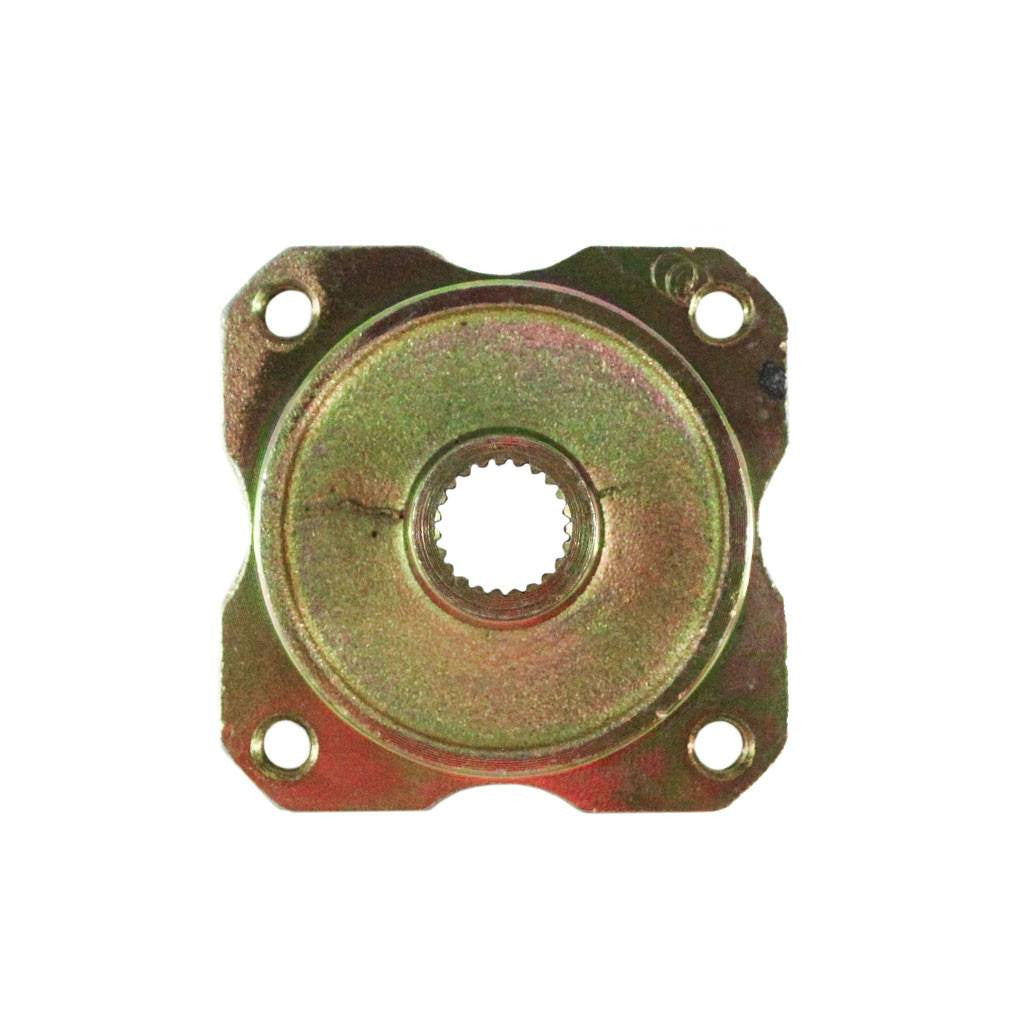

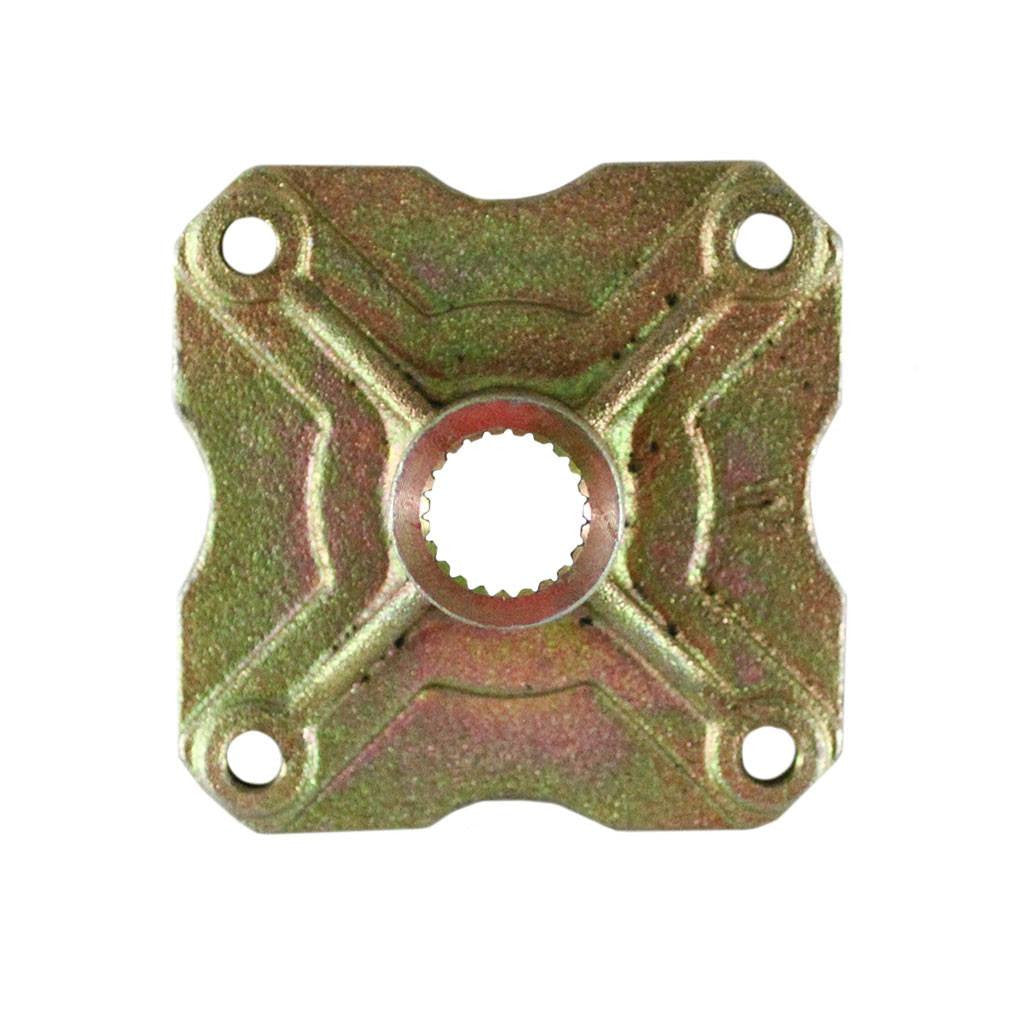

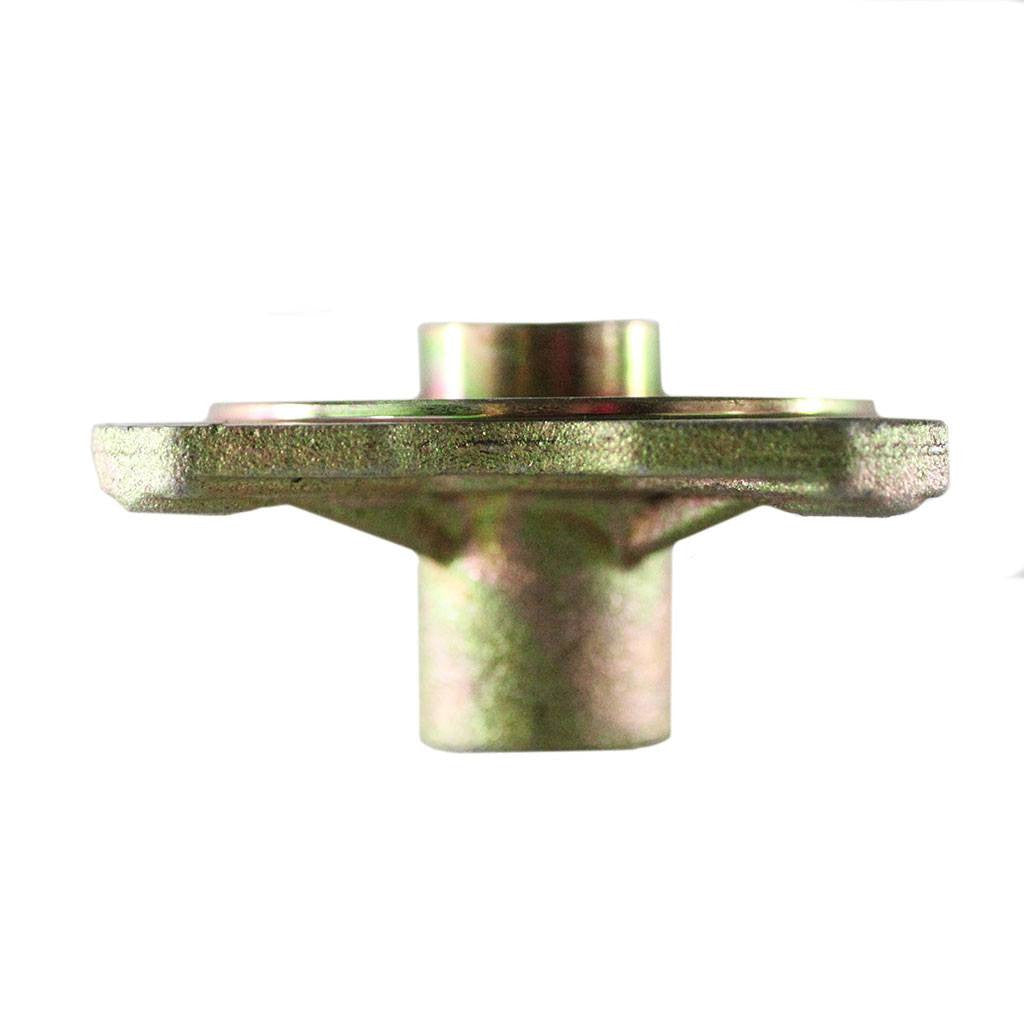

This rear wheel hub is used on several makes and models of Chinese ATVs. The best way to insure you are ordering the correct part is to use our detail pictures and measurements. Please be sure to check both before ordering.
- 4 M10 x 1.50 mounting holes
- Distance between holes: APPROX. 77mm [3"] center to center
- 23 splines
- Center hole diameter: 24mm [.945"]
- Used with 8" and 10" tires
- Aprox. 4 inches square
- 10645A3615 100870
Hub is known to fit the Taotao ATA125E, ATA125F1, ATA125G, ATA125H, ATA125L. 125 Sport Utility, ATA150B, ATA150D, ATA150G, Bull 150, Bull 200, Cheetah, NEW CHEETAH, NEW TFORCE, RAPTOR, Rival MudHawk, Targa 150, Targa 200, TForce, Tonga 150, ATA250D, Rhino 250 ATVs and the AAROW 150, ATK4150 and 4Fun Go-karts. Fits the Coleman BK200 Go-Kart. May fit other makes and models too! Please use pictures and measurement to help determine fit.
Do you need your hub fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
- 5x8 tires
- alloy rims
- spline count
- flange bolts
A fix to get me going
great parts will definitely use VMC for my ATV parts needs.
Well it was supposed to be to me on 9/19 and didn't show up till 9/23 so that part was a disappointment
I was trying to install 4 bolt rims as we had ripped the center out of the stock 3 blot rims. We had installed a larger engine last summer, so I can't say the 3 bolt rims were at fault. New hubs had the same inner diameter and spline count. Also bought the New Cheetah rear alloy rims, 18x9.5x8 tires, M10x1.50x35mm ****** bolts, and tapered washers used with lug nuts. For safety added M10 locknuts on back of hubs where bolts extended.
