Chinese Rear Axle Carrier for Tao Tao 150cc 250cc ATV's.

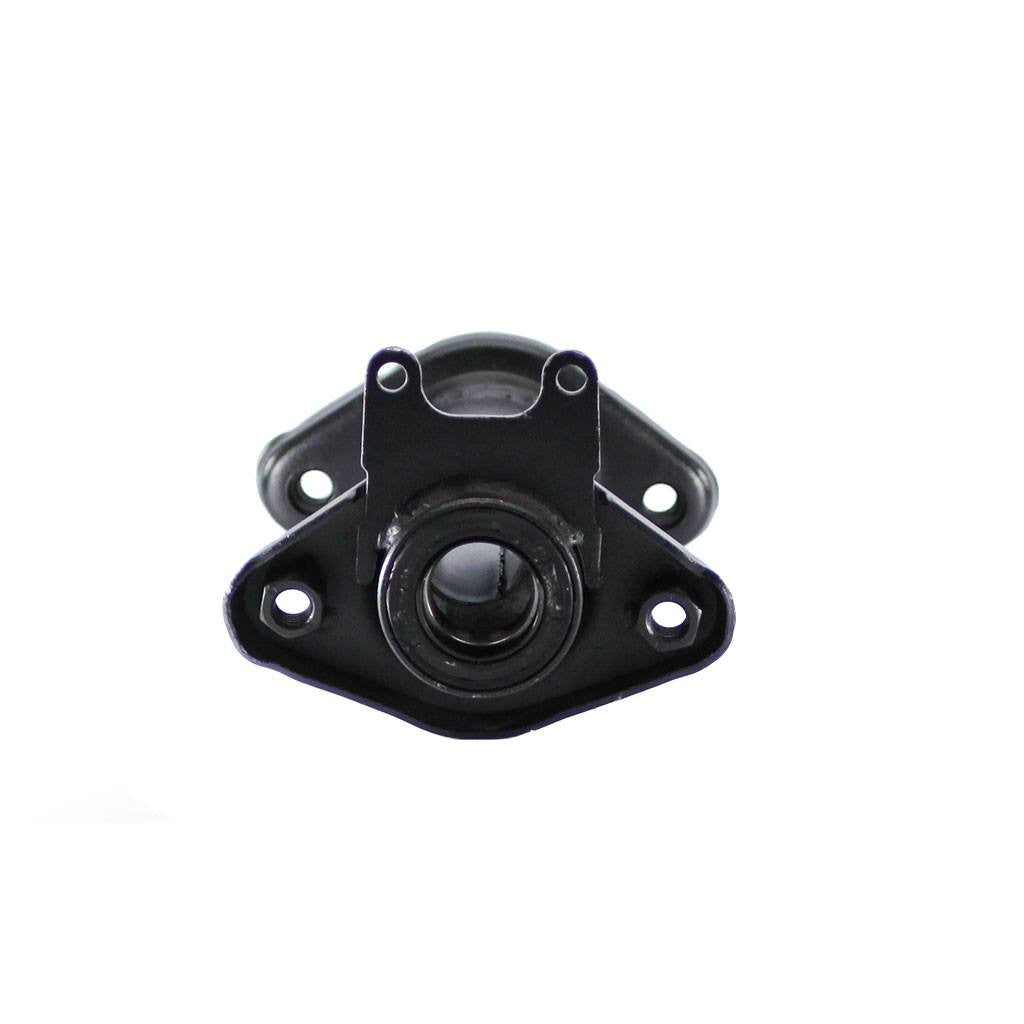

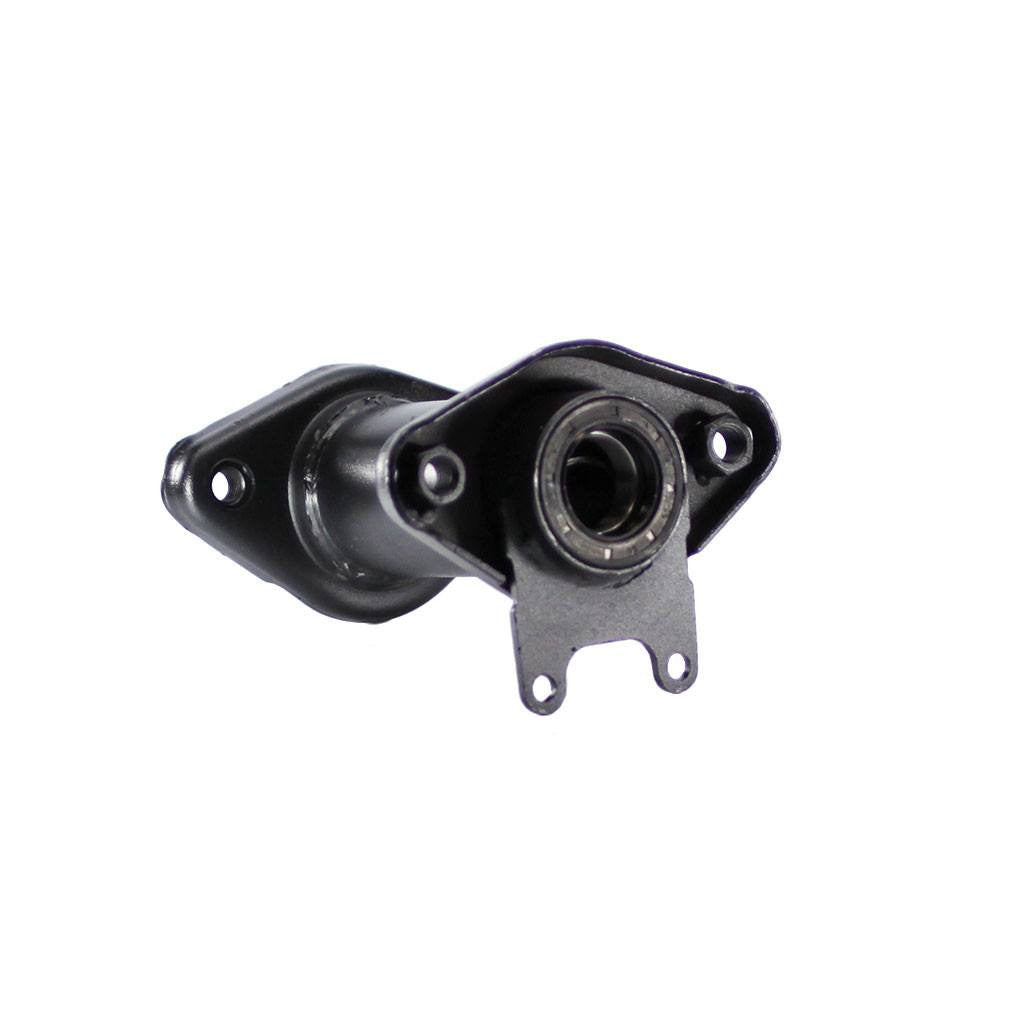

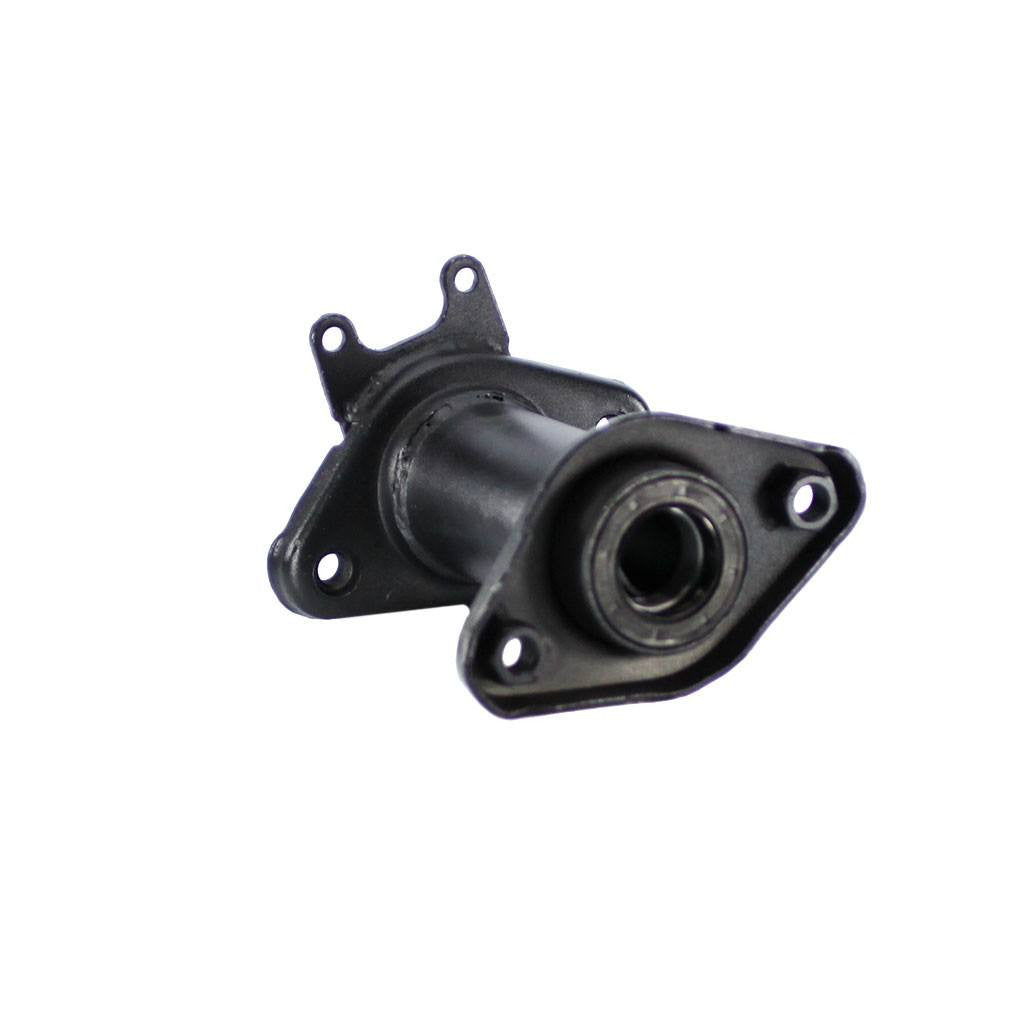

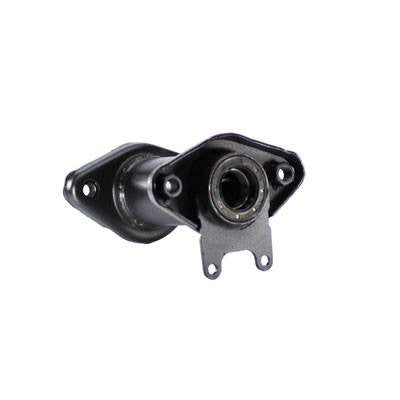

This is the axle carrier for most of the Tao Tao ATVs from 150cc-250cc. Please be sure to use the pictures and measurements to verify the correct fit for your machine. The bearings, and spacer are included and preinstalled. Just one more reason to buy from VMC!
- Overall length: 176mm [6.91"]
- Carrier OD: 60mm [2.37"]
- Ends have 12mm*1.75 threads
- Threaded mounting hole distance: 111mm [4.36"] center-to-center apart
- Bracket hole distance: 52mm [2.04"]
- Bearing: 6006RS on both sides
- Seal: 55*35*8
- 13502A19510 109839
- SEAL IS NOT INCLUDED
Known to fit: Tao Tao ATA150B, ATA150D, ATA150G, ATA250B, ATA250C, ATA250E, Bull 150 and Rhino 250.
Do you need your axle carrier fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
- Peace sport
- brake caliper
- ATV parts
Bad parts came in missing pieces that said were included and installed. Pictures and discription was not what came in. Advertisement said seals and spacers were included and installed at factory. They were not only not installed but missing completely.
I had to add spacers for the brake caliper on a 125cc Peace sport, but it works great. As always finding specs for Chinese ATV parts online is difficult. VMC may not always be the cheapest but they are great at providing dimensions and spec on the parts they offer. Most of the time the parts seam to be better than stock
