Pull Start Assembly Chinese 5.5hp/6.5hp Coleman Trail CT200U Mini Bike

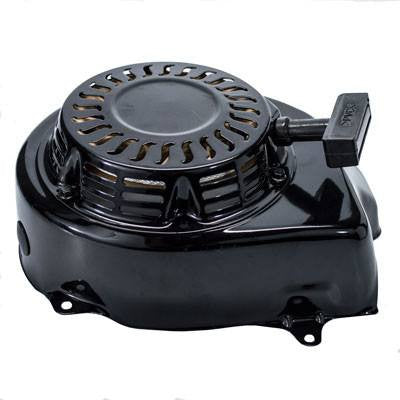

This Chinese pull start is used on several makes and models of ATVs and mini bikes, but may also work on generators, mowers, etc. Please use the measurements and picture to best match the pull start you are needing.
Pull start details:
- Black Metal cover
- Metal ratchet guide /ratchets
- 6 mounting holes
- Distance between adjacent mounting holes center to center: 79mm [3.12"]
- Distance across opposite mounting holes: 160mm [6.3"]
- Overall cover width: 147.6mm [5.81"] at widest point
- Center diameter of ratchet guide: 54mm [2.15"]
- Recoil reel or starter drive pulley diameter: 134mm [5.28"]
- Overall height: 36.8mm [1.45"]
- Overall dimensions: 10.5" x 8.8" x 4.5"
- Fan hood mounts with 4 bolts
Known to fit Mini Baja, Baja Warrior, Baja Heat, Coleman BT200X, CT200U CT200U-EX KT196, Harbor Freight, Jiangdong and many other 5.5hp/6.5hp JF200 Honda Clones.
Do you need your pull starter fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
