LH Spindle and Ball Joint Assy for Coleman KT196 and the HiSun HS200GK Go-Karts

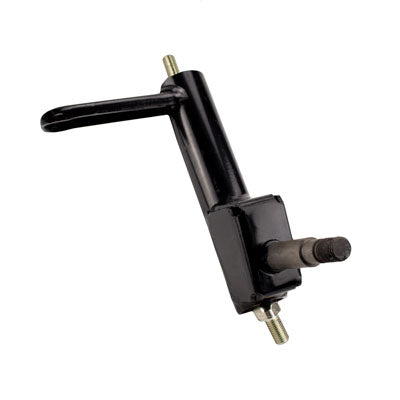

This is the spindle and ball joint assembly being used in the current Coleman KT196 go-karts. Ball joints have been pre-installed at the factory for easy installation.
This assembly can be used to upgrade the spindle and ball joints on the older model KT196 karts with some slight modifications. To use this assembly on the older karts, the upper and lower swing arms must be drilled out and enlarged to accommodate the larger ball joints.
The early model KT196s used a ball joint that was 22mm in diameter with an 8mm ball stud. The newer models use a ball joint that is 26mm in diameter with a 10mm stud.
Please see pictures and description below to see if this spindle will work for you.
If using in an older kart, we recommend changing both sides at the same time.
- Includes ball joint
- Round tube length: 154mm [6.07"]
- Tube OD: 32mm [1.25"]
- Tube ID: 26mm [1"]
- Length of stud: 63.2mm [2.49"]
- Stud is threaded M12*1.25 with cotter key hole
- Arm at top is 80mm [3.14"] long
- Arm has 8.6mm hole at the end
Fits all Coleman KT196 and the HiSun HS200GK go-karts.
Do you need your spindle fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
- customer service
- ball joints
I received the parts before I was ready to install them.
The service was simple, excellent, on time, good quality, I will use this company for all of my parts.
Part came quickly and worked perfectly once replaced.
Items work great. Really enjoy doing business with you.
Great replacement parts
All the parts were as good as factory or better, fast shipping, packaging was great, nothing damaged, all hardware included, nothing lost. Definitely will be back for more parts.
Spindle / Steering Knuckle - LEFT - Ball Joint Assy for Coleman KT196 Go-Kart
This steering knuckle assembly contains ball joints that are larger for newer models. We drilled out keyholes on the swing arms with a 25/64 bit and installation went smoothly. This is definitely a better quality knuckle assembly than the original.
