Chinese Scooter Fuel Tank - Tao Tao Powermax 150cc Scooter
Version 316
This Chinese replacement gas / fuel tank fits many Chinese mopeds. This tank fits 150cc models.
Tank description:
- Tank width: 28cm (11.0 in) across and including tabs
- Tank length: 24.9cm (9.8 in) including lip
- Mounting tabs on both sides: 26.1cm (10.3 in) center to center
- Two mounting holes on single tab at front: 70mm (2.74 in) center to center
- Nipple on bottom for fuel outlet
- Tank height without cap/nipple at tallest point: 16.3cm (6.4 in)

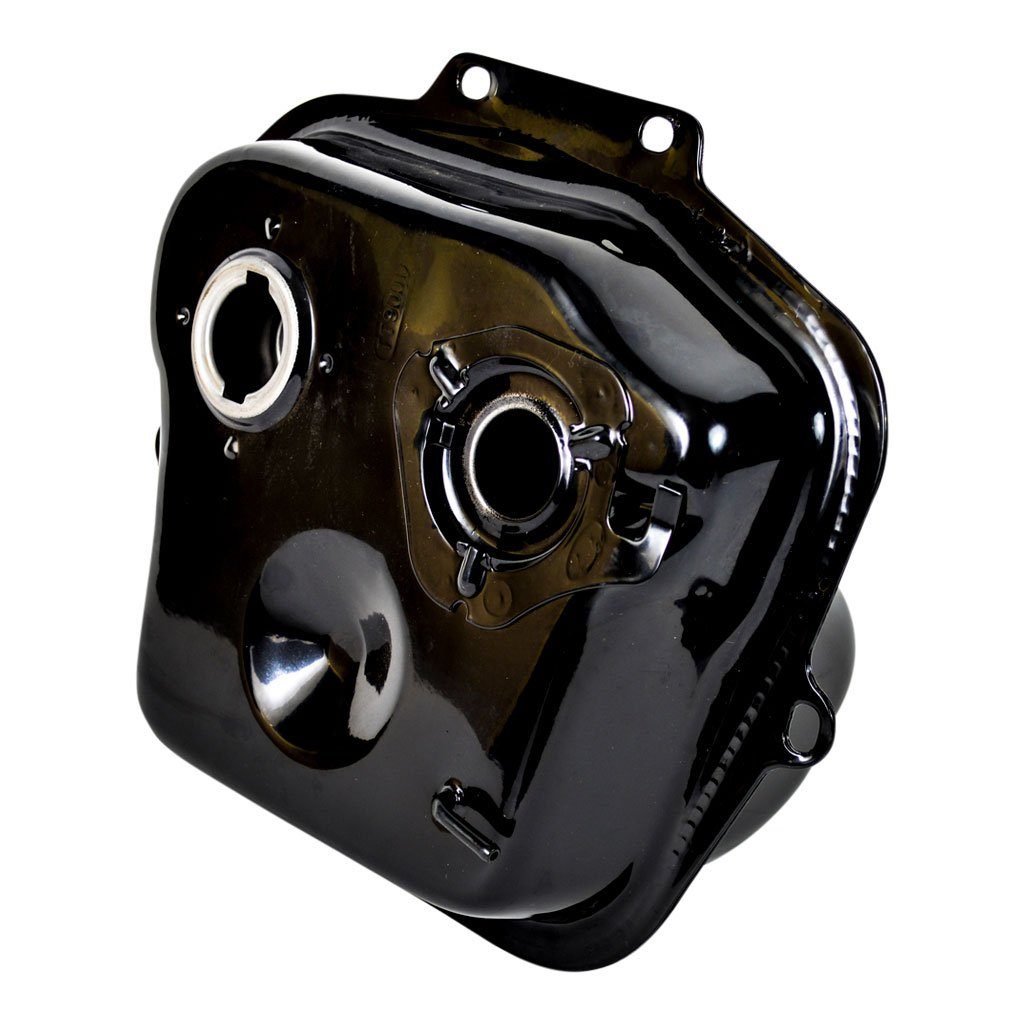

- Hole on top of tank (28mm diameter) for fuel level sensor
- Round indentation on top of tank
- Metal
- Uses a push and twist-a-half turn cap.
- Cap not included
- Compatible with 50cc-150cc 4 stroke
- 104316 TT9001

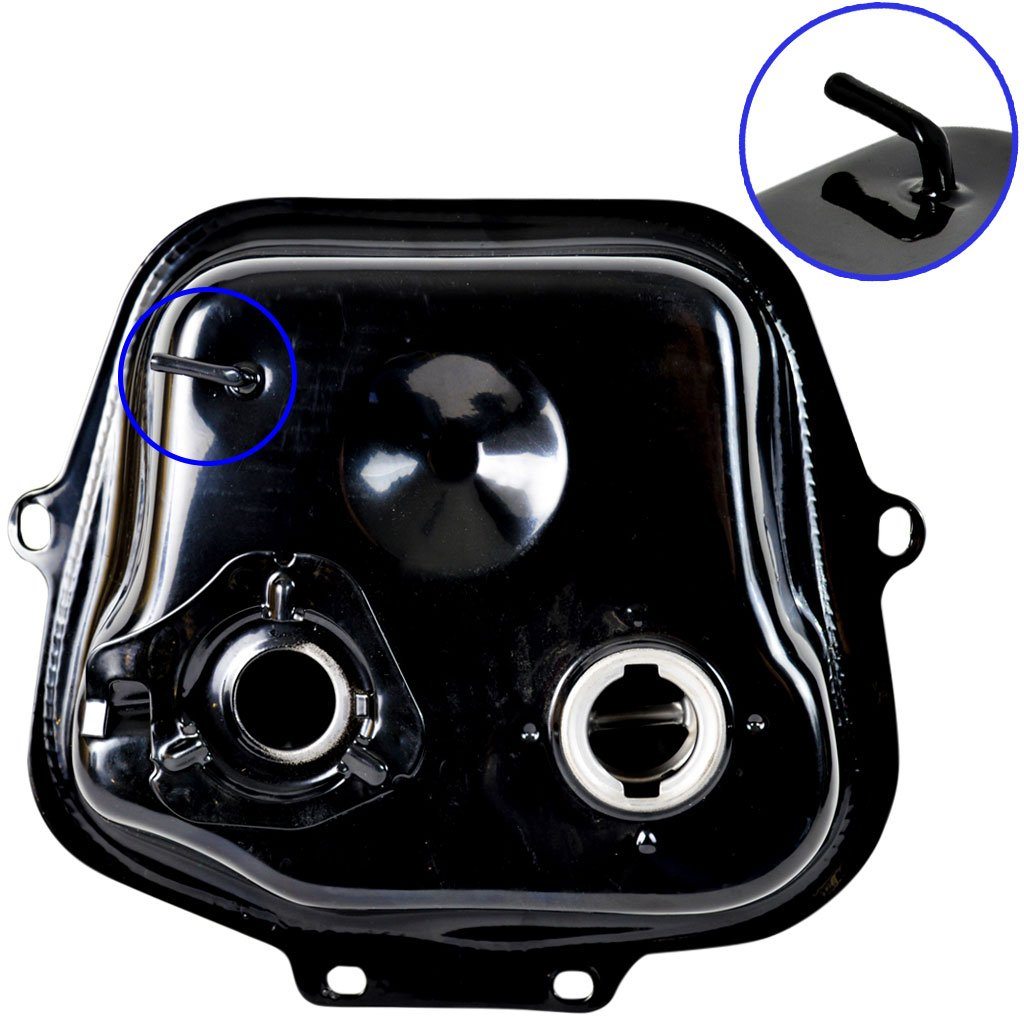

Sometimes these tanks have a nipple on the top... other times they don't.
All measurements are approximate due to the difficulty in measuring the unusual shape of the tank. Please use the pictures and measurements to match your tank.
Cap link:
Chinese Gas Fuel Tank Cap - 36mm - Version 16
This tank fits the MaxPower 150, Powermax 150 and PMX 150 scooters.
