Front Sprocket #35-24 Tooth - Coleman CK100 Go-Kart

Chinese Front Sprocket Assy 35-24T Coleman CK100 Go-Kart

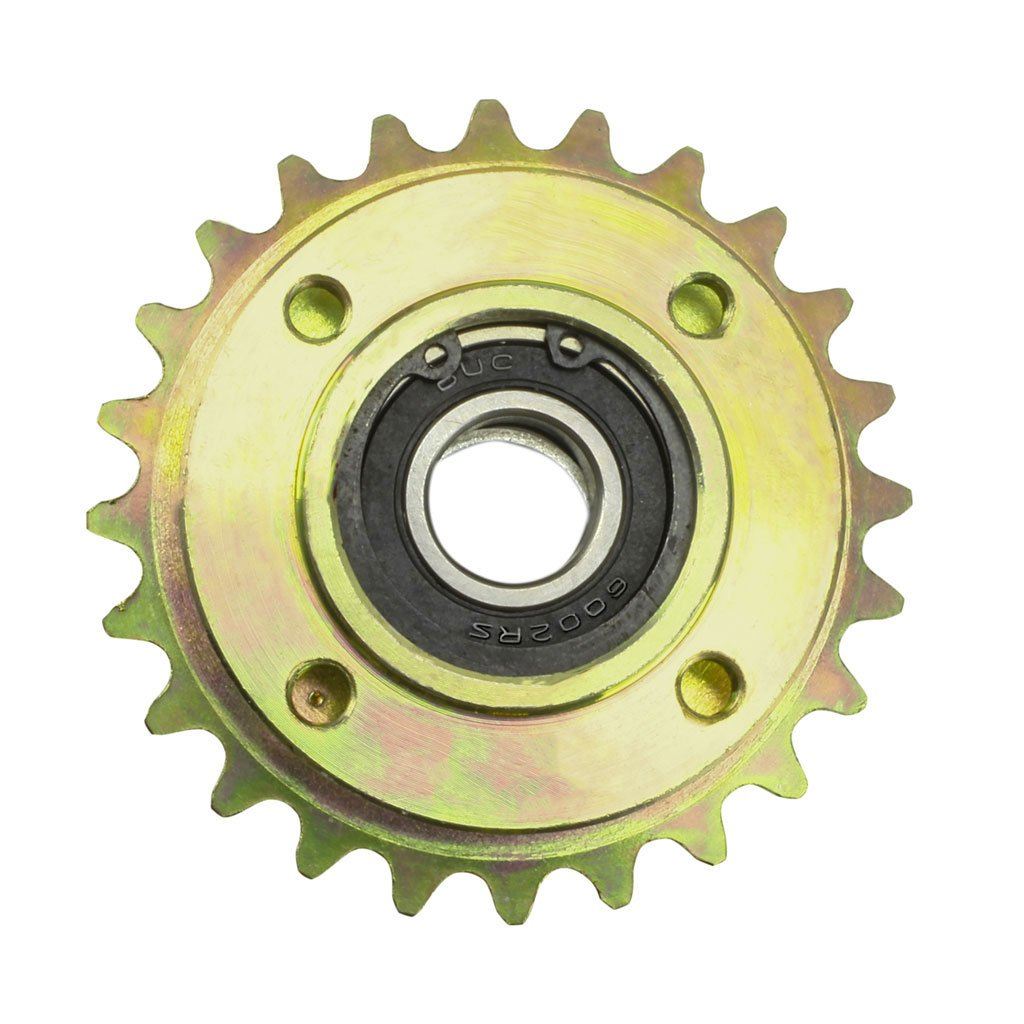

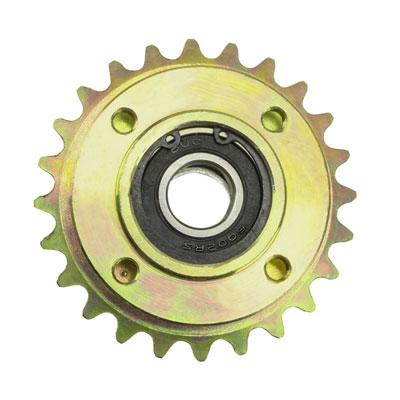

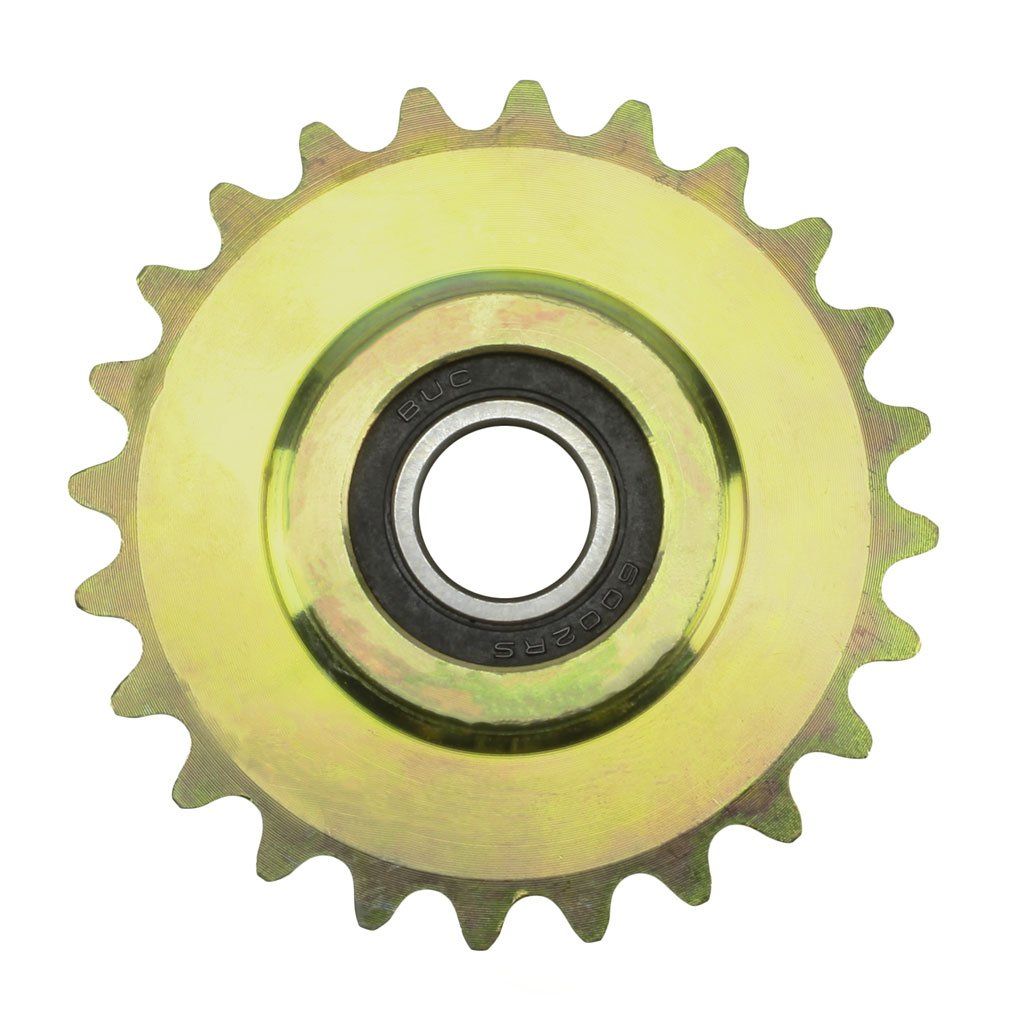

This hub and front sprocket assembly is used on the Chinese 98cc engines, specifically the Coleman CK100 and the HS100GK go-kart.  May be used on other applications as well.  This sprocket has 24T and is compatible with the #35 chain ONLY.

Sprocket details:

• Small front sprocket with hub on the CK100
• #35 chain
• 24 Teeth
• ID 15mm [.58"]
• OD 77mm [3.03"]
• Chain Wheel II
• (4) 6MM bolt holes 34.7mm [1.36"] center-to-center apart
• Uses (2) 6002RS bearings
• P401001533040000
• 53304-401001-0000

Be sure to measure your chain or current sprocket before ordering.  Most Chinese sprockets have the chain size and teeth count stamped into the metal.
