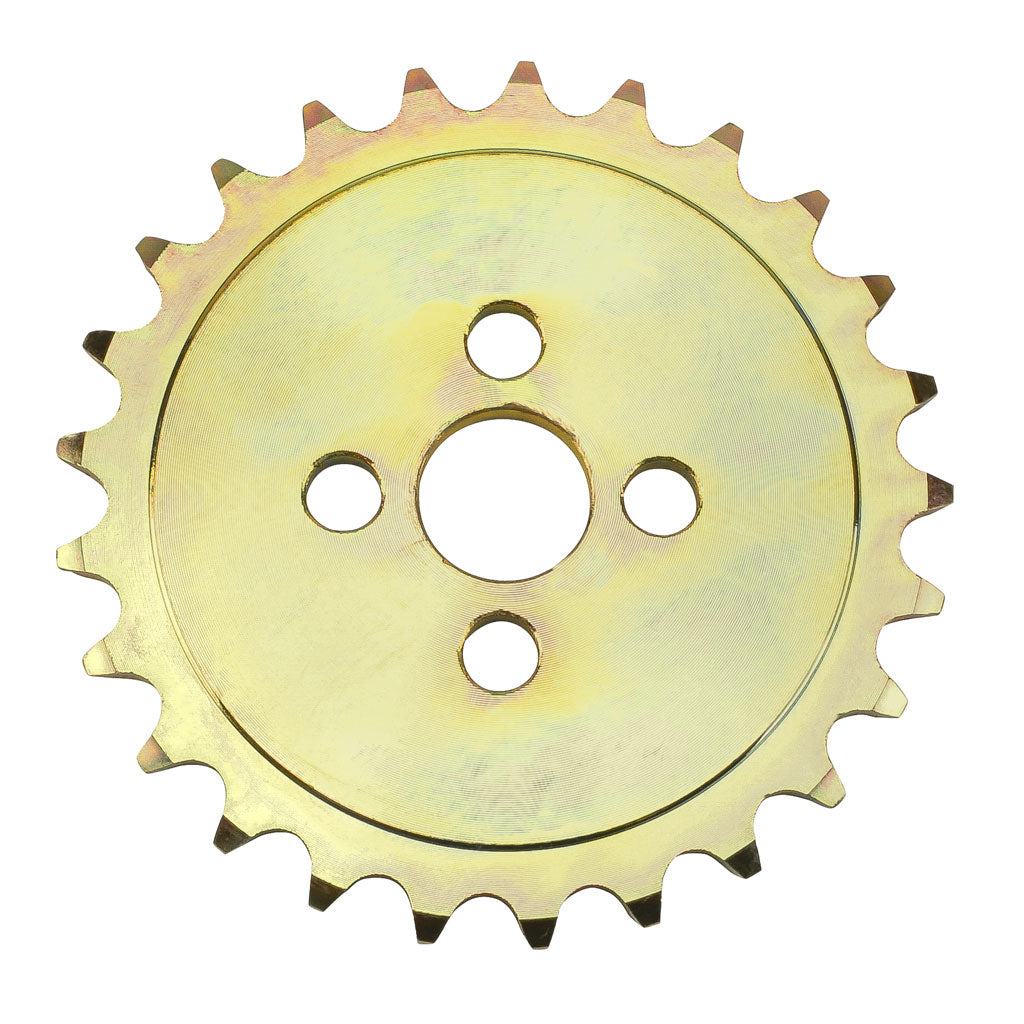

Front Sprocket 420-25 Tooth - Coleman KT196 Go-Kart

Chinese ATV Front Sprocket 420-25T Coleman KT196 Go-Kart

This front sprocket is used on the Chinese 200cc engines, specifically the Coleman KT196, Coleman CK196 and the HiSun HS200GK go-karts.  May be used on other applications as well.  This sprocket has 25T and is compatible with the 420 chain ONLY.

Sprocket details:

• #420 chain
• 25 Teeth
• ID 20mm [.78"]
• OD 106mm [4.16"]
• Four 8mm bolt holes 26mm [1.02"] apart center-to-center side-by-side
• Bolt holes are 37mm [1.46"] center-to-center across from each other
• 41234-132-0000  "Chain Wheel II"
• 53304-400001-0000
• P400001533040000
• 124952  TT-124952


These may differ slightly in how they look in the picture, but they still function the same.

Fits the Coleman CK196 and Coleman KT196 go-karts.
