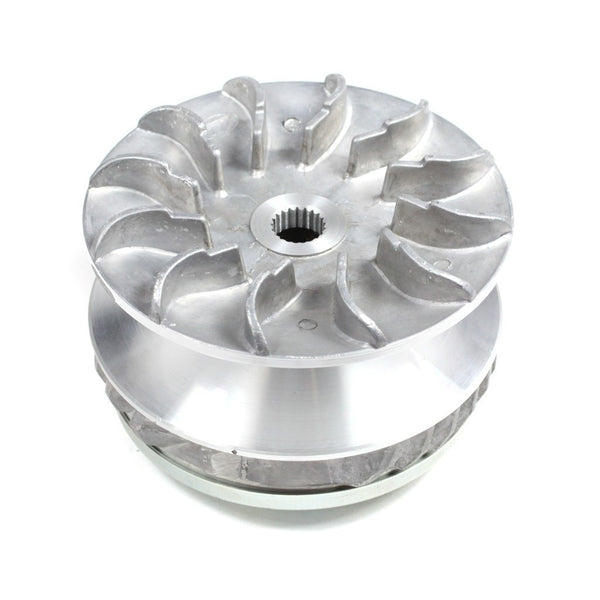

Chinese Front Drive Variator Clutch Assembly
Water Cooled 250cc - CVT - Auto
Chinese complete variator assembly for the CVT fully automatic 250cc engines on several makes and models of scooters, mopeds, go karts, and some ATVs.
Variator details:
- Drive face center hole: 21 teeth
- Drive face hole diameter: 15.85mm [.62"]
- Drive face diameter: 128mm [5"]
- Variator face diameter: 128mm [5"]
- Variator pin length: 62.5mm [2.46"]
- Variator pin OD: 27mm [1.06"]
- Variator pin ID: 16mm [.63"]
- CF250, CH250, CN250
Shipping details:
Do you need your variator clutch fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- fits
- service
- problem
- parts
United StatesI bought this piece and a different one came to me, with different measurements, not the model indicated in the catalog. I send you photos of the one that came from and how it is the one I ordered. Thank you
United StatesFits perfectly but didn't solve my problem
United StatesParts worked well and the service was excellent!
United StatesI am not sure If I received a defective part or not. I have not had the time to take it off and inspect it. It could be an underlying issue with something else. But after replacing both the Variator and the Clutch with your parts my son took the buggy for a ride. It went fine for about 5 minutes and then stopped going. Motor was running fine , in neutral but when you put it in gear it would just strain to move. And was making lots of chattering noises. Also the clutch was too hot to touch. I hope to get the time to take the parts off this weekend and inspect them. But unless I find a problem with the gearbox, I am leaning towards a defective part on your behalf
