Part number:
1701-FB021-16
1

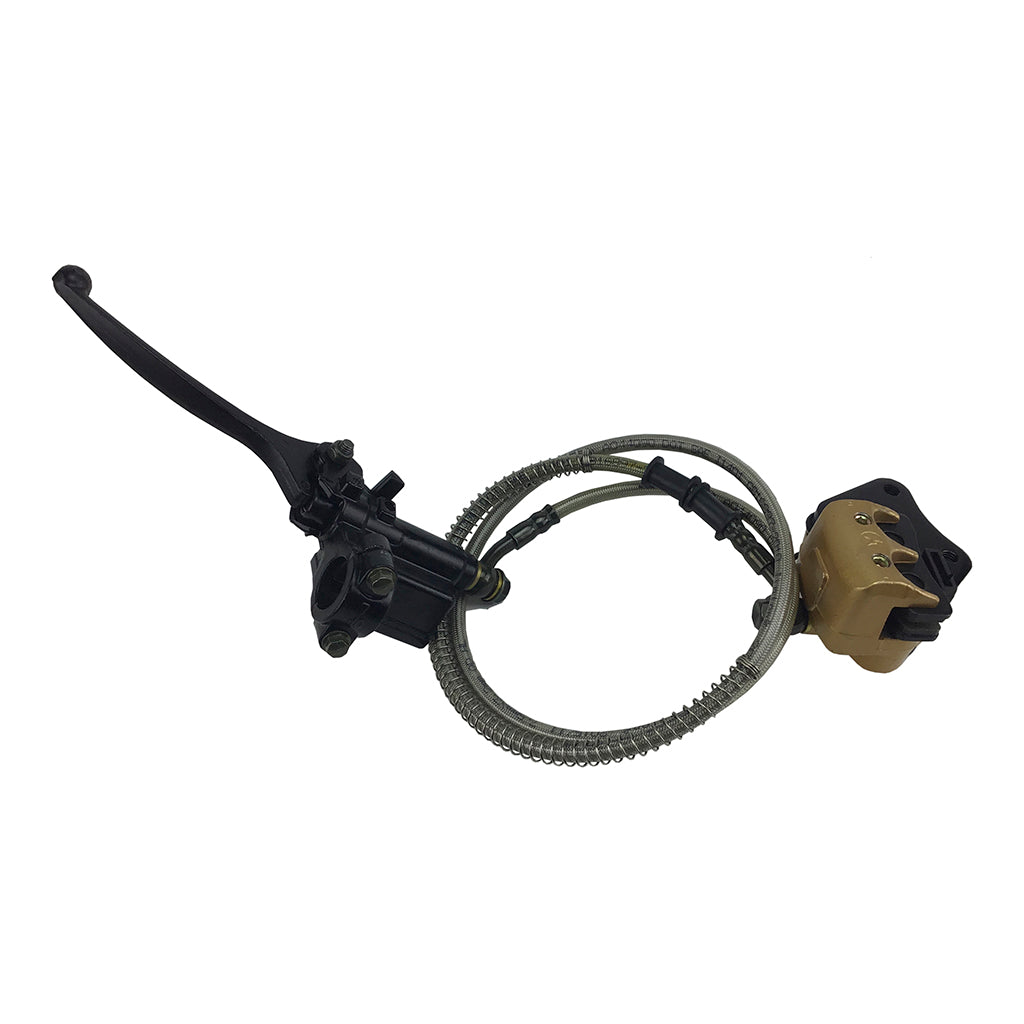

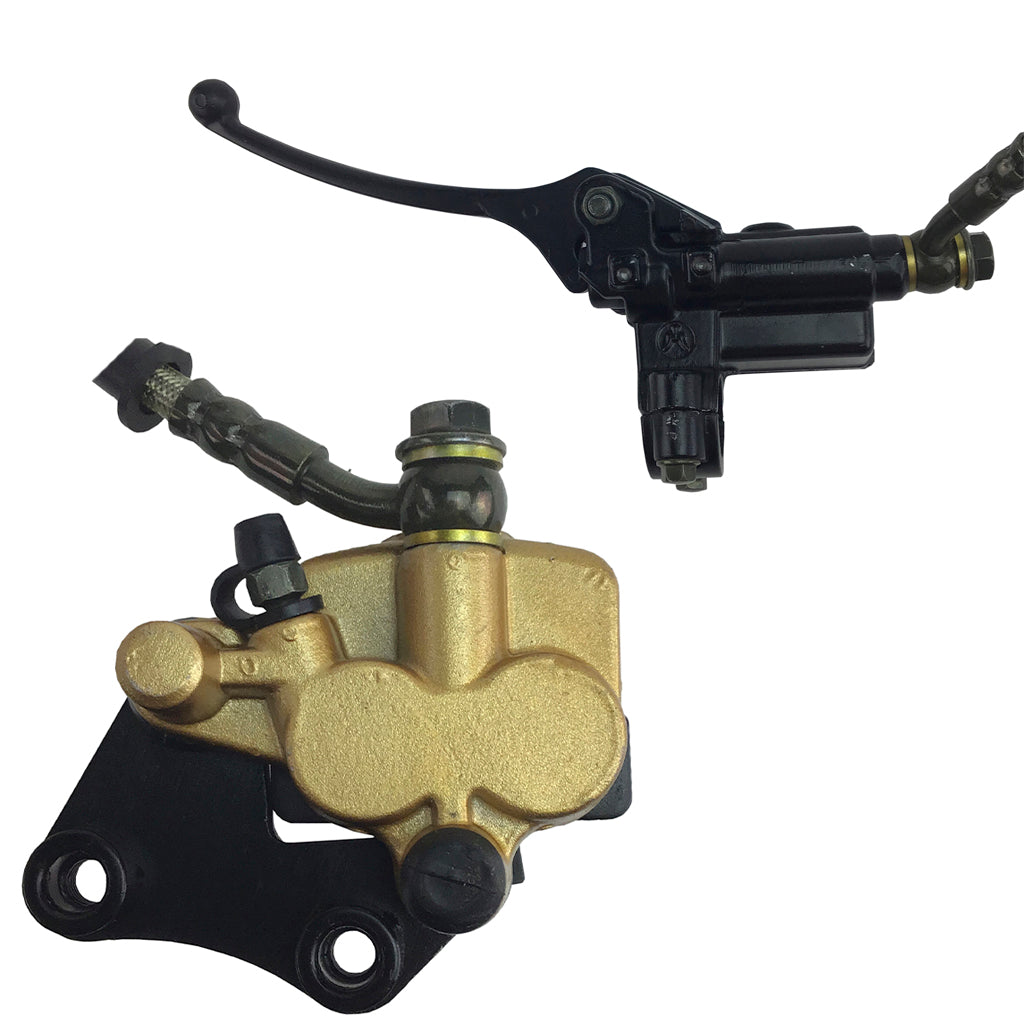

Apollo Dirt Bike 110cc 125cc Front Brake Caliper and Master Cylinder Assy
This Chinese front brake assembly is the replacement part for Chinese dirt bikes. This assembly fits the Apollo 110cc and 125cc bikes. The assembly has the handlebar brake master cylinder, caliper, and brake line hose.

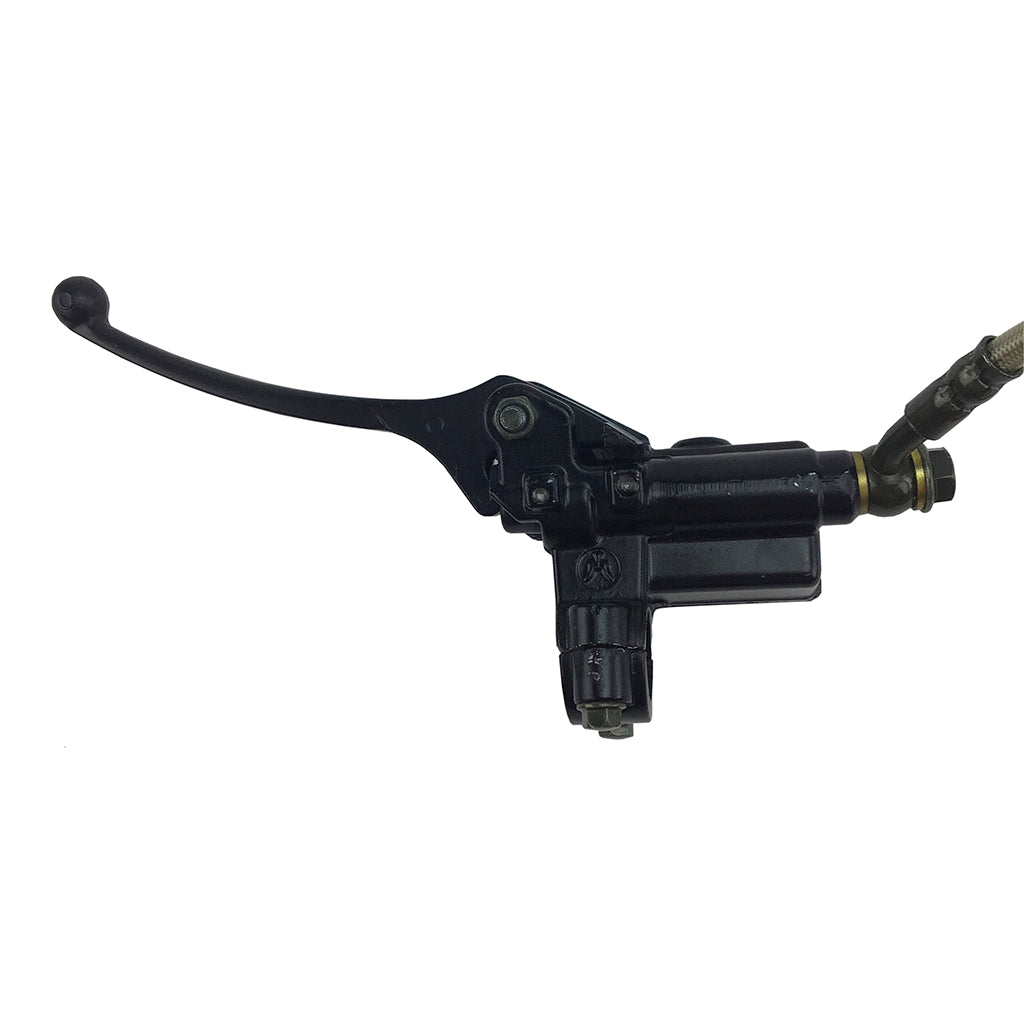

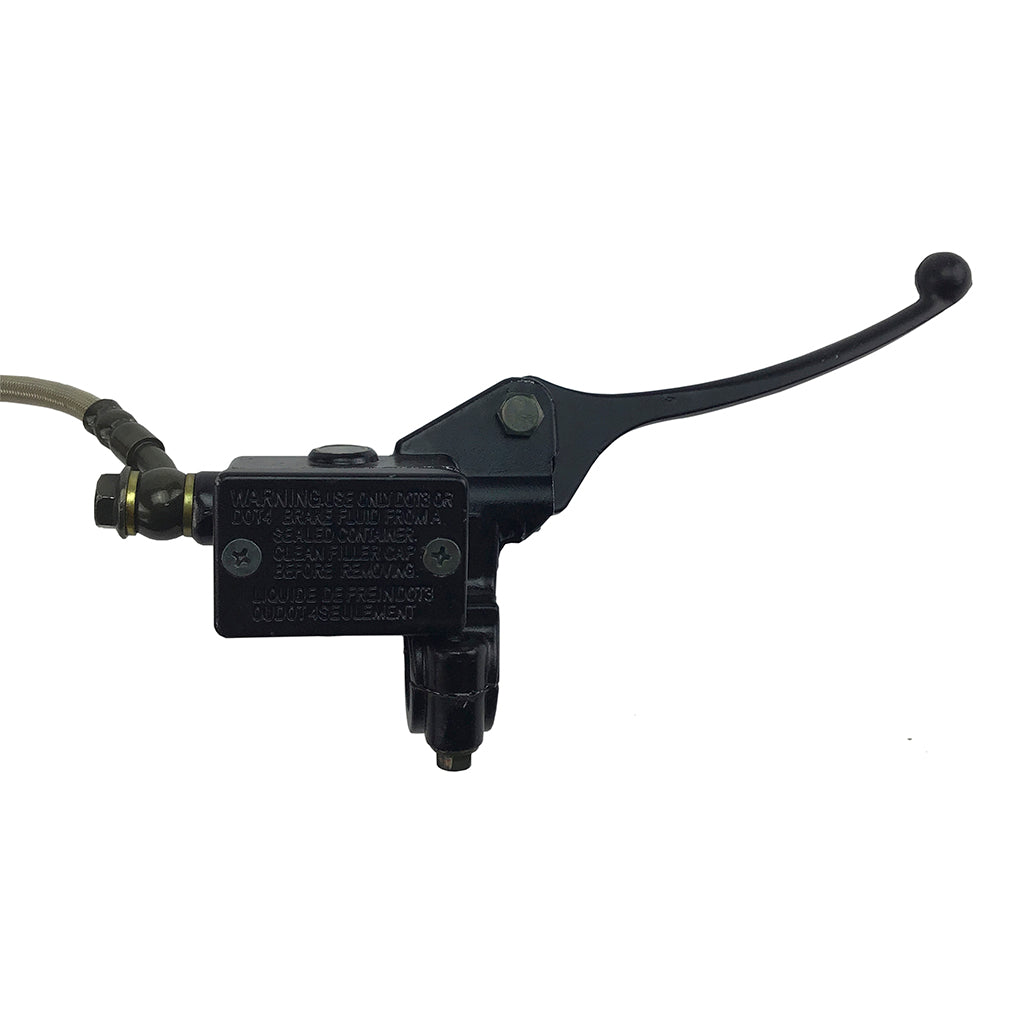

Master Cylinder description:
- Black
- RH handlebar mounted master cylinder with 153mm lever
- Fits 7/8 inch handlebars
- Reservoir has site glass
- Uses DOT3 or DOT4 brake fluid

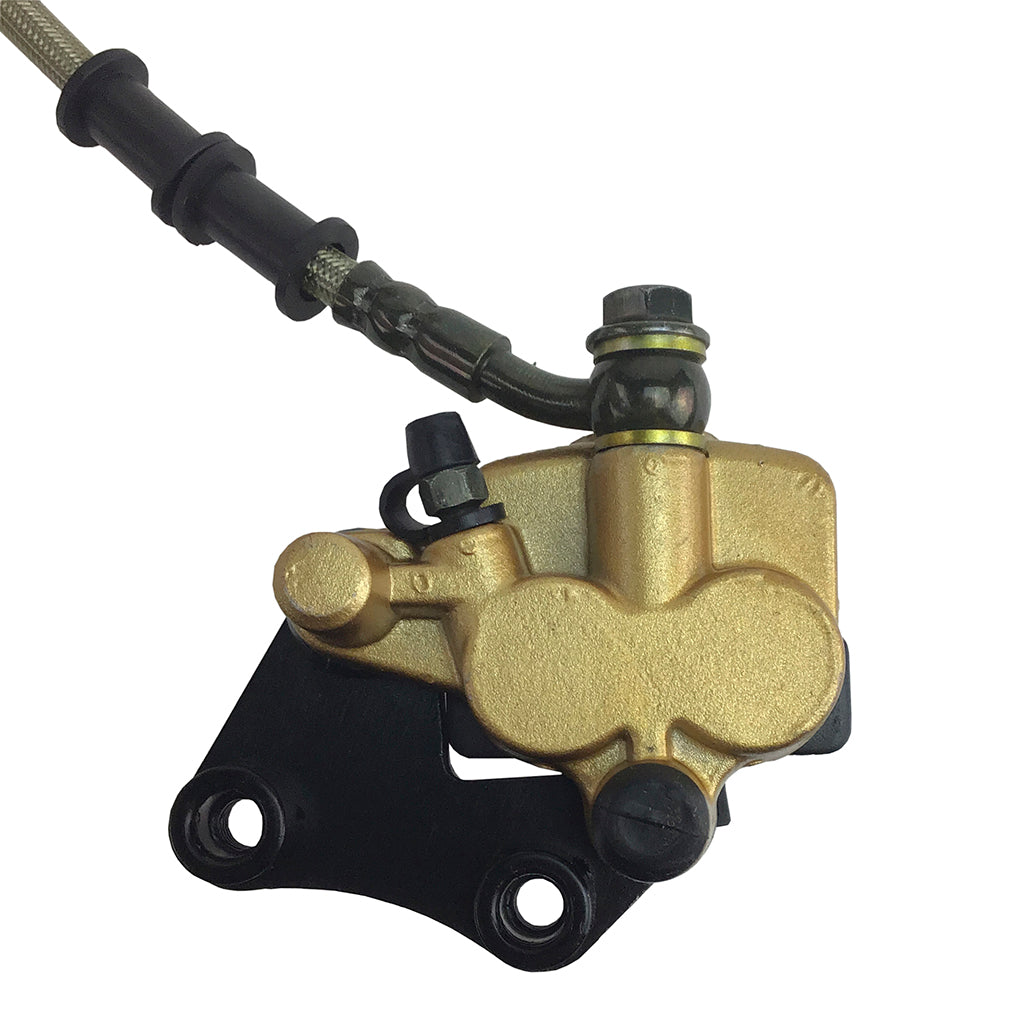

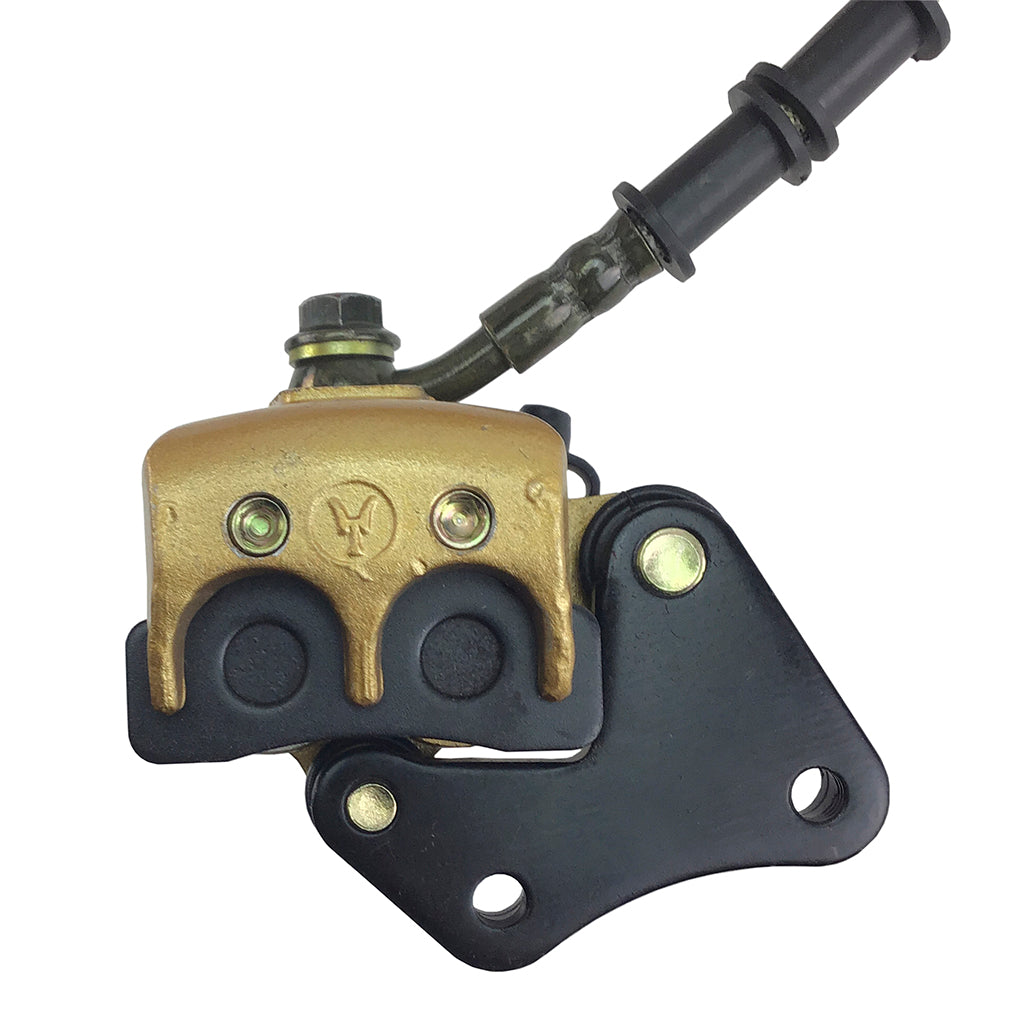

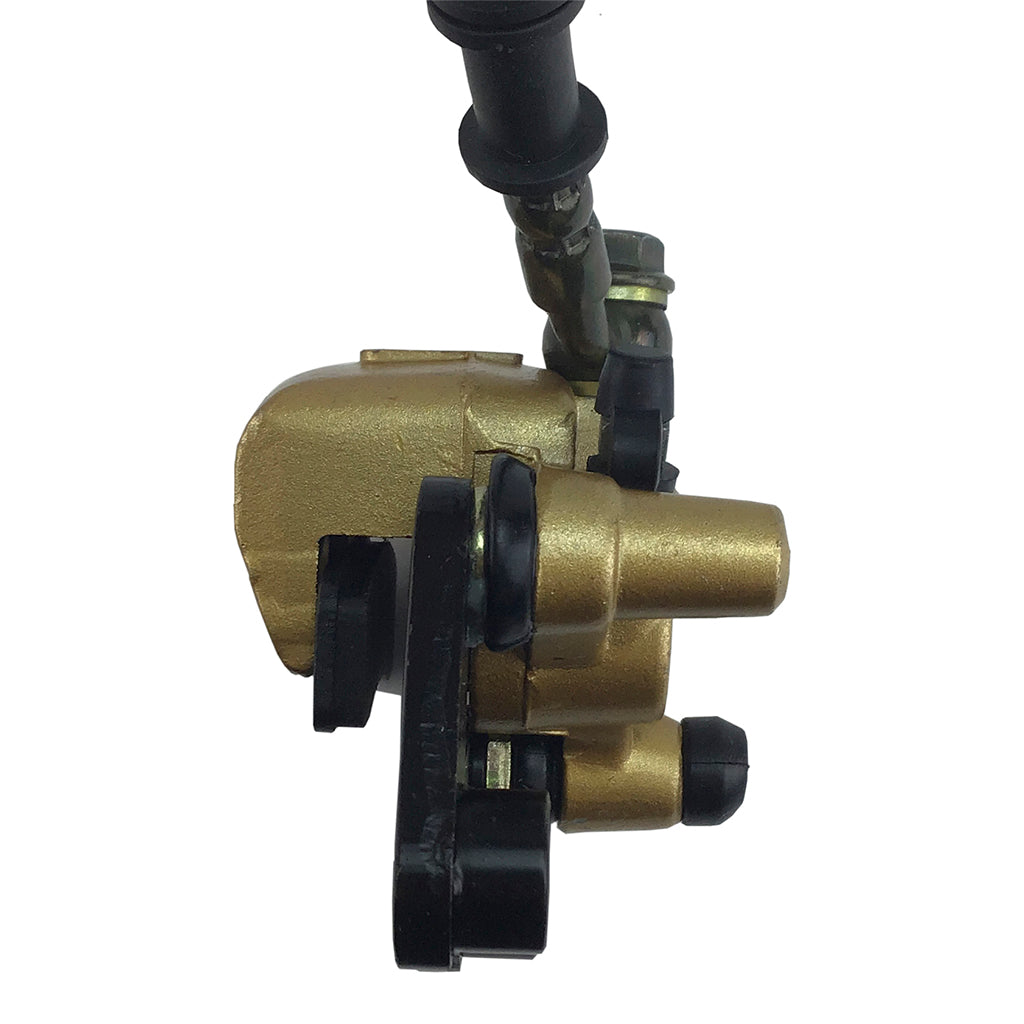

Caliper details:
- Gold
- Mounting bracket holes are 44mm (1.73 in) center-to-center apart
- Bracket has 9mm (0.36 in) spacers
- Includes bleeder screw
- Includes pads
Hose is approximately 44.0 inches long with 12.0 inch protective spring.
SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.
