Cylinder Head Cover Gasket for Coleman 196cc Mini Bikes and Go-Karts

Same Day Shipping On Orders Before 3PM, M-F

Part number: 934-HCG001-200

Cylinder Head Cover Gasket for Coleman 196cc Mini Bikes and Go-Karts.

This is the oem cylinder head cover gasket for the Coleman BT200X, CT200U and the CT200U-EX mini bikes. Also fits the Coleman KT196 go-karts.

Gasket specs:

Rough dimensions of gasket are 100mm x 102mm [3.93"x4.01"]
Thickness: 1.6mm [.06"]

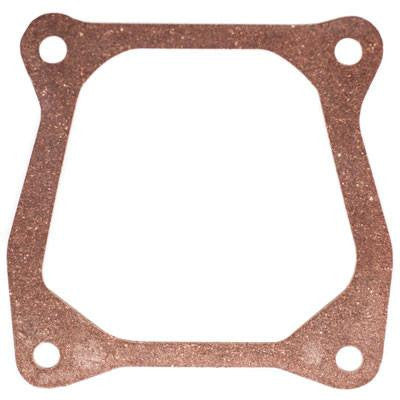

Six sided opening as pictured
Four 7mm [.26"] bolt holes
Cork/Rubber composite
Compatible with 196cc 4 stroke, GX200 168F Honda clone engines
12312/168F

Fits the Lowe's Axis Off-Road M200 mini bike.

Shipping details:

Do you need your gasket fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!

VMC Chinese Parts - your one stop shop for Chinese ATV Parts, GY6 150CC Parts, Tao Tao Parts, Kazuma ATV Parts, Chinese Scooter Parts, Lifan Parts, Roketa Parts, SunL ATV Parts, Redcat Parts, TaoTao Parts, Coolster Parts and much more!

ORDER AMOUNT	STANDARD SHIPPING
US Dollars	3-6 Bus. Day Delivery
$0-$10.00	$6.95
$10.01-$25.00	$9.95
$25.01-$50.00	$12.95
$50.01-$75.00	$15.95
$75.01-$100.00	$18.95
Over $100.01	FREE
