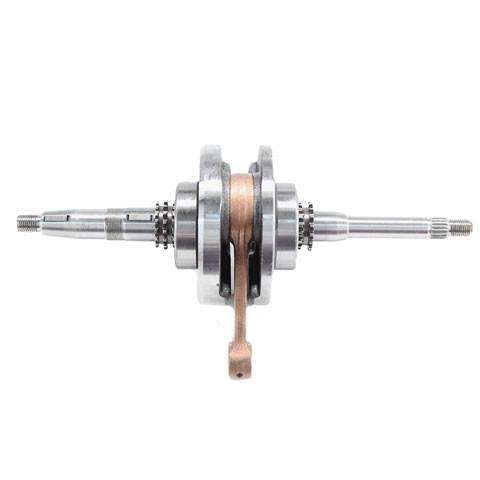

Chinese Crank Shaft - GY6 125cc and 150cc Engine
Chinese ATV, go-kart, scooter crank shaft fits several makes & models. Please use the pictures and measurements to best match your crank.
Crank shaft details:
- Over Length: 29cm [11.4"]

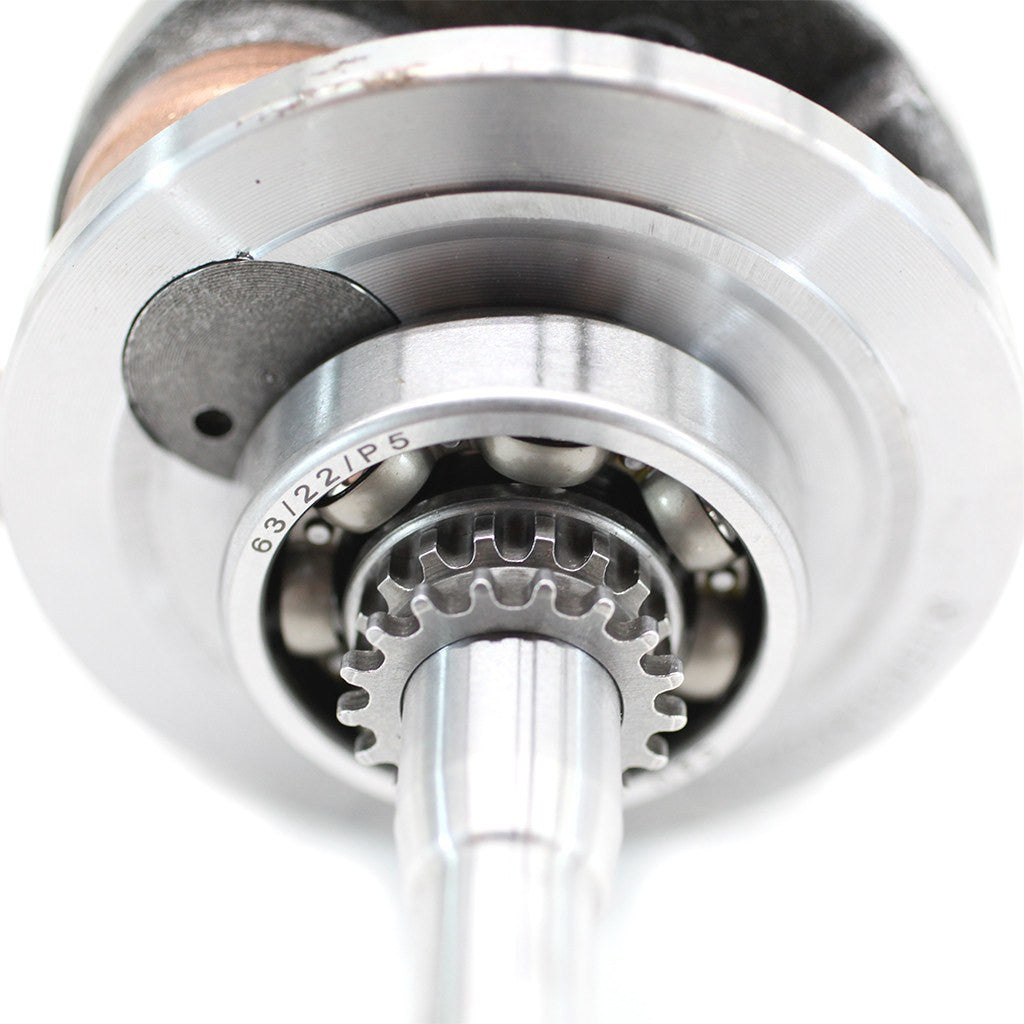

- Bearing size/model: 22 X 56 X 16 [63/22/P5]
- Thin level sprocket [timing driving sprocket]: 17 teeth
- Sprockets: 17 teeth [all]
- Spline count on end of shaft: 19 teeth
- Piston pin hole diameter: 15mm
- Thread size: M12*1.25 both ends
Known to fit GY6 125cc and 150cc engines.
GY6 Crankshaft works great. Shipped fast.
The item was well made and fit perfectly
