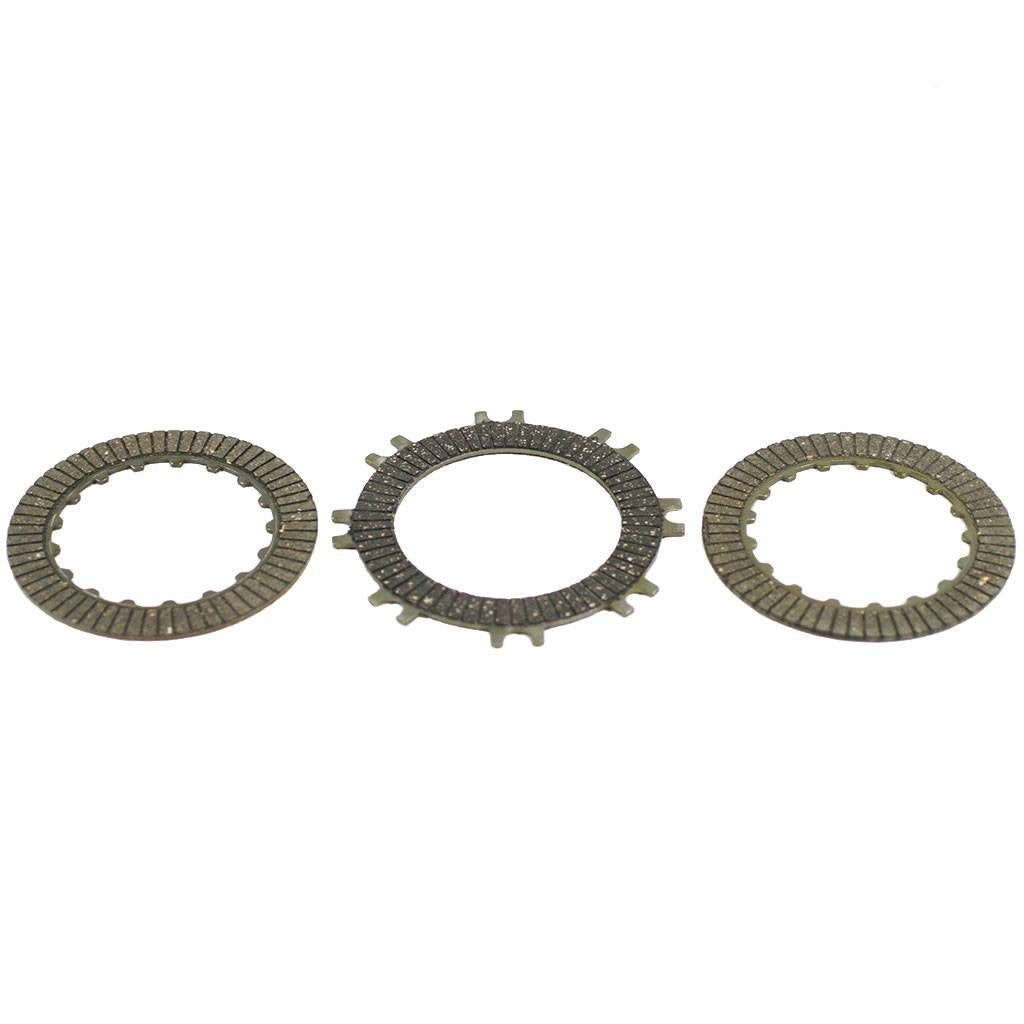

3-Piece Chinese Clutch Disk Plate Set
This clutch disc set fits a wide variety of atvs, dirt bikes, etc. with automatic clutches. The plate with the external teeth has friction material on both sides. The two plates with internal teeth, have friction material only on one side.
- OD of plate with external teeth: 96mm [3.78"] Does not include teeth
- OD of plate with external teeth: 109mm [4.29"] Includes teeth
- ID of plate with external teeth: 70mm [2.75"]
- Thickness of plate with external teeth: 3.7mm [.15"]
- OD of plates with internal teeth: 96mm [3.78"]
- ID of plates with internal teeth: 68mm [2.68"]
- Thickness of plates with internal teeth: 2.6mm [.10"]
This set is know to fit many makes and models of Chinese made machines with 50cc-135cc motors and an automatic clutch. Also fits many Honda applications such as the Honda CRF50, XL70 and the ATC70. Please look at the pictures and descriptions to make sure yours are the same.
Do you need your clutch plate set fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
Right parts, good price
Good experience, the plates were a little thick and would not completely release and I had to break them in, but other than that everything was perfect.
