Part number:
1130-CL304-14
Chinese ATV Clutch - 6 Plate - CG 200cc 250cc
Version 14
Clutch assembly #14 is the replacement clutch for CG 200cc 250cc Chinese manufactured brands and models. Very popular in atvs and dirt bikes.
Clutch details:
- Rear clutch for CG 200 250 engine
- 6 tooth plate assy
- OD: 120mm (4.68 in) plate assy
- ID: 20mm (0.78 in) plate assy valley-to-valley
- ID: 18mm (0.70 in) plate assy peak-to-peak

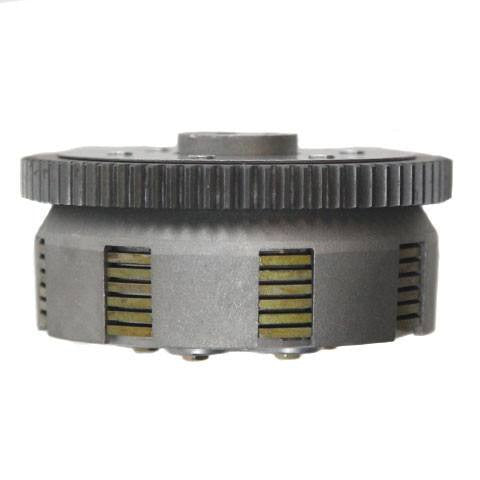

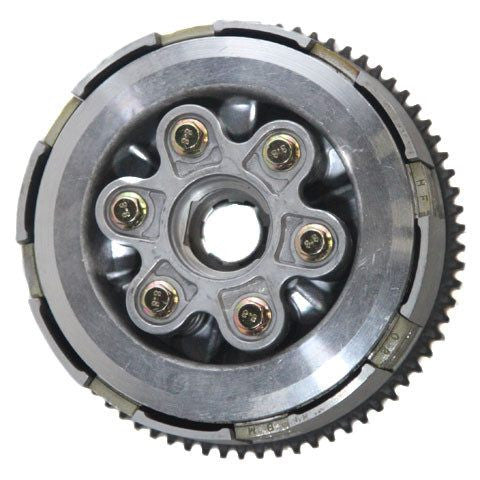

- 6 tooth basket and gear assy

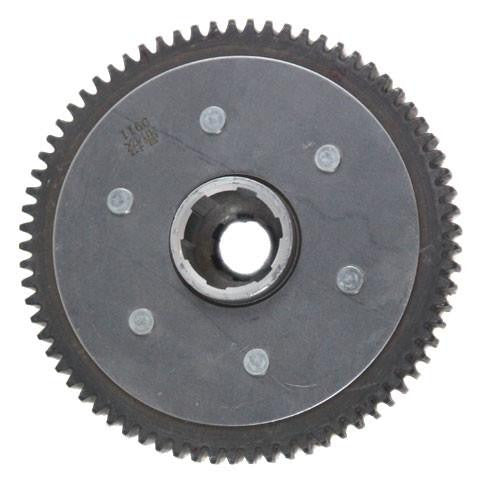

- OD: 130mm (5.11 in) gear
- ID: 30mm (1.18 in) gear assy valley-to-valley
- ID: 28mm (1.09 in) gear asst peak-to-peak
- 73 tooth gear
- Basket has eight solid plates
- Fits CG 200cc 250cc vertical engines ONLY
Known to fit vertical style 200-250cc handlebar clutch lever atvs and dirt bikes. Check pictures and measurements to be sure this is the correct clutch for your application.
