Chinese Clutch Assembly - 2 Stroke 49cc - Taiwan Scooters Mopeds - Version 17 - VMC Chinese Parts

Part number: 1130-CL304-17

Chinese clutch - 49cc 2-stroke - Taiwan Manufactured

Version 17

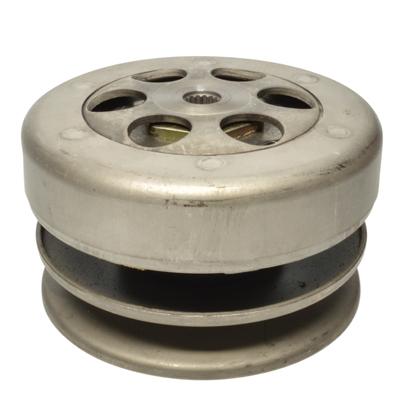

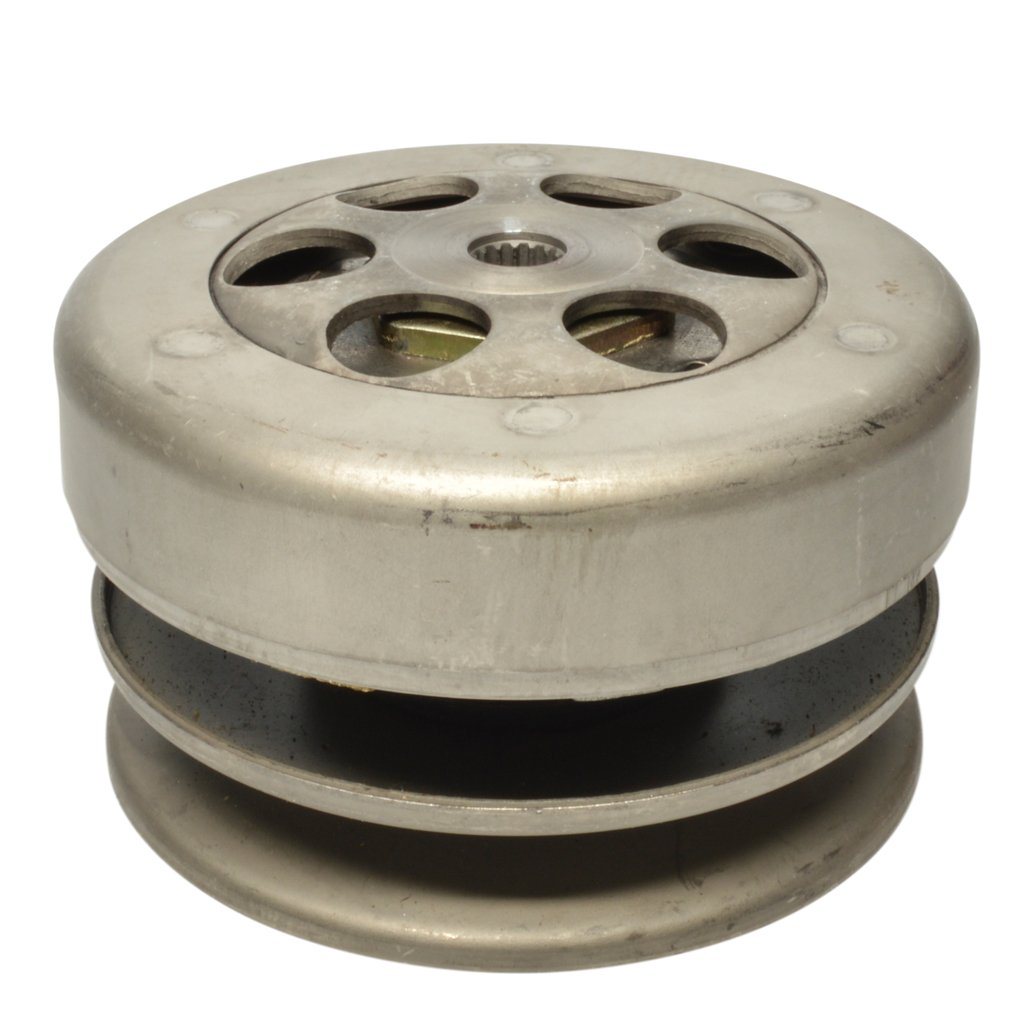

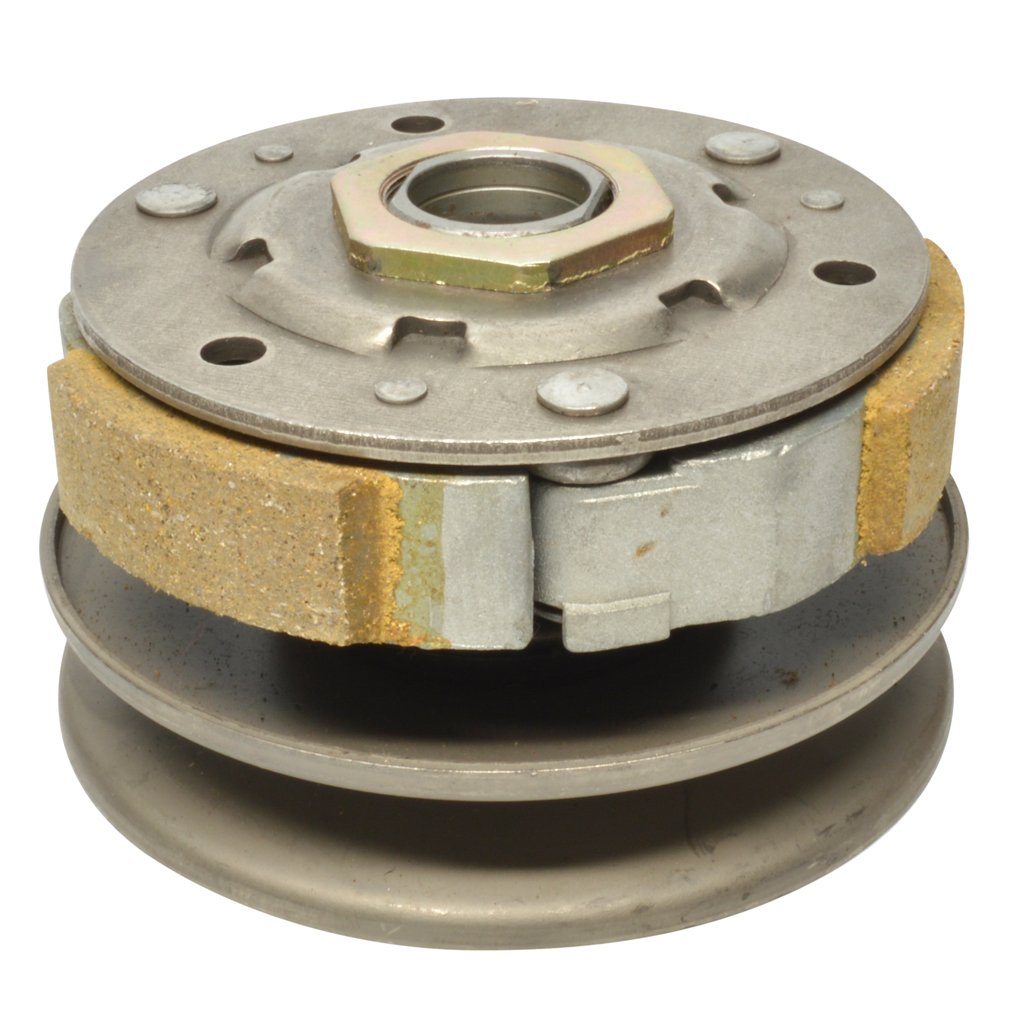

Clutch assembly (#17) is replacement clutch for 49cc 2-stroke Chinese manufactured brands and models. Popular in Taiwan manufactured mopeds & scooters.

Clutch details:

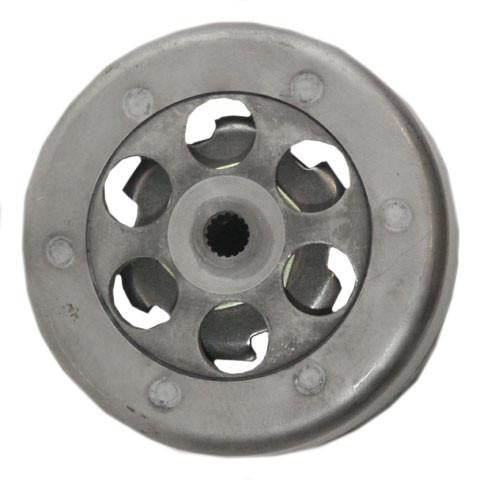

16 splines inside the clutch drum/bell
12mm ID on bell
OD of drum: 119.35mm [4.7"]
ID of drum: 111.7mm [4.4"]

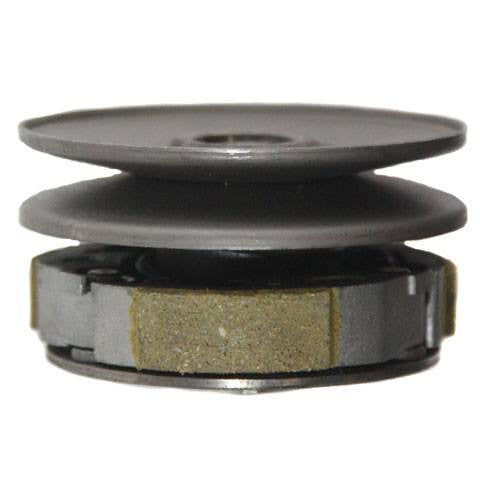

Pulley diameter: 115mm [4.5"]
Fits Tiawan 49cc 2-stroke engines

Known to fit mopeds with 49cc 2-stroke engine. Check pictures and measurements to be sure this is the correct clutch for your application.

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
