Chinese 6-Wire / 2-Plug Voltage Regulator Rectifier

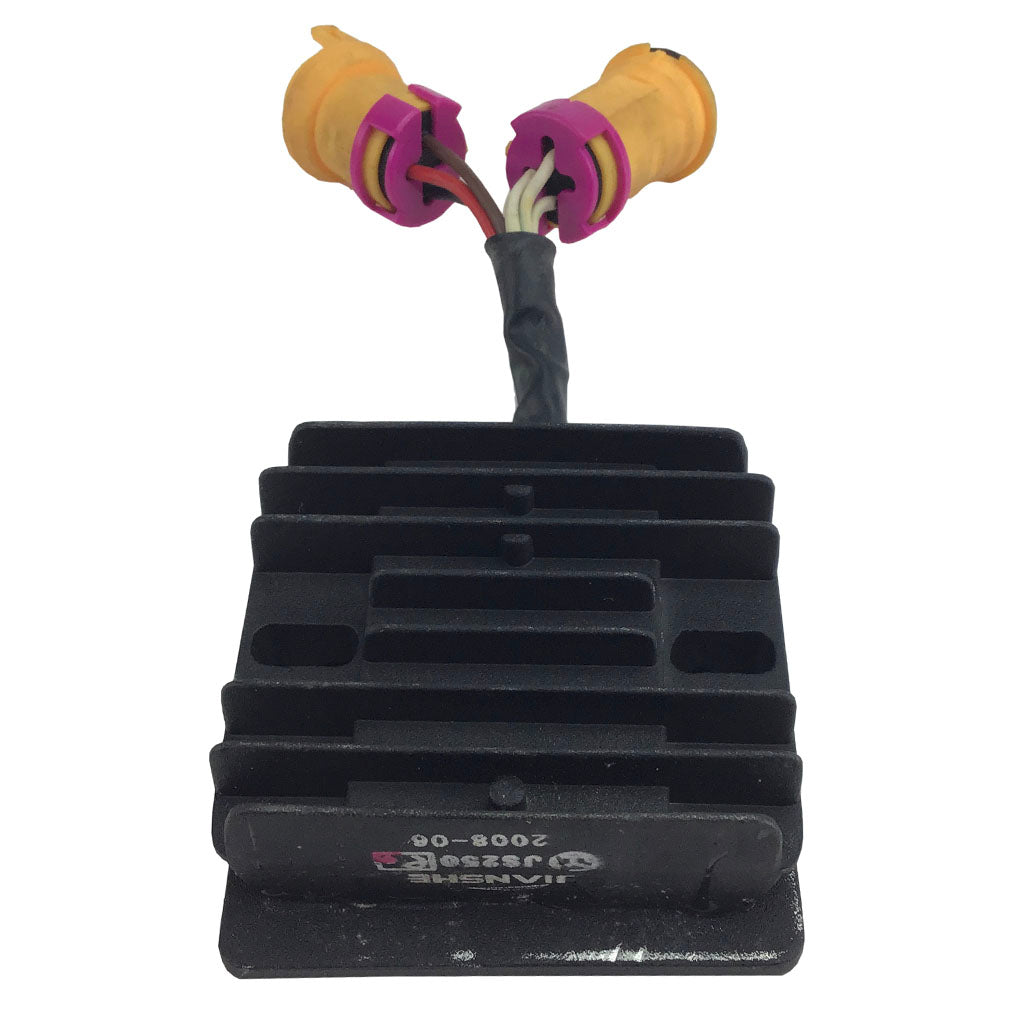

Voltage regulators regulate the electric current from the battery to the other electrical components. If you find that your electrical system overloads when you rev up the machine, then you most likely need to replace the voltage regulator. Please look at pictures and compare measurements to ensure that you are choosing the right voltage regulator.

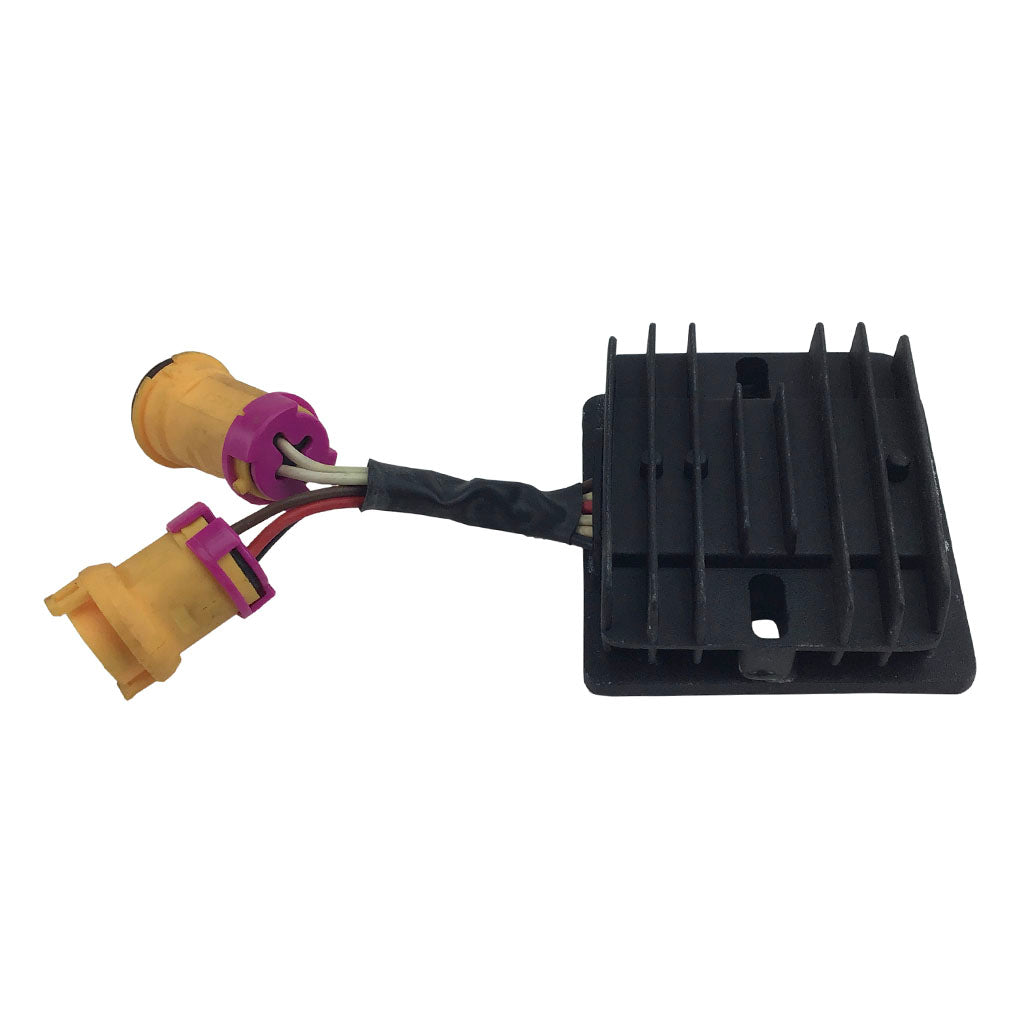

- Wiring harness length: approximately 15cm [6"]

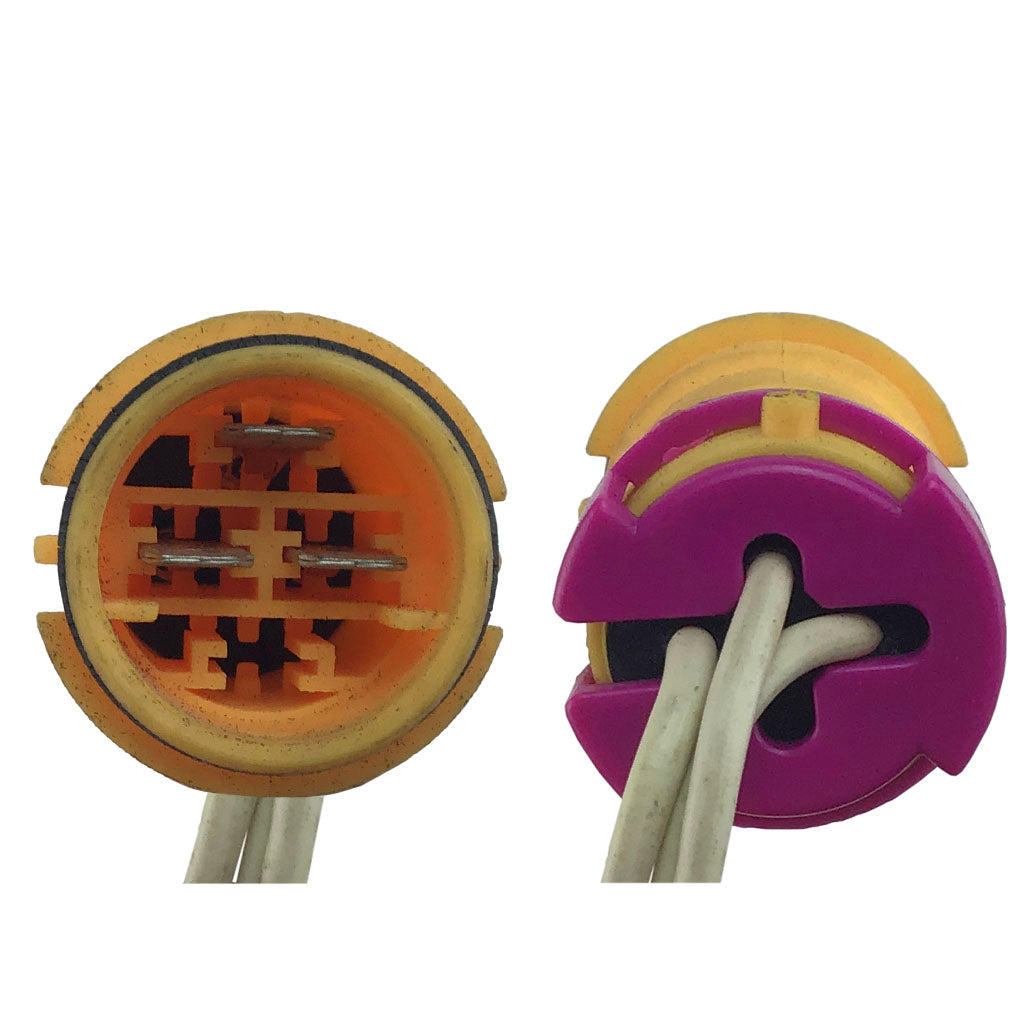

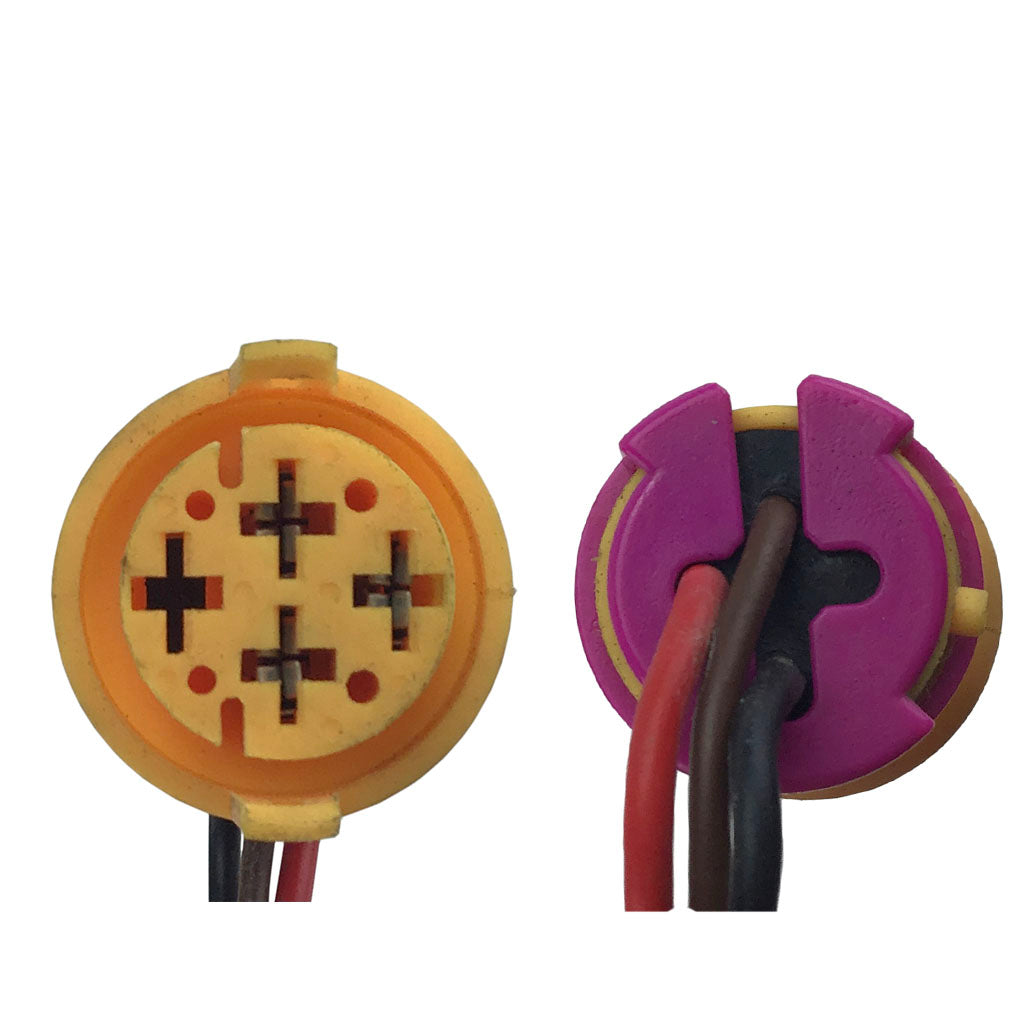

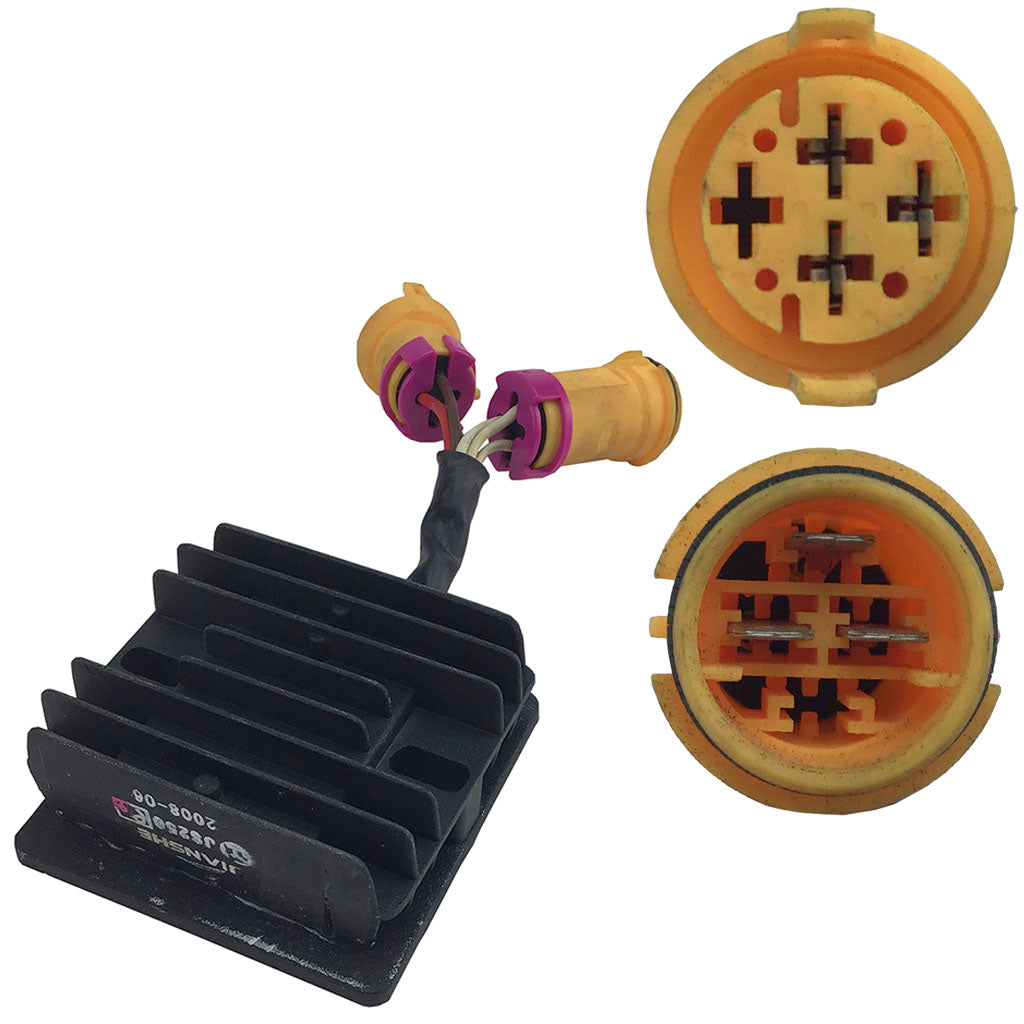

- The first plug is a 3-wire female plug
- The second plug is a 3-wire male plug
- The two plugs actually can plug into each other.
- All three yellow wires go to the female plug
- The male plug dimensions are 20.6mm x 16.3mm. [.80" x .64"]
- The female plug has 3 wires with one spade at a 90 degree angle to the other two spades.
- This females plugs dimensions are 17mm x 13mm. [.67" x .51"]

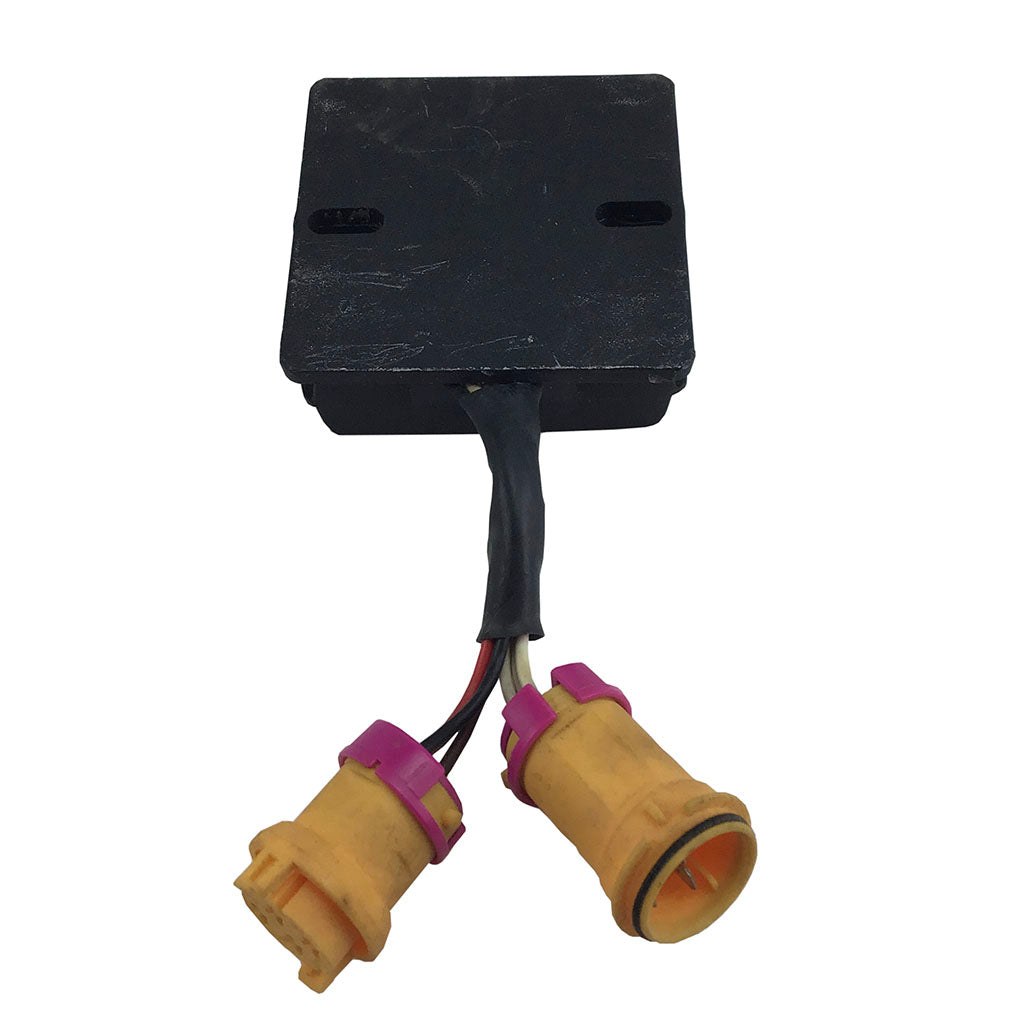

- The mounting holes are center to center 60mm [2.3 inch]

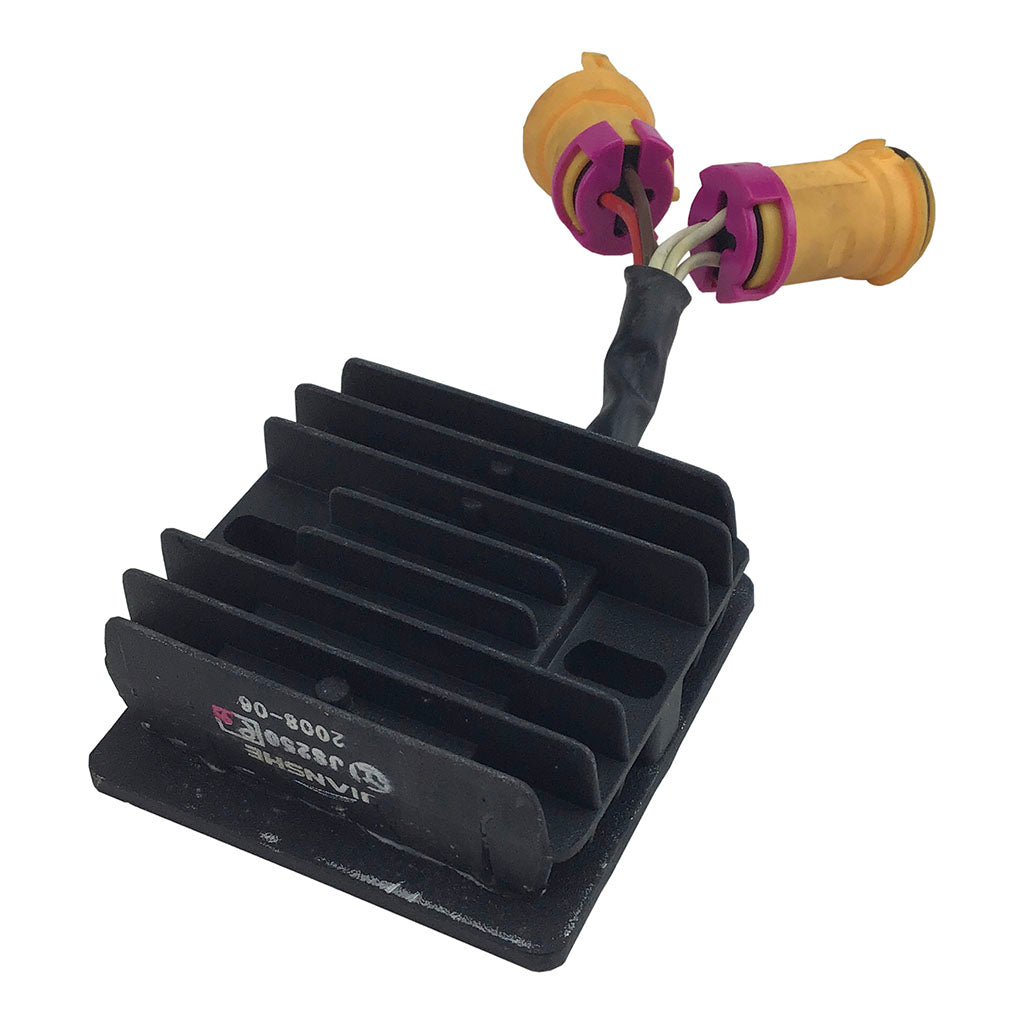

- Overall size is 78mm x 66mm x25mm [3" x 2.6" x 1.]
