Part number:
425-AA90-02
2
Chinese ATV Upper A-Arm
Kazuma Mini Falcon 90cc

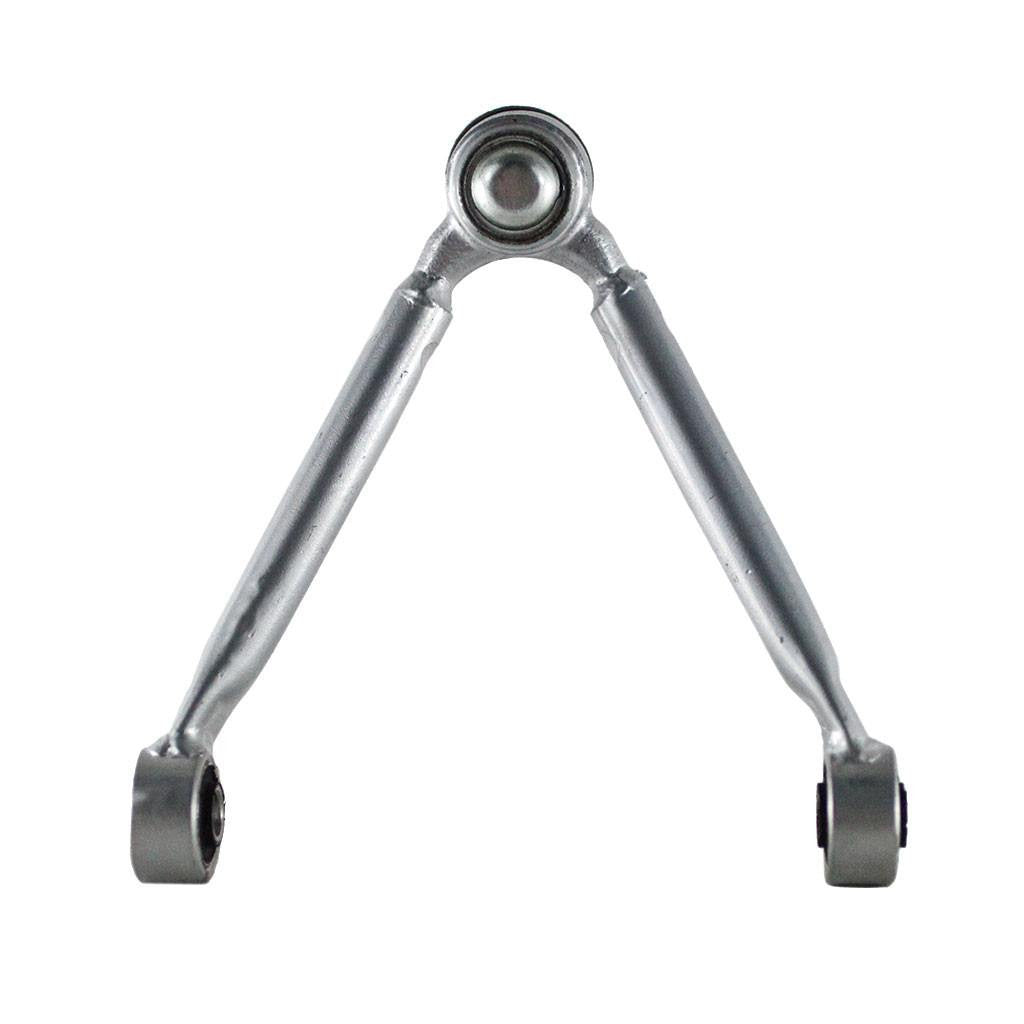

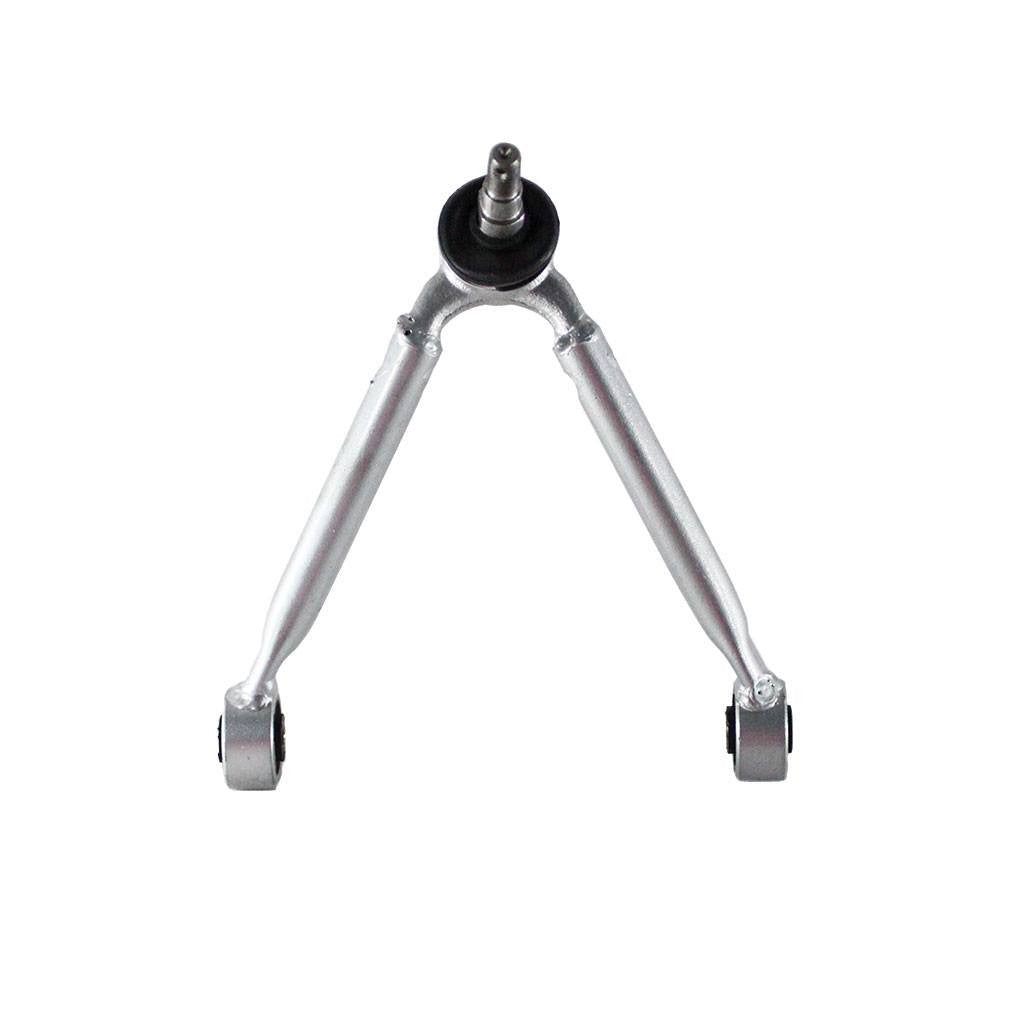

This upper a-arm was used on Mini Falcon 90cc ATVs that were manufactured by Kazuma. Please check the pictures and specs to make sure this is the correct kit for your ATV. These may fit other makes and models but check the measurements and pictures against the original arm.
A-arm details:
- Upper
- Overall length: 8.25 inches
- Overall width: 7.25 inches
- Overall length of ball joint: 72mm
- Pressed ball joint
- Width of bushing in bracket: 20.2mm
- Width of bracket mount: 16.1mm
- ID of bushing: 9.4mm
- OD of bushing: 24mm
- OD of bracket: 32.25mm
- FN90-451-002
Known to fit Kazuma Mini Falcon 90cc Deluxe models.
