Chinese ATV LED Tail Light
This replacement tail light fits several models of Chinese ATVs including but not limited to TaoTao ATA110B. Use the detail pictures and measurements to best match your light. Also used on some dirt bikes.
Tail light details:

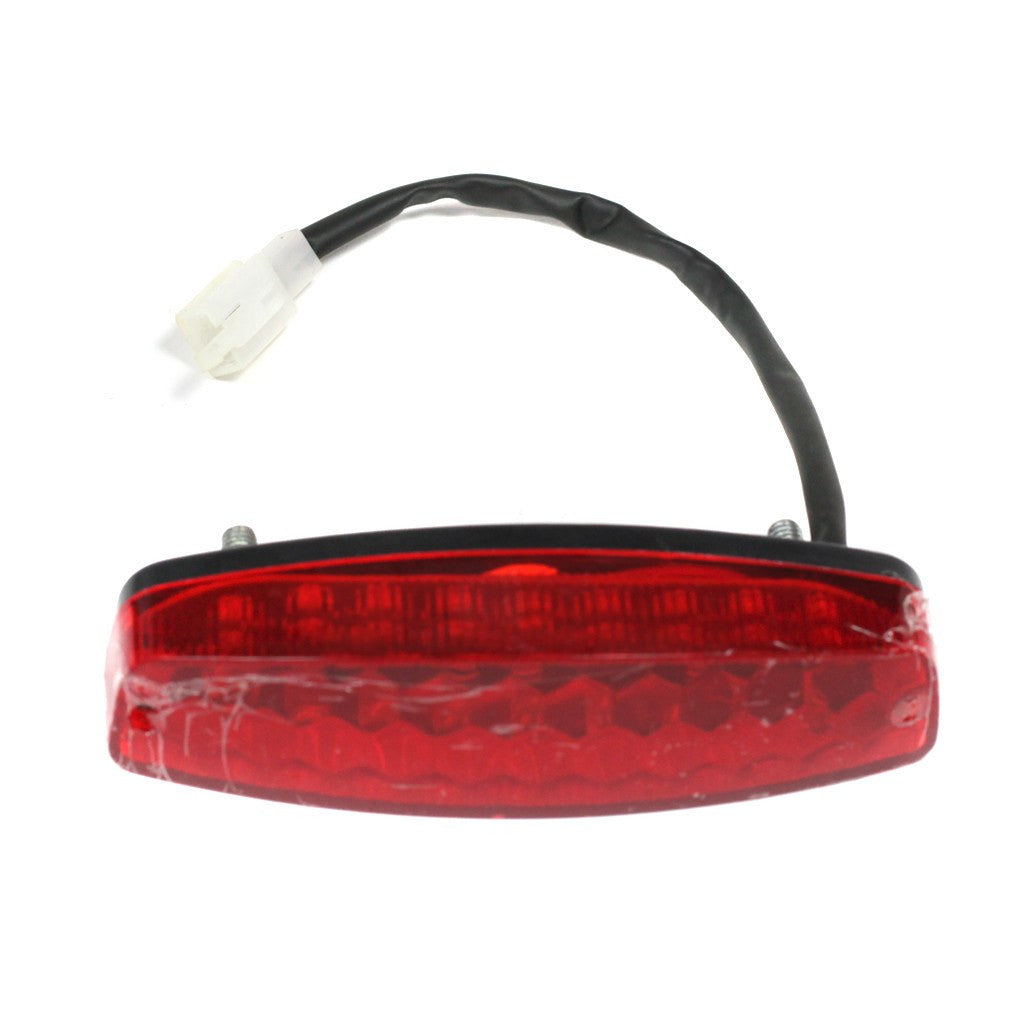

- Red lens
- Lens is removable... held on by two phillips head screws
- 18 5mm LED diode lights mounted on circuit board

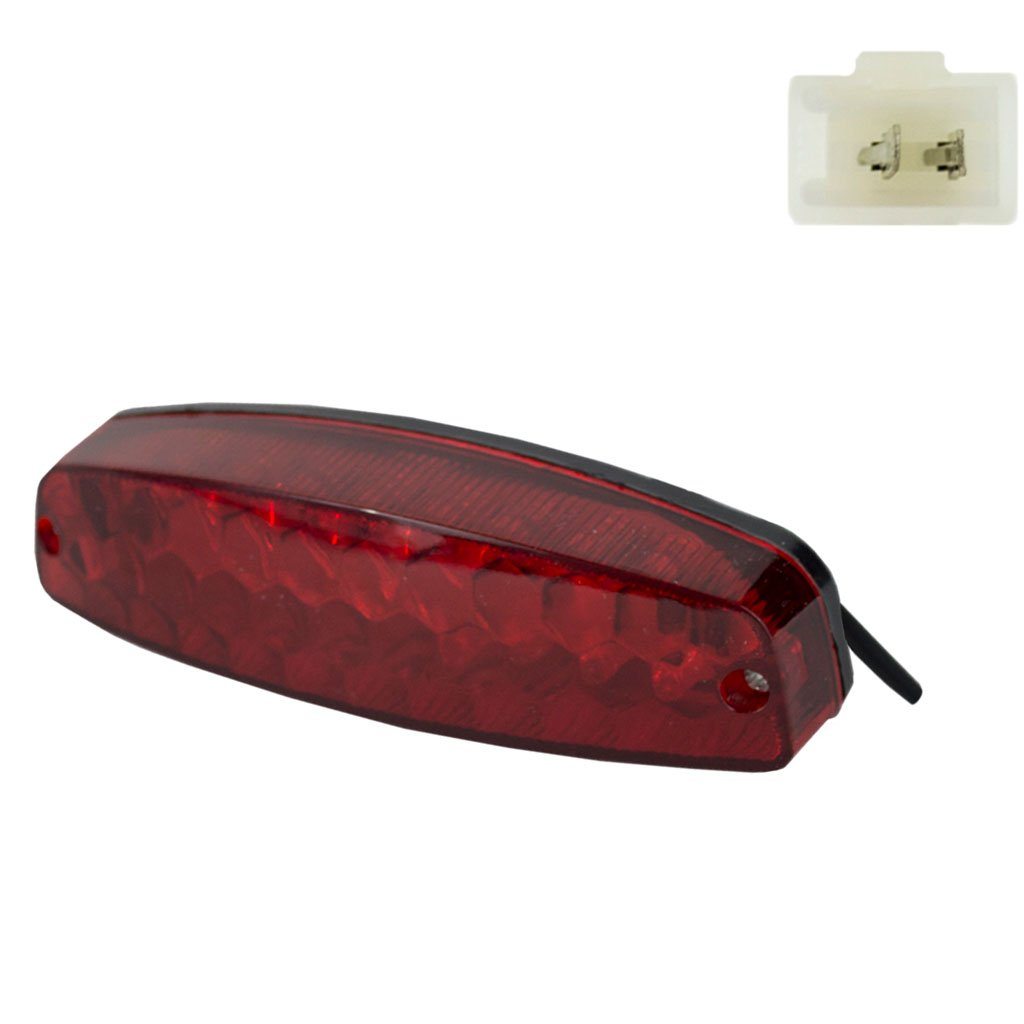

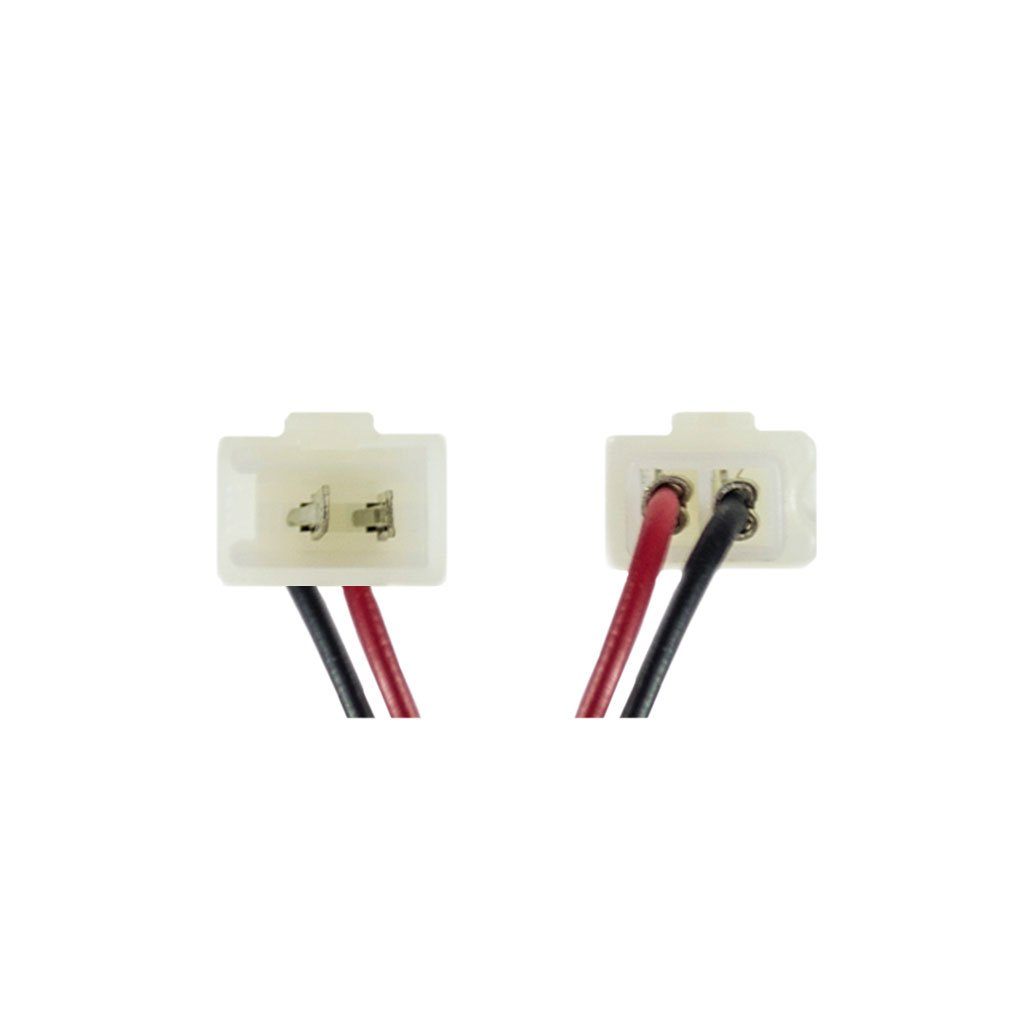

- 2 wire male plug [see picture]

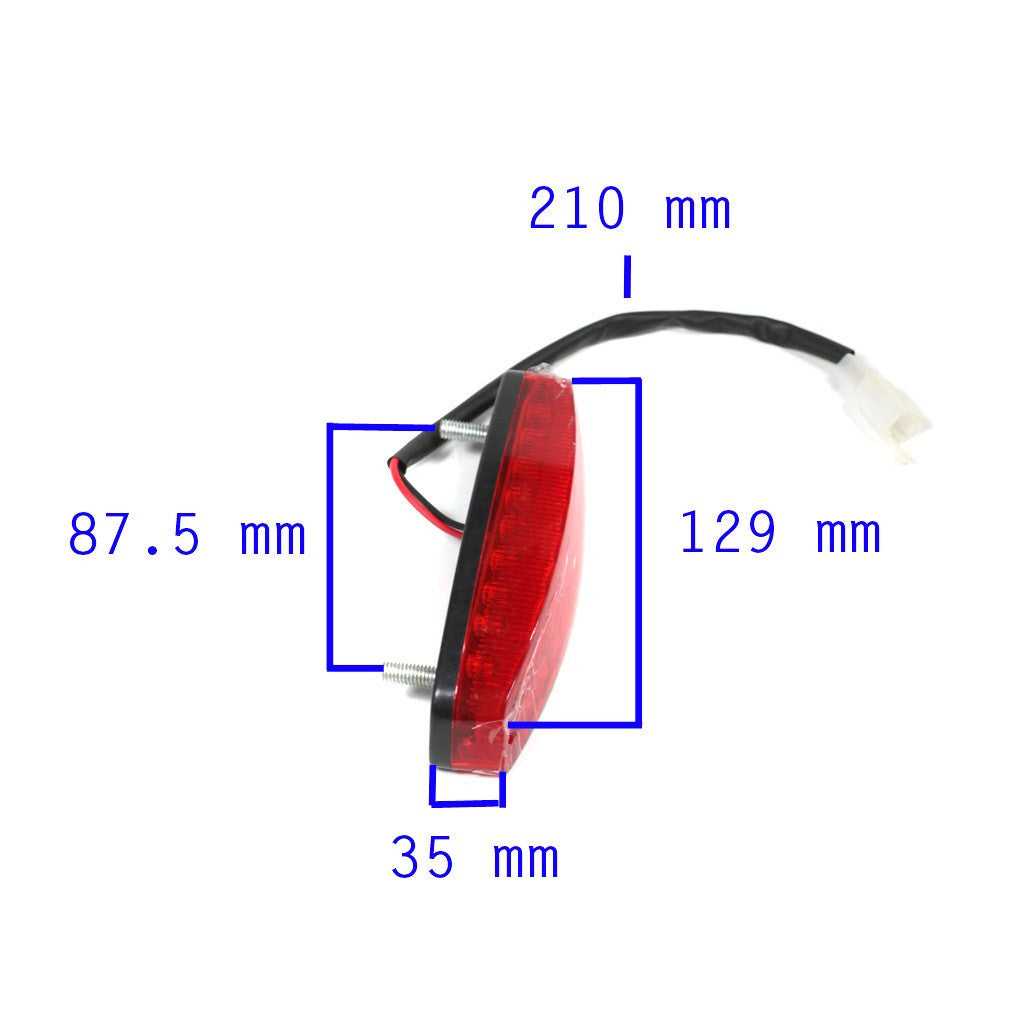

- Light height: 35mm [1.38"]
- Light width: 129mm [5.08"]
- Wire length: 21cm [8.3"]

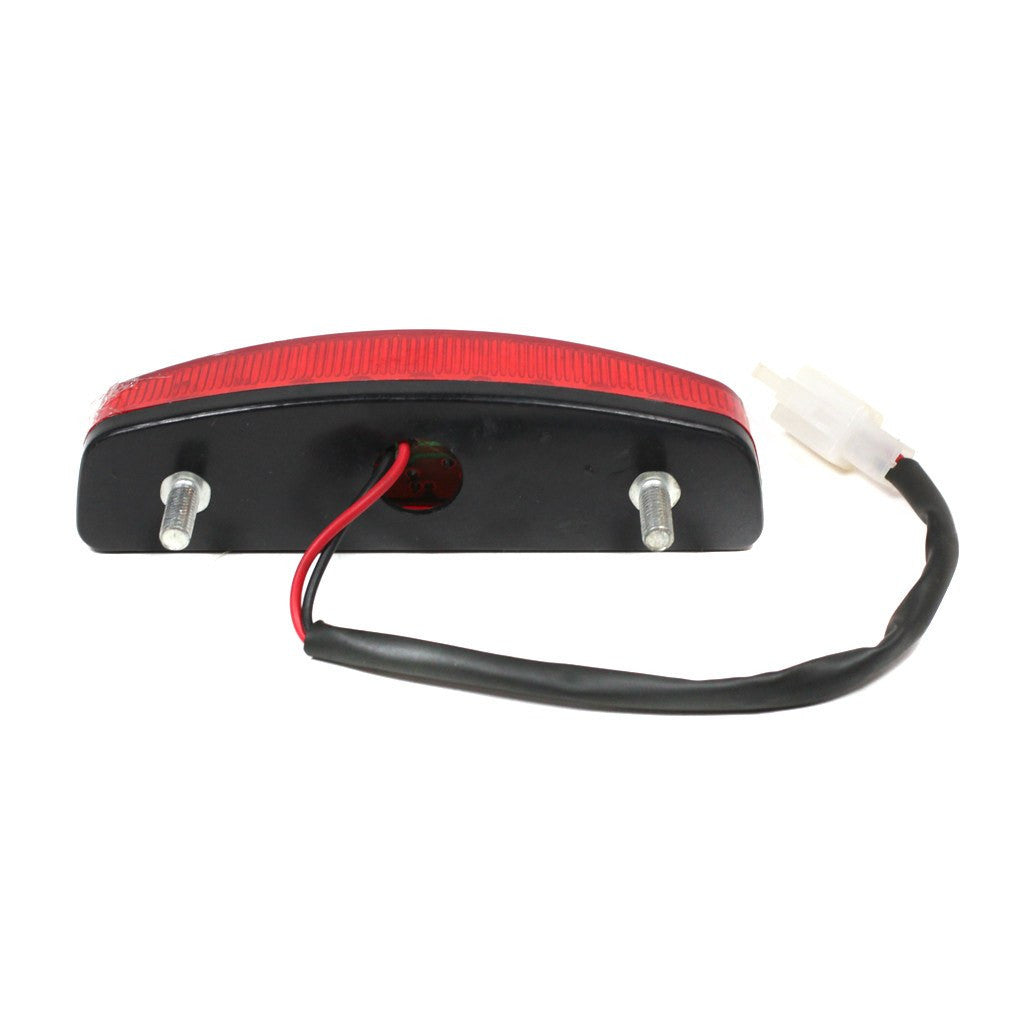

- 6mm * 1.00 mounting studs on back
- Mounting studs are 87.5mm [3.45"] apart center-to-center
Please check specs and detail pictures for best match of your part.
Fits the Taotao ATA110B/B1, ATA110B3, BoulderB1, Eagle 110 BI ATVs and the GK110 go-kart.
Do you need your tail light fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
replacement parts for atv
all items ordered arrived promptly and fit perfectly---will be using this company again for parts
Will work product
This is another one of those “ will work “ items. Received fairly scratched up not that it matters but build quality is low. It looks as though it’s a retrofit housing that started life as a standard bulb as there is a big hole the wires go into ( that will fill with water.
Very good shipping. Exact parts. All parts I was looking for. Only thing would make it better is a tech line.
I received your brake light assembly in a timely fashion. Only issue was that when plugging it it didn’t work. After about an hr of me diagnosing what was come to the conclusion that the wires in your assembly where installed incorrectly. The power and ground wires needed to be swapped inside the plug. Luckily I have the tools to do this and make it work but a normal person looking for an item to work out of the box would of had an issue. Just a heads up.
