Chinese ATV Tail Light
This replacement tail light fits several models of Chinese ATVs including but not limited to Panther 110B. Use the detail pictures and measurements to best match your light. Also used on some go karts. This is the exact light as our Version 28, but with a female plug.
Tail light details:
- 3 wire light

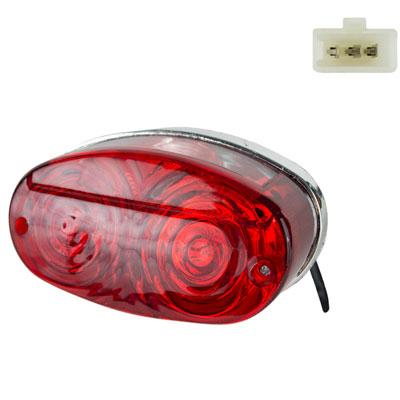

- 3 wire pigtail with option 3 pin plug [see picture]
- Light height: 85.75mm [3.37"]
- Light width: 160mm [6.3"]
- Wire length: 47cm [18.5"]
- Top mounting bolts: 112mm [4.4"] center to center
- Bolt distance from top to bottom bolts: 70mm [2.75"]
- Includes bulb
Known to fit Coolster 3050B / 3050B-2 / 3050D / 3125B / 3125R / 3125X8 / 3125XR8 / 3125XR8-S / 3150DX-2. Please check specs and detail pictures for best match of your part.
Do you need your tail light fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
