Part number:
922-FW250-05

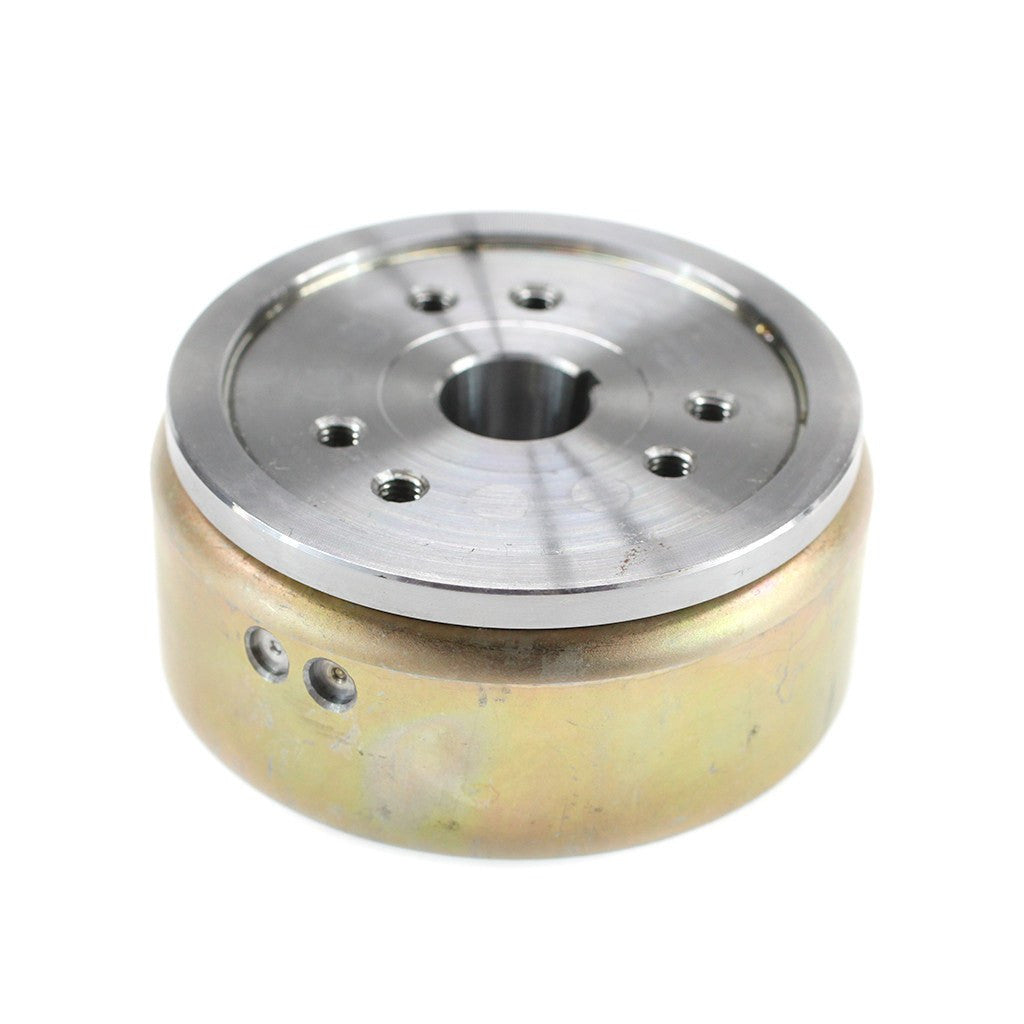

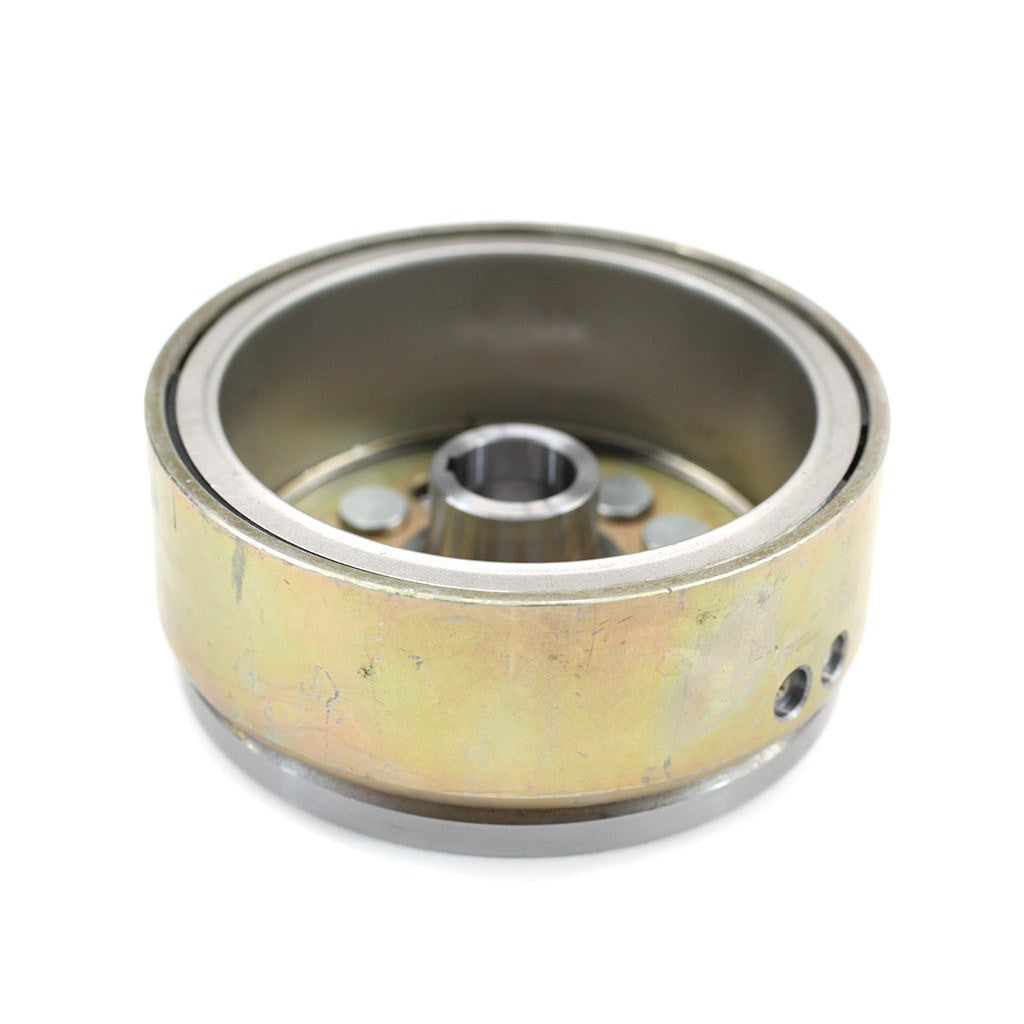

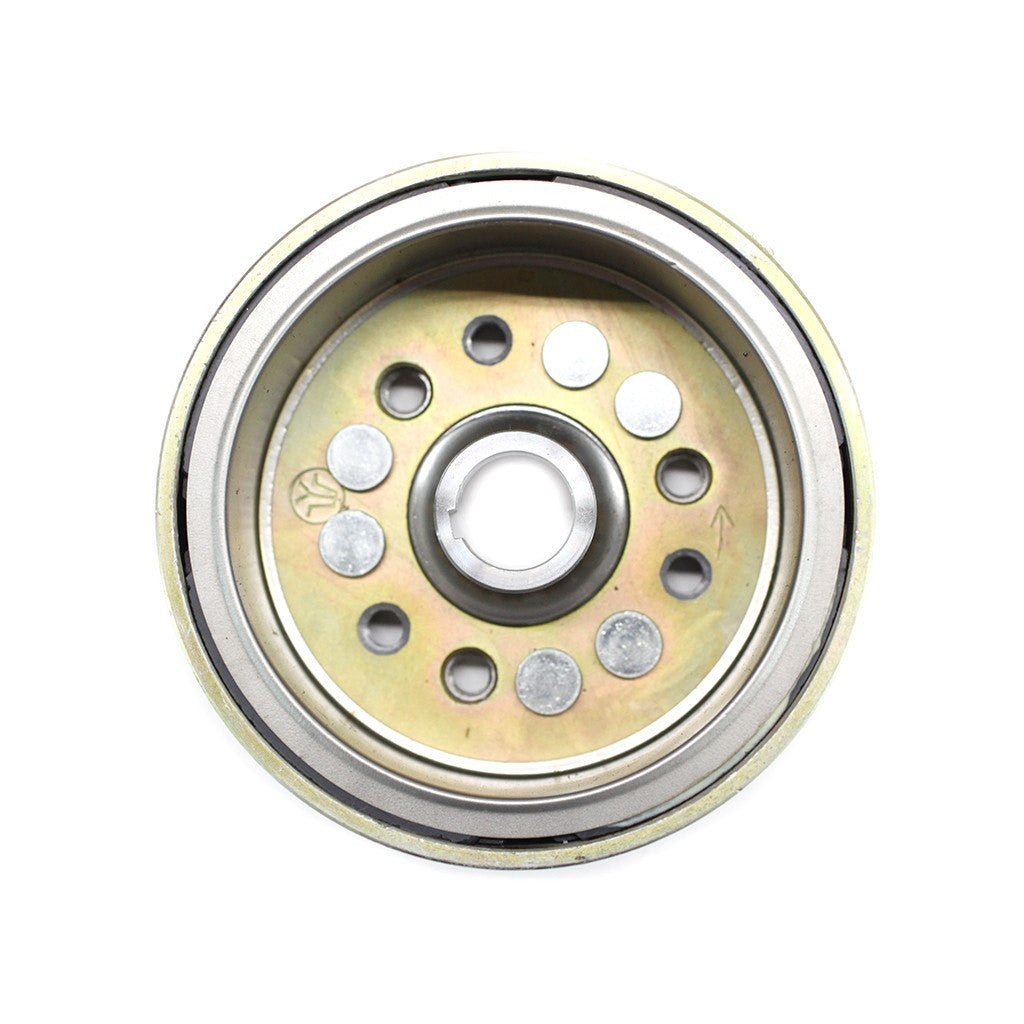

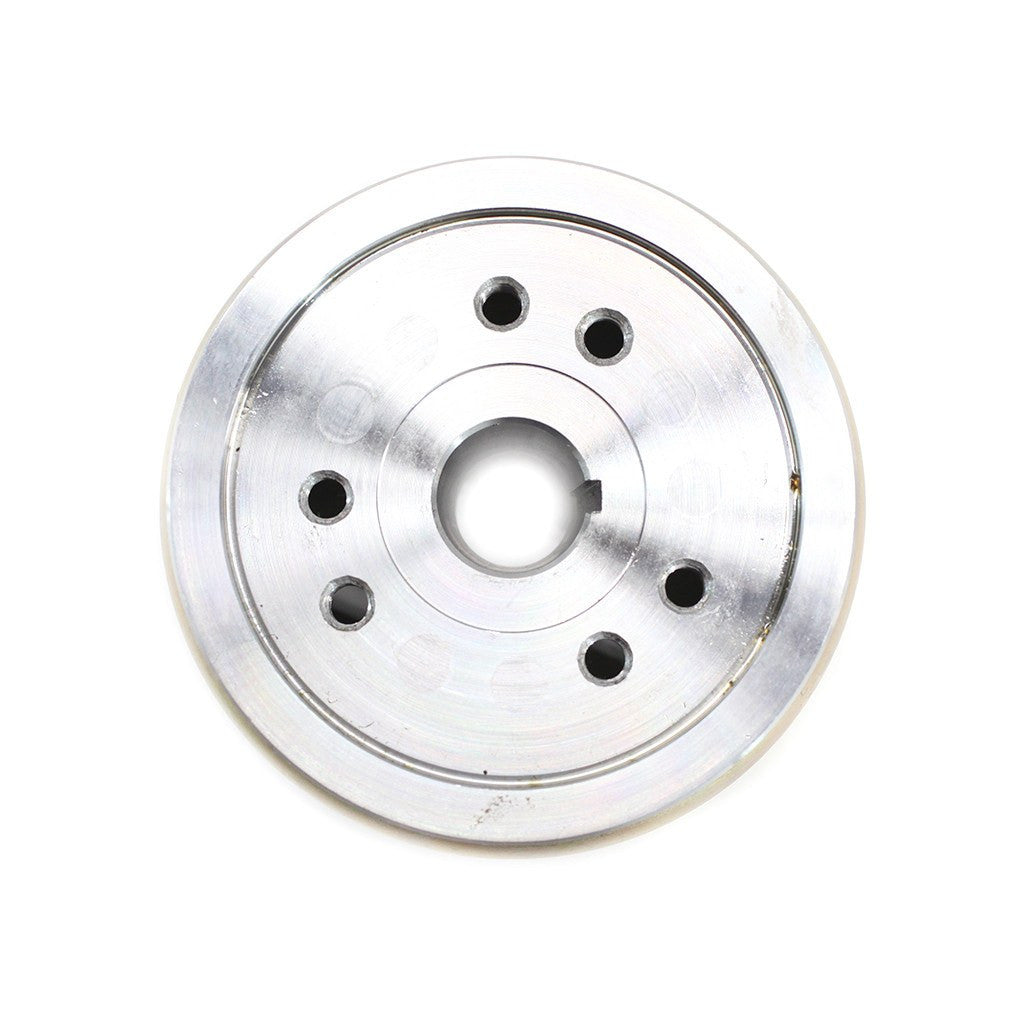

Chinese Stator Magneto Flywheel - JS 250 engine
Version 5
Chinese stator magneto flywheel for Jianshe 250cc engines. May also fit other engines. Please use the measurements and pictures to match your part.
Flywheel description:
- Overall OD including "tab": 121mm [4.76"]
- Overall OD not including "tab": 119mm [4.7"]
- ID of magnetic area: 95mm [3.75"]
- OD of inside hole: 28mm [1.10"]
- ID of inside hole: 24.9mm [.94"]
- Cutout notch area in hole.
- OD of silver plate: 113mm [4.45"]
- (6) 8mm*1.25 threaded mounting holes
- FG-841000-0 JS250ATV-5 FG8410000
Known to fit Jianshe JS250 engines.
Shipping details:
Do you need your flywheel fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
