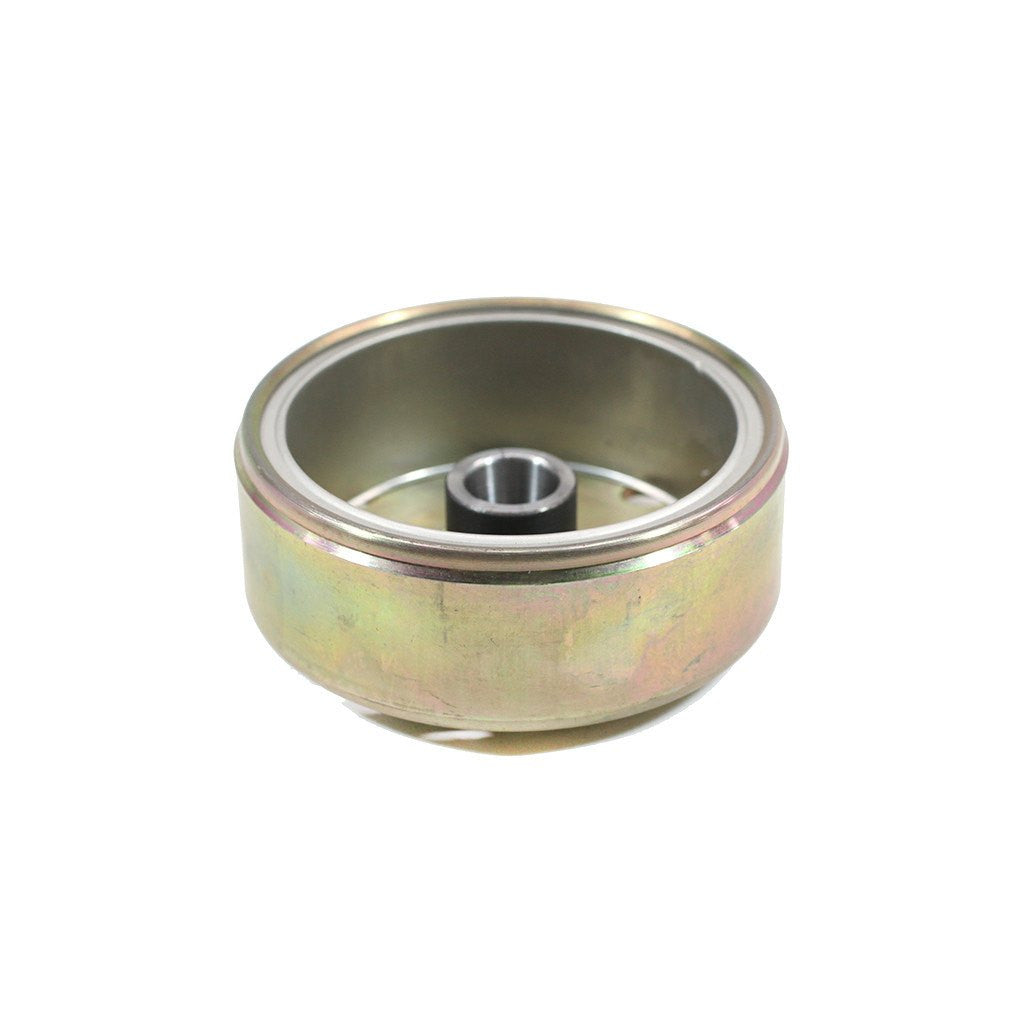

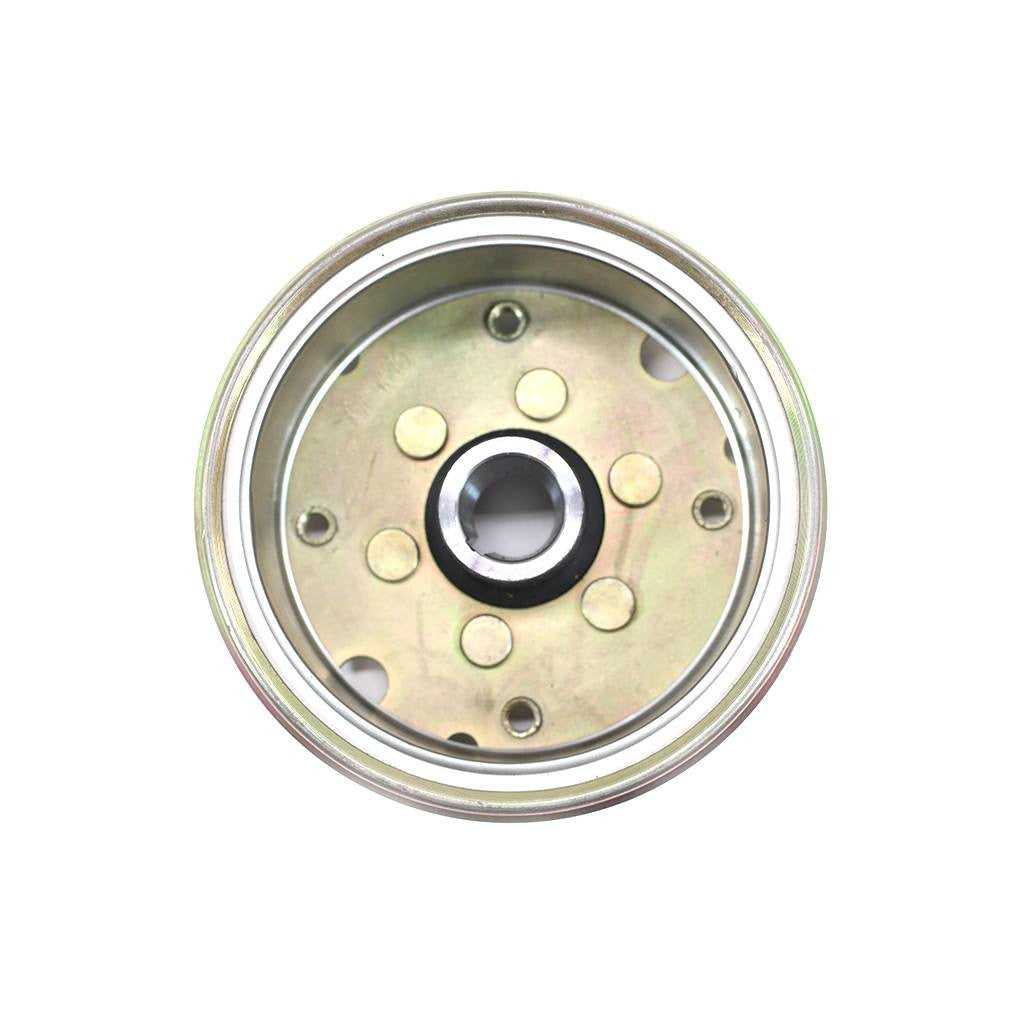

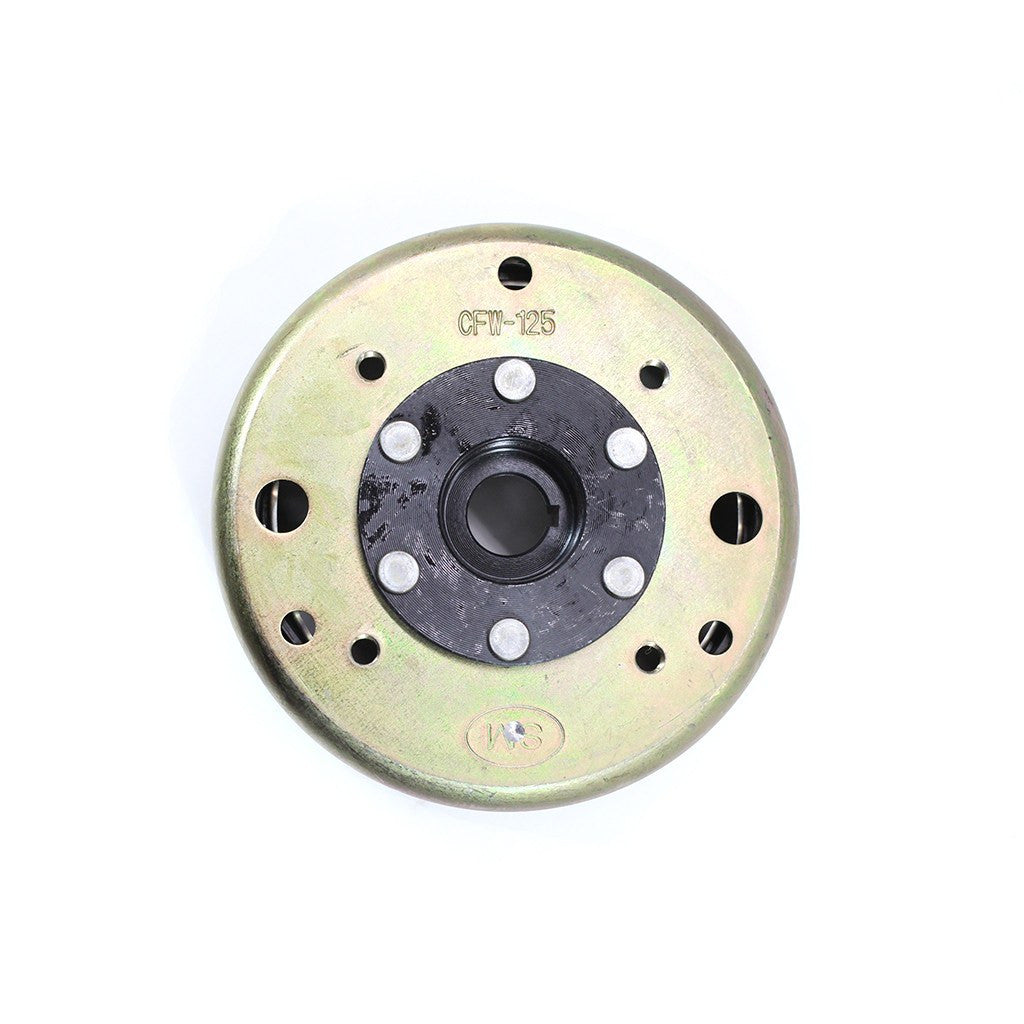

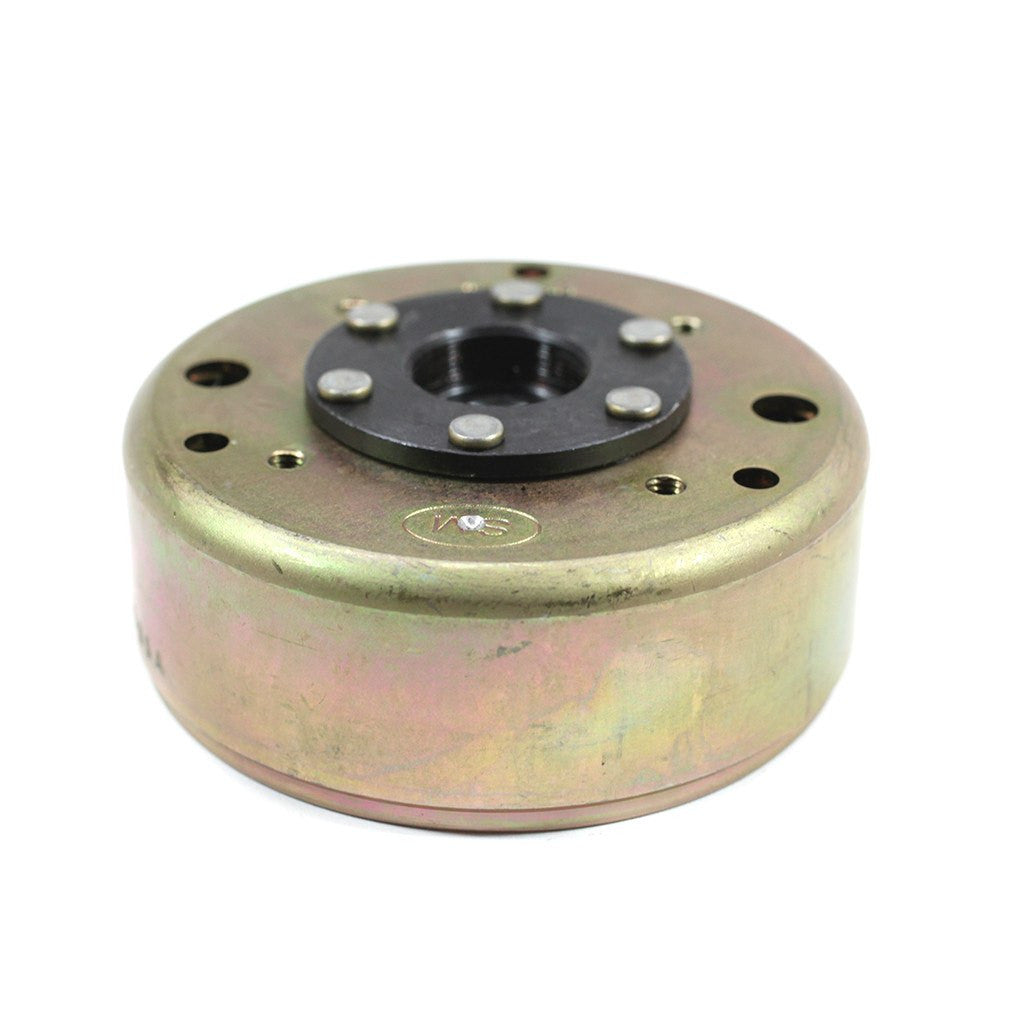

Chinese Stator Magneto Flywheel - GY6 125cc 150cc engine
Chinese stator magneto flywheel for 125cc and 150cc engines. Please use the measurements and pictures to match your part.
- Outside height of brass: 41.3mm [1.65"]
- Overall OD including "tab": 113.65mm [4.47"]
- Overall OD not including "tab": 111.45mm [4.387"]
- ID of magnetic area: 85mm [3.35"]
- OD of inside hole: 25.7mm [1.01"]
- ID of inside hole: 18.8mm [.74"]
- Cutout flywheel key notch.
- Fits 6 Coil stator only.
Need the puller?
Known to fit most 125cc and 150cc engines.
