Part number:
922-FW150-07

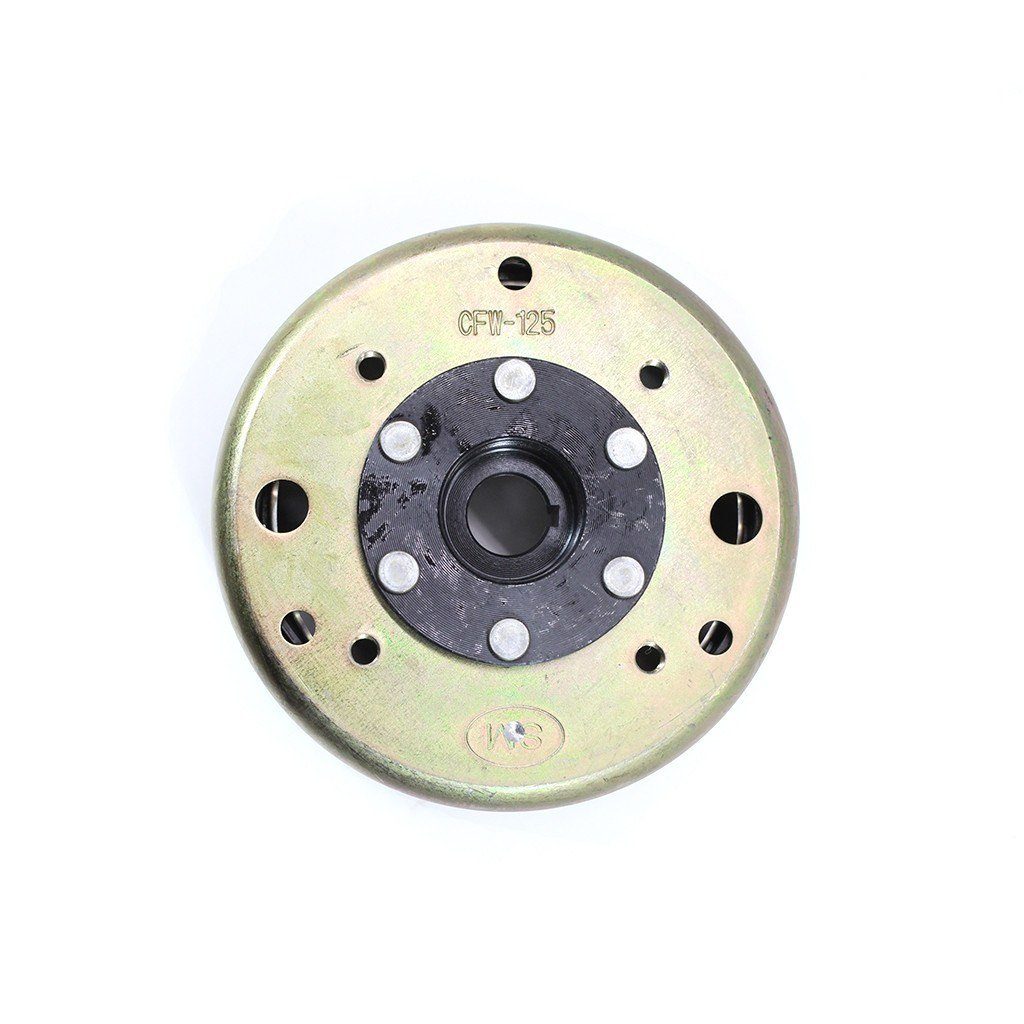

Chinese Stator Magneto Flywheel - GY6 125cc 150cc Engine
Version 7
Chinese stator magneto flywheel for 125cc and 150cc engines. Please use the measurements and pictures to match your part.
Flywheel description:
- Outside height of brass: 39.7mm [1.56"]
- Overall OD including "tab": 111.4mm [4.38"]
- Overall OD not including "tab": 109mm [4.29"]
- ID of magnetic area: 89.2mm [3.51"]
- OD of inside hole: 25.7mm [1.01"]
- ID of inside hole: 18.0mm [.70"]
- Cutout flywheel key notch.
- Fits 8 Coil stator only.
Known to fit most 125cc and 150cc engines.
