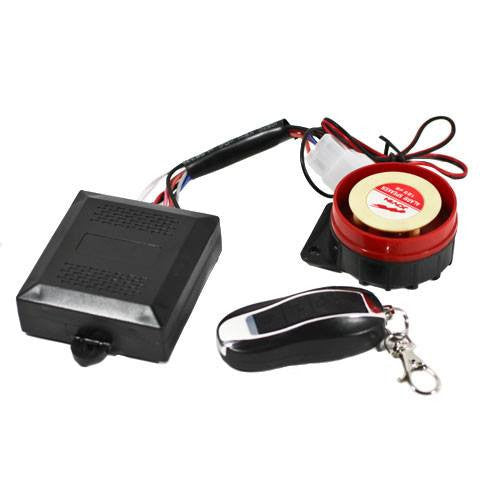

Chinese ATV Remote Kill System
This Chinese ATV remote control alarm/kill systems is used on several makes and models of ATVs. Fits 50cc-250cc models. Know to fit older models of Panther 70B and more. Please use specs and measurements to match your remote.
- Mounting hole distance: 7.725cm [3"]
- Antenna wire length: 32cm [12.5"]

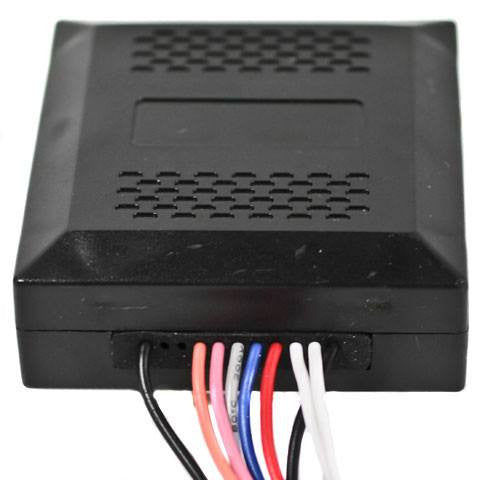

- 8 wire remote system [not counting the antenna] - 2 plug

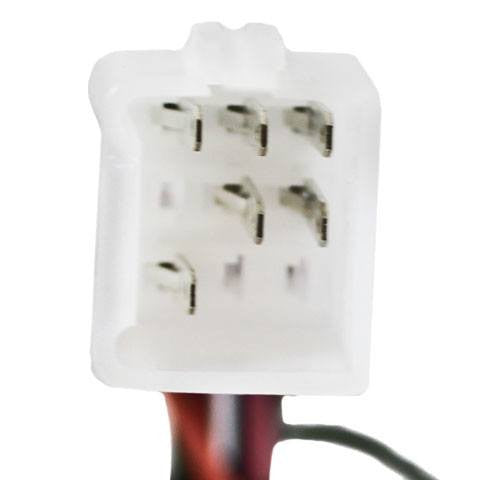

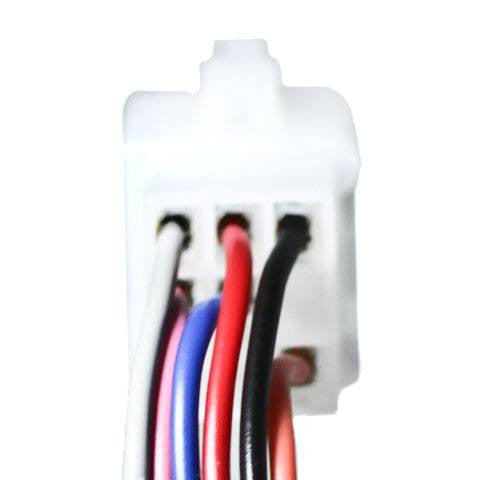

- 9 pin plug with 6 wires [see picture for pin placement and color]: 8cm [3.15"] wire length
- 2 wire plug that plugs into alarm: 7cm [2.75"] wire length
- Beeper alarm speaker with 2 wire plug [plugs into 2 wire plug on box]: 32cm [12.5"] wire length
- Mounting hole distance for alarm speaker: 25mm [1"]
- Push button alarm/kill remote [Lock, unlock, alarm, kill]
Not sure if the working was wrong to the plug and at this point I cannot fix it. But 9nce the bike fired up, this thing started smoking and it blew the main fuse. Unplugged it and changed the fuse, not other problems since.
Easy and very affordable
