Chinese Handlebar Brake Master Cylinder, Caliper, & Hose Assembly

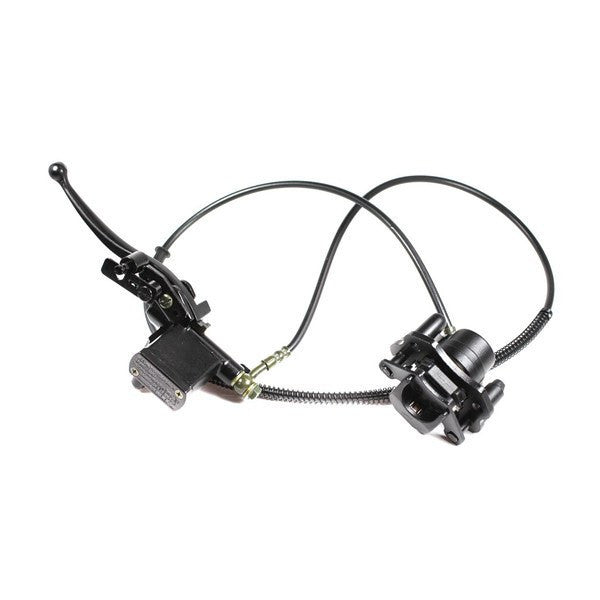

This Chinese rear brake assembly is the replacement part for many Chinese ATVs. This assembly fits many 50cc, 70cc, 90cc, 100cc, 110cc, and 125cc models. The assembly has the left handlebar brake master cylinder, caliper [version 1], and brake line hose.
Master Cylinder description:
- Left side
- Fits 7/8" Handlebar
- Uses DOT3 or DOT 4 brake fluid
Caliper version 1 details:
- Mounting Holes: 2.48" center to center [62.5mm]
- Uses brake pad 4
- See Chinese ATV Rear Disc Brake Caliper Version 1 for more details
Brake hose is approximately 54" long.
SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.
