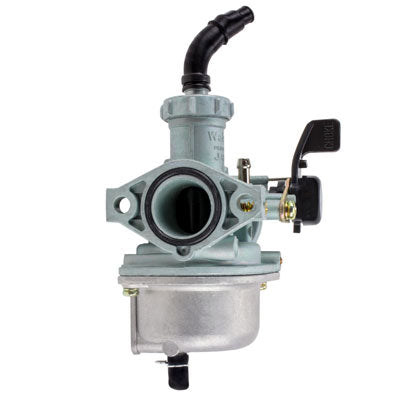

PZ22 Carburetor with Hand Choke on the LEFT side.
This is the carburetor that is used on the Tao Tao Raptor, NEW CHEETAH and NEW TFORCE. Also used on the Rival / Tao Tao Mudhawk 10. This carb has the hand choke on the LEFT side. We also have the same carburetor with the choke on the right side. Please compare with your carburetor before ordering.
Carburetor details:
- Air filter mounting OD is 39mm (1.53 in)
- Intake (air filter) inner diameter is 36mm (1.41 in)
- Bolt hole spacing is 48mm center-to-center (1.89 in)
- Manifold side ID is 22mm (0.87 in)
- Bowl drain is on bottom toward the manifold side
- Hand choke is on the left side
We recommend replacing the fuel filter when replacing carburetor.
Fits the Coleman AT125-EX, AT125-UT and AT125Y atvs.
Fits Coolster 213A, 214, 214FA, 214FC, 214S, M-125 and XR-125.
Fits Tao Tao New Rival Mudhawk 10, Cheetah, New TForce, Raptor and Rex atvs.
Shipping details:
Do you need your carburetor fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
- Item
- parts
- carb
- delivery
- PZ19
- service
- grandsons
- CT70
- Cylinder jug
- furth
United StatesPz22 replacement carb
Installed the item and the bike started right up!! Look no furth, tried using a few eBay carbs with poor results! Highly recommend this carb for Tao Tao 125cc bike
United Statesgreat carburetor for my Chonda
Honda CT70 street legal MC with a Lifan 125cc manual transmission. I was having trouble getting the 125cc motor to run correctly with the carburetor it came with (a PZ19). I measured the intake opening at the head and intake pipe which was around 22mm. I was also able to get this PZ22 with the choke lever on the left side making it east to reach. Runs perfect now. Also the shallower float bowl gave me more clearance from the cylinder jug to the bottom of the carburetor.
United Statestao tao parts
great service and delivery. parts all were really good for what they are and price was awesome. no complaints at all. will definitely use again
United StatesChinese 125 ATV
Very good. I thought when I bought this out of a storage unit. I was sunt when it needed parts. Two orders, two successful parts. Thanks
