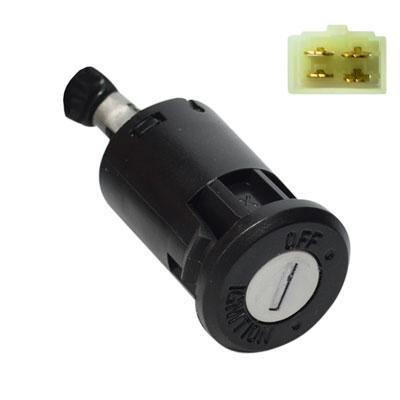

Chinese ATV Ignition Key Switch
This Chinese ignition key switch fits many models of ATVs, dirt bikes, scooters, mopeds, and go karts. See pictures and measurements to best match your switch.
Key switch description:
- 4 wire plug [red, green, black, black/white]
- Pop-in style with two locking tabs
- Fits hole approx. 25.4mm [1"]
- Wire length: 20cm [7.87"]
- Comes with keys
- wire configuration
4 wire ignition switch
Great company to deal with for difficult to find parts .
It worked after I redid
It worked after I redid the wiring in the plug.
It fits nicely. However had to swap wires around to match up to my wire configuration. But other than that, perfect fit and solved my ignition issue.
Good replacement with some help.
The switch works well but is not built as solid as on a Japanese ATV. Can't beat the price though. VMC did not have an exact match for this switch but this one was the closest, only differing by the pin-outs at the connector. By popping the spades out of the connector and re-inserting them in the right order, the switch works perfectly. It would be nice if the product description showed which wires have continuity when the switch is off versus on. For those who want to know, the continuity is as follows: OFF - GRN to BLK/WHT. ON - RED to BLK.
